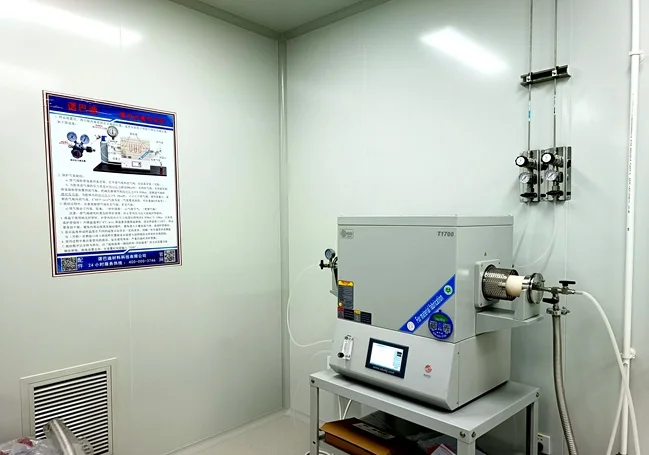

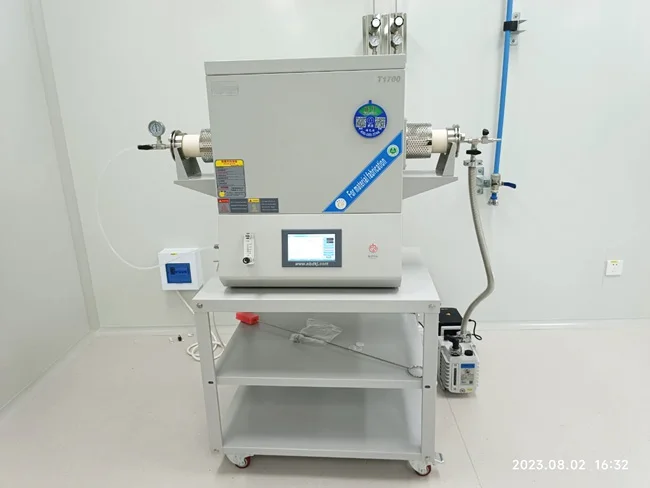

High Temperature Tube Furnace 1700.C

Introduction

This high temparature tube furnace max.temperature up to 1700.C, use corundum tube as the carrier for heating and sealing. Precise and advanced touch screen auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform.
Is widely used for vacuum sintering, vacuum sintering under atmosphere protection, nano materials preparation, battery material preparation and other multiple research fields.

Features and Benefits

1. Max. Temperature 1700C, suggest working temperature 800 -1650.C.
2. High purity alumina(ceramic) tube as furnace tube, with excellent corrosion resistance and high temperature resistance, longer service life.
3. 51 segments programmable and auto control.
4. Intelligent 7”Color Touch screen LCD man-machine English interface temperature controller, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
5. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
6. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
7. By using special lining import from Japan and high-purity MoSi2 heating elements with good corrosion resistance, to ensure excellent heating and long using life.
8. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
9. Come with gas flowmeter, atmosphere sintering more convenient.
10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for labs and production in factory.

Which Kinds of Industry Use This High Temperature Tube Furnace 1700.C?

College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.

Applications

A high-temperature tube furnace capable of reaching temperatures up to 1700°C has a wide range of applications across different industries and research fields. Some specific applications include:

Materials Synthesis

High-temperature tube furnaces are commonly used for the synthesis of advanced materials such as ceramics, metal alloys, and composites. These furnaces provide a controlled environment for reactions to occur at elevated temperatures, allowing for the creation of materials with specific properties.

Heat Treatment

Industries such as aerospace, automotive, and tool manufacturing utilize high-temperature tube furnaces for heat treatment processes. These processes involve heating materials to high temperatures to modify their properties, such as hardness, strength, and microstructure.

Chemical Vapor Deposition (CVD)

High-temperature tube furnaces are integral in CVD processes for depositing thin films of materials onto substrates. This technique is widely used in semiconductor manufacturing, solar cell production, and the fabrication of advanced coatings.

Graphene Production

The synthesis of graphene, a two-dimensional material with exceptional properties, often requires high temperatures. High-temperature tube furnaces enable the controlled growth of graphene layers through processes like chemical vapor deposition (CVD) or annealing of graphene oxide.

Carbonization and Pyrolysis

Industries involved in carbon fiber production, carbon materials, and activated carbon utilize high-temperature tube furnaces for carbonization and pyrolysis processes. These processes involve heating carbonaceous precursors to high temperatures in an inert atmosphere to produce carbon-based materials.

Research and Development

High-temperature tube furnaces are indispensable tools in research and development laboratories across various fields. Researchers use these furnaces to investigate the properties of materials at elevated temperatures, study phase transformations, and develop new synthesis methods.

Catalysis Studies

High-temperature tube furnaces are used to study catalytic reactions at elevated temperatures. Researchers investigate the performance of catalysts under high-temperature conditions to develop more efficient catalytic systems for industrial applications.

Crystal Growth

In materials science and semiconductor industries, high-temperature tube furnaces are used for crystal growth processes. These furnaces provide controlled thermal environments conducive to the growth of single crystals for electronic and optical applications.

Thermal Analysis

High-temperature tube furnaces are used in thermal analysis techniques such as thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC). These techniques involve heating materials under controlled conditions to study their thermal behavior and properties.

Overall, the versatility and high-temperature capabilities of tube furnaces make them essential equipment in various industries, research institutions, and academic laboratories for a wide range of applications related to materials processing, synthesis, and characterization.
