Battery Testing System for Cylindrical and Pouch Cells
The BT-2018C Testing System for Cylindrical and Pouch Cells is designed for battery production enterprises and research institutes’ pilot production lines. The front panel’s four-wire needle fixture can meet the testing needs of over 80% of original batteries (cells). The lower end of the front panel is equipped with...
Application Areas
Used for sampling, testing, and research on individual battery cells, such as square cells, cylindrical cells, polymer cells, etc., in battery production enterprises and battery research institutions.
Key Features

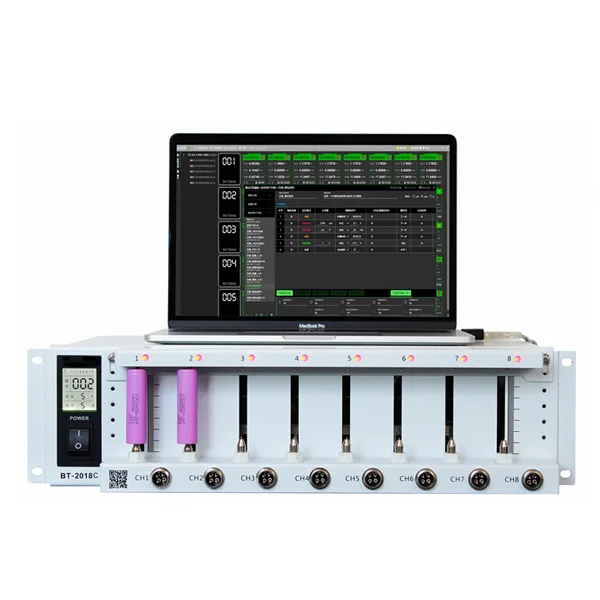

1.The front panel features both four-wire needle fixtures and an aviation plug, catering to the testing needs of the majority of batteries.
2.The front panel includes a 3-inch LCD screen displaying information such as box number, voltage range, current range, communication status, and channel number.
3.It adopts a front-to-back airflow for heat dissipation, with a dedicated air duct to effectively prevent dust from affecting circuit components. The fan is designed with temperature control, significantly reducing overall noise.
Basic Parameters
Test Channels: 8CH per unit, independently controlled
Product Features: Equipped with four-electrode needle fixtures
Charging Voltage: 0V to 5V
Discharge Voltage: 2V or 0V (optional)
Current (adaptive four ranges): 1A, 2A, 3A, 5A, 10A (optional)
Current Accuracy: ±0.05% of FS; Stability: ±0.05% of FS
Voltage Accuracy: ±0.05% of FS; Stability: ±0.05% of FS
System Voltage: AC220V/50Hz; ±50%
Equipment Dimensions: 49cm × 38cm × 13cm(Length × Depth × Height)
Weight: 10kg
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Maximum Current Range | Range Setting | Four Switching Gears |
|---|---|---|
| 1A | 10uA to 1000mA | 1mA – 10mA – 100mA – 1000mA |
| 2A | 20uA to 2000mA | 2mA – 20mA – 200mA – 2000mA |
| 3A | 30uA to 3000mA | 3mA – 30mA – 300mA – 3000mA |
| 5A | 50uA to 5000mA | 5mA – 50mA – 500mA – 5000mA |
| 10A | 100uA to 10000mA | 10mA – 100mA – 1000mA – 10000mA |
Battery Testing System for Cylindrical and Pouch Cells In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
