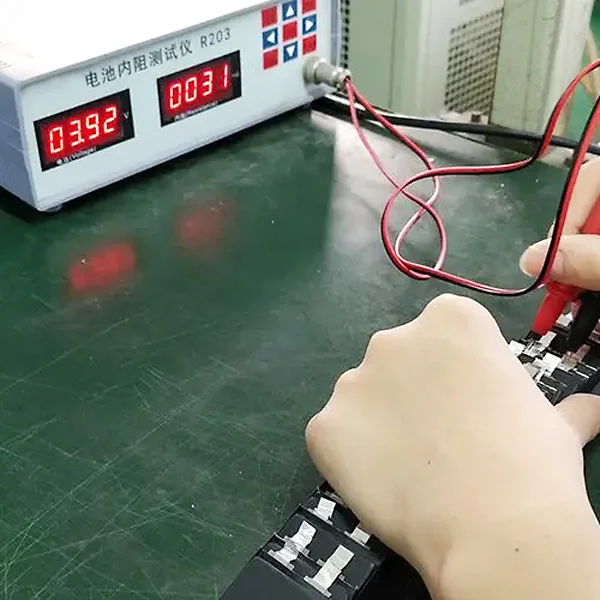

High Accuracy Voltage and Internal Resistance Tester of Battery Cells R203

High Accuracy Voltage and Internal Resistance Tester of Battery Cells R203

R203 Internal Resistance Tester —

The voltage range is 30V, with a minimum resolution of 0.001V (1mV);
The internal resistance range is 2000mΩ, with a minimum resolution of 0.1mΩ.

The internal resistance tester can simultaneously detect the voltage and internal resistance of various types of battery cells; accurately display specific values; Direct switching between test modes; and can set upper and lower limits for voltage and internal resistance, with audible alarm prompts.

Description

Usually the smaller the resistance of a battery or cell, the better its performance. Therefore, testing the internal resistance to determine the quality of batteries and cells is a quick and reliable method. This instrument has an input impedance greater than 100K and adopts a four-wire collection method; it can test the resistance of objects with or without power supply. It has a large range, high accuracy, and simple operation, making it widely applicable to various battery and cell manufacturers; it is also very suitable for battery distributors and end users to conduct incoming inspections of batteries or cells.

Features

AC signal, four-wire testing.

1.The instrument has fast testing speed, with results available in as fast as 0.1 seconds and audible alarm prompts;

2.The voltage digital display is four digits (with voltage displayed to three decimal places, 0.001V resolution, 1mV), and the internal resistance minimum display is to one decimal place, with a resolution of 0.1 mΩ;

3.Audible alarm prompts can be set for voltage and internal resistance ranges (voltage range can be set to three decimal places);

4.Test sampling frequency can be set; forward and reverse tests can be set, and the brightness of the digital display can be adjusted.

5.The instrument can be calibrated without opening the case;

6.The instrument can be upgraded for computer connectivity: (test results can be uploaded to a computer); (optional);

7.Can add external trigger I/O port signal output function; (optional).

Applicable Range

(Various types of batteries and cells with internal resistance between 2-2000 milliohms) Such as: lithium-ion batteries, polymer batteries, nickel-metal hydride, nickel-cadmium batteries, lithium iron phosphate aluminum batteries, small maintenance-free lead-acid batteries, steel shell, aluminum shell cells, soft pack cells, 18650 batteries; [Such as: mobile phone batteries, digital batteries, toys, speakers, and other electronic product batteries, PDA batteries, two-cell battery packs, 2-6 series lithium-polymer battery packs, 2-15 series nickel-metal hydride battery packs, 2-15 series nickel-cadmium battery packs,] and many other types of batteries.

Other：

①. Input Power: 220V±10% / 50Hz

②. Power Consumption: 5-10W

③. Test Speed: 100mS

④. Instrument Size: 250mm(L)*190mm(W)*90mm(H), Weight: 1.5kg

⑤. Equipment Composition: Host, power cord, operation manual (including warranty card), , test pens(Four-wire elastic probe test pen).

Note: Test clip fixtures(optional):
