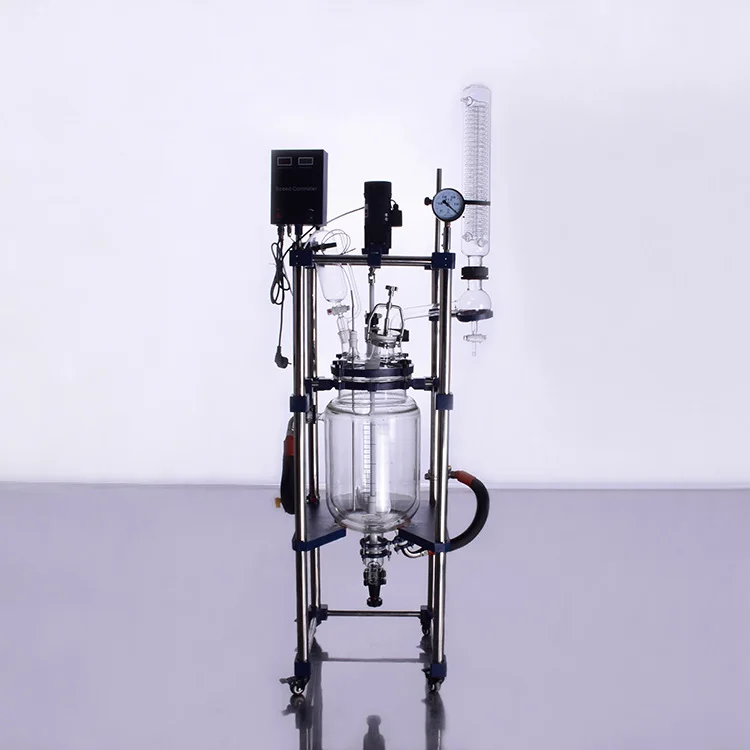

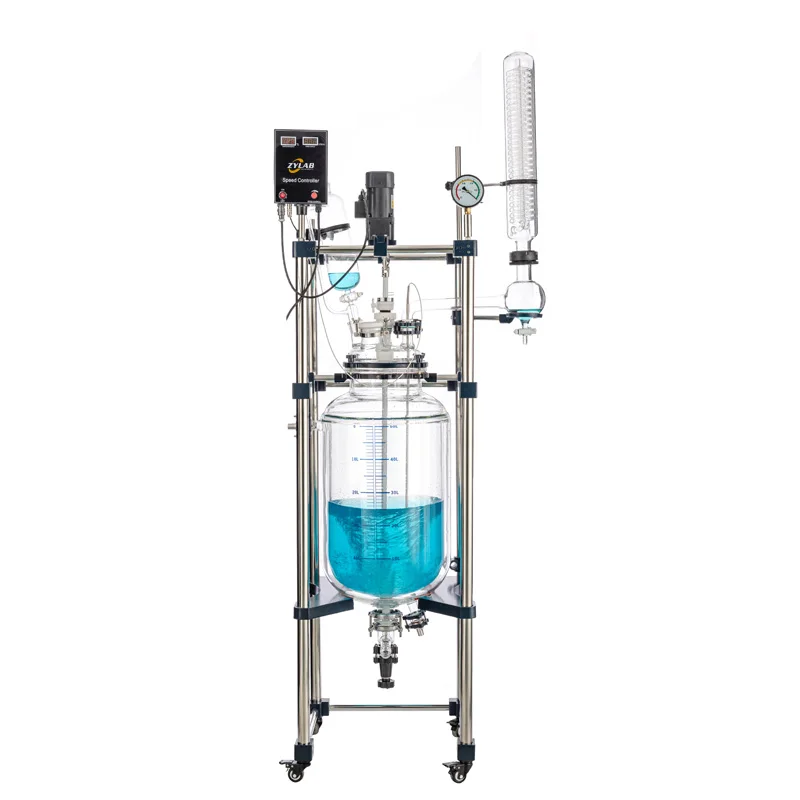

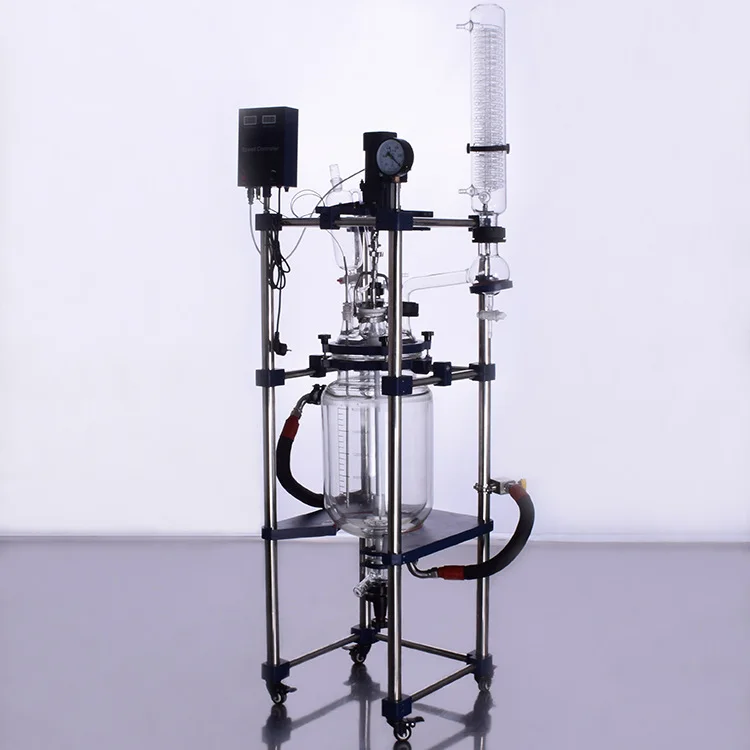

Pilot 10-100L Dual Jacketed Glass Reactor
This series Dual Jacketed Glass Reactor is reagents are set in the inner layer of double-layer glass reaction kettle, at the same time, vacuum can be vacuumed out and mixing speed be adjusted. Inter layer can lead in refrigerating fluid, water and high temperature liquid to heat and cool the materials. It can be used...
Introduction
This series Dual Jacketed Glass Reactor is reagents are set in the inner layer of double-layer glass reaction kettle, at the same time, vacuum can be vacuumed out and mixing speed be adjusted. Inter layer can lead in refrigerating fluid, water and high temperature liquid to heat and cool the materials. It can be used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. The products can be made into system devices with multi-purpose circulating water vacuum pump, diaphragm vacuum pump, low temperature circulating pump (vacuum), circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and closed cooling and heating circulating equipment.
Main Features
●High borosilicate glass(3.3) has good physical and chemical properties, provide excellent resistance to chemical attack and corrosion as well as transparency for optimum visual observation.
●Can be used in wide temperature range from high temperature (200.C) to low temperature(-80.C).
●Can work in constant pressure and vacuum, vacuum degree is below 0.095MPa in stationary.
●Digital display of mixing speed, frequency conversion, and constant speed mixing system, work steadily.

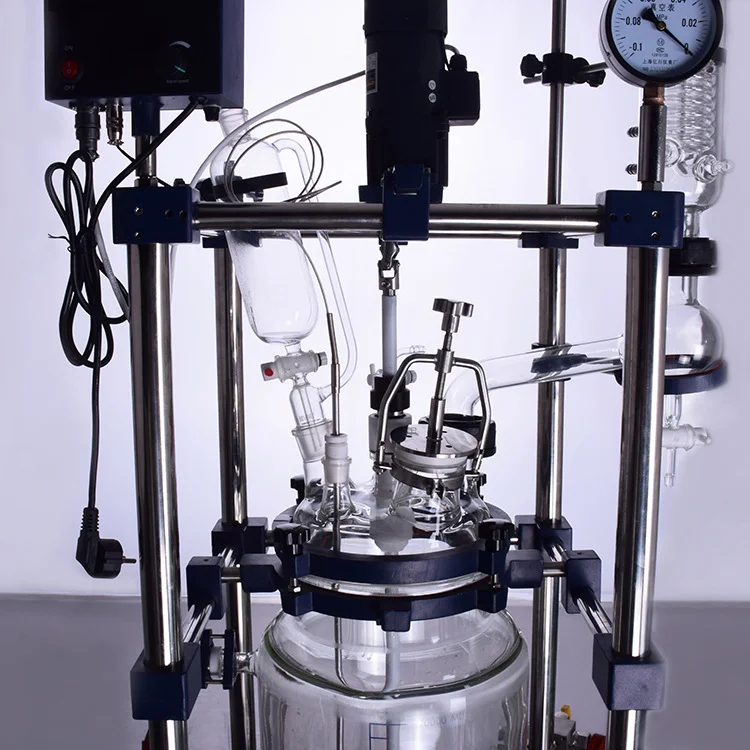

●The sealing method and materials between mixer shaft, PTFE mixing propeller.

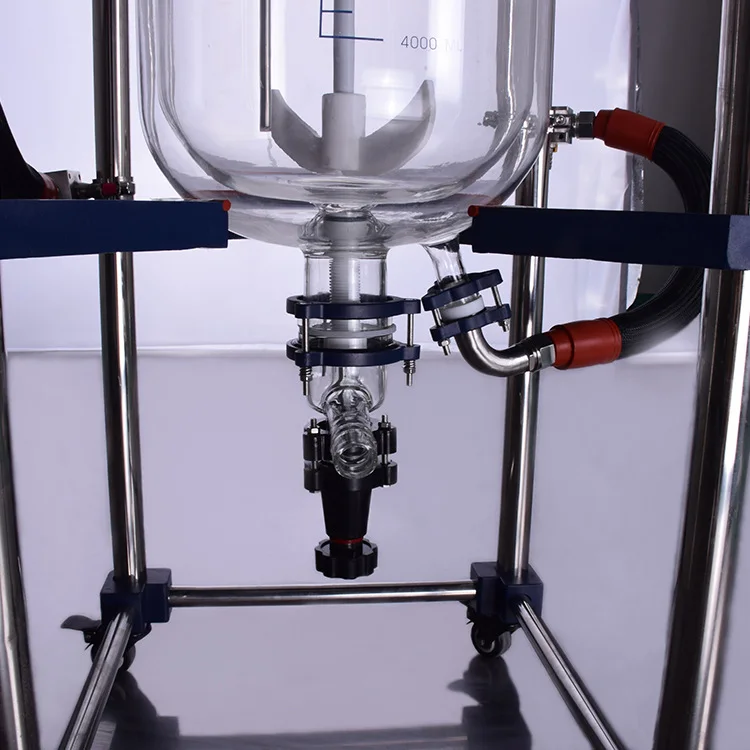

●Corrosion resistant discharge valve is without dead space design.
●The cooling or heating solution in the inter layer can be completely removed after reaction.
● Easily visual operation with digital speed and temperature displays.
● Heavy duty stainless steel supporting framework with lockable casters for mobility and stability.
Which Kinds of Industry Can Use This Dual Jacketed Glass Reactor?
Used in university laboratories for heating/cooling reaction materials, experimental synthesis, catalysis, or other chemical reactions under inert gas conditions.
Used in energy for fuel cells, catalytic reactions, filtration and washing, etc.
In biomedicine, it is used for chemical synthesis, reflux, distillation, concentration, crystallization, extraction, etc., and can be used in conjunction with a constant temperature circulator.
Used in cosmetics for material dispersion, emulsification, homogenization, mixing, extraction, etc.
Used for solvent recovery, single component distillation, multi-component distillation, distillation purification, or chemical synthesis in petrochemical industry
Applications of This Dual Jacketed Glass Reactor
Mainly for chemical synthesis, drying, stirring, dissolving, mixing, etc.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | JR-10 | JR-20 | JR-30 | JR-50 | JR-80 | JR-100 |
|---|---|---|---|---|---|---|
| Reaction Vessel Capacity | 10L | 20L | 30L | 50L | 80L | 100L |
| Glass Material | High borosilicate glass 3.3 | |||||
| Rotation Controller | Digital controller with variable frequency drive Rotation speed: 50 to 500 rpm | |||||
| Agitator | Anchor design, type-304 stainless steel reinforced PTFE structure | |||||
| Condenser | Dual-cooling coil design | |||||
| Funnel | Pressure equalizing | |||||
| Vacuum sealing | PTFE | |||||
| Electrical requirements | 220V 50/60Hz |
