High Purity Round Magnesium Oxide Crucible | MgO Crucible for Laboratory Use
ZYLAB Round Magnesium Oxide Crucibles are crafted from ≥99% high-purity MgO (Magnesium Oxide), ensuring excellent performance in high-temperature and corrosive environments. These crucibles offer outstanding thermal stability, chemical resistance, and electrical insulation, making them ideal for various laboratory and...
Product Details
ZYLAB Round Magnesium Oxide Crucibles are crafted from ≥99% high-purity MgO (Magnesium Oxide), ensuring excellent performance in high-temperature and corrosive environments. These crucibles offer outstanding thermal stability, chemical resistance, and electrical insulation, making them ideal for various laboratory and industrial applications.
The round shape provides uniform heat distribution and makes them suitable for metal melting, ceramic sintering, and material calcination in vacuum or inert gas atmospheres. With superior resistance to molten metals and slags, ZYLAB MgO crucibles are widely used in metallurgy, chemical analysis, rare earth processing, and high-purity material research.
Material: High Purity Magnesium Oxide (MgO)
Purity: ≥99%
Shape: Round, with or without Lid
Max Working Temperature: Up to 2000°C (in vacuum or inert atmosphere)
Thermal Shock Resistance: Excellent performance under rapid heating and cooling cycles
Chemical Resistance: Inert to most acids, alkalis, and molten metals
Electrical Insulation: Superior dielectric properties at high temperatures
For more information, custom orders, or technical support, please contact us.
Applications
- High-temperature metal melting and casting
- Ceramic and glass sintering processes
- Rare earth material and special alloy processing
- Chemical analysis in laboratories
- Crystal growth and material research
- Thermal treatment in vacuum or controlled atmosphere furnaces
Why Choose ZYLAB Magnesium Oxide Crucible?
- High Purity Raw Material guarantees minimal contamination for sensitive experiments
- Excellent High-Temperature Stability supports reliable use up to 2000°C
- Custom Sizes Available for different laboratory and industrial applications
- Technical Support for customized crucible design and application consultation
More Laboratory Crucibles
Ceramic Crucible For Lab Muffle Furnace
High-purity Alumina (Al2O3) Crucible for Tube Furnace
High Purity Boron Nitride (BN) Crucible
Click to view the comparison of laboratory crucibles, including quartz, magnesium oxide, boron nitride, and graphite crucibles, to help you choose the right one for your experimental needs.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| ZYLAB Round MgO Crucible (UoM：mm) | |||
|---|---|---|---|

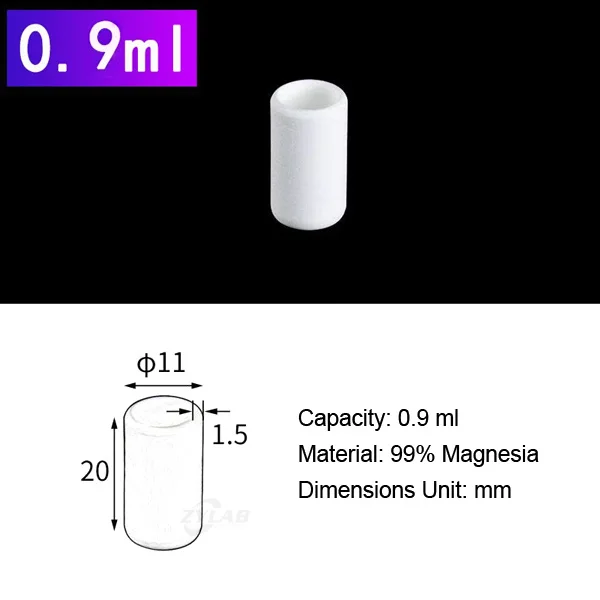

| 0.9ml (φ11×20) | 1ml (φ13×25) | 4.5ml (φ18×32) | 4ml (φ18×40) |
| 7ml (φ18×50) | 7ml (φ20×50) | 7ml (φ25×28) | 10ml (φ27×32) |

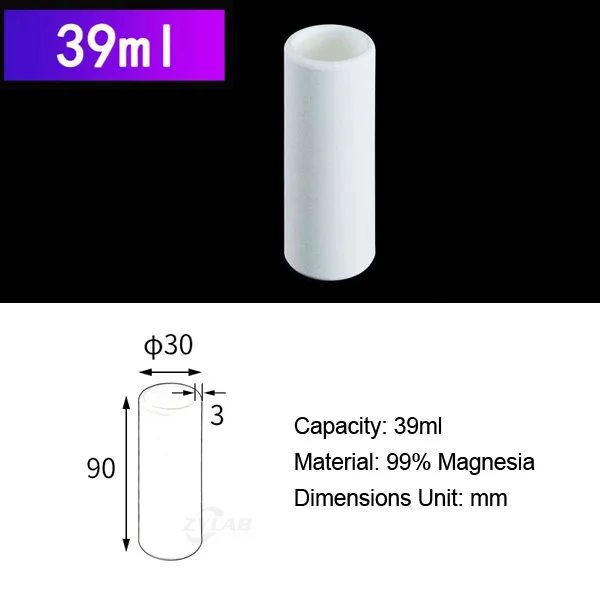

| 17ml (φ27×60) | 12ml (φ28×35) | 14ml (φ30×35) | 39ml (φ30×90) |
| 18ml (φ33×35) | 29ml (φ33×55) | 34ml (φ35×55) | 36ml (φ40×50) |
| 51ml (φ40×60) | 56ml (φ40×70) | 73ml (φ40×90) | 99ml (φ40×118) |
| 70ml (φ43×73) | 73ml (φ45×78) | 62ml (φ48×60) | 107ml (φ48×100) |
| 56ml (φ50×50) | 105ml (φ50×80) | 106ml (φ50×100) | 155ml (φ53×112) |
| 115ml (φ57×72) | 130ml (φ60×72) | 186ml (φ60×100) | 295ml (φ60×150) |
| 240ml (φ62×120) | 297ml (φ63×140) | 325ml (φ70×140) | 280ml (φ73×100) |

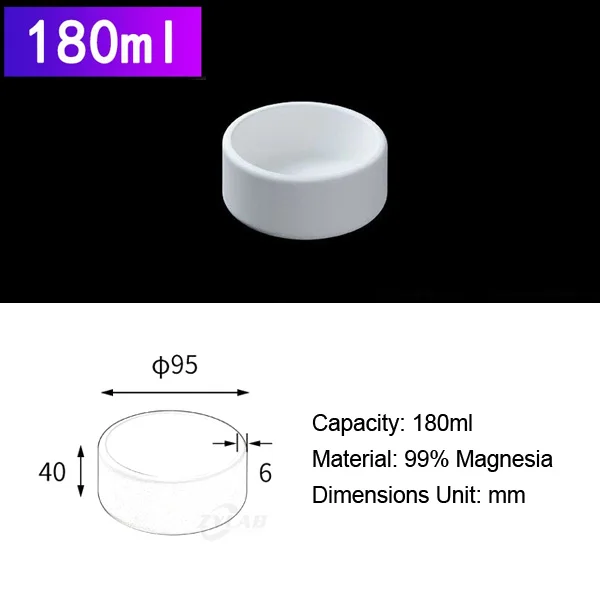

| 360ml (φ80×100) | 180ml (φ95×40) | 324ml (φ95×70) | 505ml (φ95×100) |
| 1470ml (φ120×160) | 1415ml (φ210×60) |
