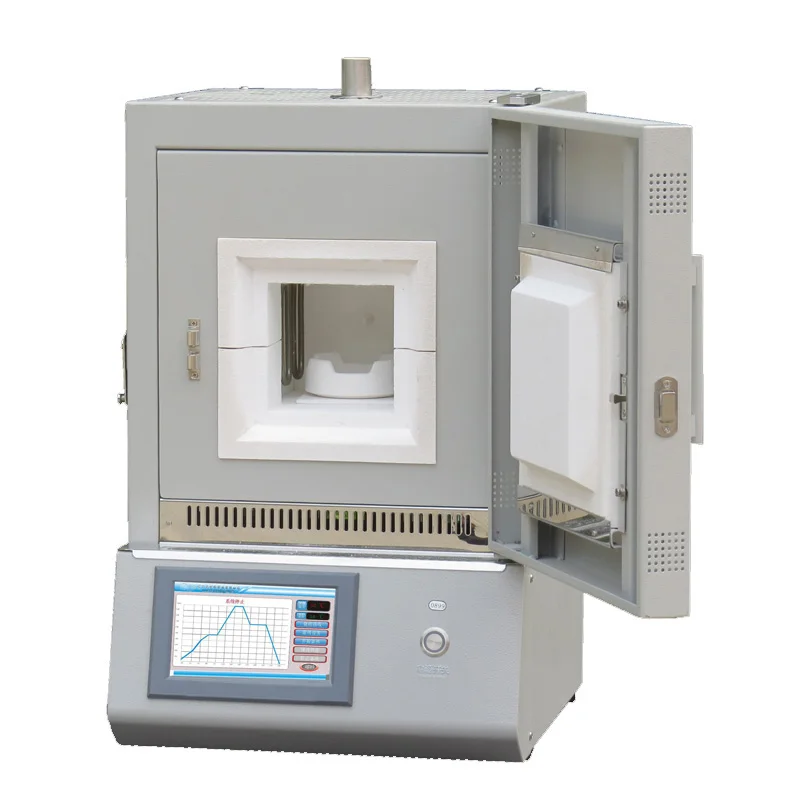

Small 1700.C High Temperature Muffle Furnace
Highlight Intelligent touch screen controller; Top quality furnace lining and high purity MoSi2 heating element； Vacuum formed ceramic fiber furnace chamber; Come with vent hole; Double layers steel casing with fan cooling; Perfect for material research

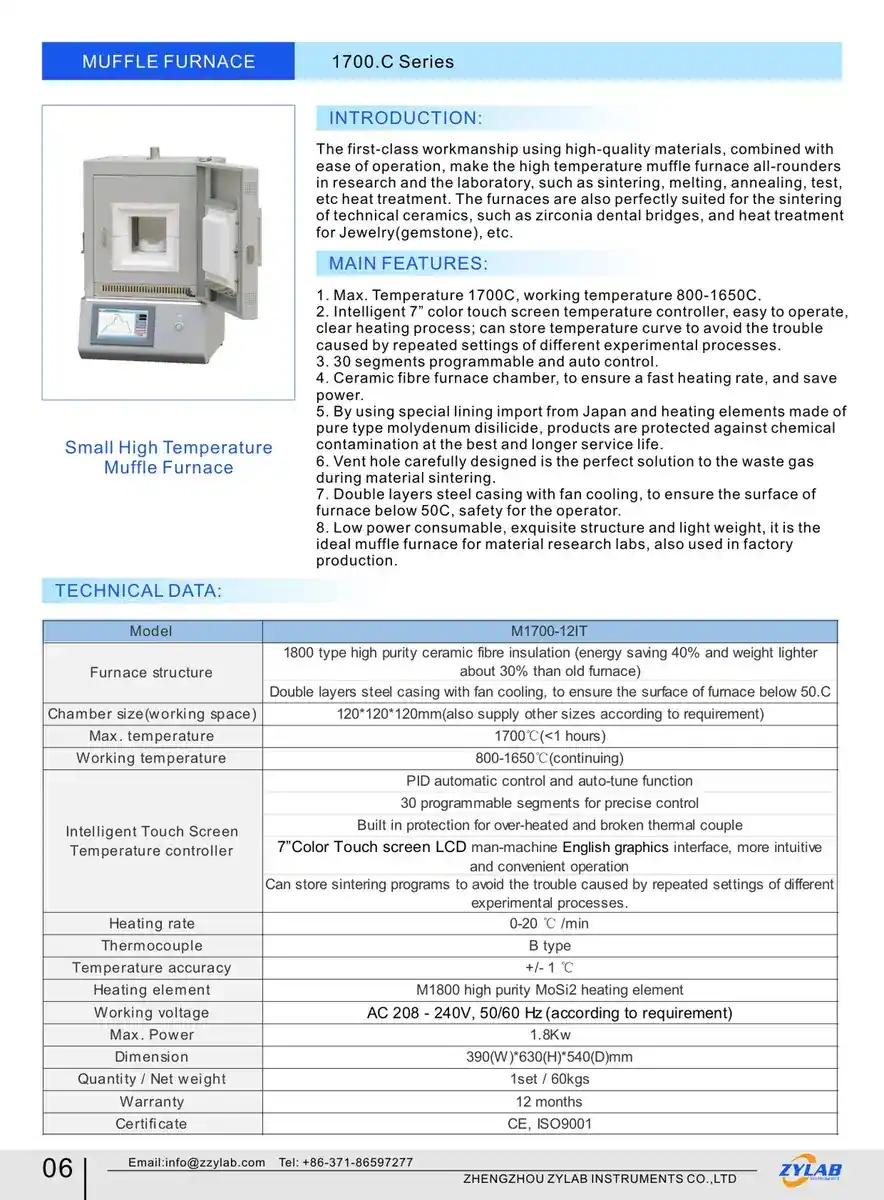

Introduction
The first-class workmanship using high-quality materials, combined with ease of operation, make the high temperature muffle furnace all-rounders in research and the laboratory, such as sintering, melting, annealing, test, etc heat treatment. The furnaces are also perfectly suited for the sintering of technical ceramics, such as zirconia dental bridges, and heat treatment for Jewelry(gemstone), etc.
Main Features
1. Max. Temperature 1700C, working temperature 800-1650C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 51 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and heating elements made of pure type molydenum disilicide, products are protected against chemical contamination at the best and longer service life.

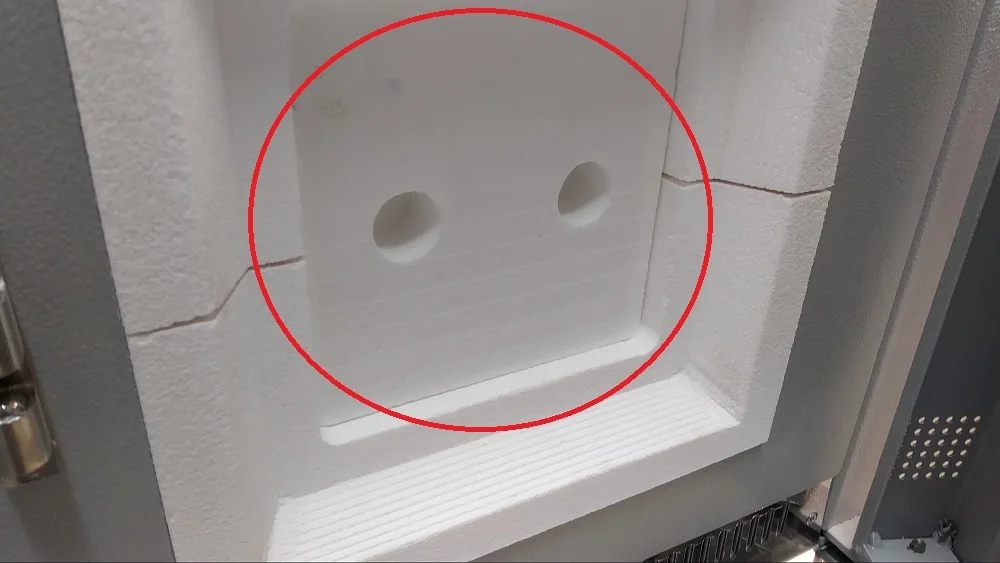

6. Vent device carefully designed is the perfect solution to the waste gas during material sintering.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
8. Low power consumable, exquisite structure and light weight, it is the ideal high temperature muffle furnace for material research labs, also used in factory production.
Which Kinds of Industry Can Use This High Temperature Muffle Furnace?
College & Universities, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic etc.
Applications
Used in university laboratories, research institutes, and industrial & mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
For heat working or treatment of small workpieces in cement and building materials industries.
In the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
Used in the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis. It can also be used as a universal ashing furnace.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1700-12IT |
|---|---|
| Furnace structure | •1800 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size (working space) | 120*120*120mm(1.7L) |
| Max. temperature | 1700.C(<1 hours) |
| Working temperature | 1650.C(continuing) |
| Intelligent Touch Screen Temperature controller | •PID automatic control and auto-tune function. •51 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. •Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 0-20 ℃ /min |
| Thermocouple | B type |
| Temperature accuracy | +/- 1 ℃ |
| Heating element | M1800 high purity MoSi2 heating element |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 1.8Kw |
| Dimension | 390(W)*630(H)*540(D)mm |
| Quantity / Net weight | 1set / 60kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
Small 1700.C High Temperature Muffle Furnace In Detail
