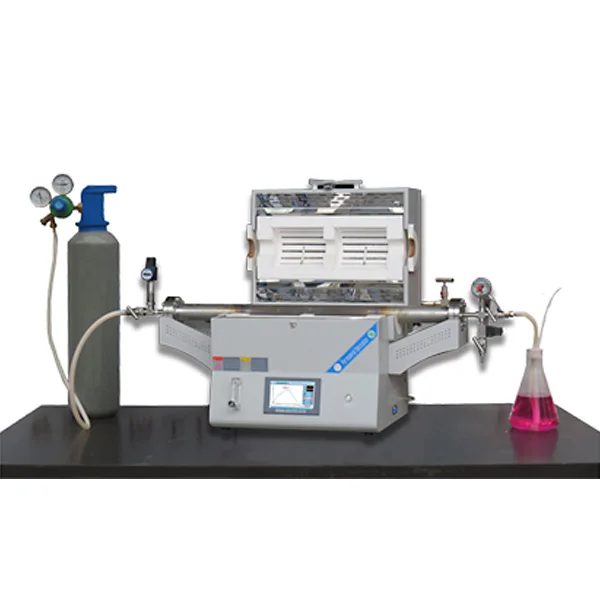

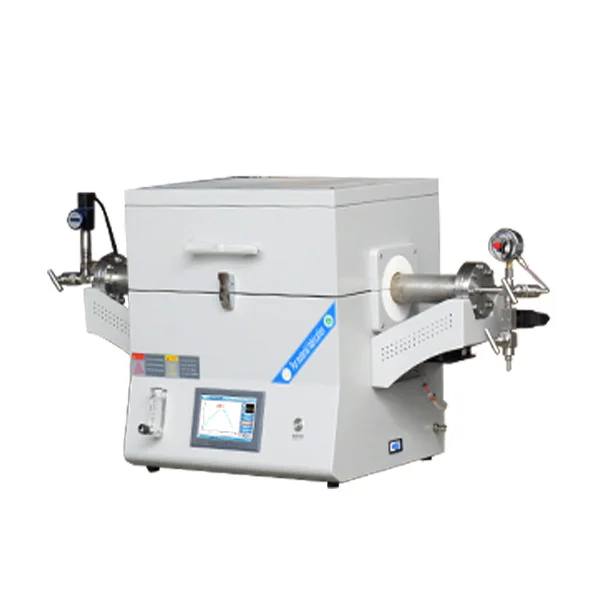

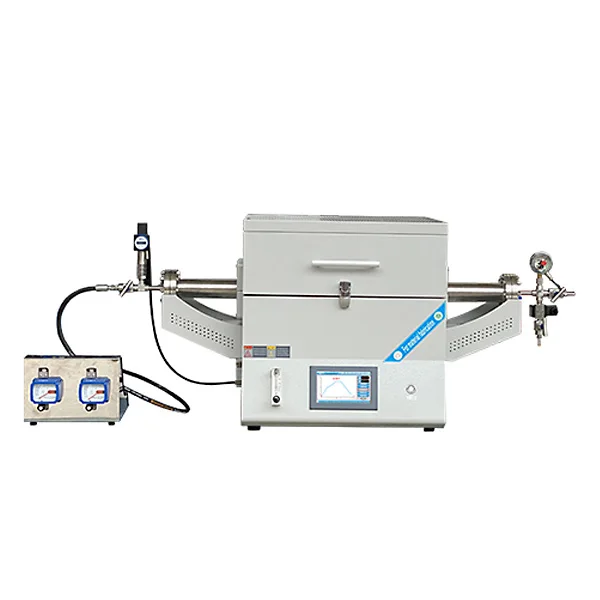

Laboratory Dual-Zone High-Pressure Tube Furnace
The HP1200 Dual-Zone High-Temperature High-Pressure Tube Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure inside the chamber exceeds the set value, the solenoid...
Introduction
The HP1200 Dual-Zone High-Temperature High-Pressure Tube Furnace is equipped with a high-pressure solenoid valve, pressure sensor, and analog safety protection on the flanges. With up to triple safety protection, you can work with peace of mind. When the pressure inside the chamber exceeds the set value, the solenoid pressure release valve automatically opens to vent the gas, maintaining the pressure inside the tube at the desired level. This furnace can perform heat treatment on samples in high-pressure gas environments, with a maximum temperature of 1150°C. It is ideal for research on superconducting and dielectric materials.
Features and Benefits of Dual-Zone High-Pressure Tube Furnace
- Triple safety protection ensure peace of mind during operation.
- High quality circular heater ensures uniform temperature distribution.
- Modular design for durability and ease of maintenance.
- Stabilized pressure setting for safety and reliability.
- Simple one-touch operation with 15 pre-stored work curves for flexible use.
- Real-time monitoring of sintering temperature and power consumption, ensuring safety and energy savings.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | HP1200 (ID 36mm, OD60mm) | |
|---|---|---|
| Tmax | 1200°C | |
| Power Supply | AC220V 50HZ | |
| Temperature Control Accuracy | ±1°C | |
| Rated Power | 4.0KW | |
| Sensor | K-type thermocouple | |
| Continuous Working Temperature | 300~1100°C | |
| Tube Size | 60 × 1030 mm | |
| Dimensions | L1300 × D550 × H610 mm | |
| Heating Rate | 1°C/hr – 20°C/min | |
| Temperature and Pressure Allowance | The maximum allowable pressure varies with temperature, as shown below: Furnace Temperature | Max Pressure in Chamber |
| 0- 600°C | ≤ 7MPa | |
| 600-800°C | ≤ 6MPa | |
| 800- 900°C | ≤ 3MPa | |
| 900- 1000°C | ≤ 1MPa |
Laboratory Dual-Zone High-Pressure Tube Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
