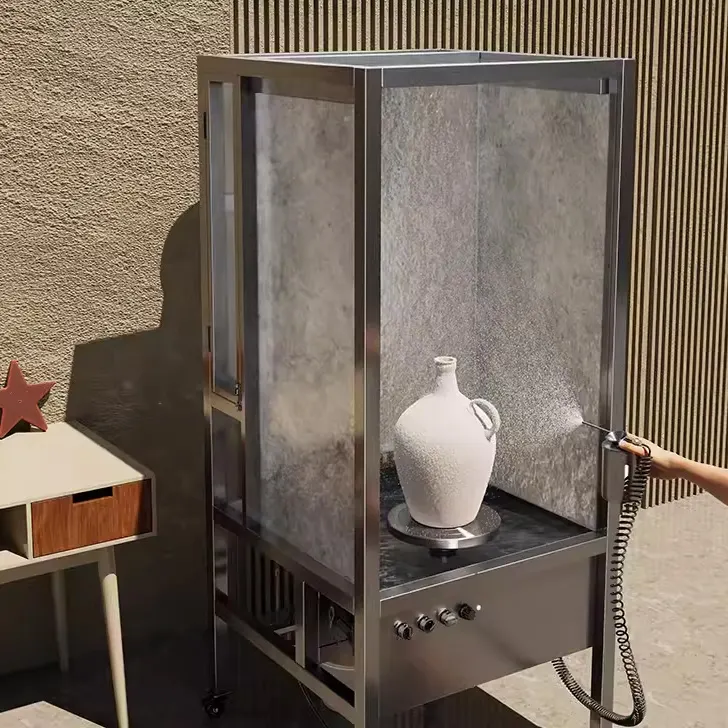

Ceramic Glazing Equipment
The Ceramic Glazing Equipment adopts an intelligent cleaning system with a water curtain for efficient dust removal during glaze spraying. When glazing begins, the water curtain activates, seamlessly integrating the sprayed glaze with water. This integration not only reduces air pollution but also minimizes potential...
Introduction
The Ceramic Glazing Equipment adopts an intelligent cleaning system with a water curtain for efficient dust removal during glaze spraying. When glazing begins, the water curtain activates, seamlessly integrating the sprayed glaze with water. This integration not only reduces air pollution but also minimizes potential harm to the respiratory system and lungs.
This Ceramic Glazing Equipment is designed to enhance efficiency, reduce environmental impact, and provide a reliable solution for glazing applications in the ceramic industry.
Main Features of Ceramic Glazing
- Stainless Steel Construction: The equipment features a robust stainless-steel frame and tabletop, providing durability, rust resistance, and easy cleaning. This design facilitates the efficient collection and reuse of atomized glaze water.
- Powerful Ventilation: A sturdy exhaust fan ensures powerful ventilation. The unique duct design swiftly filters out glaze dust from the air, maintaining a clean working environment.
- High-Power Motor: The equipment is equipped with a high-power motor adhering to national standards, ensuring a continuous and stable power output for consistent performance.
- Aluminum Alloy Turntable: The turntable is made of high-quality aluminum alloy, offering a bright, smooth surface that resists rust. This design prevents secondary contamination of glaze material during operation.
- Cast Iron Main Shaft: The fully cast iron main shaft ensures smooth and stable operation at high speeds, eliminating any unwanted shaking during use.
- Pressure-Resistant Universal Wheels: Equipped with pressure-resistant universal wheels, the equipment allows for a 360° rotation and easy changes in direction. Additionally, it includes a brake fixation device for enhanced stability.

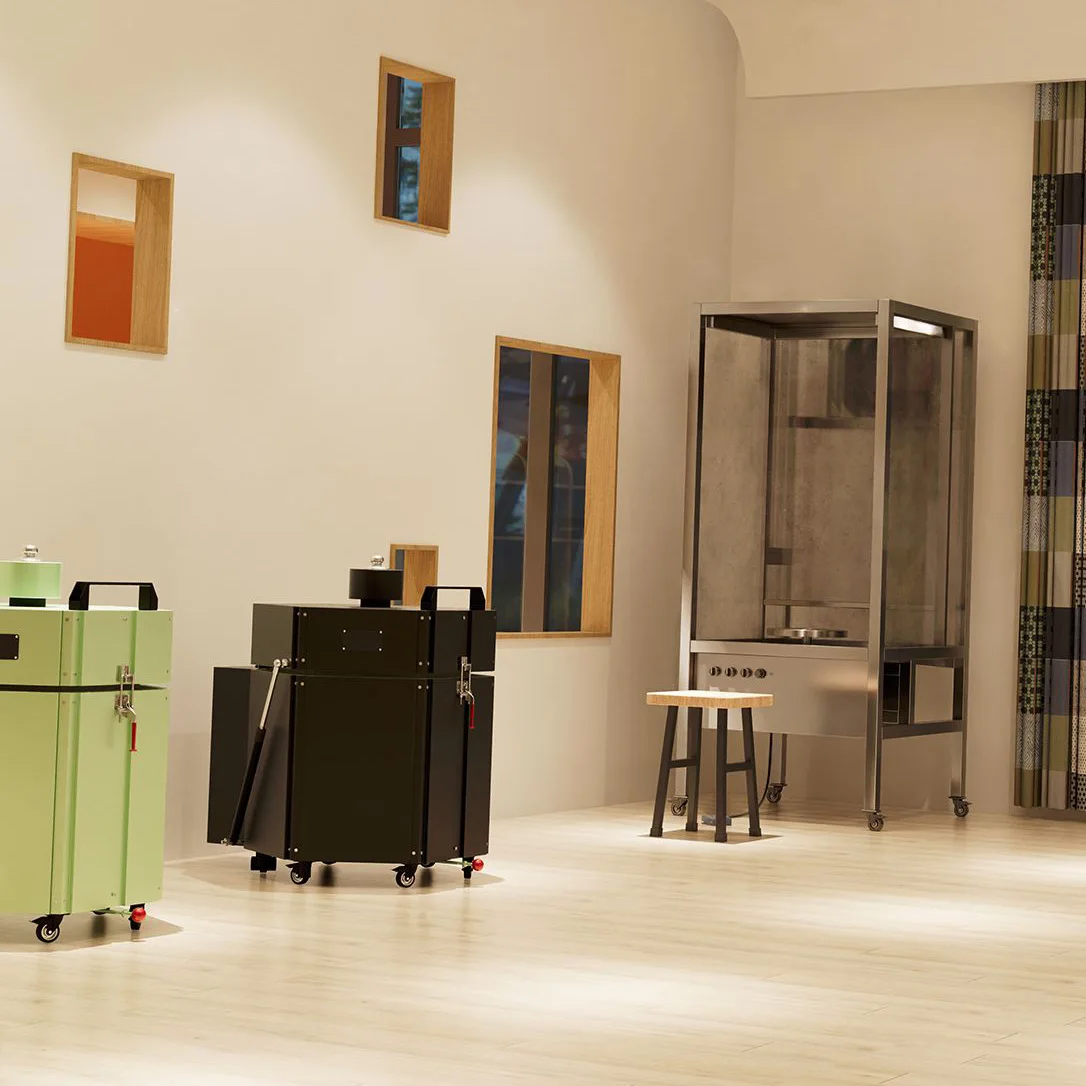

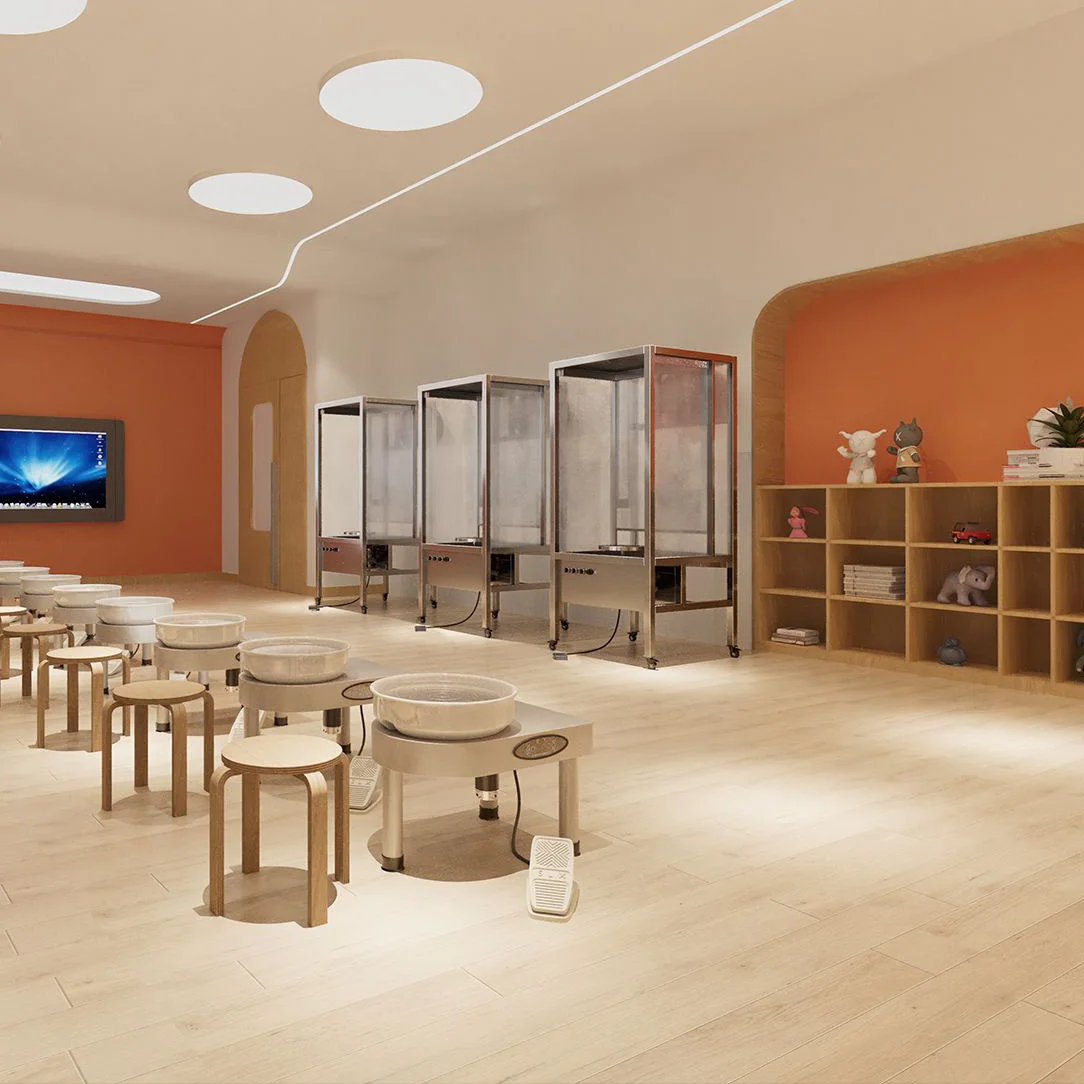

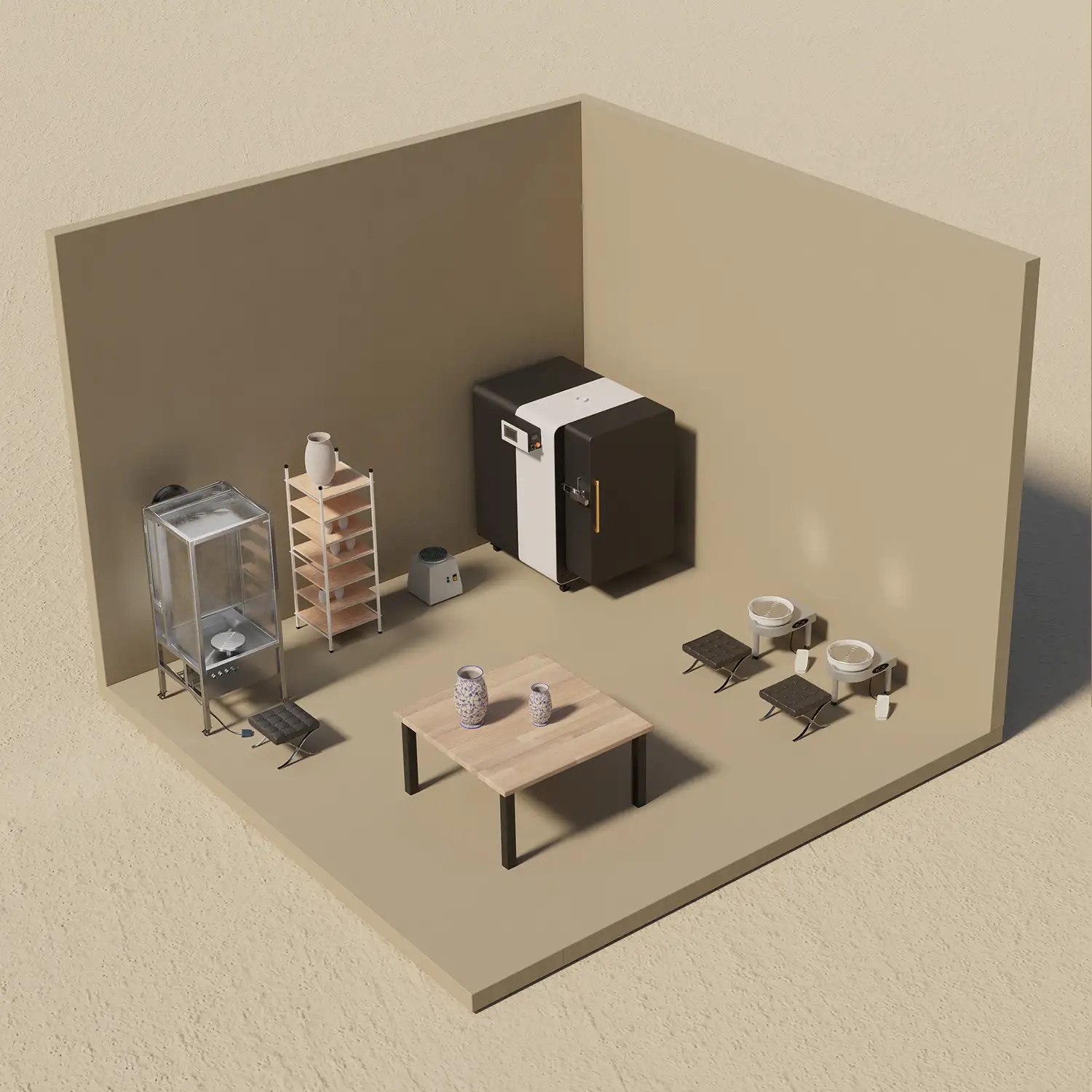

Fields
Art Colleges
Ceramic Studios
Art Studio
Personal Hobby Studio
Ceramic Workshops
Education and Training
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Product Name | Ceramic Glazing Equipment | Model | PYG-01 |
|---|---|---|---|
| Rated Voltage | AC220V | Turntable Material | Aluminum Alloy |
| Motor Power | 300W | Turntable Size | Diameter 26cm |
| Motor Speed | 1500 rpm | Water Pump Power | 550W |
| Fan Airflow | 2000m³/H | Fan Speed | 1450r/min |
| Fan Power | 5PA | Fan Power | 250W |
| Speed Control Method | Electric Micro-adjustment | Dimensions | 72*78*172cm |
Ceramic Glazing Equipment In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
80L Top Loading Pottery Kiln with Full Ring Firing | High-Temperature Ceramic Kiln
Smart 60L Top-Loading Full Ring Electric Kiln for Ceramic Firing
Smart 30L Compact Home Pottery Kiln | Top-Loading, Full Ring Firing Design
150L 1300°C Intelligent Front-Loading Pottery Kiln
84L 1300°C Intelligent Pottery Kiln for Ceramic Studios
Reusable Ceramic Jewelry Hanging Firing Rack
High Strength Refractory Silicon Carbide Kiln Shelves
Transparent Glaze
Ordering Ceramic Glazing Equipment
What is Ceramic Glazing Equipment typically used for?
The Ceramic Glazing Equipment adopts an intelligent cleaning system with a water curtain for efficient dust removal during glaze spraying. When glazing begins, the water curtain activates, seamlessly integrating the sprayed glaze with water. This integration n
Can Ceramic Glazing Equipment be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Ceramic Glazing Equipment?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Ceramic Glazing Equipment?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Ceramic Glazing Equipment packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For Ceramic Glazing Equipment
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
