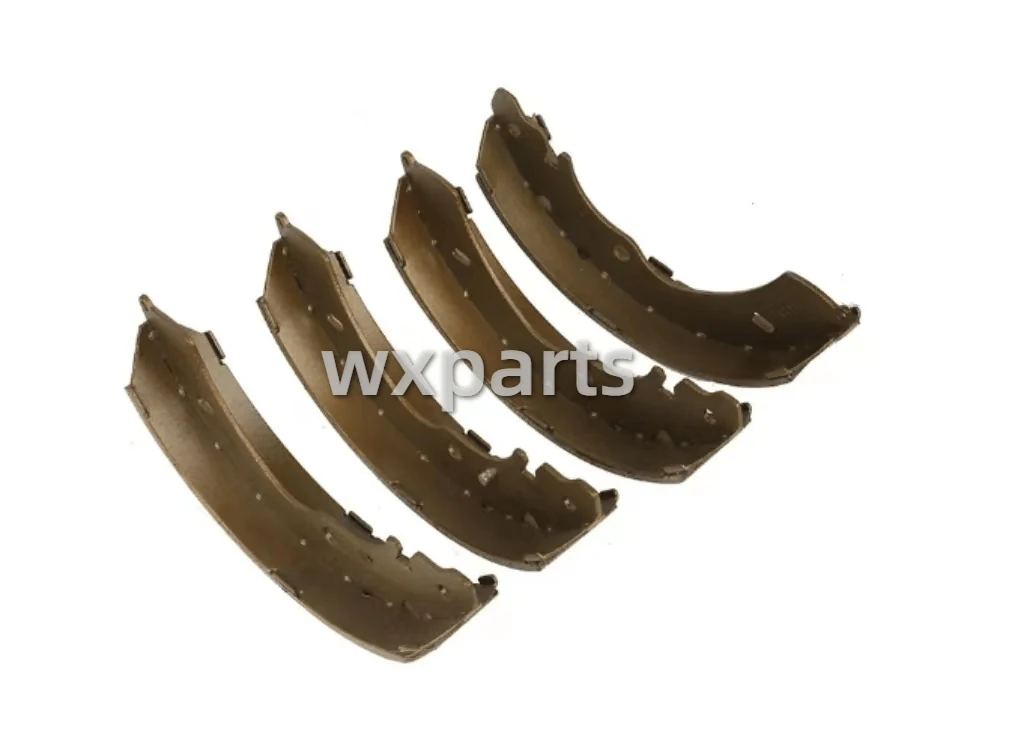

ISUZU DMAX 4X2 Rear Brake Shoes 8973026350
ISUZU DMAX 4X2 Rear Brake Shoes 8973026350 is supplied against OEM reference 8973026350 for ISUZU DMAX 4X2.
Brake Shoes for ISUZU DMAX 4X2
ISUZU DMAX 4X2 Rear Brake Shoes 8973026350 is supplied against OEM reference 8973026350 for ISUZU DMAX 4X2. Brake shoes press outwards against the inside of a drum, and because a drum brake is self-energising, lining thickness and arc contact decide how evenly a loaded pickup or light truck pulls up. Our rear brake shoes are made of high-quality materials, which have excellent braking effect and wear resistance, high quality and long service life. The minimum order is one piece, packed neutral or under your own brand, with ISO9001 certification.
- OEM 8973026350
- Category: Chassis System Parts
- ISO9001
- MOQ 1 piece
What You Get With This Reference
- Supplied as an axle set so both sides are replaced together
- Single set minimum order
- Listed against OEM reference 8973026350 so the part is confirmed before it is packed
Why Buyers Order It
- Vehicles carrying heavy loads wear rear linings much faster than the service book allows
- Workshops need axle sets, not bulk cartons
- Shoes for 4x2 and 4x4 versions of the same pickup can differ in width and lining arc
- Finding this reference for ISUZU DMAX 4X2 locally often means a long wait or a used part of unknown history.
Where This Part Is Used and Who Buys It
Application Scenarios
- Repairing handbrake performance on a loaded light truck
- Parts shop stock for common pickup drums
- Rear brake service on a pickup fleet
Who It Is For
- Fleet workshops maintaining ISUZU DMAX 4X2
- Truck repair shops handling clutch, brake and steering work
- Aftermarket parts distributors building a pickup and light truck range
- Traders consolidating mixed parts orders from Yiwu
Technical Data From the Product Record
| OEM No. | 8973026350 |
|---|---|
| Engine Model | 4JH1 |
| Size | 22.2*5*9.7 |
| Matched Model | ISUZU DMAX 4X2 |
| Place of Origin | China |
| MOQ | 1 Pc |
| Certification | ISO9001 |
| Packing | Neutral or custom packaging |
Only values recorded against this reference are listed. Send the number from your old part if you need a dimension that is not shown.
What the Part Is Built To Do
- Shoe web punched to the original anchor pattern
- Riveted or bonded lining following the OEM design
- Packed as an axle set
- Engine Model: 4JH1
- Size: 22.2*5*9.7
- Lining arc matched to the listed drum diameter
Symptoms That Point Here
- Pulling to one side under braking
- Handbrake travel getting longer between adjustments
- Squeal and dust when the drum comes off
- Lining worn down to the rivets
How It Compares With the Alternatives
Compared with relining the old shoes
Relining is only economic where the shoe webs are true and the workshop has a bonding press.
Compared with replacing one side only
One new side and one worn side makes the vehicle pull under braking.
Fitting and Service Notes
- Replace both sides of an axle at the same time.
- Clean and grease the backing plate contact points, keeping grease off the lining.
- Adjust the shoes and then set handbrake travel, and re-check after bedding in.
- Measure the drum internal diameter before fitting; a worn oversize drum needs the lining arc checked.
Parts Usually Ordered With It
MITSUBISHI L200 Rear Brake Shoes MB618782
View details →
ISUZU NPR Rear Differential 8973675041 8973631010
View details →
TOYOTA HILUX VIGO 5L 2KD Differential 41110-0K061
View details →
ISUZU DMAX 2WD power Steering Rack 8979435201
View details →
HYUNDAI ELANTRA Steering Rack 57700-2D000
View details →Guides for This Kind of Job
How To Read and Verify an OEM Number Before You Order
Most wrong-part shipments start with an order placed on a vehicle name. This guide shows where the number is, how to read it and what to send a supplier.
Read →Product GuideChoosing Brake Pads and Shoes for Commuter and Delivery Motorcycles
Why the caliper, the load and the climate matter more than the price per set when a bike works every day.
Read →ChecklistA Parts Checklist for a Light Truck Diesel Engine Rebuild
The references a workshop should have on the bench before an engine comes apart, so the job is not held up halfway.
Read → IndustryTruck and Pickup Fleet Workshops
A fleet workshop is measured on how quickly a vehicle returns to work, so parts availability matters more than list price.
Read →Questions About ISUZU DMAX 4X2 Rear Brake Shoes 8973026350
Which vehicles does 8973026350 fit?
Is this an axle set or a single shoe?
Will these fit a 4x4 version?
Can you pack them under our own brand?
What is the minimum order and how is it packed?
Need This Part Confirmed For Your Vehicle
Send the OEM number, the engine code or a photograph of the old part. The reference and the matched models are confirmed in writing before you pay anything.
