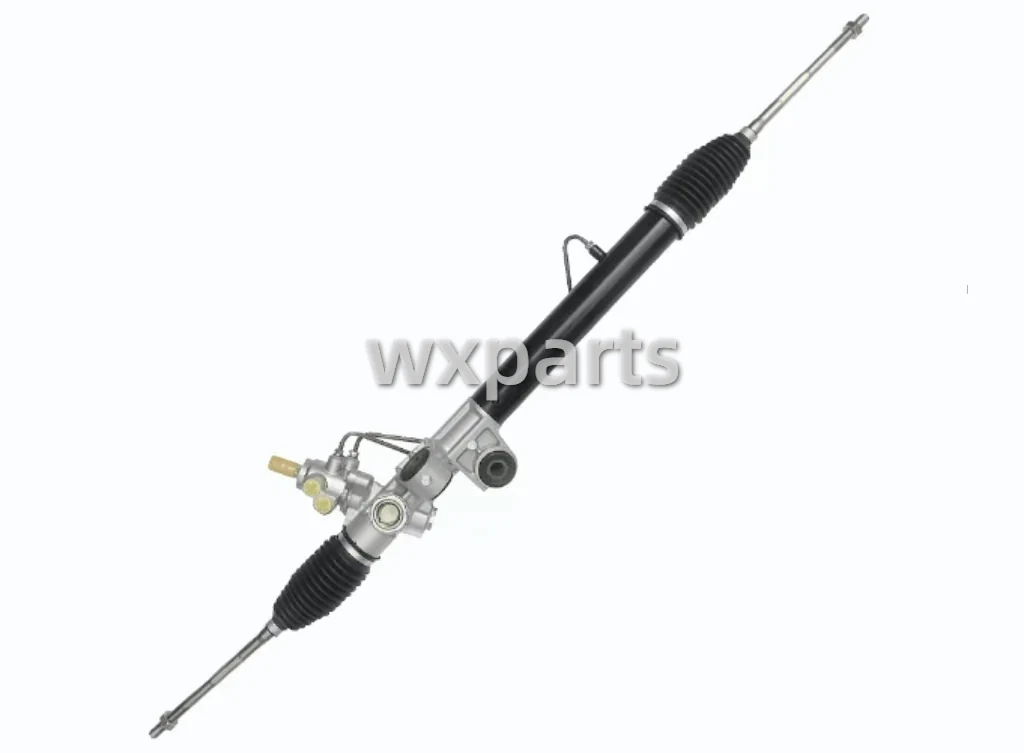

ISUZU DMAX 2WD power Steering Rack 8979435201
ISUZU DMAX 2WD power Steering Rack 8979435201 is supplied against OEM reference 8979435201 for ISUZU DMAX 2WD.
Steering Rack for ISUZU DMAX 2WD
ISUZU DMAX 2WD power Steering Rack 8979435201 is supplied against OEM reference 8979435201 for ISUZU DMAX 2WD. The rack and pinion turns steering wheel rotation into side to side movement at the track rods, and on a power assisted rack the internal seals also carry hydraulic pressure. The steering rack is the most important part of the auto’s steering function. Our steering rack can better reduce the labor intensity during driving and improve driving safety, with stable performance and long service life. The minimum order is one piece, packed neutral or under your own brand, with ISO9001 certification.
- OEM 8979435201
- Category: Chassis System Parts
- ISO9001
- MOQ 1 piece
What You Get With This Reference
- Listed against OEM reference 8979435201 so the part is confirmed before it is packed
- Replaces a leaking assembly complete, including the internal seals
- Packed to protect the rack ends and the hydraulic ports
Why Buyers Order It
- 2WD and 4WD versions of the same pickup use different racks
- A leaking rack fails a roadworthiness inspection and takes the vehicle off the road
- Racks are long and easily bent when packed badly
- Finding this reference for ISUZU DMAX 2WD locally often means a long wait or a used part of unknown history.
Where This Part Is Used and Who Buys It
Application Scenarios
- Replacing a leaking rack on a pickup
- Preparing a fleet vehicle for a roadworthiness inspection
- Workshop stock for common pickup steering repairs
Who It Is For
- Fleet workshops maintaining ISUZU DMAX 2WD
- Truck repair shops handling clutch, brake and steering work
- Aftermarket parts distributors building a pickup and light truck range
- Traders consolidating mixed parts orders from Yiwu
Technical Data From the Product Record
| OEM No. | 8979435201 |
|---|---|
| Type | Hydraulic |
| Size | 1243mm |
| Drive | RHD |
| Matched Model | ISUZU DMAX 2WD |
| Place of Origin | China |
| MOQ | 1 Pc |
| Certification | ISO9001 |
| Packing | Neutral or custom packaging |
Only values recorded against this reference are listed. Send the number from your old part if you need a dimension that is not shown.
What the Part Is Built To Do
- Rack and pinion supplied as an assembly
- Mounting bushes and port positions to the OEM pattern
- Sealed and plugged at the hydraulic connections
- Packed individually for export transit
- Size: 1243mm
- Type: Hydraulic
Symptoms That Point Here
- Fluid leaking from the bellows at one end
- Knocking over bumps from worn rack bushes
- Heavy or uneven assistance when turning
- Play at the steering wheel that cannot be adjusted out
How It Compares With the Alternatives
Compared with re-sealing the original rack
A re-seal works only if the bore and the rack bar are unmarked; contaminated fluid usually scores both.
Compared with a used rack
A used rack carries unknown internal wear and often the same leak within months.
Fitting and Service Notes
- Centre the rack and the steering wheel before connecting the column.
- Fit new track rod ends if the old ones have play, and always have the alignment set afterwards.
- Flush the power steering system before fitting a new rack if the old one failed with metal contamination.
- Bleed the system by turning lock to lock with the engine idling and the reservoir topped up.
