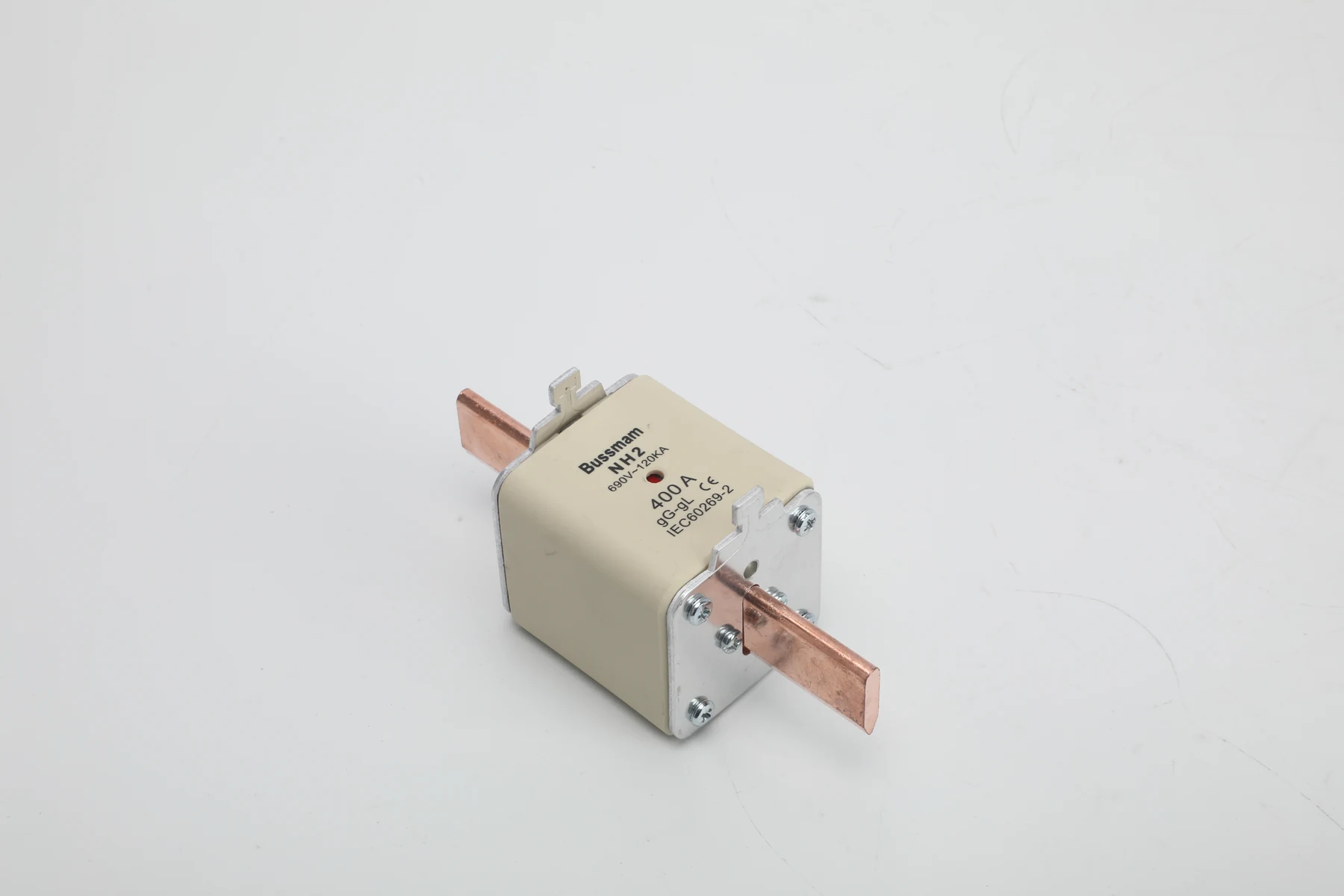

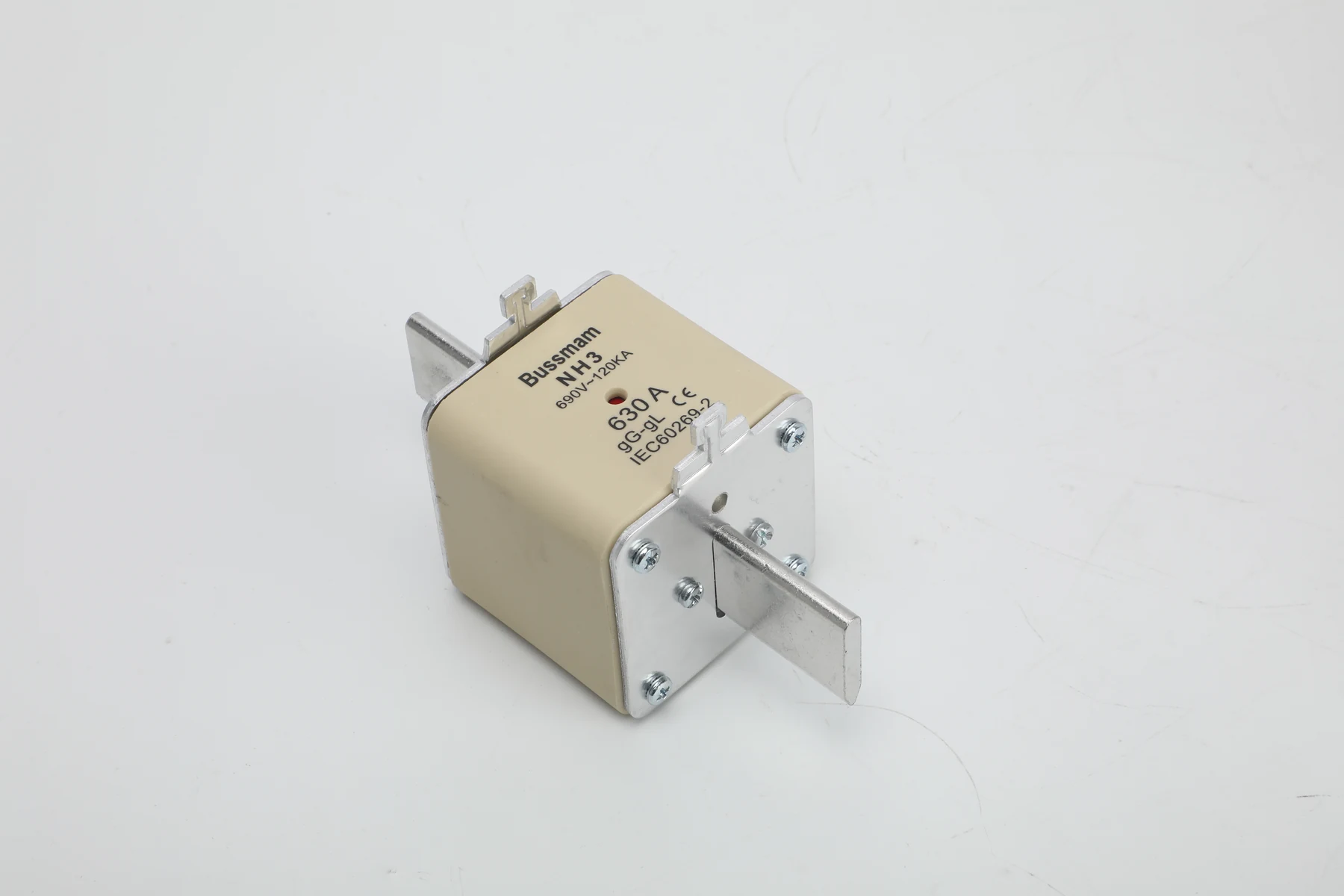

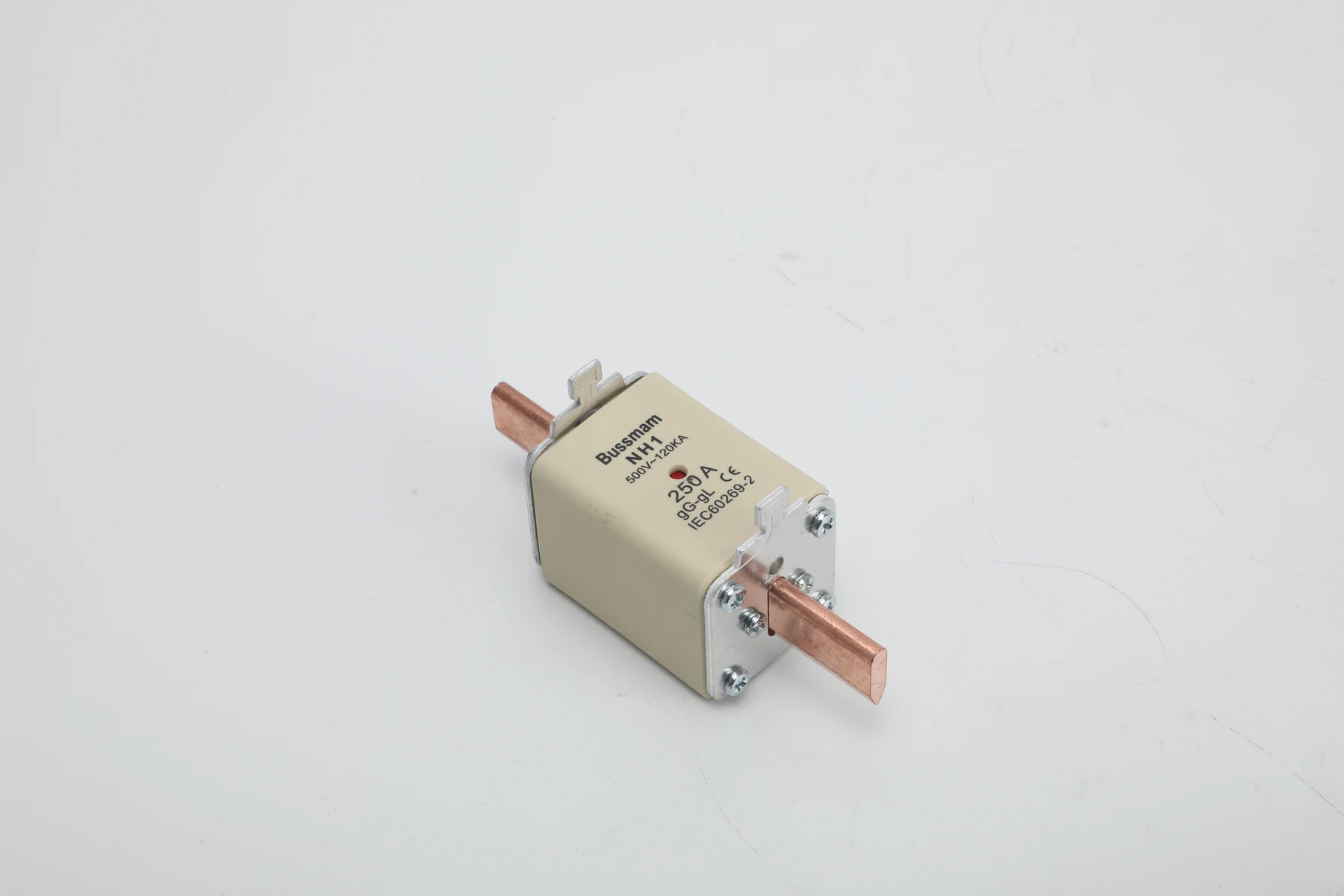

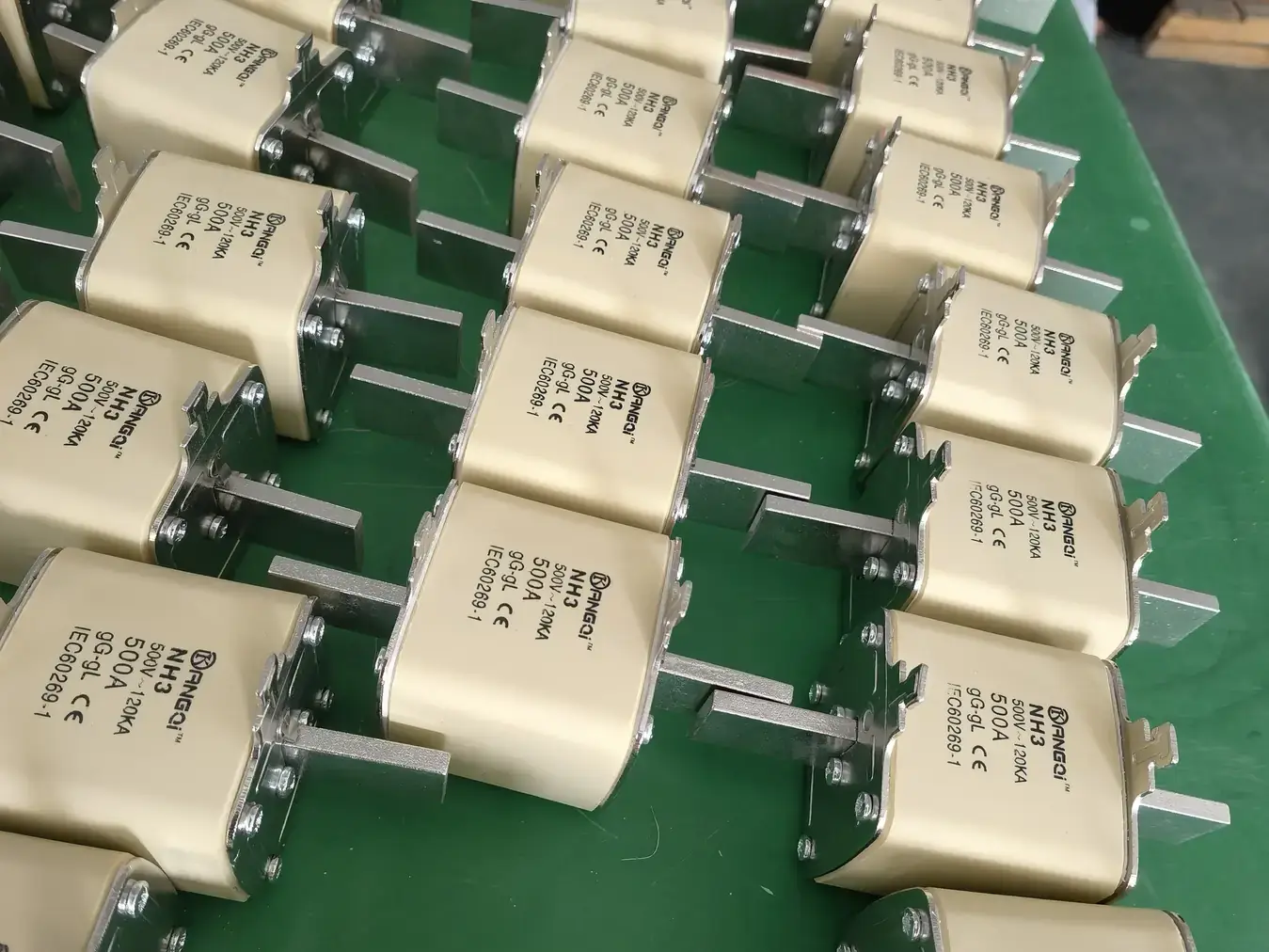

Fuse Link
Replaceable fuse element for installed fuse base positions
Product Overview
The fuse link is the part that actually operates. It carries normal load current indefinitely and melts when fault current arrives, and its rating has to match both the protection study for the position and the base it sits in. Ordering links against the original base reference is the practical way to stop the wrong element ending up in a carrier three years after commissioning.
Key Benefits
- Replaceable protection element ordered against the installed base
- Available as standalone replacement stock without the base
- Rating confirmed against your protection design
- Ships with the rest of a maintenance order in one consignment
Problems It Solves
- Wrong rating fitted because the correct link was not in stock
- Links that do not match the installed base
- Protection spares sourced from a different supplier each time
Application Scenarios
- Planned maintenance restocking of protection spares
- Replacement after a fault operation
- Commissioning new feeder pillar positions
- Board and panel protection positions
Who It Is For
- Utility maintenance stores
- Electrical contractors
- Panel builders
- Wholesalers stocking protection consumables
Technical Features
- Fusible element rated for the protection position
- Matched to the fuse base it is installed in
- Ordered as replacement stock independently of the base
- Ratings confirmed against your protection design
Specifications
| Product Family | Fuse & Base |
|---|---|
| Function | Replaceable fusible element |
| Application | Low voltage feeder and distribution protection |
| Rating | Confirmed against your protection design at quotation |
| Ordered With | Matching fuse base or against a previous order reference |
Materials
- Fusible element
- End contacts
- Body
Manufacturing Process
- Element forming
- Body assembly
- Rating verification
- Packing for export
Customisation Options
- Ratings supplied to your protection schedule
- Bulk maintenance quantities quoted for a spares programme
- Repeat orders quoted against your previous order reference
Compared With Other Options
| Fuse base | The base stays installed. The link is the consumable that operates and gets replaced. |
|---|---|
| Drop out fuse | A drop out fuse is the pole-mounted medium voltage device that visibly drops open. A fuse link here is the low voltage element inside a base. |
Use Guide
- Verify the link rating against the protection study, not against what is in the van
- Check the link matches the base type before fitting
- Keep a record of ratings installed at each position
- Hold a spares stock proportional to the distance from the store
Related Products
Fuse Base
Fuse base for distribution and feeder protection positions
View details →
Feeder Pillar Unit
Street and distribution feeder pillar for low voltage distribution positions
View details →
36kV Porcelain Drop Out Fuse
Porcelain housed 36kV drop out fuse for distribution protection
View details →
Fuse Link Questions
Can I order links without the base
Yes. Links are listed separately precisely so replacement stock can be held without reordering bases.
How do I know which link matches my base
Send the base type or the marking on the installed base, together with the required rating.
Can bulk quantities be quoted for maintenance stock
Yes - send the annual consumption and it will be quoted as a stocking order.
Get a Price on Fuse Link
Send the quantity, the specification you are matching and the destination port.
