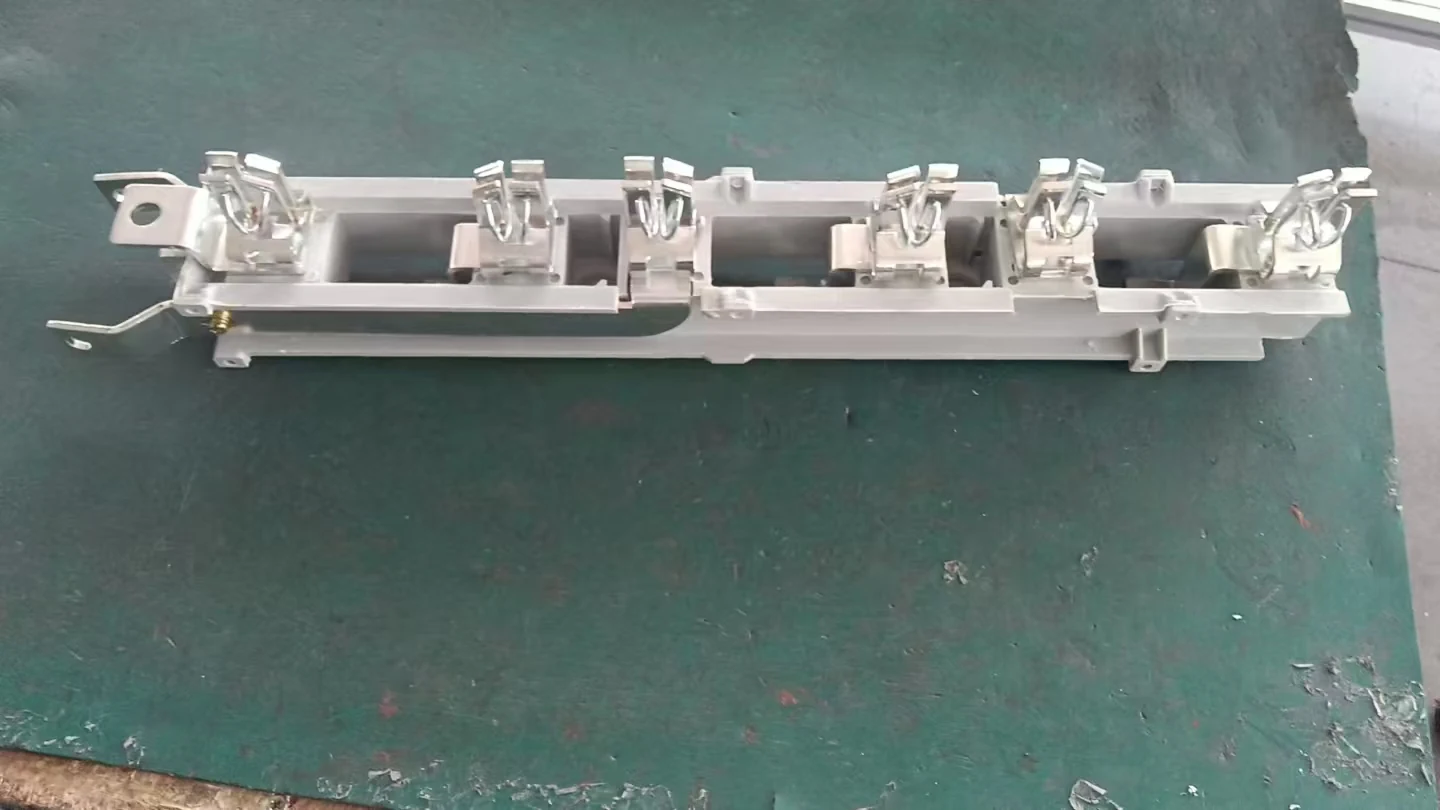

Feeder Pillar Unit
Street and distribution feeder pillar for low voltage distribution positions
Product Overview
A feeder pillar is the cabinet where a low voltage distribution circuit is split, protected and made accessible for switching and maintenance. It sits at the street or site boundary between the distribution network and the loads it feeds, which means it spends its whole life outdoors and still has to be safe to open in the rain.
Key Benefits
- Concentrates protection and distribution for several ways into one accessible position
- Outdoor enclosure for street and site boundary installation
- Configured by way count and rating against the position it serves
- Supplied with the fuse bases and links that go into it
Problems It Solves
- Corroded pillars that can no longer be safely opened
- Distribution positions without organised protection for each way
- Fuse bases and pillar sourced separately and not matching
Application Scenarios
- Street distribution positions on housing developments
- Industrial estate low voltage distribution points
- Replacement of corroded existing pillars
- Site boundary distribution on construction and commercial projects
Who It Is For
- Distribution utilities maintaining street positions
- Developers and their electrical contractors
- Industrial estate operators
- Local authority street lighting departments
Technical Features
- Outdoor enclosure for street and boundary positions
- Way count and ratings configured per order
- Houses fuse bases and links from the same product family
- Accessible arrangement for switching and maintenance
Specifications
| Product Family | Fuse & Base |
|---|---|
| Application | Low voltage feeder and street distribution |
| Installation | Outdoor, street or site boundary |
| Configuration | Way count and ratings confirmed per order |
| Supplied From | Fuzhou, Fujian, China |
Materials
- Enclosure body
- Fuse bases and carriers
- Internal busbar and connection hardware

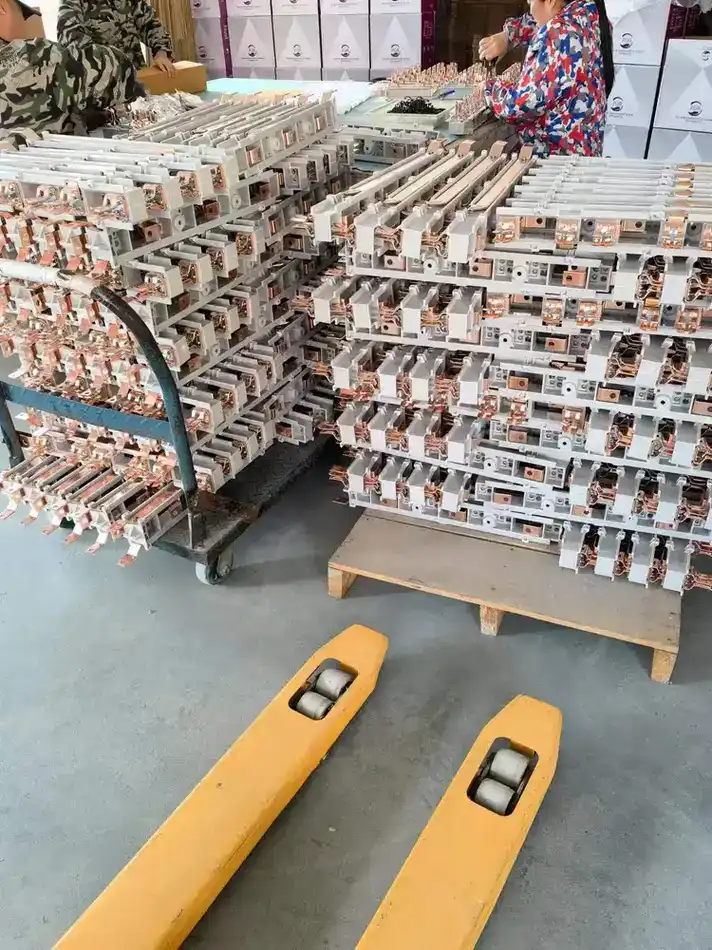

Manufacturing Process
- Enclosure fabrication
- Internal assembly and wiring
- Functional check
- Packing for export
Customisation Options
- Way count and rating arrangement specified at order
- Fuse bases and links supplied to match the configuration
- Ordered together with the distribution cable feeding the pillar
Compared With Other Options
| Individual pole mounted fuses | A pillar concentrates several protected ways into one accessible ground level position instead of spreading them across the network. |
|---|---|
| Indoor distribution board | A feeder pillar is built for outdoor street and boundary service where an indoor board would not survive. |
Use Guide
- Confirm the way count and ratings against the distribution design before ordering
- Site the pillar where it can be opened safely and reached for maintenance
- Order matching fuse links with the pillar so the first replacement set is correct
- Record the installed configuration for future replacement ordering
Related Products
Feeder Pillar Unit Questions
How is a feeder pillar configured
By the number of ways and the rating on each. Send the distribution design or the arrangement you are replacing and it is quoted against that.
Do fuse links come with the pillar
They can be, and ordering them together is the simpler route - the link then matches the installed base from day one.
Can you match an existing pillar arrangement
Send photographs and the existing arrangement details and we will confirm what matches.
Get a Price on Feeder Pillar Unit
Send the quantity, the specification you are matching and the destination port.
