SMC Type Valve Positioner

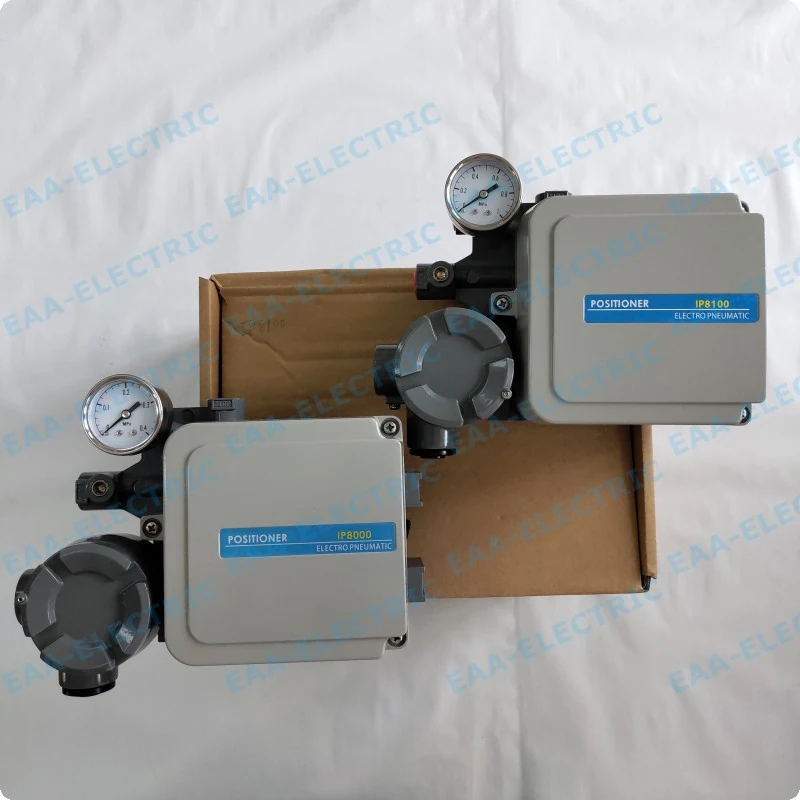

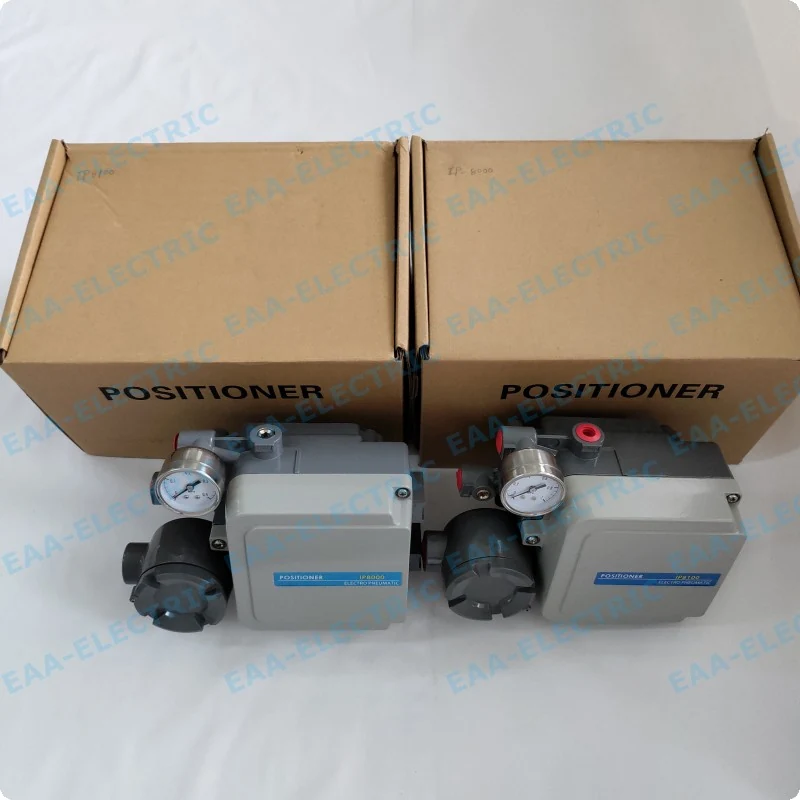

IP8000/8100 Electro Pneumatic Valve Positioner

IP8000 / IP8100 pair — lever and rotary in one specification

Buyers who standardise on the SMC pattern usually order both members of the family: IP8000 lever type for linear valves and IP8100 rotary type for quarter-turn valves, sharing one spare-parts list, one air-port thread choice and one data sheet.

One specification covering lever (IP8000) and rotary (IP8100) builds
Input 4–20 mA DC, input resistance 235±15 Ω
Supply air 0.14–0.7 MPa on the electro-pneumatic builds
Air ports Rc 1/4, NPT 1/4 or G 1/4; electrical G 1/2, M20×1.5 or NPT 1/2
Aluminium diecast body with denatured epoxy baking finish

Request a quotation WhatsApp

Typical duty: Plants and OEMs keeping one positioner family across both linear and quarter-turn valves.

Specification

IP8000 / IP8100 specification (data sheet published on the source site)
Input current	4–20 mA DC (standard)
Input resistance	235 ± 15 Ω
Supply air pressure	0.14–0.7 MPa (electro-pneumatic builds)
Standard stroke	IP8000 lever 10–85 mm (deflection 10–30°); IP8100 rotary 60–100°
Sensitivity	Within 0.1 % F.S. (IP8000 single action)
Linearity	Within ±1 % F.S. (single action)
Hysteresis	Within 0.75 % F.S. (single action)
Repeatability	Within ±0.5 % F.S.
Output flow	80 l/min (ANR) or more at 0.14 MPa supply
Air consumption	5 l/min (ANR) or less at 0.14 MPa supply
Ambient and fluid temperature	General structure -20 to +80 °C
Enclosure	JIS F8007, IP65 (conforms to IEC Pub. 60529)
Air connection port	Rc 1/4, NPT 1/4 or G 1/4 female thread
Electrical connection port	G 1/2, M20×1.5 or NPT 1/2 female thread
Material / coating	Aluminium diecast body, baking finish with denatured epoxy resin
Weight	2.4 kg without terminal box / 2.6 kg with terminal box

Technical background

The IP8000 E/P positioner is more compact than the IP6000 with improved visibility of the pressure indicator. Other features include an improved enclosure protection IP65, interchangeable mounting, excellent shock and vibration performance, and a 1/2 split range available by simple span adjustment.

Output current (4-20mADC) realizes remote position detecting (rotary type) Vibration resistance: No resonances 5 to 200Hz Dust resistance: Conforms to JIS F8007 IP65 Pressure gauge O.D. 43 Accessories include: Output restriction w/pilot valve, fork lever joint, compensation spring, w/external scale plate IP8100 , Electro-Pneumatic Positioner, Rotary type. Output current (4-20mADC) realizes remote position detection.

External scale plate is installed for easy reading of valve position. The pressure gauge diameter is increased to large size for easy reading. Interchangeable with IP6#00 series . IP8100 , Electro-Pneumatic Positioner, Rotary type. Output current (4-20mADC) realizes remote position detection. External scale plate is installed for easy reading of valve position.

The pressure gauge diameter is increased to large size for easy reading. Interchangeable with IP6#00 series . IP8000/IP8100 Electro Pneumatic Valve Positioner-

Questions buyers ask

Can I mix threads across an order?

Yes — air and electrical connection threads are model-selection options, so a single order can carry more than one thread type.

What is the weight difference?

2.4 kg without terminal box, 2.6 kg with it, for the electro-pneumatic builds.
