SMC Type Valve Positioner

IP8000 Electro Pneumatic Valve Positioner

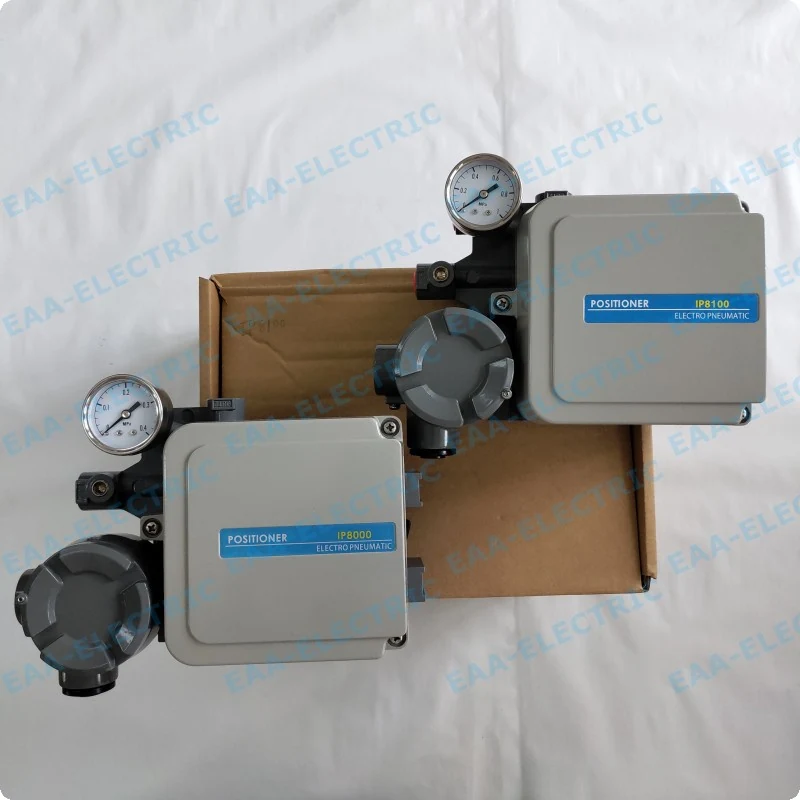

SMC-pattern IP8000, lever type, electro-pneumatic

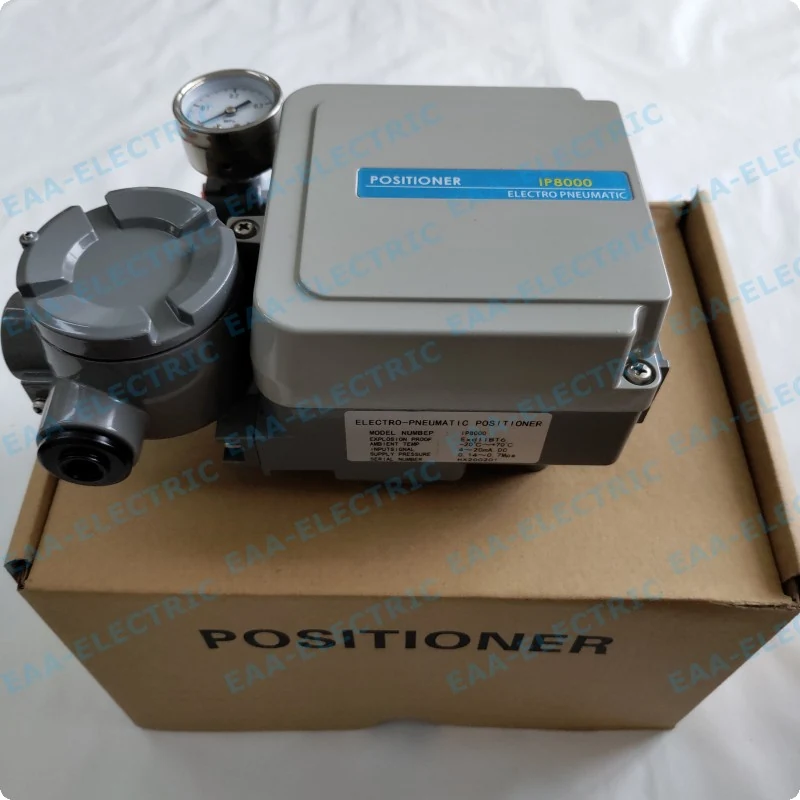

The IP8000 is the lever-feedback member of the IP8000/8100 pair. It is more compact than the IP6000 it replaces, with better pressure-indicator visibility, an improved IP65 enclosure and interchangeable mounting.

Lever-type feedback, single or double action
More compact than IP6000 with improved pressure-indicator visibility
Enclosure IP65 to JIS F8007, shock and vibration resistant
1/2 split range by simple span adjustment
Standard stroke 10 to 85 mm (deflection angle 10–30°)

Request a quotation WhatsApp

Typical duty: Linear control valves on packaged equipment where the IP6000 pattern is already installed.

Specification

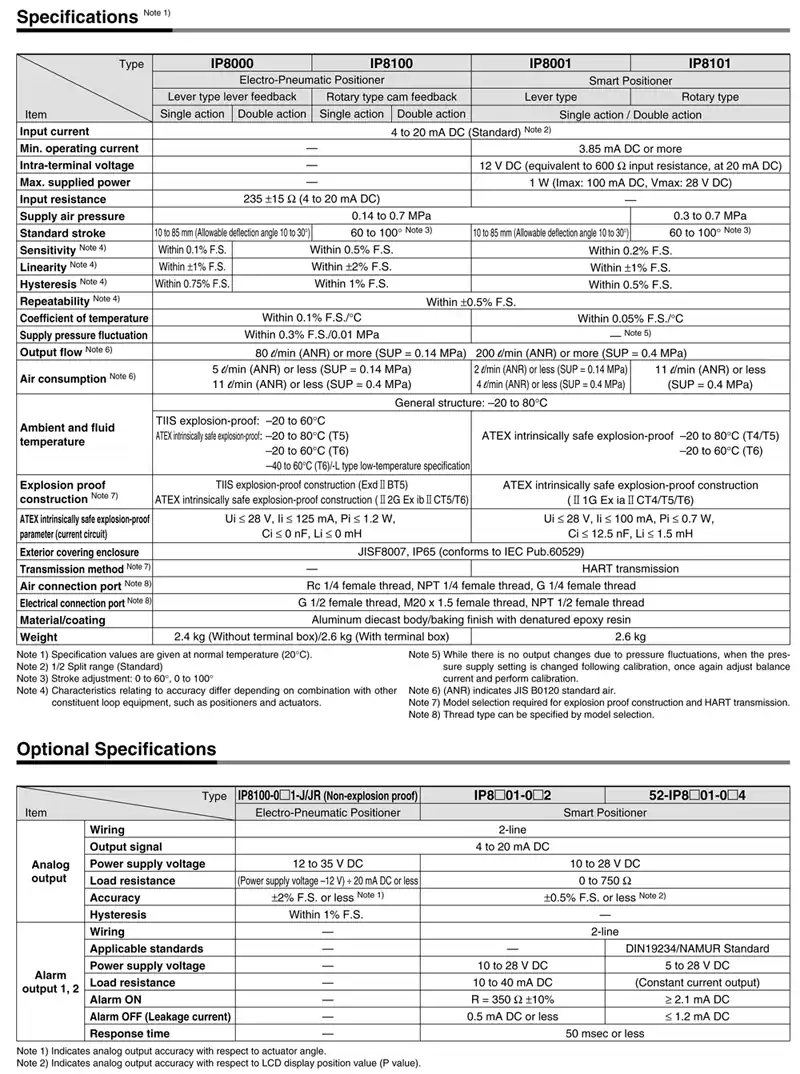

IP8000 / IP8100 specification (data sheet published on the source site)
Input current	4–20 mA DC (standard)
Input resistance	235 ± 15 Ω
Supply air pressure	0.14–0.7 MPa (electro-pneumatic builds)
Standard stroke	IP8000 lever 10–85 mm (deflection 10–30°); IP8100 rotary 60–100°
Sensitivity	Within 0.1 % F.S. (IP8000 single action)
Linearity	Within ±1 % F.S. (single action)
Hysteresis	Within 0.75 % F.S. (single action)
Repeatability	Within ±0.5 % F.S.
Output flow	80 l/min (ANR) or more at 0.14 MPa supply
Air consumption	5 l/min (ANR) or less at 0.14 MPa supply
Ambient and fluid temperature	General structure -20 to +80 °C
Enclosure	JIS F8007, IP65 (conforms to IEC Pub. 60529)
Air connection port	Rc 1/4, NPT 1/4 or G 1/4 female thread
Electrical connection port	G 1/2, M20×1.5 or NPT 1/2 female thread
Material / coating	Aluminium diecast body, baking finish with denatured epoxy resin
Weight	2.4 kg without terminal box / 2.6 kg with terminal box

Technical background

The IP8000 E/P positioner is more compact than the IP6000 with improved visibility of the pressure indicator. Other features include an improved enclosure protection IP65, interchangeable mounting, excellent shock and vibration performance, and a 1/2 split range available by simple span adjustment.

Output current (4-20mADC) realizes remote position detecting (rotary type) Vibration resistance: No resonances 5 to 200Hz Dust resistance: Conforms to JIS F8007 IP65 Pressure gauge O.D.

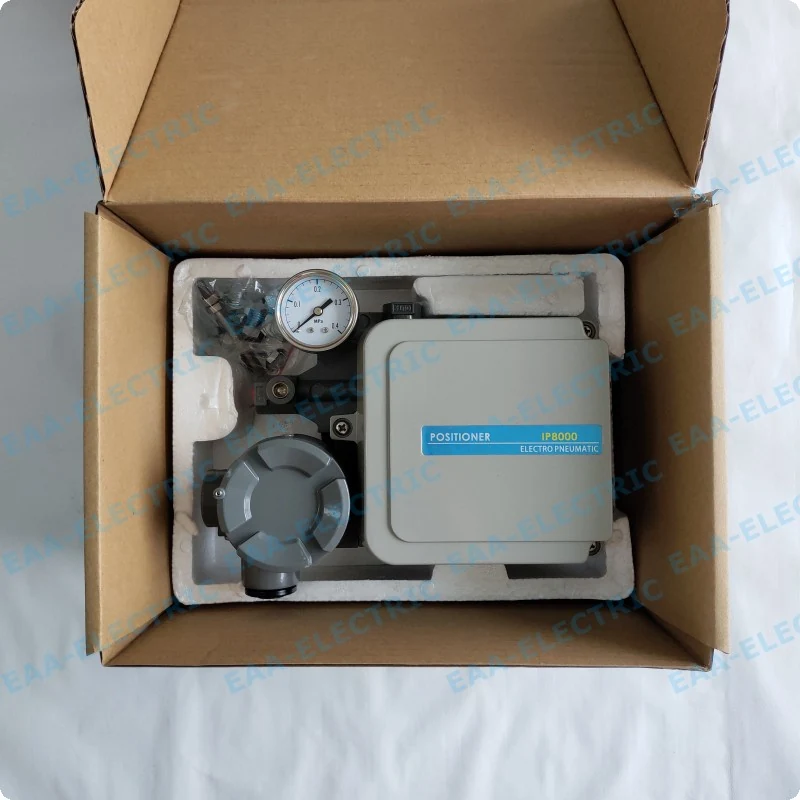

43 Accessories include: Output restriction w/pilot valve, fork lever joint, compensation spring, w/external scale plate IP8000/IP8100 Electro Pneumatic Valve Positioner- The pneumatic motor of the electric valve positioner can be steplessly adjusted.

As long as the opening of the intake valve or exhaust valve is controlled, that is, the flow of compressed air is controlled, the output power and speed of the motor can be adjusted. The purpose of adjusting speed and power can be achieved. IP8000 electro pneumatic valve positioner can be rotated forward and reversed.

Questions buyers ask

Is it interchangeable with the IP6000 series?

Mounting is interchangeable and the unit is designed as the compact successor to the IP6000.

Which accessories are listed?

Output restriction with pilot valve, fork lever joint, compensation spring and an external scale plate.
