Automotive Service Tools · Item No 52398

Hand-Held Endoscope

Name: Hand-Held Endoscope
Brand: Umax Tools
SKU: 52398

5.5mm Camera on a 1m Hard Wire With a 2.4 Inch Screen

A hand-held inspection camera with a 5.5mm lens on 1m of hard wire and a 2.4 inch display. The one megapixel lens has a 70 degree wide angle and a 3 to 10m focal length, and the set includes a side mirror, a hook and a magnet so a dropped part can be located and retrieved in the same operation. It runs on four AA batteries, which are not included.

Request A Quote Email About This Item

Key Benefits

Why Buyers Choose This Item

Sees inside a cylinder, a duct or a wall cavity without dismantling it
Hard wire holds its shape, so the camera stays where it is pushed
Magnet and hook attachments retrieve what the camera finds
Self-contained with a built-in screen, so no phone or laptop is needed

Problems It Solves

Diagnosing an internal fault normally means dismantling the assembly
A dropped part in a machine frame is hard to find and harder to reach
Phone-based cameras need a free hand and a stable connection

Application

Where It Is Used and Who It Is For

Application Scenarios

Inspecting a cylinder bore or intake through the plug hole
Locating a dropped fastener inside an engine bay or a machine frame
Checking cavities, ducts and drains during a building survey

Who It Is For

Importers supplying automotive and tool retail
Mechanics diagnosing without a strip-down
Facilities and building inspection teams

Technical Features

What Is Built Into This Product

Lens diameter 5.5mm with 1 million pixels
2.4 inch display screen
70 degree wide angle, focal length 3 to 10m
1m hard wire that holds its shape
Supplied with side mirror, hook and magnet attachments

Specifications

Published Specification For Item 52398

Item No	52398
Lens Diameter	5.5 mm
Lens Pixels	1 million
Display	2.4 inch
Wide Angle	70 degrees
Focal Length	3-10 m
Working Length	1 m hard wire
Net Weight	0.143 kg
Gross Weight	0.300 kg

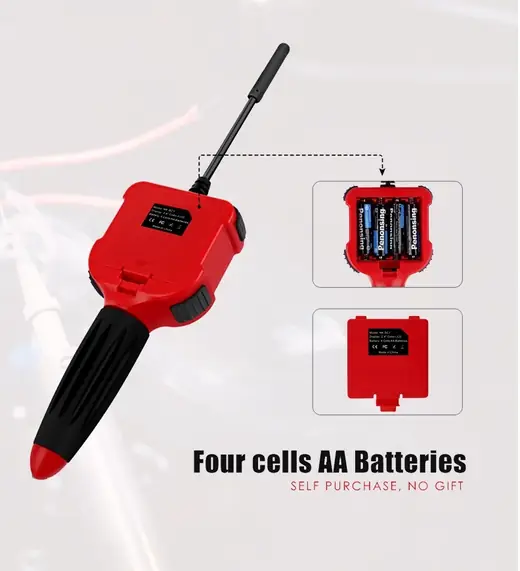

Batteries	4x AA, not included

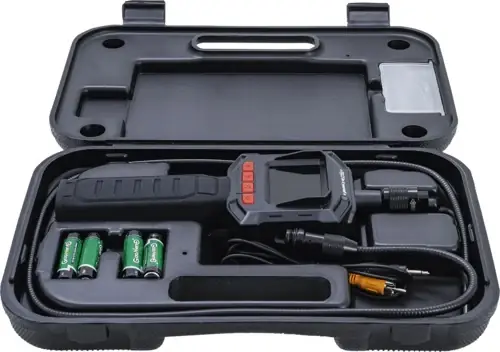

Included	Host x1, side mirror x1, hook x1, magnet x1, instruction x1

Materials

ABS housing
Hard wire probe

Manufacturing and Packing Steps

Camera module assembly
Housing assembly
Function test
Packing

Quality and Customisation

How This Item Is Quoted and Confirmed

Quality Control

Specifications are quoted against item number 52398
Samples are confirmed before the main order
Packing format and carton quantity are agreed in writing before production
Any change to a specification is re-confirmed before production starts

Customisation Options

Packing and accessory mix to be confirmed per order

Comparison with other options
LED Magnetic Claw Retriever	The endoscope finds and identifies the part, the claw retriever is a simpler tool when the location is already known

Use Guide

Getting the Best From This Tool

Fit the side mirror to look at a bore wall rather than straight ahead
Bend the hard wire in a gentle curve rather than a sharp angle
Fit fresh AA batteries before a long inspection, as the screen dims as they fall

Industries

Industries That Buy This Item

Automotive Aftermarket

Not every job can be put on a ramp or over a pit

FAQ

Questions About Hand-Held Endoscope

Are batteries included

No, four AA batteries are required and are not supplied.

How long is the probe

1m of hard wire, with a 5.5mm lens.

What attachments come with it

A side mirror, a hook and a magnet, plus the instruction sheet.
