Automotive Service Tools · Item No 38115

12v Oil Extractor

Name: 12v Oil Extractor
Brand: Umax Tools
SKU: 38115

12V DC Fluid Extractor That Runs From the Vehicle Battery

A 12V DC extractor pump that clips straight onto the vehicle battery and draws around 5A. It is supplied for extracting oil and diesel, never petrol, with a diesel and heating oil flow rate of 1.5 l/min and a motor oil flow rate of 0.2 l/min at 40 to 60 degrees. It ships with a 120cm inlet hose, a 150cm outlet hose, two battery clamps, two hose clamps and instructions, and is CE and RoHS approved.

Request A Quote Email About This Item

Key Benefits

Why Buyers Choose This Item

Runs from the vehicle it is servicing, so no mains supply is needed
Extracts through the dipstick tube, which avoids removing the sump plug
1.5 l/min on diesel and heating oil moves a tank in minutes
Sound pressure of 70dB(A) and vibration under 2.5m/s2 keep it usable indoors

Problems It Solves

Removing a sump plug needs a ramp and creates a spill risk
Hand pumps are slow on a full oil change
Mains powered pumps are useless at the roadside

Application

Where It Is Used and Who It Is For

Application Scenarios

Oil changes on cars, motorcycles, vans and quads
Draining heating oil or diesel from a tank during service
Mobile servicing where no pit or ramp is available

Who It Is For

Importers supplying automotive aftermarket retail
Mobile mechanics and small workshops
Marine and plant maintenance teams

Technical Features

What Is Built Into This Product

12V DC motor with approximately 5A power draw
Diesel and heating oil flow rate approximately 3 litres in 3 minutes
Motor oil flow rate approximately 1 litre in 3 minutes at 40 to 60 degrees
Sound pressure level 70dB(A), vibration under 2.5m/s2
Main material PP
CE and RoHS approved

Specifications

Published Specification For Item 38115

Item No	38115
Motor	12V DC
Power Draw	Approx 5 A
Diesel / Heating Oil Flow	Approx 3 L / 3 min (1.5 l/min)
Motor Oil Flow	Approx 1 L / 3 min at 40-60 C (0.2 l/min)
Sound Pressure	70 dB(A)
Vibration	< 2.5 m/s2
Material	PP
Colour Box Size	23.5 x 17.5 x 9 cm
Approvals	CE, RoHS
Included	1x pump, 1x 120cm inlet hose, 1x 150cm outlet hose, 2x battery clamps, 2x hose clamps, instructions

Materials

PP housing

Manufacturing and Packing Steps

Motor assembly
Housing moulding
Flow test
Colour box packing

Quality and Customisation

How This Item Is Quoted and Confirmed

Quality Control

Specifications are quoted against item number 38115
Samples are confirmed before the main order
Packing format and carton quantity are agreed in writing before production
Any change to a specification is re-confirmed before production starts

Customisation Options

Housing colour available in a choice of colours, confirmed per order

Comparison with other options
200cc Extraction and Fill Pump	The 12v unit extracts larger volumes without hand effort, the manual pump also fills and handles corrosive fluids

Use Guide

Getting the Best From This Tool

Never use this pump on petrol
Warm the engine oil to 40 to 60 degrees before extracting so it flows at the stated rate

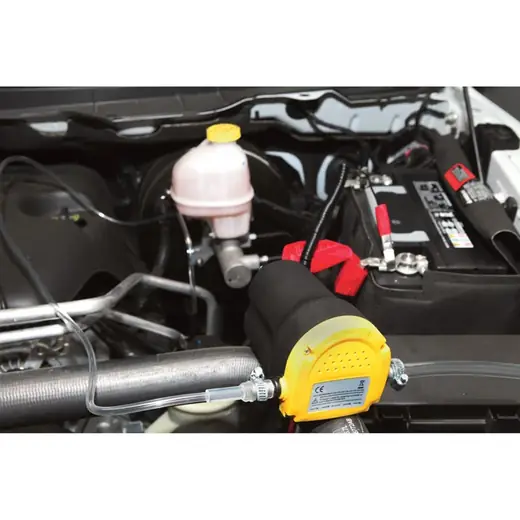

Connect the battery clamps with the switch off, then feed the inlet hose down the dipstick tube

Industries

Industries That Buy This Item

Automotive Aftermarket

Not every job can be put on a ramp or over a pit

FAQ

Questions About 12v Oil Extractor

Can it be used on petrol

No. It is supplied for oil and diesel only and must never be used for petrol.

How fast does it extract engine oil

Approximately 1 litre in 3 minutes with the oil at 40 to 60 degrees.

What approvals does it carry

CE and RoHS.

Other Items In Automotive Service Tools

Automotive Service Tools

How To Extract Engine Oil Without a Ramp

Extraction through the dipstick tube lets an oil change happen on a driveway. The method matters more than the pump.

Request a Quotation For 12v Oil Extractor

Tell us the quantity and destination market. We reply with price, packing options and carton quantity against item number 38115.

Request A Quote Email Us
