Wired Central Air Conditioner Room Thermostat
OCTK601AC is a 230VAC wired room thermostat for central air conditioning and fan coil units, showing set temperature, fan speed, room temperature and heat or cool mode on one LCD. A button battery backup keeps the settings through a power failure, which is the practical difference between this and a mains-only control. It is also designed to work with almost all standard electric underfloor heating systems.
Key Benefits
- Fan speed shown on the display alongside setpoint and room temperature
- Button battery backup preserves settings through a power cut
- Works with almost all standard electric underfloor heating systems
- Optional remote control function for units mounted out of reach
- RoHS, CE, CCC and ISO documentation from one part number
Problems It Solves
- Settings lost every time the power is interrupted
- Fan speed hidden behind a menu
- Separate products for air conditioning and electric underfloor heating
- Controls mounted where nobody can reach them
Who It Is For
- FCU and central air conditioning equipment suppliers
- Electric underfloor heating suppliers
- Contractors buying at 500 pcs and above
- OEM buyers needing CE and CCC on the same unit
Technical Features
- 230VAC wired, non-programmable, HEAT and COOL mode switch

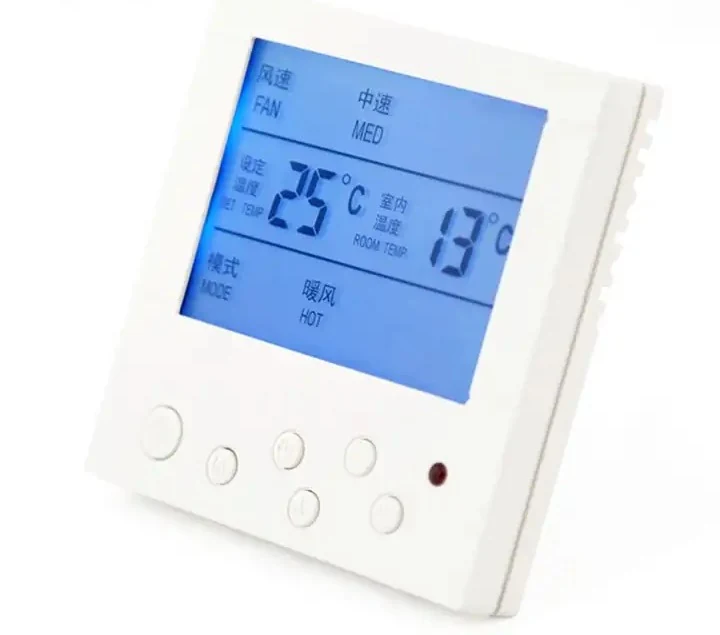

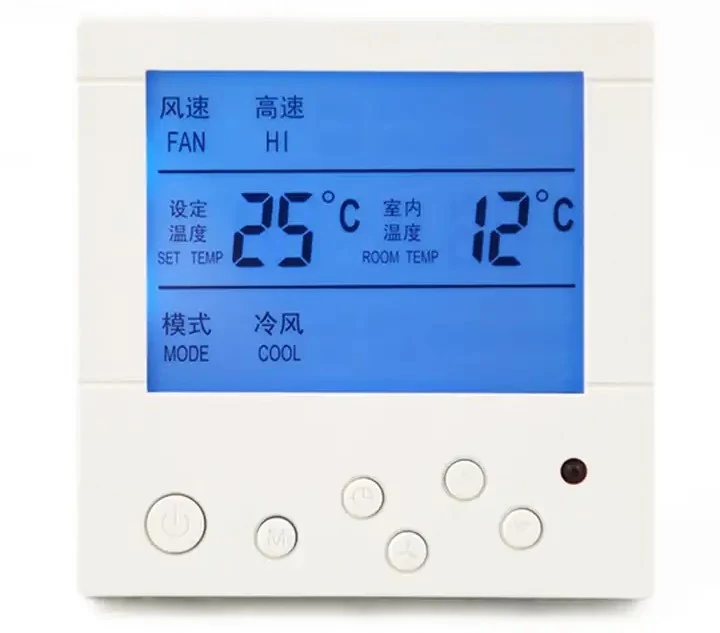

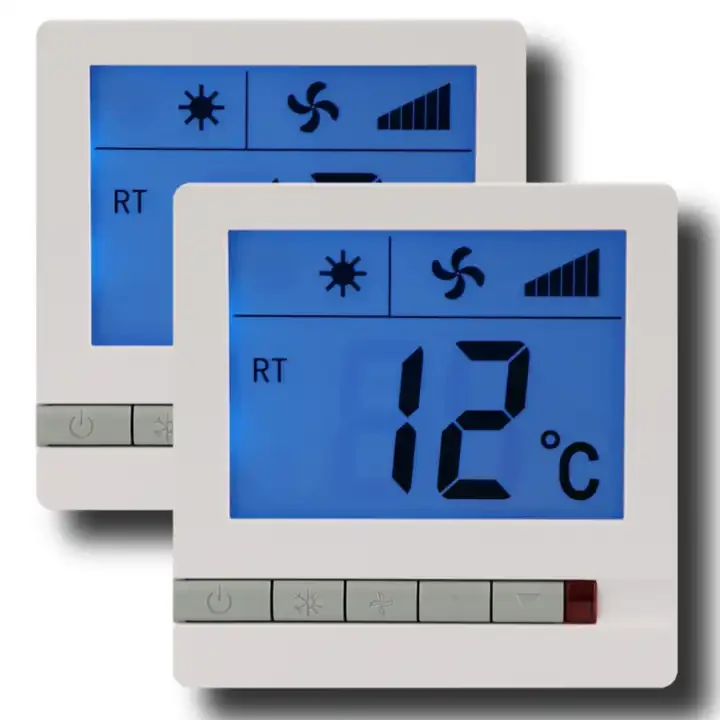

- LCD showing set temperature, fan speed, room temperature and mode
- Temperature range 0 C to 40 C, setpoint range 5 C to 35 C
- Button battery backup to save settings during power failure
- Blue or orange backlight
- Designed for almost all standard electric underfloor heating systems
- Option to add a remote control function
- ABS housing in white, RoHS CE CCC ISO, 1 year manufacturer's warranty
Specifications
| Model | OCTK601AC |
| Programmability | Non-programmable |
| System Switch | HEAT/COOL |
| Power Supply | 230VAC |
| Temperature Range | 0°C–40°C |
| Setpoint Range | 5°C—35°C |
| Backlight | >> 1 year manufacturer’s |
| Color | White |
| Material | ABS |
| Type | Air Conditioning/Heating/HVAC Systems/Noise and Attenuation/Ventilation/Other |
| Certification | RoHS CE CCC ISO |
| After-sale Service | Online technical support |
| MOQ | 500 pcs |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Central air conditioning in offices, hotels and apartments
- Fan coil units where the occupant selects fan speed
- Standard electric underfloor heating installations
- Buildings with frequent supply interruptions
Quality Control
- Settings retention tested through a simulated power interruption
- Fan speed outputs exercised on the line
- High voltage insulation test on every 230VAC unit
Customisation Options
- Remote control function added on request
- Backlight blue or orange
- Front label, logo and housing marking
- Manual and carton in the buyer's language
How It Compares
Installing And Commissioning
Step 1
Isolate the 230VAC supply before opening the terminal box
Step 2
Mount at about 1.5 m clear of the supply air stream
Step 3

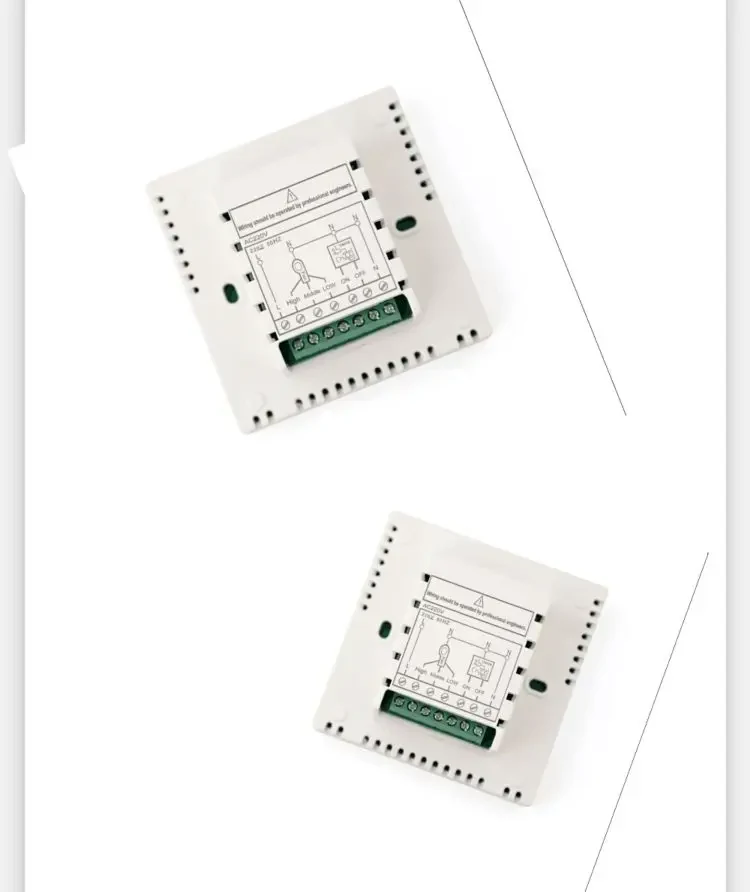

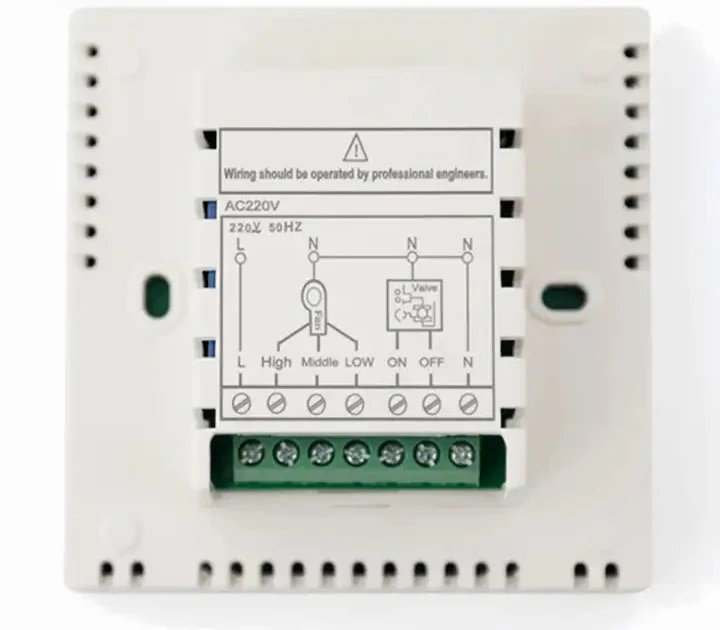

Land the fan speed and coil conductors on the marked terminals
Step 4
Select HEAT or COOL, set the temperature and choose a fan speed
Step 5
Interrupt the supply briefly and confirm the settings are retained
Wired Central Air Conditioner Room Thermostat: Buyer Questions
What happens to the settings during a power cut?
A button battery backup keeps them, so the unit returns to the same configuration when the supply is restored.
Can it control electric underfloor heating?
Yes. It is designed to be used with almost all standard electric underfloor heating systems.
Is a remote control available?
Yes, as an option. Tell us at the order stage.
What is the minimum order quantity?
500 pcs.
Which certifications does it hold?
RoHS, CE, CCC and ISO.
What is the warranty?
1 year manufacturer's warranty with online technical support.
