24V Programmable 2Heat 2Cool Wireless Thermostat STN715RF

Name: 24V Programmable 2Heat 2Cool Wireless Thermostat STN715RF
Brand: Smart Therm

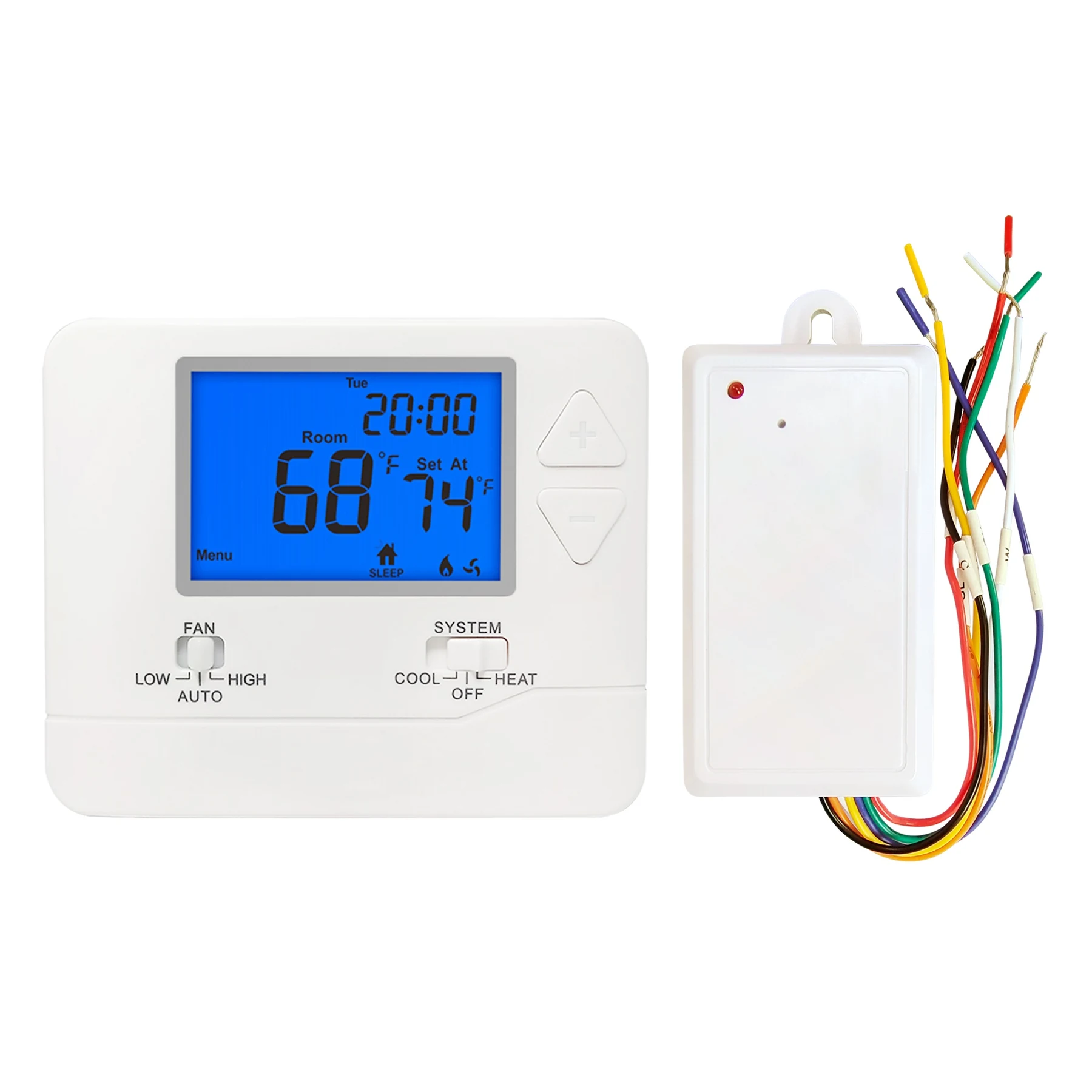

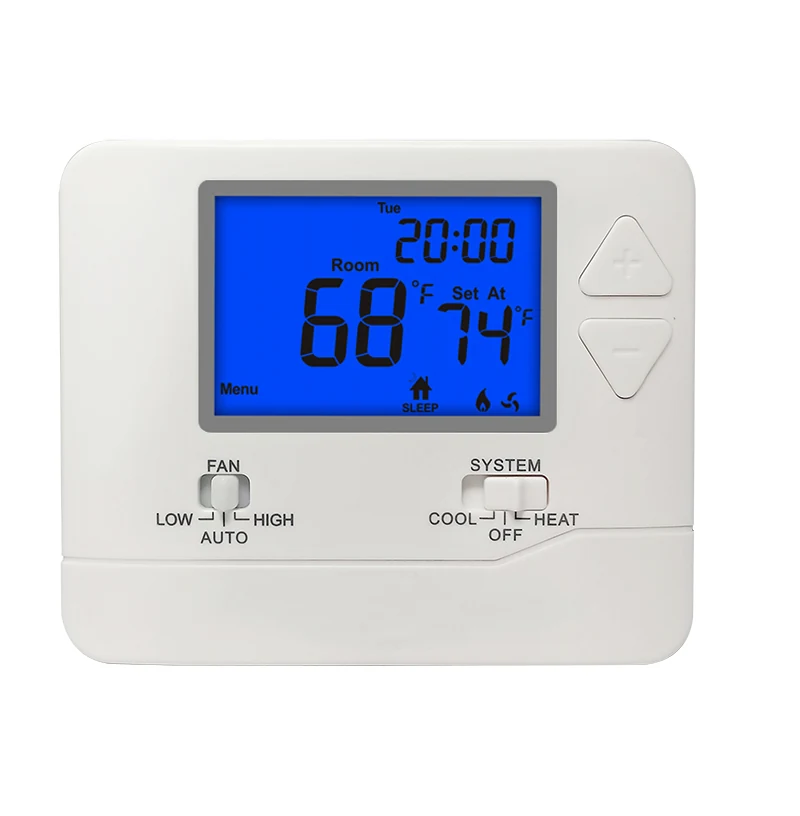

STN715RF is the wireless multi stage thermostat in the PTAC range, controlling 2 heat and 2 cool with no cable between the room position and the equipment. Programming can be set to 7 day, 5/1/1 or non-programmable, and heating and cooling setpoint limits cap what an occupant can select. It mounts on a wall or a junction box using the universal sub-base.

Request A Quote Email For A Datasheet

Key Benefits

2 heat and 2 cool staging over a wireless link, which is unusual in this class
Setpoint limits cap occupant adjustment on a wireless unit
Three programme modes from one part number
Universal sub-base mounts on a wall or a junction box
PP housing in the affordable comfort control specification

Problems It Solves

Wireless stats limited to single stage control
Occupants setting temperatures the plant cannot hold
Control cables crossing a finished room
Separate part numbers for scheduled and unscheduled rooms

Who It Is For

Hotel and accommodation operators
PTAC equipment distributors
Contractors avoiding cable runs in finished rooms
OEM buyers needing a wireless multi stage model

Technical Features

Wireless thermostat, 2 heat and 2 cool
7 day, 5/1/1 or non-programmable
Heating and cooling setpoint limits
Separate heating and cooling swing (cycle rate) adjustments
Room temperature calibration adjustments

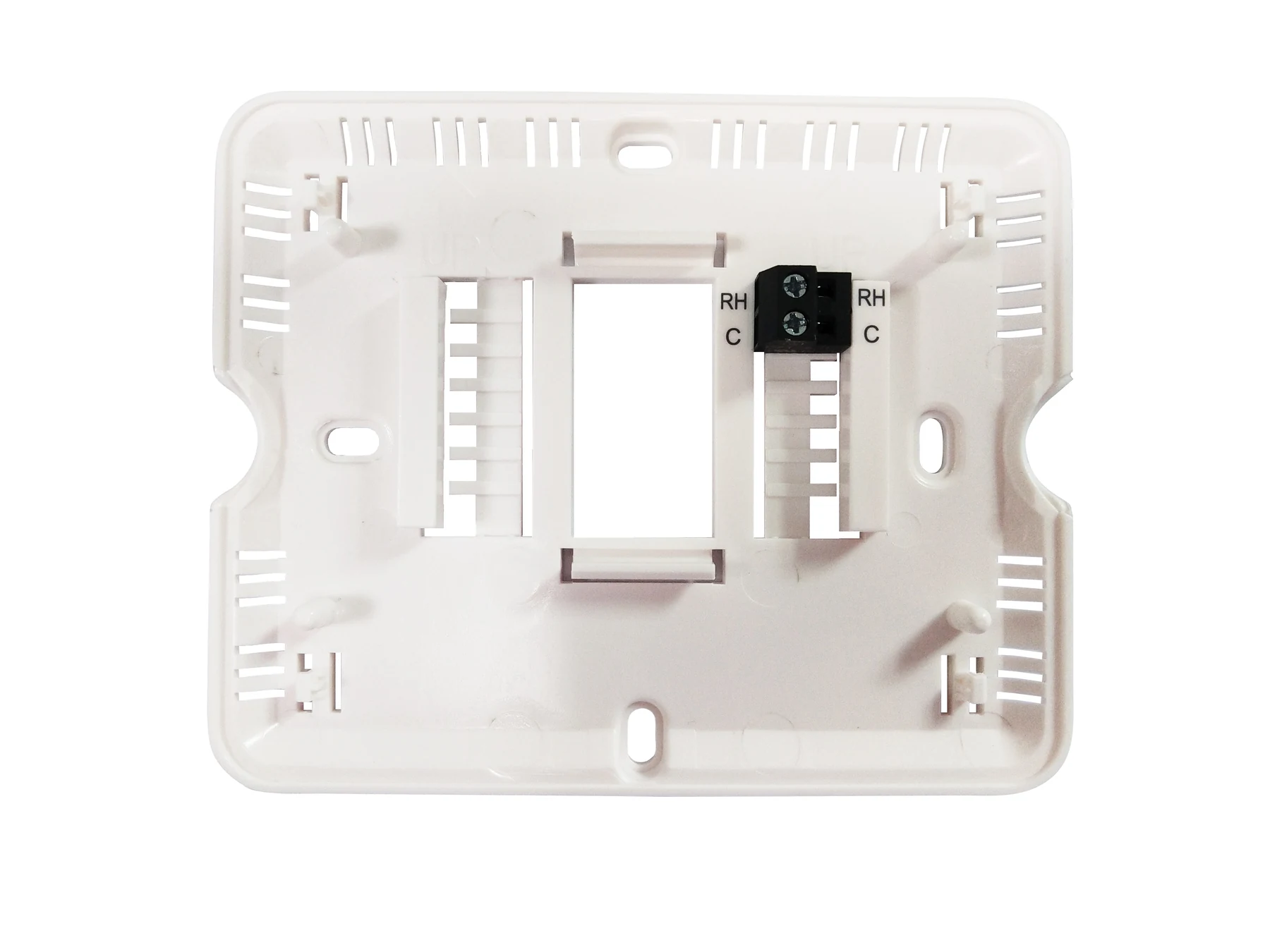

Mounts on wall or junction box with a universal sub-base
Power supply battery or 24V
PP housing, white, blue or green backlight, 400 g

Specifications

Model	STN715
Programmability	7 Day,5/1/1 or
Color	White/Blue/
Material	PP
Weight	400g
Package Included	1Wireless Thermostat 1

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Hotel and accommodation rooms on two stage PTAC equipment
Refurbishments where a control cable cannot be run
Buildings mixing scheduled and unscheduled rooms
Two stage plant that short cycles under a single stage control

Quality Control

Room unit and receiver bound and range tested as a pair
All four staging outputs exercised on the line
Setpoint limit enforcement verified during the functional test

Customisation Options

Setpoint limits and default programme mode preset at the factory

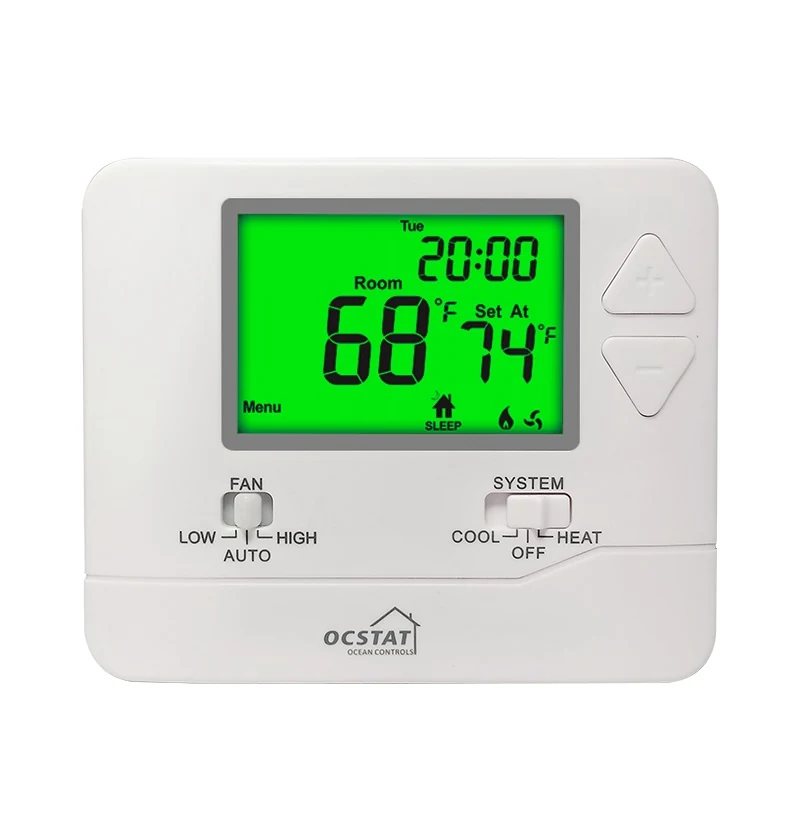

Backlight white, blue or green
Swing defaults set for the buyer's equipment
Front label, logo and housing marking

Comparison

How It Compares

STN731RF

STN715RF adds a second heating and second cooling stage plus full scheduling, where STN731RF is non-programmable and single stage cooling.

STN715 wired version

STN715RF removes the cable between the room position and the equipment.

Use guide

Installing And Commissioning

Step 1

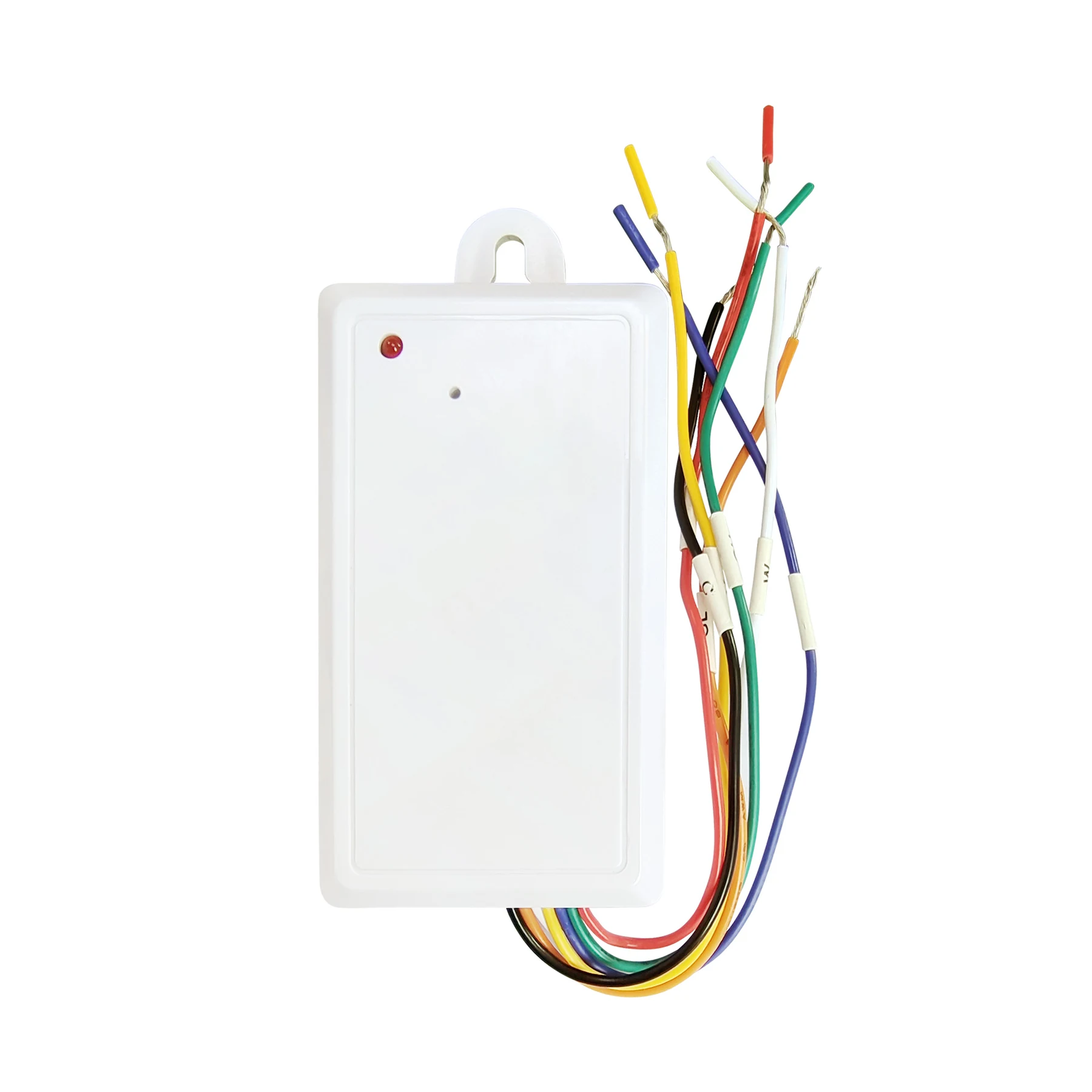

Fit the receiver at the equipment and the room unit on its universal sub-base

Step 2

Confirm the room unit has bound to the receiver

Step 3

Select the programme mode and enter the periods

Step 4

Set heating and cooling setpoint limits to the operator's policy

Step 5

Adjust each stage swing separately and walk test the link
