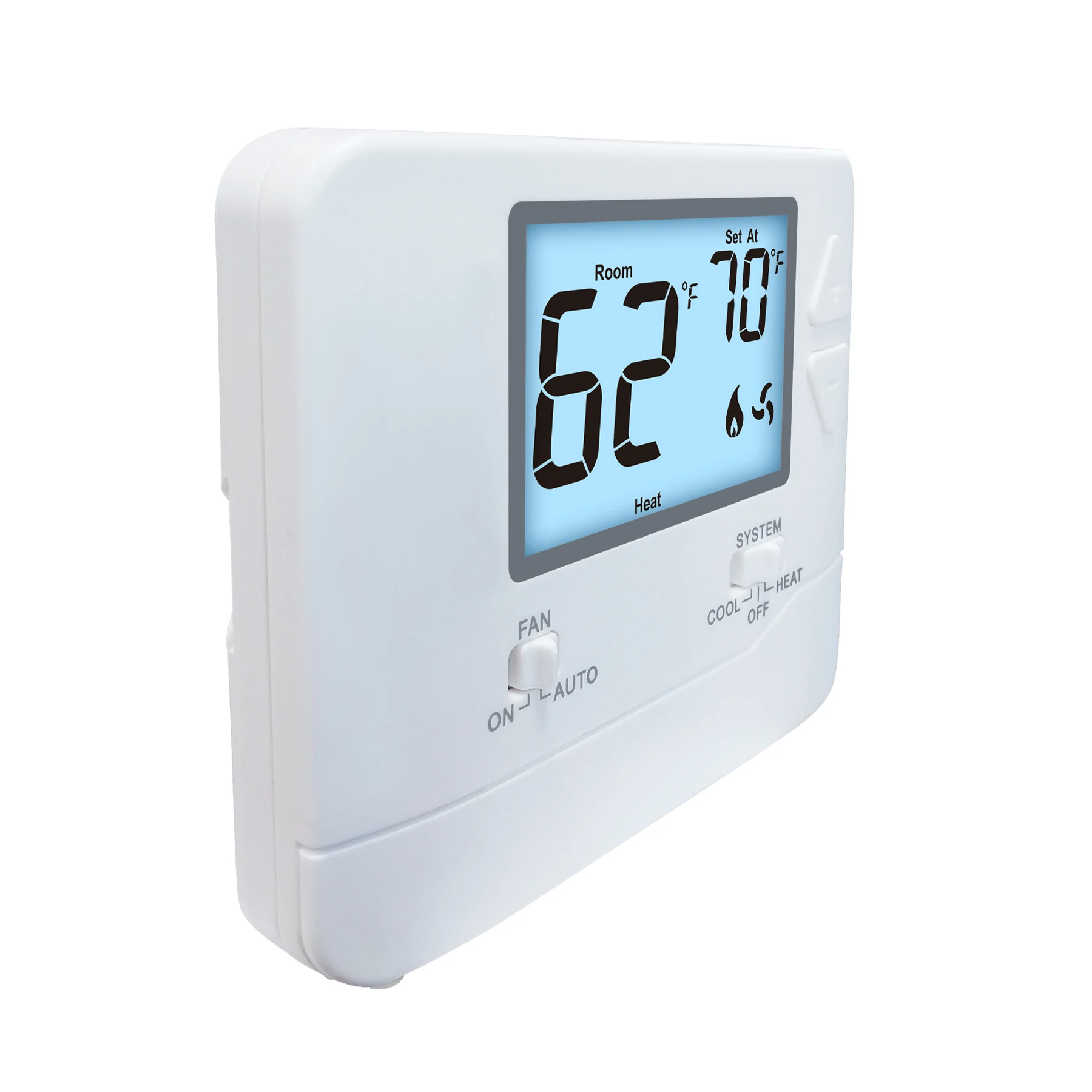

Digital Smart Room Temperaute Calibration Adjustment Heating And Cooling Non-Programmable Wired Thermostat (STN601/STN701)
STN601 and STN701 are the single stage non-programmable models in the STN builder series, described in the specification as air conditioning thermostats. They control 1 heat and 1 cool, keep the separate B and O terminals and the separate heating and cooling swing adjustments, and include a selectable 5 minute compressor delay, with no schedule at all.
Key Benefits
- No schedule, so nothing for a tenant or guest to misconfigure
- Separate B and O terminals for either reversing valve convention
- Separate heating and cooling swing adjustment tunes cycle rate per mode
- Room temperature calibration adjustment on a builder grade unit
- Selectable 5 minute compressor delay protection
Problems It Solves
- Handover service calls caused by schedules
- Budget stats without compressor protection
- Reversing valve wiring restricted to one convention
- Identical cycle rates in heating and cooling
Who It Is For
- House builders and developers
- Rental operators and housing associations
- Air conditioning distributors
- OEM buyers needing an entry level builder specification
Technical Features
- Single stage control, 1 heat and 1 cool, non-programmable
- Specified as an air conditioning thermostat

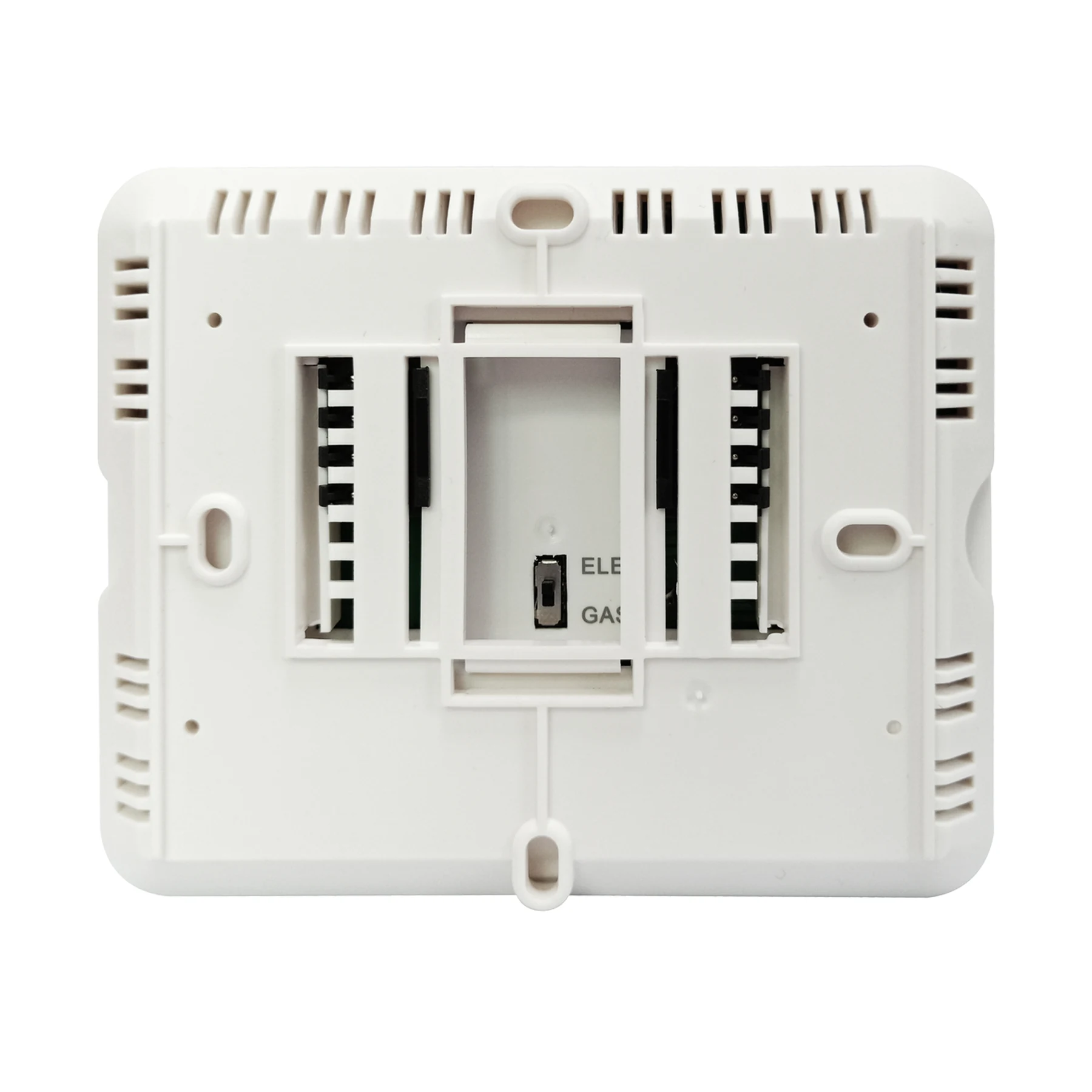

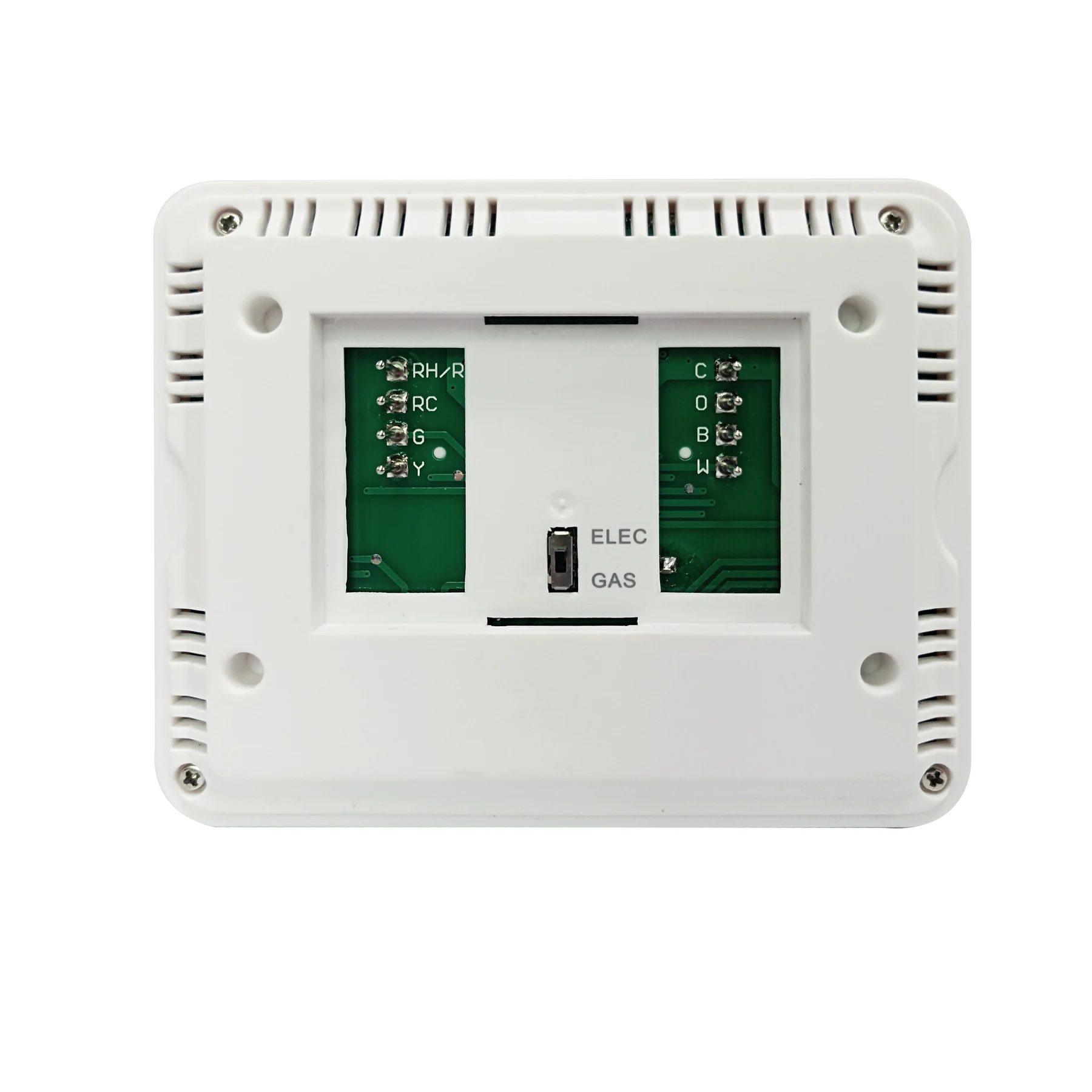

- Electric or gas configurable with separate B and O terminals
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustment
- 5 minute compressor delay protection, selectable on or off

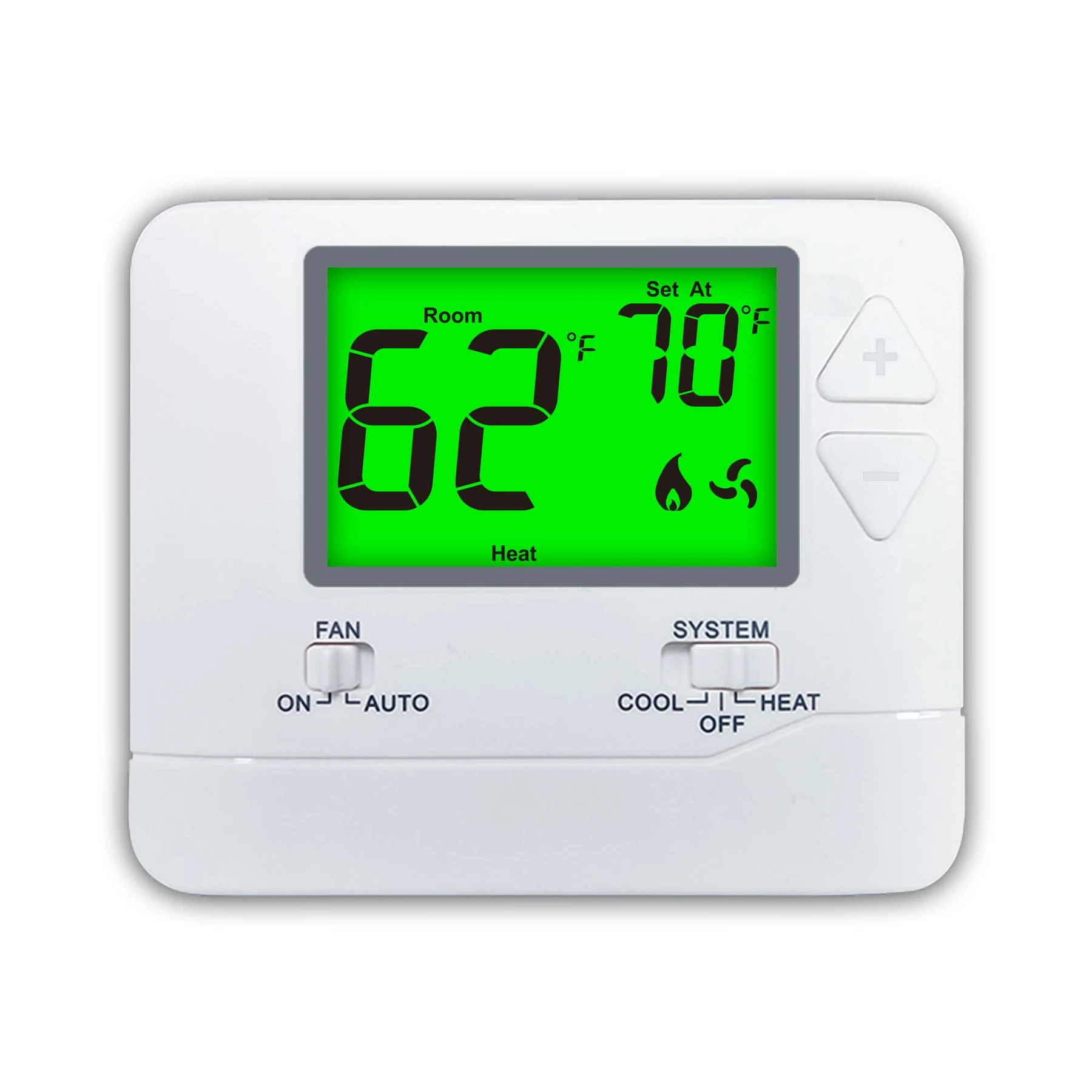

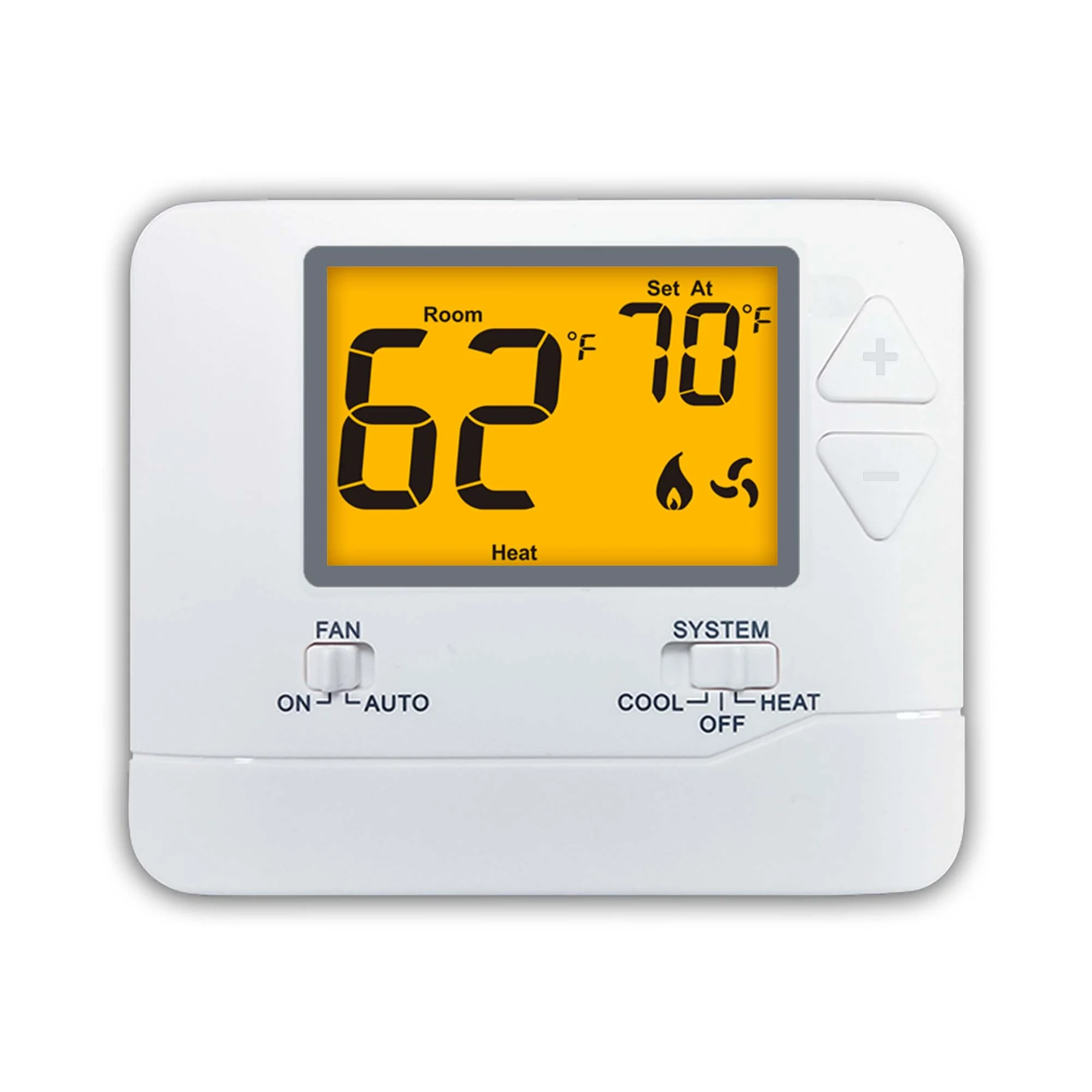

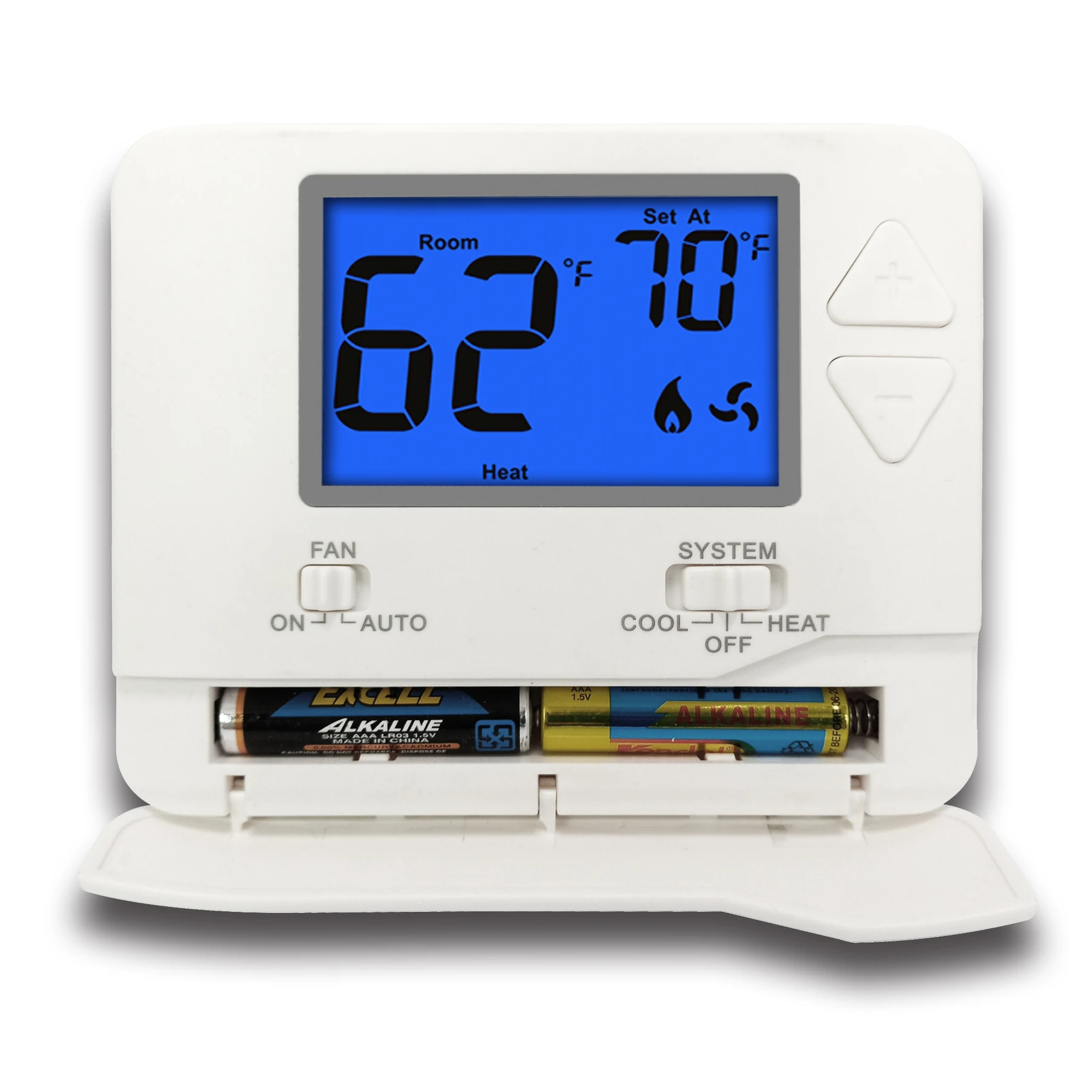

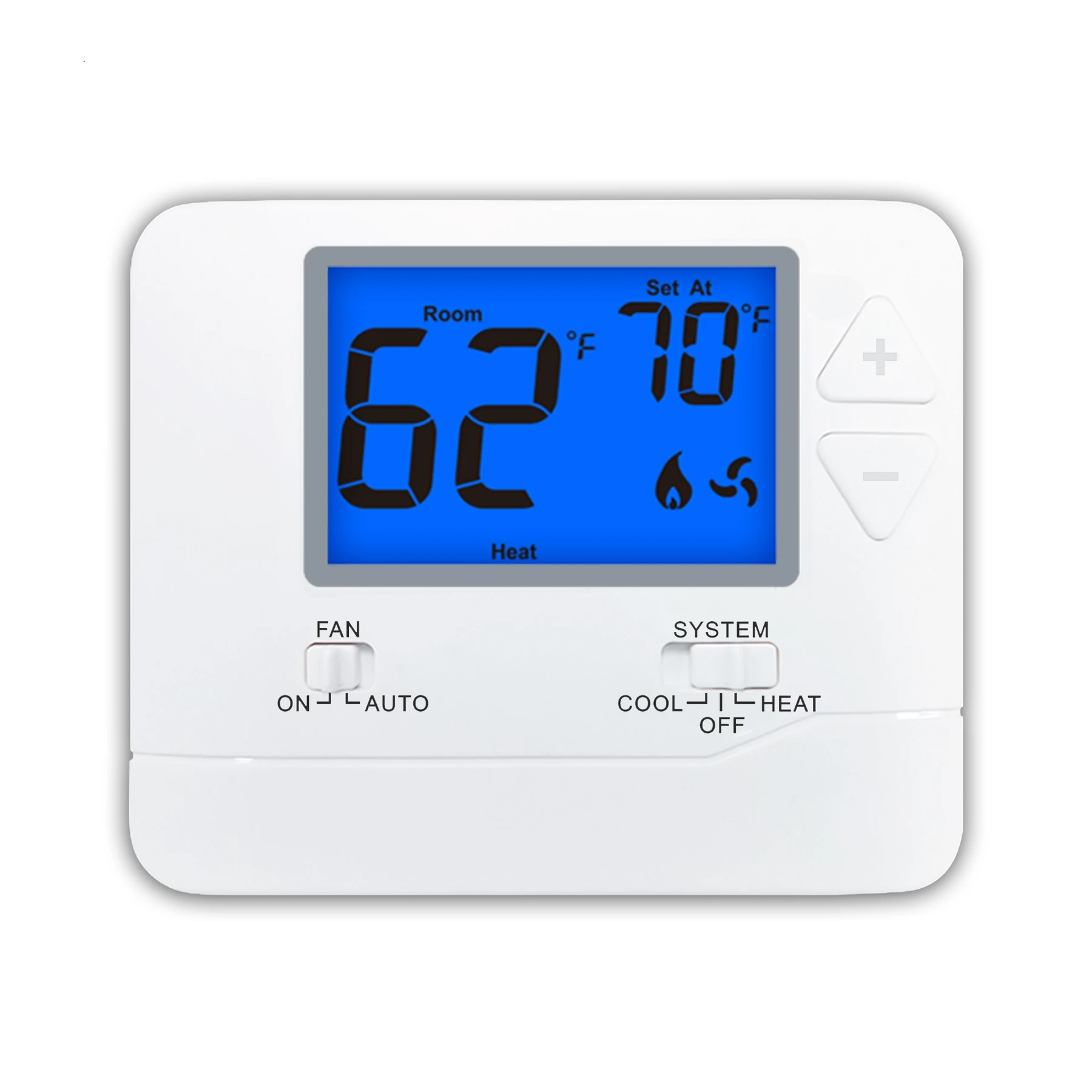

- Battery or 24V power, white, blue or green backlight
- PP housing, 400 g, supplied as one wired builder thermostat with one instruction sheet
Specifications
| Model | STN601/STN701 |
| Color | White/Blue/ |
| Material | PP |
| Weight | 400g |
| Package Included | 1Wired Builder Thermostat 1Instruction |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Air conditioning in apartments and rental housing
- Volume developments with a fixed comfort policy
- Single stage plant in small commercial spaces
- Replacement of failed builder grade air conditioning stats
Quality Control
- Heat and cool outputs exercised on the line
- Compressor delay timing checked on batch samples
- Calibration range verified before packing
Customisation Options
- Backlight white, blue or green
- Swing defaults set for the buyer's plant
- Front label, logo and housing marking
- Builder pack quantities and carton artwork
How It Compares
Installing And Commissioning
Step 1
Isolate the 24V control circuit before removing the existing control
Step 2

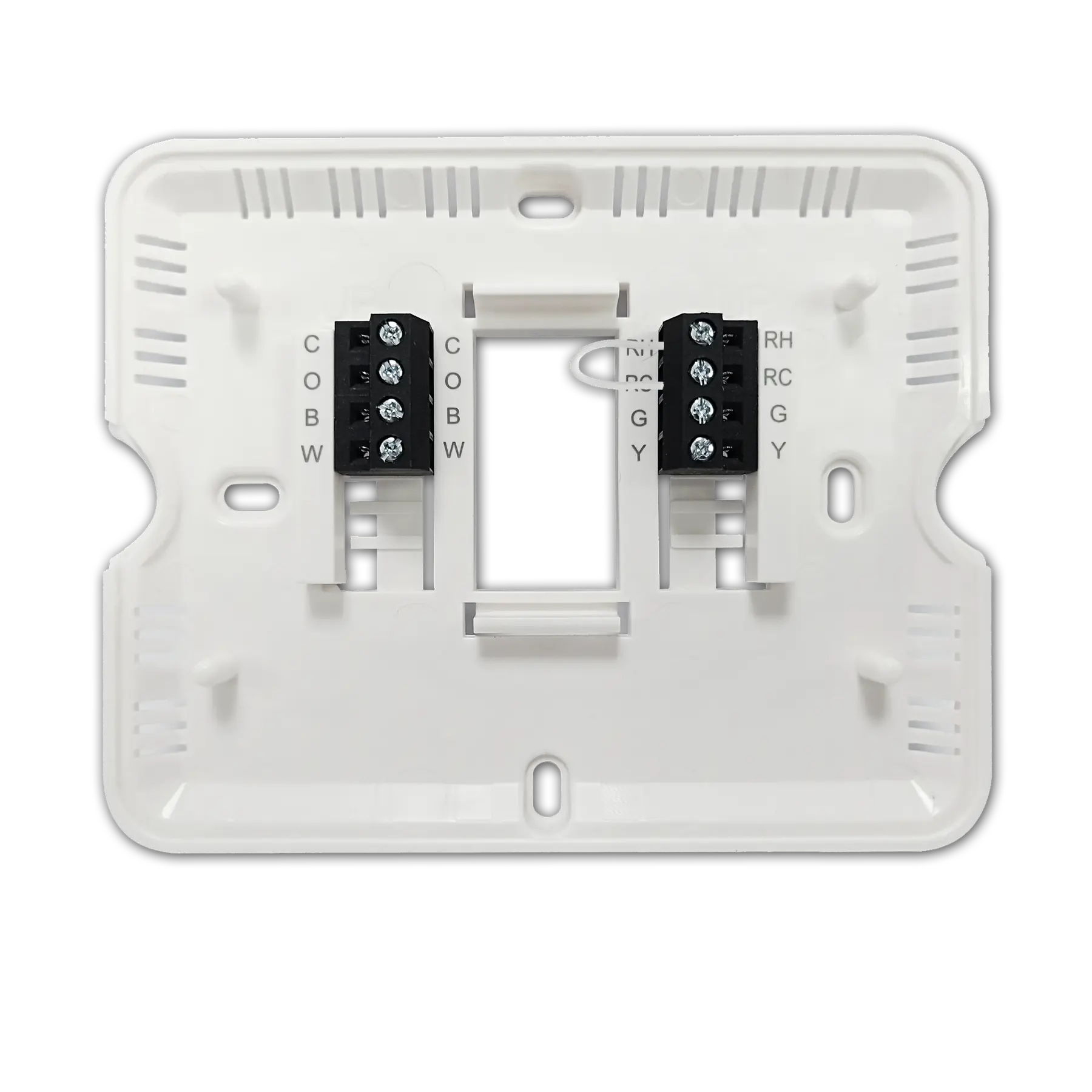

Land the conductors, using B or O where a reversing valve is fitted
Step 3
Select electric or gas configuration
Step 4
Set heating and cooling swing separately to suit the plant
Step 5
Enable the 5 minute compressor delay and test both modes
Digital Smart Room Temperaute Calibration Adjustment Heating And Cooling Non-Programmable Wired Thermostat: Buyer Questions
Are the STN601 and STN701 programmable?
No. They are non-programmable single stage air conditioning thermostats.
How many stages do they control?
1 heat and 1 cool.
Do they protect the compressor?
Yes, with a selectable 5 minute compressor delay.
What is the housing material?
PP.
What power supply do they take?
Battery or 24V power.
What is in the box?
One wired builder thermostat and one instruction sheet.
