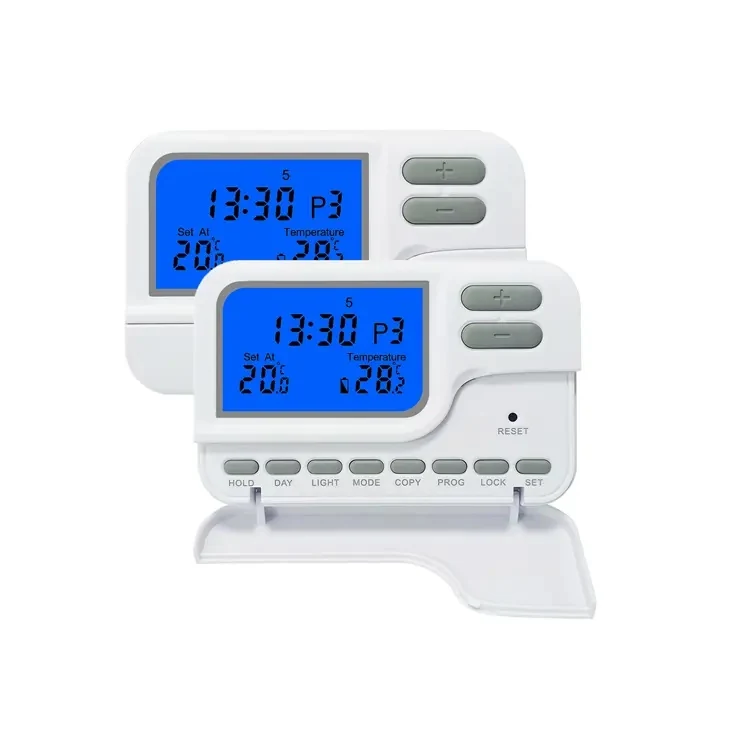

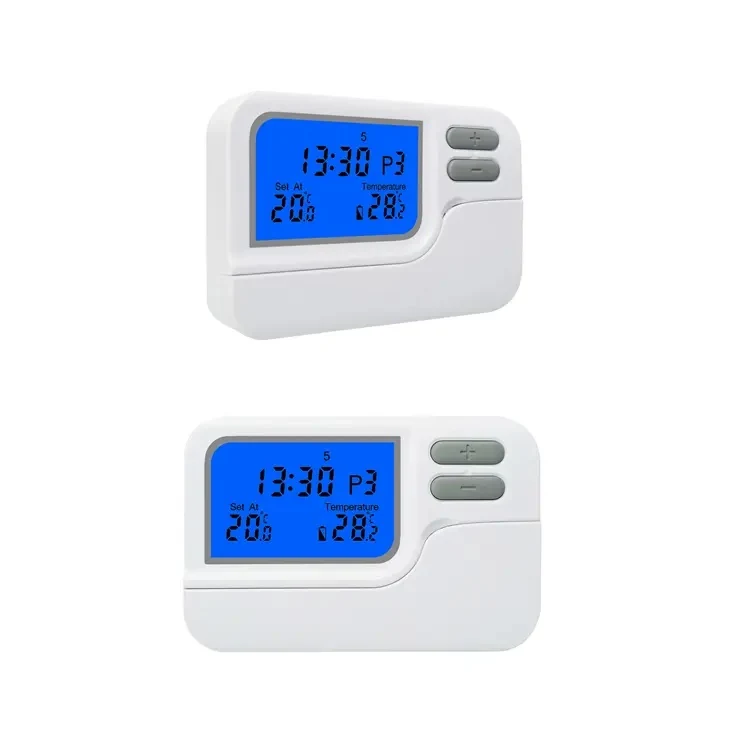

230V Energy Saving Easy-operated Heating Element Programmable Room Thermostat
ST2303 takes a different approach to scheduling: instead of a handful of temperature steps, it offers 48 time slots with two temperatures per day. That gives half hour resolution across the whole day between a comfort and a setback level, which suits heating elements and systems that respond quickly. It runs 7 day, 5/2 day and 24 hour modes with keypad lockout and manual override.
Key Benefits
- 48 time settings per day give half hour scheduling resolution
- Two temperature levels keep the interface simple despite the resolution
- Three programme modes cover domestic, commercial and continuous use
- Keypad lockout protects the schedule in shared property
- HEAT / OFF / COOL switch keeps one product in use year round
Problems It Solves
- Six step programmes too coarse for detailed occupancy plans
- Complex multi-temperature schedules that users cannot maintain
- Occupants altering a carefully planned schedule
- Heating running for a full period when only a boost was needed
Who It Is For
- Electric heating suppliers
- Energy managers scheduling to half hour intervals
- Contractors on commercial heating projects
- OEM buyers wanting a high resolution schedule model
Technical Features
- 7 day, 5/2 day and 24 hour programmable
- 48 time settings and 2 temperature levels per day
- HEAT / OFF / COOL mode switch
- Room temperature calibration adjustment
- Manual override mode and keypad lockout
- Wall mounted with a digital LCD
- Blue backlight
- ABS and PC housing, 400 g, supplied with one instruction sheet
Specifications
| Model | ST2303 |
| Backlight | Blue |
| Material | ABS+ |
| Weight | 400g |
| Package Included | 1Wired Thermostat 1Instruction |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Electric heating elements that respond within minutes
- Offices with heating following a detailed occupancy plan
- Homes that want short boosts rather than long periods
- Buildings where energy use is measured against a schedule
Quality Control
- Programme resolution verified across all 48 slots on batch samples
- Keypad lockout checked during the functional test
- High voltage insulation test on every 230V unit
Customisation Options
- Factory preset schedule written across the 48 slots
- Backlight colour on volume orders
- Front label, logo and housing marking
- Manual and carton in the buyer's language
How It Compares
Installing And Commissioning
Step 1
Isolate the supply and mount the backplate clear of the emitter
Step 2
Land the switched conductor on the marked terminal
Step 3
Choose 7 day, 5/2 day or 24 hour mode
Step 4
Set the comfort and setback temperatures, then mark the occupied slots
Step 5
Enable keypad lockout before the space goes into use
230V Energy Saving Easy-operated Heating Element Programmable Room Thermostat: Buyer Questions
How detailed can the ST2303 schedule be?
48 time settings per day with two temperature levels, which is half hour resolution across the whole day.
Why only two temperatures?
Two levels, comfort and setback, keep the interface usable at that resolution. Models such as ST2302 offer six temperatures across six periods instead.
Can the keypad be locked?
Yes.
Does it support cooling?
Yes, through the HEAT / OFF / COOL mode switch.
What does it weigh?
400 g.
Can you write our schedule before shipment?
Yes. Send us the occupied periods and the two temperature levels.
