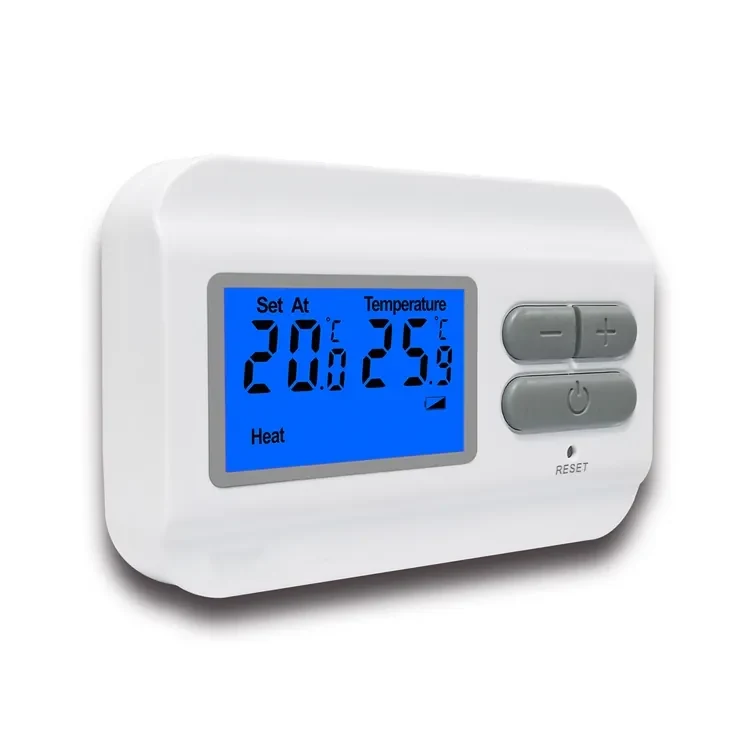

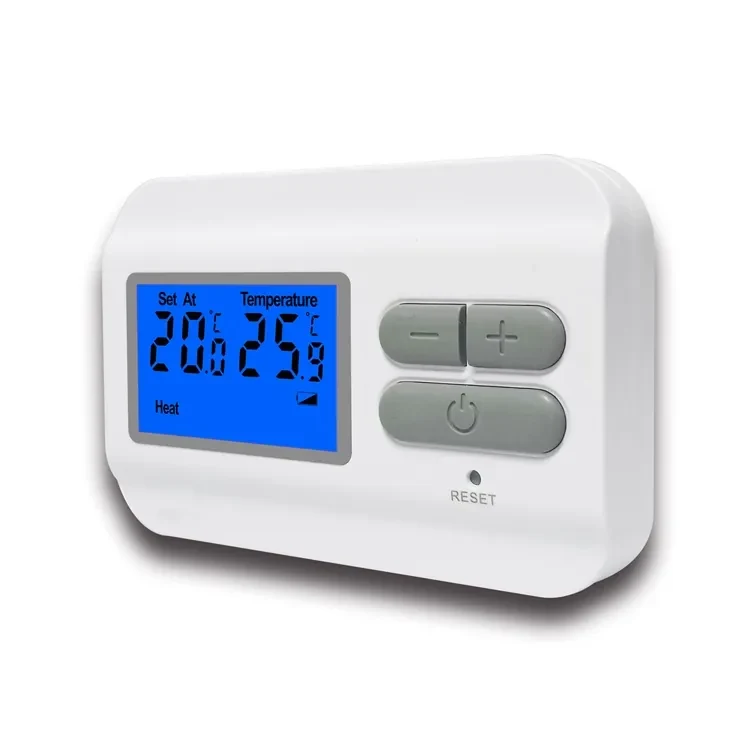

ST2301 230V digital non-programmable wired room thermostat

Wired Thermostat 230V Wired Thermostat Non-Programmable Thermostat

230V Digital Non-Programmable Wired Room thermostat Heating and Cooling

Name: 230V Digital Non-Programmable Wired Room thermostat Heating and Cooling
Brand: Smart Therm

ST2301 is the plainest wired 230V control in the ST2300 family: a digital LCD, a HEAT / OFF / COOL mode switch and nothing else to configure. It is wall mounted, carries a room temperature calibration adjustment and a low battery indicator, and comes in an anti-flammable PC and ABS housing with blue or orange backlighting.

Request A Quote Email For A Datasheet

Key Benefits

Nothing to programme, so nothing for an occupant to get wrong
HEAT / OFF / COOL switch keeps it in use through both seasons
Calibration adjustment corrects a warm or draughty mounting position
Low battery indicator warns before the heating stops responding
Anti-flammable PC and ABS housing for project material specifications

Problems It Solves

Service calls caused by mis-set schedules
Mechanical stats drifting out of calibration
Batteries failing without warning
Housings that do not meet a flammability specification

Who It Is For

Landlords and housing associations
Heating merchants stocking a basic wired 230V stat
Facility teams standardising a simple control
OEM buyers needing an entry level wired model

Technical Features

Wired 230V control, non-programmable
HEAT / OFF / COOL mode switch
Digital LCD display
Room temperature calibration adjustment
Low battery indicator
Wall mounted, easy installation and operation
Blue or orange backlight
Anti-flammable PC and ABS housing, 400 g, one instruction sheet per box

Specifications

Model	ST2301
Backlight	Blue/
Material	Anti-flammable PC+ABS, ABS+
Weight	400g
Package Included	1Wired Thermostat 1Instruction

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Rented flats and houses where the tenant sets one temperature
Offices running a single comfort setpoint
Replacement of worn mechanical dial stats
Buildings where heating times are controlled centrally

Quality Control

Mode switch action checked on every unit
High voltage insulation test on the 230V section
Calibration range verified on batch samples

Customisation Options

Backlight blue or orange
Front label, logo and housing marking
Setpoint range narrowed for managed property
Instruction sheet and carton in the buyer's language

Comparison

How It Compares

ST2302 weekly programmable thermostat

ST2301 has no clock or schedule at all, which is what landlords specify when heating times are fixed centrally.

ST2403

ST2301 omits the button battery backup and the large push button, and is the lower cost entry in the same wired family.

Use guide

Installing And Commissioning

Step 1

Isolate the 230V supply and confirm the circuit is dead

Step 2

Mount at about 1.5 m on an internal wall clear of the radiator

Step 3

Land the switched conductor on the marked terminal

Step 4

Set the mode switch and enter the target temperature

Step 5

Apply a calibration offset if the reading differs from a reference
