Single Room Manual Heating Gas Boiler Thermostat For HVAC Systems
S2305 is a manual single room thermostat for HVAC, radiator and boiler systems, operated with a slider rather than a menu. It measures from 0 C to 40 C in 0.1 C steps, holds a setpoint between 5 C and 35 C in 0.5 C steps, and drops into frost protection at +7 C when switched off. Backing it up is a 2 year warranty and an after sales package that can include onsite installation, training and inspection.
Key Benefits
- Slider operation gives one obvious control for staff and the public
- Onsite installation, training and inspection available on project orders
- 2 year warranty, twice the standard period on much of the range
- Calibration of -3 to +3 C corrects difficult mounting positions
- 118 x 80 x 26 mm body covers most existing wall marks
Problems It Solves
- Programmable stats being reset by whoever walks past
- Commissioning delays on projects with no local technical support
- Poor sensing positions producing complaints about room temperature
- Systems left off in winter without frost cover
Who It Is For
- Facility managers who want a control the public cannot misprogramme
- HVAC contractors on commercial fit-outs
- Distributors needing a 2 year warranty product
- Project buyers who value onsite commissioning support
Technical Features
- Non-programmable with a slider switch for HEAT, COOL and OFF
- OFF position holds frost protection with a defrosting temperature of +7 C
- Measuring range 0 C to 40 C in 0.1 C, setpoint range 5 C to 35 C in 0.5 C
- Display accuracy +/-1 C at 20 C, calibration adjustment -3 to +3 C
- Switchable voltage 24 V AC/DC up to 250 V AC at 50 Hz
- Switchable current 6 A with 2 A inductive load

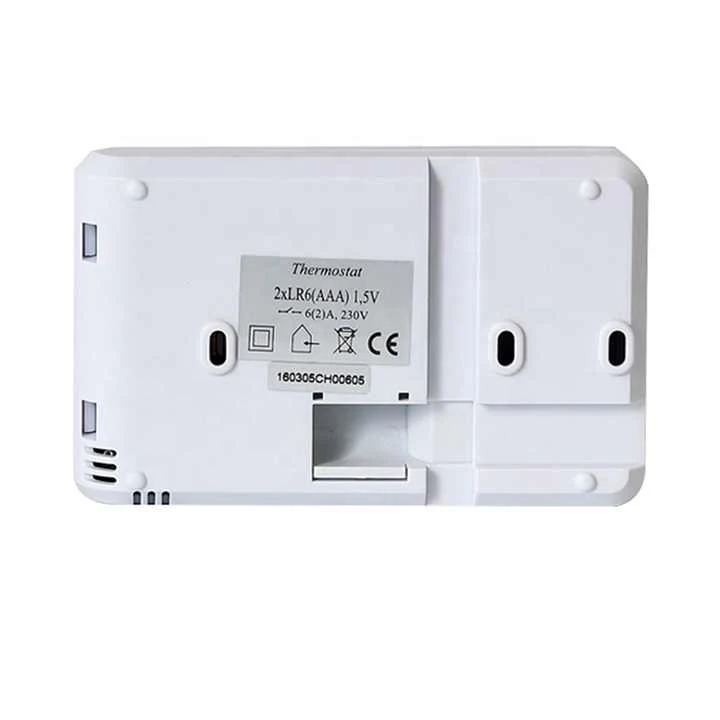

- Power supply 2 x AAA 1.5V lithium batteries

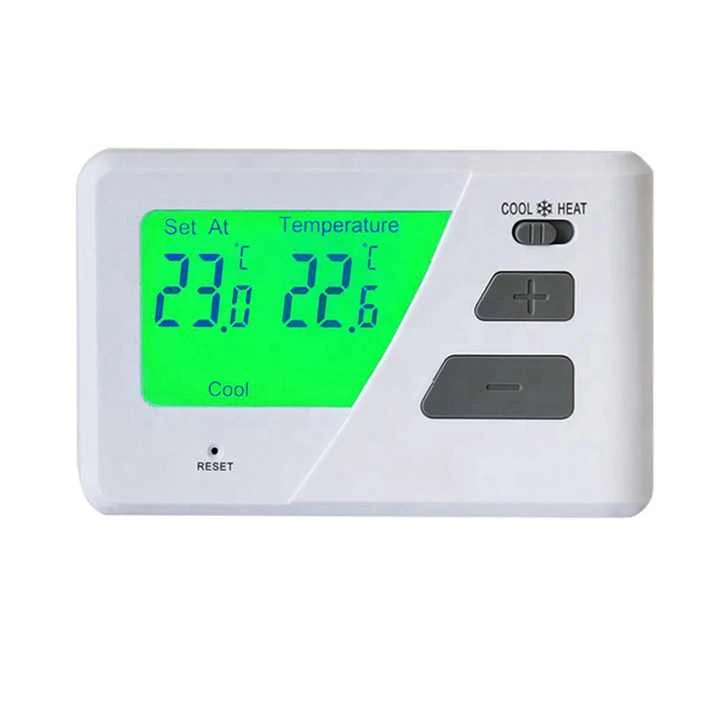

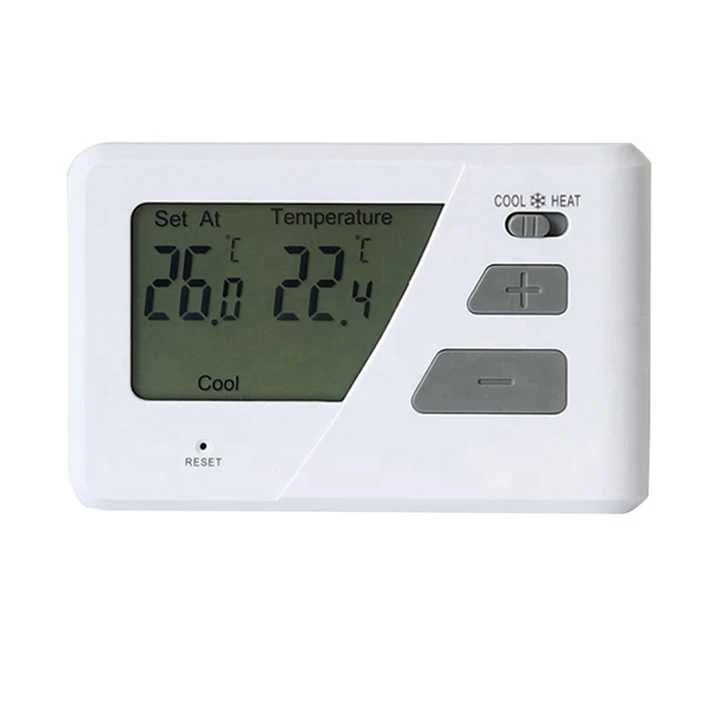

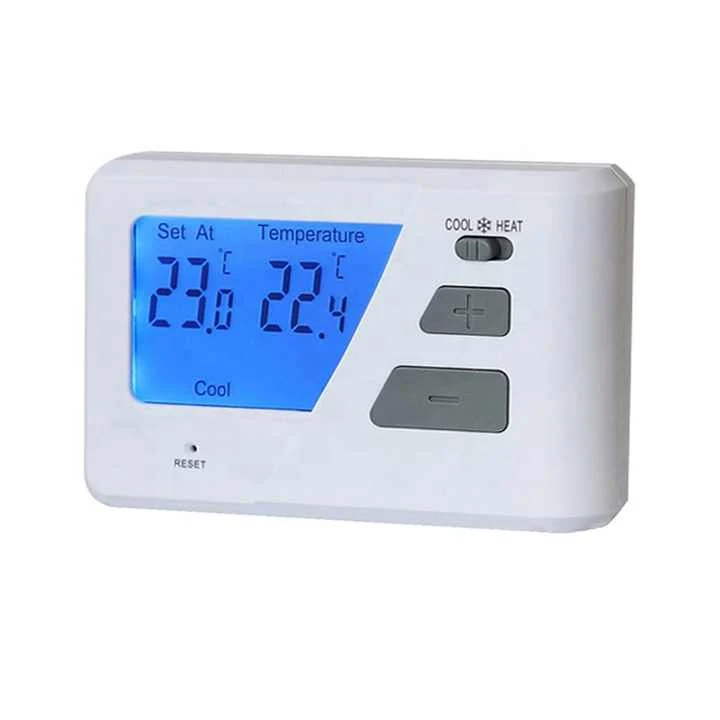

- Dimensions 118 x 80 x 26 mm with a large clear LCD and selectable backlight
Specifications
| Model | S2305 |
| Programmability | Non-Programmable |
| System Switch | HEAT/OFF/COOL MODE Switch |
| Power Supply | 2 x AAA 1.5V Lithium batteries |
| Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
| Switchable Current | 6 A (2 A inductive load) |
| Temperature Range | 0°C-40°C in 0.1°C |
| Setpoint Range | 5°C-35°C in 0.5°C Defrosting Temperature +7°C |
| Display accuracy | ±1°C (at 20°C) |
| Dimension | 118 x 80 x 26 mm |
| Application | Mall |
| Type | Air Conditioning/Heating/HVAC Systems/Radiator/Ventilation/Cooling/Noise and Attenuation/Other |
| Warranty | 2 years |
| After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other, NONE |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Shopping malls and retail units with staff operated heating
- HVAC and radiator systems in commercial buildings
- Single room control in offices and treatment rooms
- Ventilation and cooling systems needing a simple manual setpoint
Quality Control
- Slider action and detent checked on every unit
- Contact tested at inductive load
- Calibration range verified against a reference probe on batch samples
Customisation Options
- Backlight colour selected from the standard options
- Setpoint range restricted for retail and public buildings
- Logo, manual and carton to the buyer's artwork
- Onsite installation, training and inspection agreed per project
How It Compares
Installing And Commissioning
Step 1
Fit 2 x AAA 1.5V lithium batteries and confirm the display lights
Step 2
Mount at about 1.5 m clear of the heat emitter and direct sun
Step 3
Land the switched conductors within the 24 V AC/DC to 250 V AC range
Step 4
Set the slider to HEAT or COOL and confirm the system responds
Step 5
Apply a -3 to +3 C calibration offset if the reading differs from a reference
Single Room Manual Heating Gas Boiler Thermostat For HVAC Systems: Buyer Questions
Is there any way to programme the S2305?
No. It is manual by design, with a slider for HEAT, COOL and OFF.
What is the warranty?
2 years on this model.
Do you provide installation support on site?
For project orders we can arrange onsite installation, training and inspection, alongside online technical support and free spare parts.
What are the dimensions?
118 x 80 x 26 mm.
Does the OFF position leave the system unprotected?
No. Frost protection stays active with a defrosting temperature of +7 C.
What is the switching capacity?
6 A with 2 A inductive load, across 24 V AC/DC up to 250 V AC at 50 Hz.
