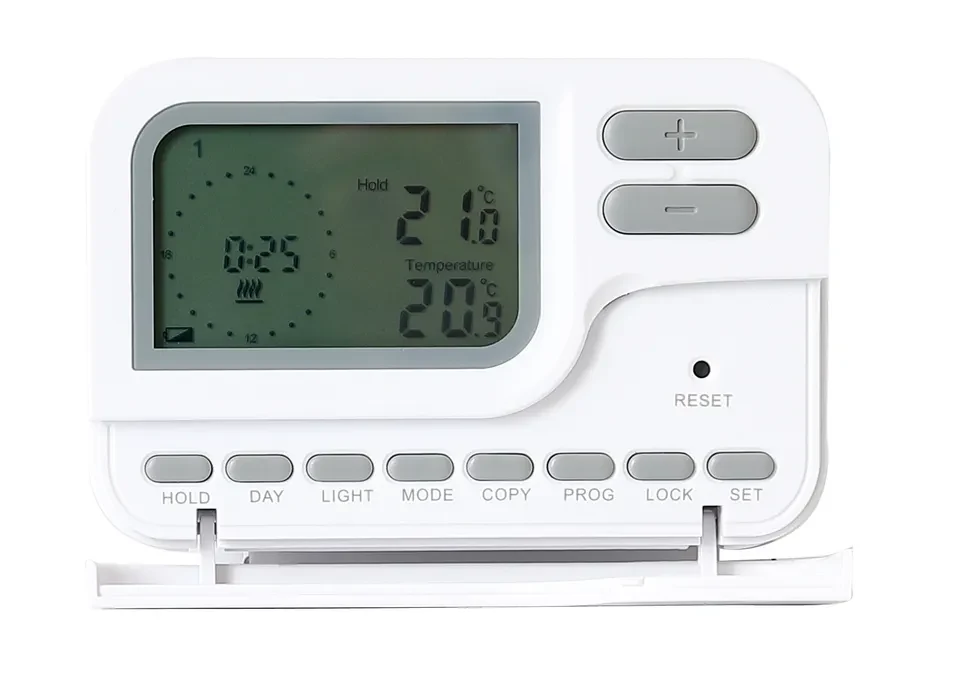

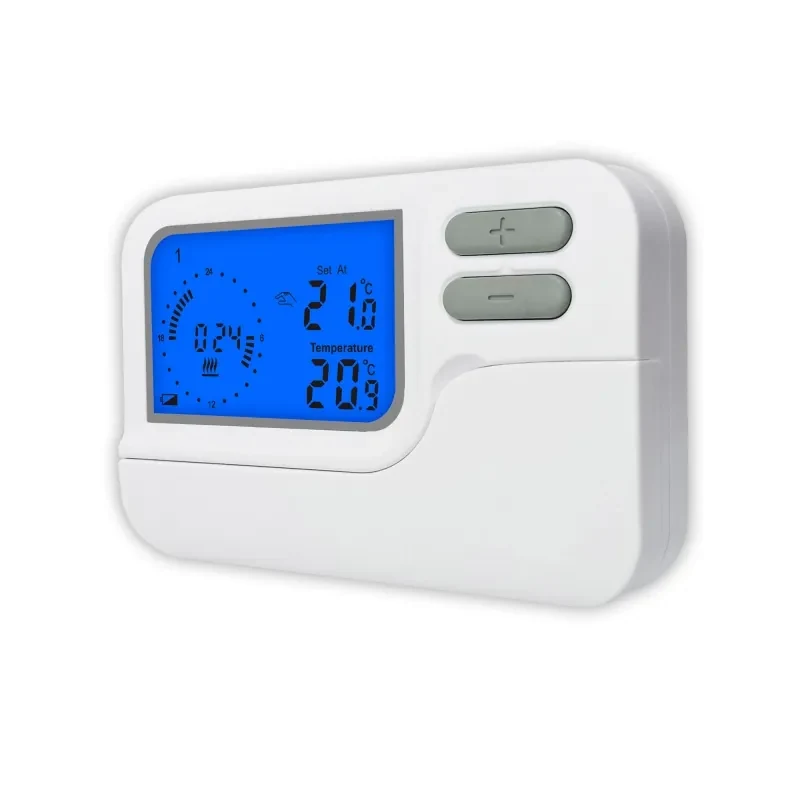

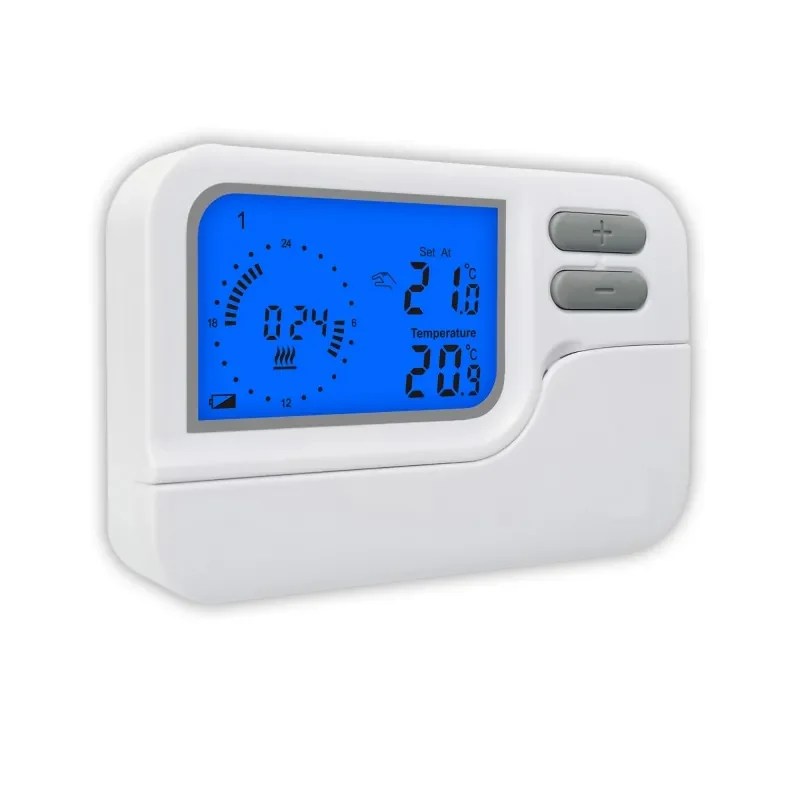

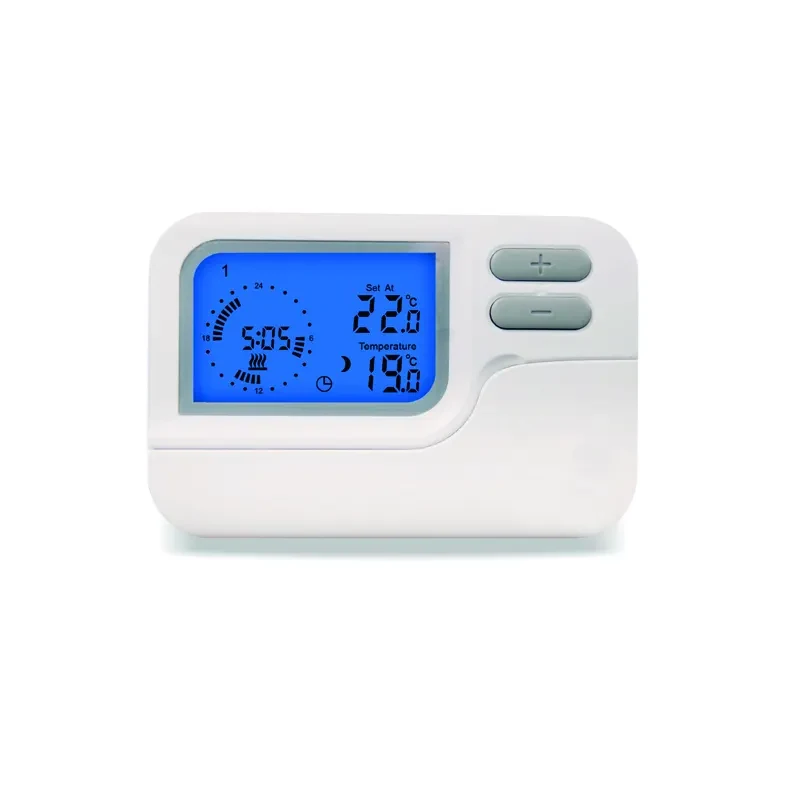

S2303RF wireless programmable boiler thermostat with LED system indicator

Wireless Thermostat 230V Wireless Thermostat Gas Boiler Thermostat Programmable Thermostat

230V RF Wireless Programmable Boiler Thermostat for HVAC System

Name: 230V RF Wireless Programmable Boiler Thermostat for HVAC System
Brand: Smart Therm

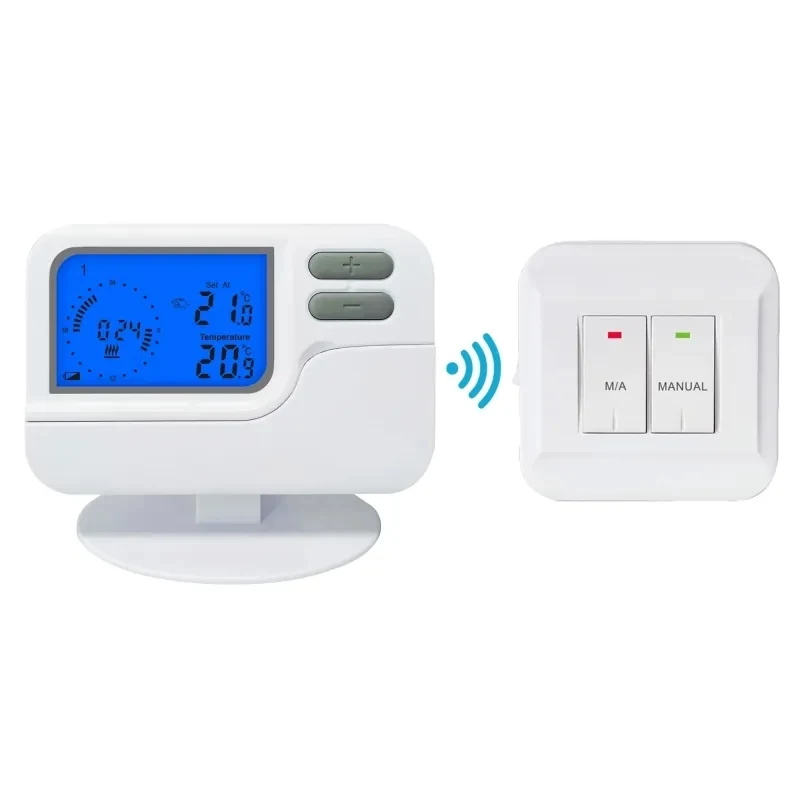

S2303RF combines a wireless link with a high resolution schedule: 48 time settings and two temperature levels per day, across a 7 day programme. The link runs on 868 MHz for more stable communication, and an LED system indicator on the receiver shows whether the boiler is being called. An AUTO/MANUAL switch lets an occupant override without losing the stored programme.

Request A Quote Email For A Datasheet

Key Benefits

48 time settings per day give half hour resolution on a wireless unit
868 MHz link chosen for communication stability
AUTO/MANUAL switch overrides without losing the programme
LED system indicator shortens fault finding on site
Keypad lockout protects the schedule in shared property

Problems It Solves

Coarse schedules on wireless thermostats
No visible indication of whether the boiler is being called
Overrides that permanently overwrite the schedule
Occupants altering a documented heating plan

Who It Is For

Energy managers scheduling in detail
Heating installers on retrofit work
Building managers in shared property
OEM buyers needing a high resolution wireless schedule

Technical Features

Wireless RF link on 868 MHz for more stable communication
7 day programmable with 48 time and 2 temperature settings per day
AUTO/MANUAL switch
LED system indicator
Room temperature calibration adjustment
Keypad lockout
Blue or white backlight
Anti-flammable PC and ABS housing, 400 g, one instruction sheet per box

Specifications

Model	S2303
Backlight	Blue/
Material	Anti-flammable PC+ABS, ABS +
Weight	400g
Package Included	1Wireless thermostat 1

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Buildings scheduling heating to half hour intervals
Properties where a cable to the boiler cannot be run
Shared buildings needing lockout
Energy managed sites measuring against a documented schedule

Quality Control

Programme resolution verified across all 48 slots on batch samples
Link stability checked over a fixed test distance
LED system indicator verified during the functional test

Customisation Options

Factory preset schedule written across the 48 slots
Backlight blue or white
Front label, logo and housing marking
Manual and carton in the buyer's language

Comparison

How It Compares

S2302RF

S2303RF offers 48 time slots with two temperature levels, where S2302RF gives six times and six temperatures per day.

S2303 wired version

S2303RF removes the cable between the room and the boiler and adds the LED system indicator.

Use guide

Installing And Commissioning

Step 1

Wire and power the receiver at the boiler

Step 2

Confirm the room unit has bound and the LED indicator responds

Step 3

Set the comfort and setback temperature levels

Step 4

Mark the occupied slots across the 48 daily intervals

Step 5

Enable keypad lockout in shared property before handover
