Easy Menu Driven Programmable Heat Pump 2Heat 1Cool Room Temperaute Calibration Adjustment Wired Thermostat (3025/3225)
3025 and 3225 are the programmable heat pump models in our builder thermostat series, controlling 2 heat and 1 cool. Builder series units use a PP housing and are supplied as a wired builder thermostat with one instruction sheet, which is the specification volume developers ask for. Programming can be set to 7 day, 5/1/1 or non-programmable, and separate B and O terminals cover both reversing valve conventions.
Key Benefits
- Builder series specification aimed at volume residential developments
- Three programme modes from one part number

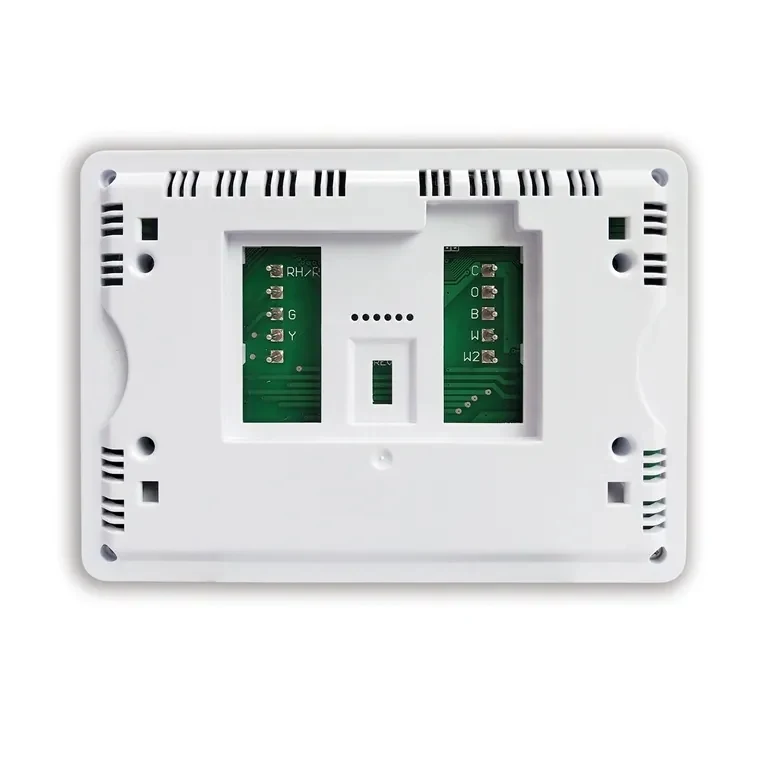

- Separate B and O terminals for either reversing valve convention
- Second stage swing adjustment keeps auxiliary heat from overrunning

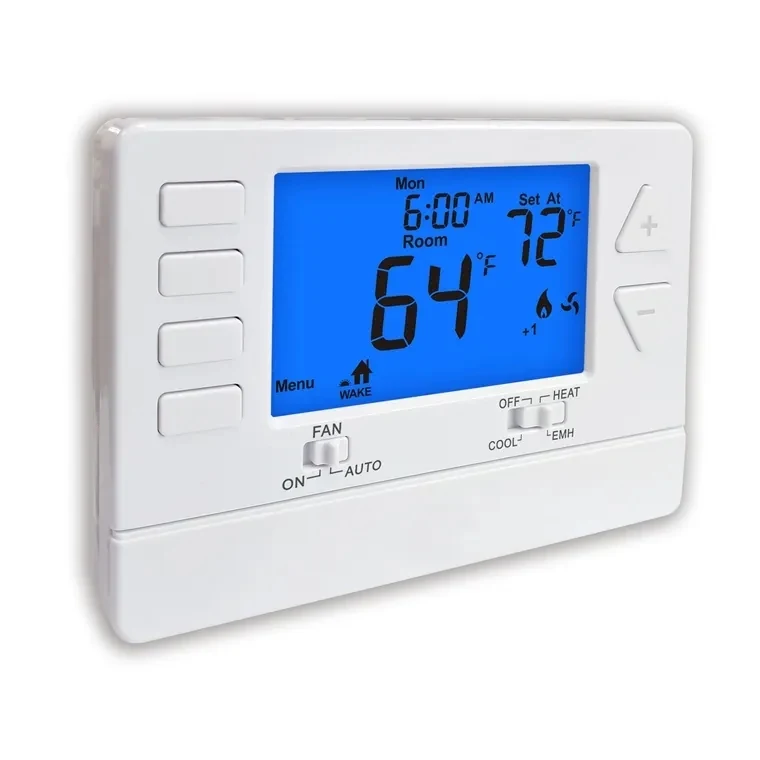

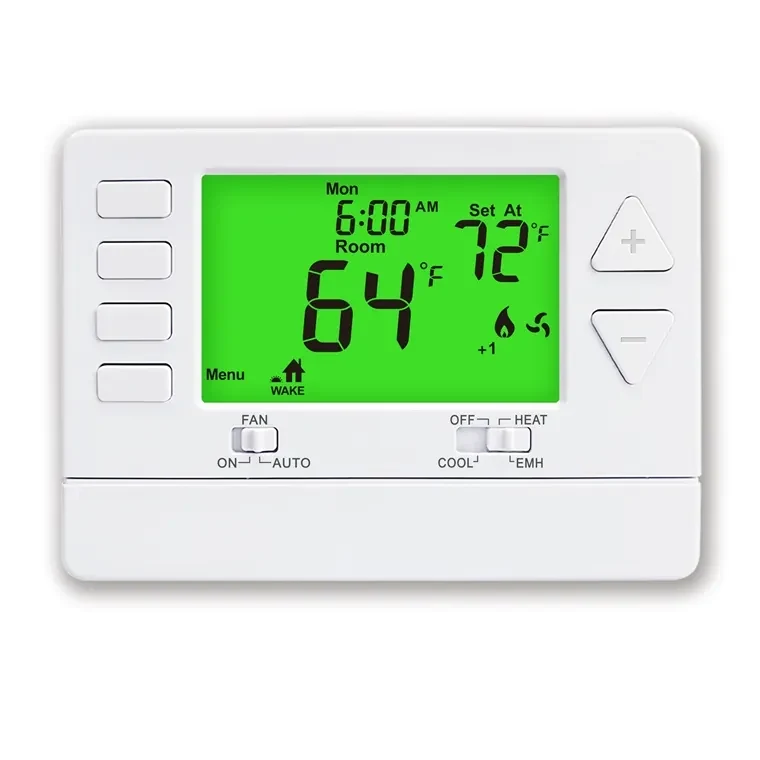

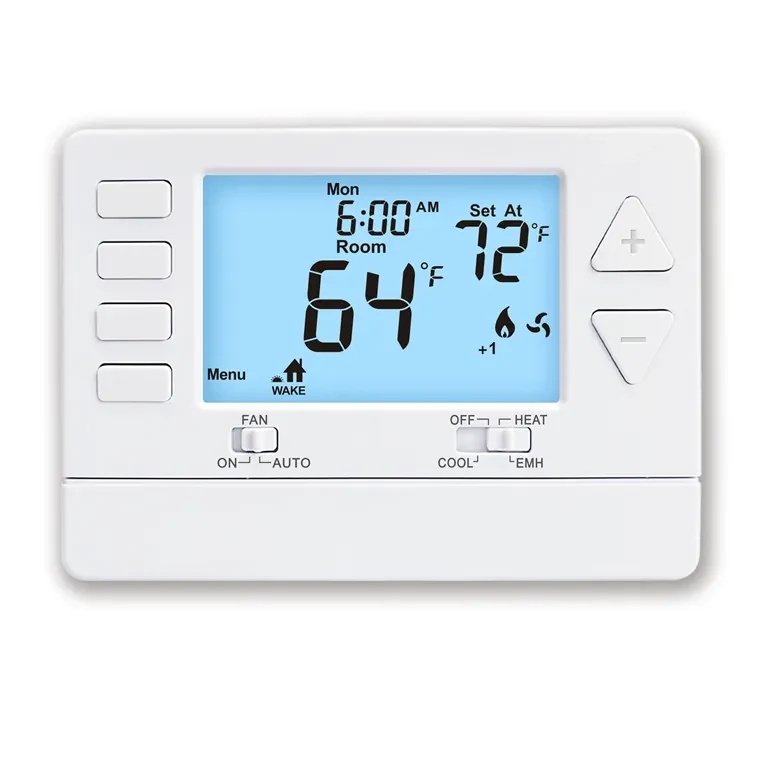

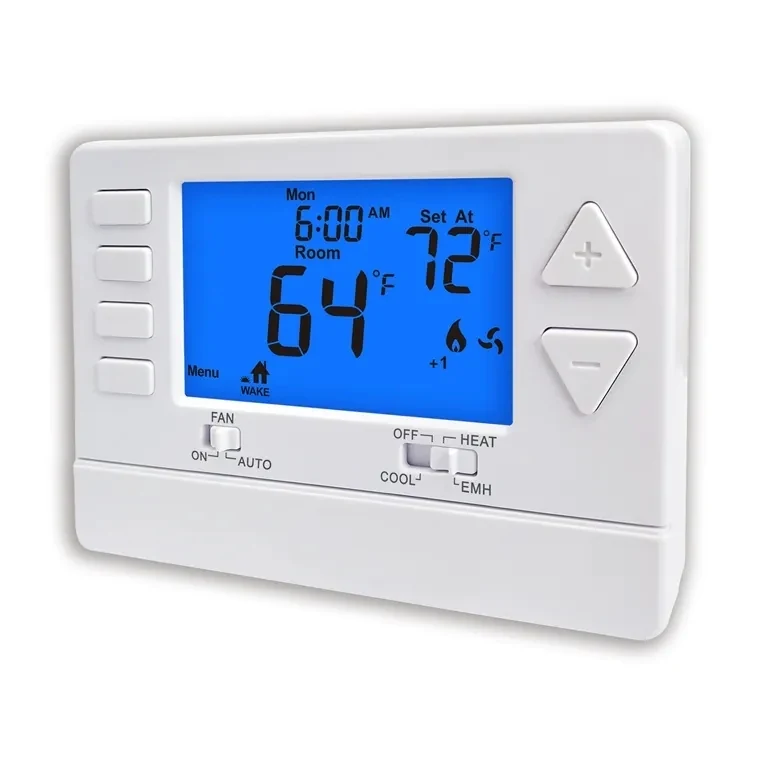

- PP housing with white, blue or green backlight
Problems It Solves
- Separate part numbers for scheduled and unscheduled units
- Reversing valve wiring limited to one convention
- Auxiliary heat running longer than needed
- Compressor restarts too soon after a supply interruption
Who It Is For
- House builders and developers buying at volume
- Heat pump equipment suppliers
- Contractors fitting out large residential projects
- OEM buyers needing a builder specification thermostat
Technical Features
- Heat pump control, 2 heat and 1 cool
- 7 day, 5/1/1 or non-programmable
- Easy menu driven programming with wake, leave, return and sleep icons
- Electric or gas configurable with separate B and O terminals
- Separate heating and cooling swing adjustments including second stage
- Room temperature calibration adjustment
- Filter change indicator and 5 minute compressor delay protection, both selectable
- PP housing, white, blue or green backlight, battery or 24V power, 400 g
Specifications
| Model | 3025/3225 |
| Programmability | 7 Day,5/1/1 or |
| Color | White/Blue/ |
| Material | PP |
| Weight | 400g |
| Package Included | 1Wired Builder Thermostat 1Instruction |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- New build housing developments on heat pumps
- Apartment blocks fitted out at scale
- Heat pump systems with auxiliary electric heat
- Developments where some units are scheduled and some are not
Quality Control
- Both heating stages and the cooling stage exercised on the line
- Programme mode switching verified across all three settings
- Compressor delay timing checked on batch samples
Customisation Options
- Default programme mode preset at the factory
- Backlight white, blue or green
- Front label, logo and housing marking
- Builder pack quantities and carton artwork
How It Compares
Installing And Commissioning
Step 1
Isolate the 24V control circuit before removing the existing control
Step 2

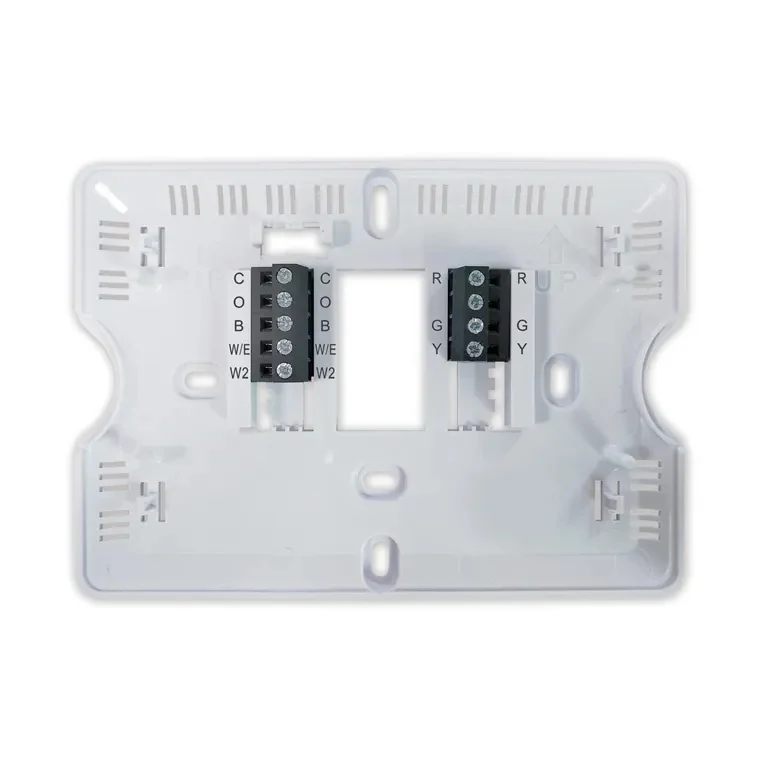

Land the conductors, using B or O as the reversing valve requires
Step 3
Select electric or gas configuration and choose the programme mode
Step 4
Set the second stage swing so auxiliary heat does not overrun
Step 5
Enable the compressor delay and filter indicator, then test each stage
Easy Menu Driven Programmable Heat Pump 2Heat 1Cool Room Temperaute Calibration Adjustment Wired Thermostat: Buyer Questions
What is the difference between 3025 and 3225?
They are the two variants of the same builder series heat pump model. Tell us your market and we will confirm which part number applies.
Can it be supplied non-programmable?
Yes. 7 day, 5/1/1 and non-programmable are all selectable, and we can preset the default.
What is the housing material?
PP.
How many stages does it control?
2 heat and 1 cool, heat pump.
What power supply does it take?
Battery or 24V power.
What is in the box?
One wired builder thermostat and one instruction sheet.
