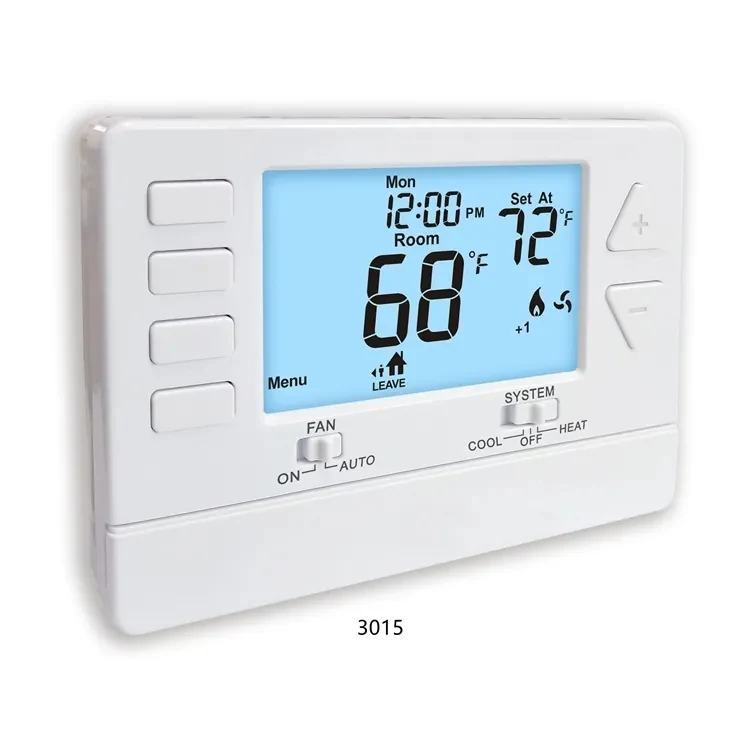

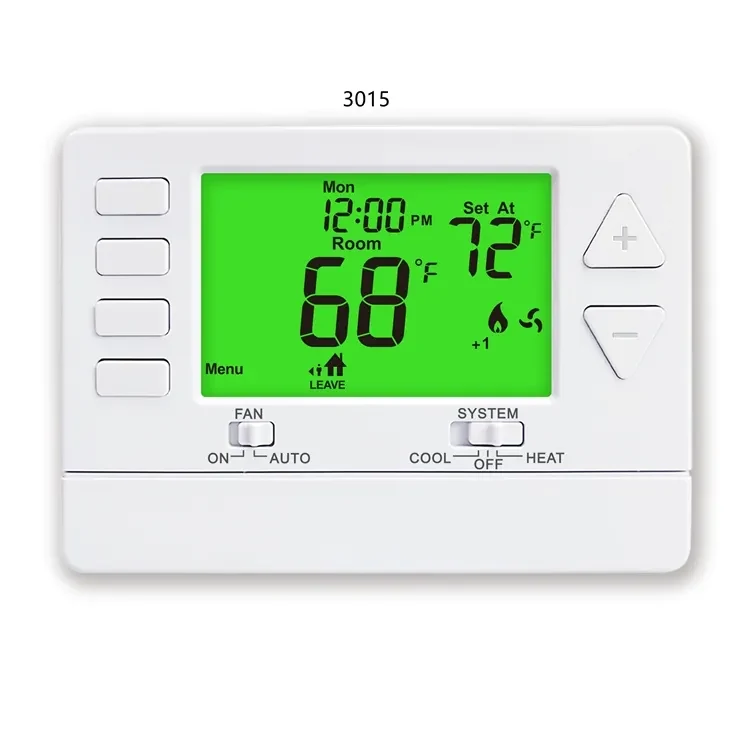

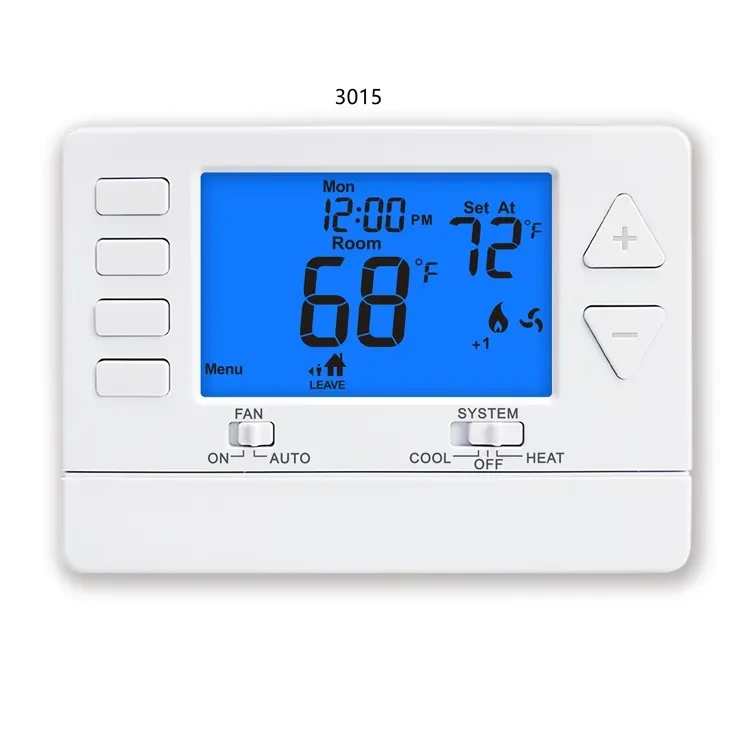

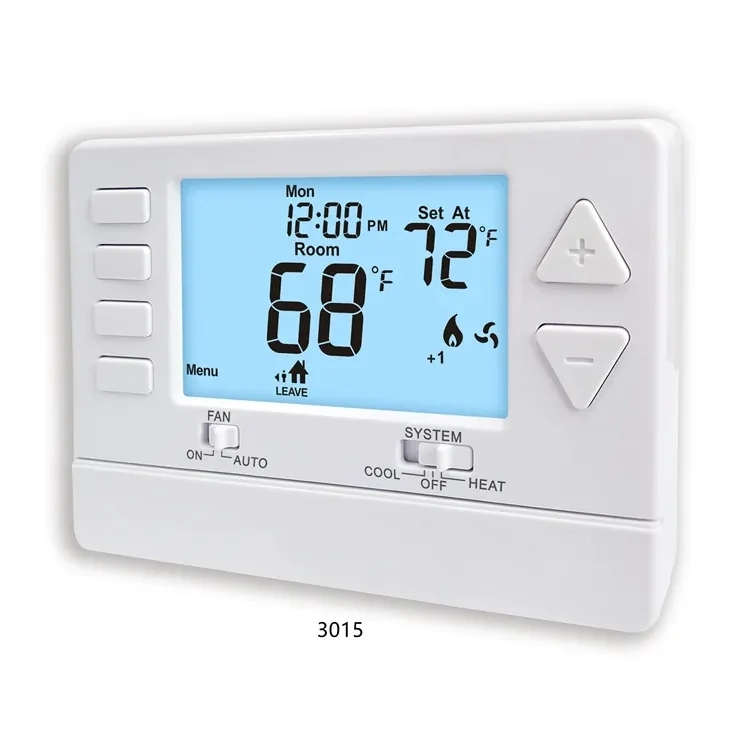

Models 3015 and 3215 multi stage programmable builder thermostat

Wired Thermostat 24V Wired Thermostat HVAC Thermostat Electric and Gas Thermostat Programmable Thermostat Non-Programmable Thermostat

Smart Multi Stage Programmable 2Heat 2Cool Room Temperaute Calibration Adjustment Wired Thermostat

Name: Smart Multi Stage Programmable 2Heat 2Cool Room Temperaute Calibration Adjustment Wired Thermostat
Brand: Smart Therm

3015 and 3215 are the multi stage models in the builder series, controlling 2 heat and 2 cool on conventional plant. Programming can be set to 7 day, 5/1/1 or non-programmable, and the swing adjustments cover both stages separately so the second stage does not run when the first can hold the room. The housing is PP and the unit ships as a wired builder thermostat with one instruction sheet.

Request A Quote Email For A Datasheet

Key Benefits

2 heat and 2 cool staging in a builder series specification
Three programme modes from one part number
Second stage swing adjustment stops unnecessary stage two operation
Separate B and O terminals for either reversing valve convention
5 minute compressor delay protection, selectable

Problems It Solves

Single stage controls short cycling two stage plant
Second stage running when the first could hold the room
Separate part numbers for scheduled and unscheduled units
Compressor restarts too soon after a supply interruption

Who It Is For

House builders and developers buying at volume
HVAC contractors on residential projects
Distributors serving the builder market
OEM buyers needing a multi stage builder specification

Technical Features

Multi stage control, 2 heat and 2 cool
7 day, 5/1/1 or non-programmable
Easy menu driven programming with wake, leave, return and sleep icons
Electric or gas configurable with separate B and O terminals
Separate heating and cooling swing adjustments including second stage
Room temperature calibration adjustment
Filter change indicator and 5 minute compressor delay protection, both selectable
PP housing, white, blue or green backlight, battery or 24V power, 400 g

Specifications

Model	3015/3215
Programmability	7 Day,5/1/1 or
Color	White/Blue/
Material	PP
Weight	400g
Package Included	1Wired Builder Thermostat 1Instruction

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

New build housing on two stage heating and cooling plant
Apartment developments with staged air conditioning
Buildings mixing scheduled and unscheduled units
Plant that short cycles when driven by a single stage control

Quality Control

All four staging outputs exercised on the line
Programme mode switching verified across all three settings
Compressor delay timing checked on batch samples

Customisation Options

Default programme mode preset at the factory
Backlight white, blue or green
Swing defaults set for the buyer's plant
Builder pack quantities and carton artwork

Comparison

How It Compares

Models 3001 and 3201

3015 and 3215 add a second heating and second cooling stage plus full scheduling.

Models 3025 and 3225

This pair is multi stage conventional, where 3025 and 3225 are heat pump 2 heat 1 cool.

Use guide

Installing And Commissioning

Step 1

Isolate the 24V control circuit before removing the existing control

Step 2

Land the staging conductors, using B or O as required

Step 3

Select electric or gas configuration and choose the programme mode

Step 4

Set first and second stage swing separately

Step 5

Enable the compressor delay and filter indicator, then test each stage
