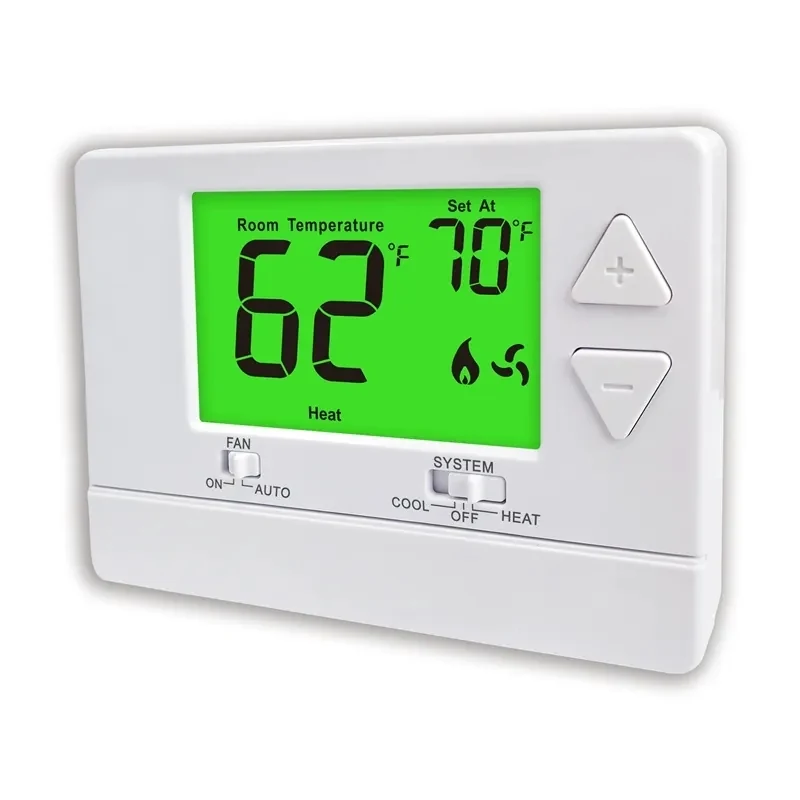

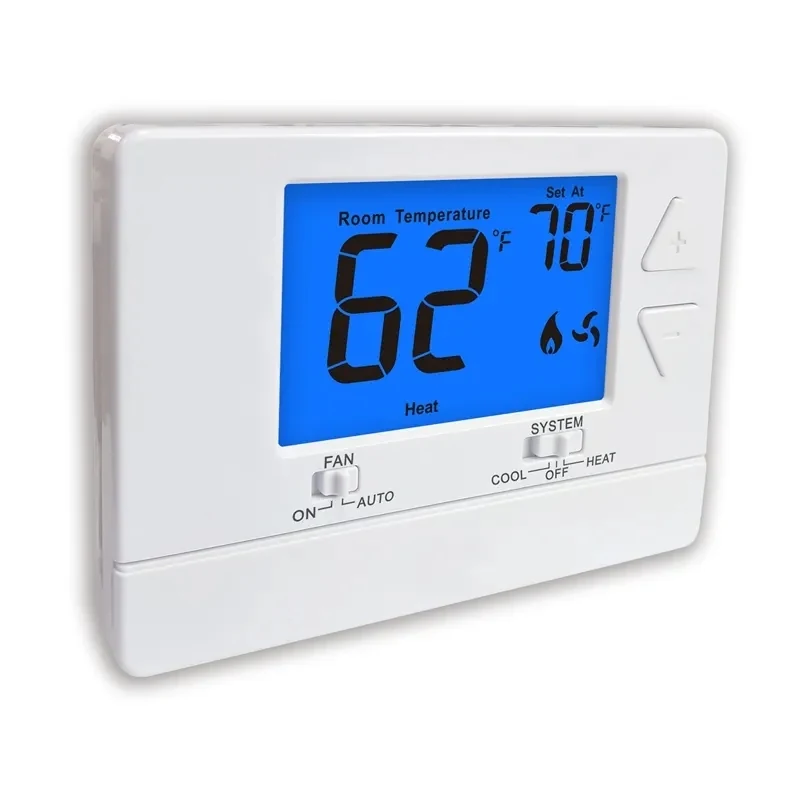

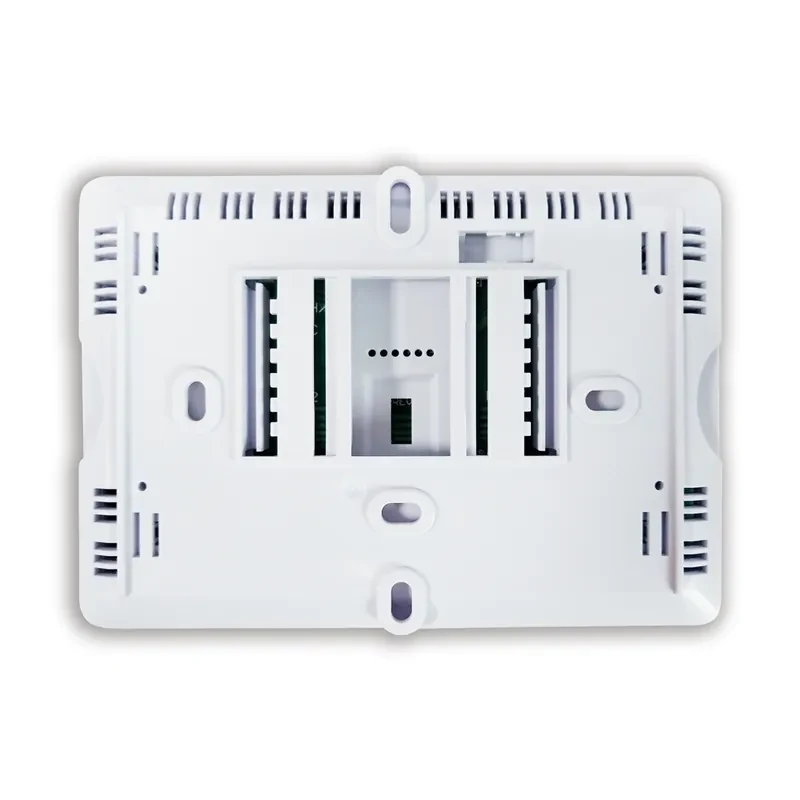

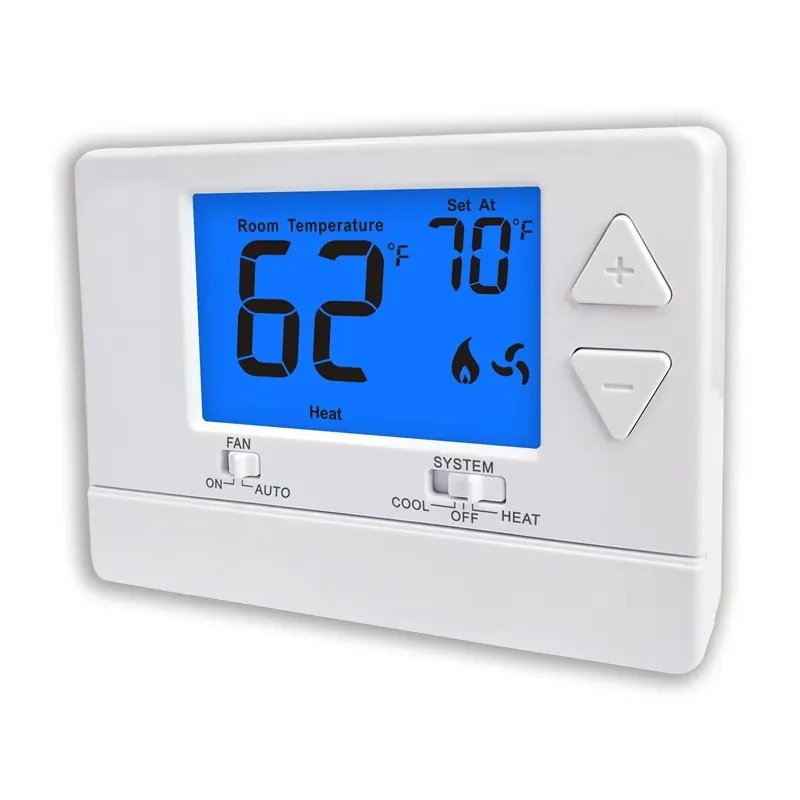

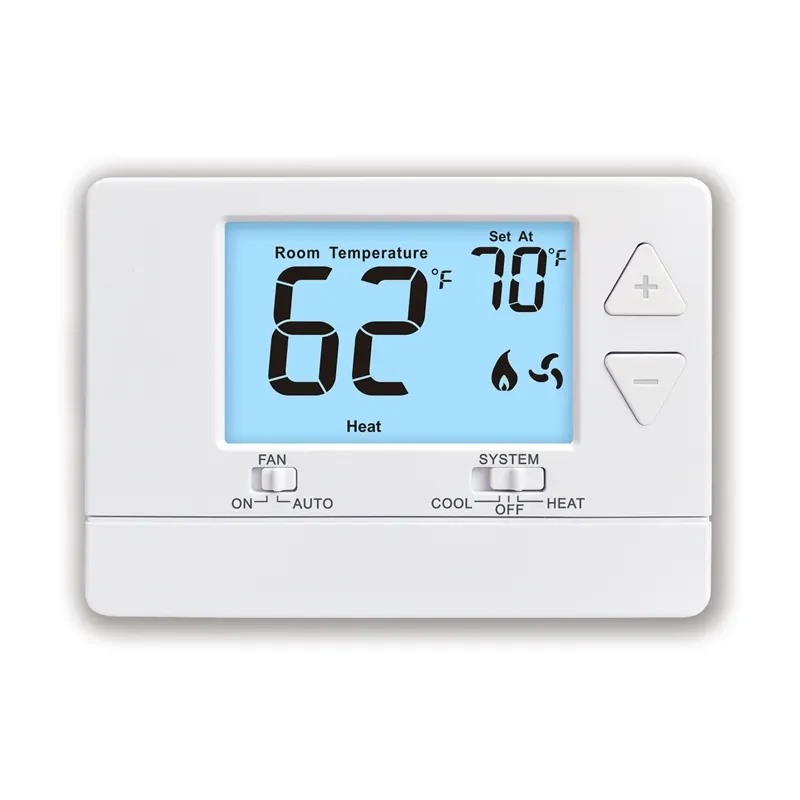

Digital Smart Room Temperaute Calibration Adjustment Heating And Cooling Non-Programmable Wired Thermostat (3001/3201)
3001 and 3201 are the entry models in the builder series: single stage, 1 heat and 1 cool, non-programmable. They keep the features that matter on a development site, namely separate B and O terminals, separate heating and cooling swing adjustment, room temperature calibration and a selectable 5 minute compressor delay, while leaving out everything an occupant does not need.
Key Benefits
- Lowest cost entry in the builder series with the important features retained
- No schedule, so nothing for a new occupant to misconfigure
- Separate B and O terminals for either reversing valve convention
- Separate heating and cooling swing adjustment
- 5 minute compressor delay protection, selectable
Problems It Solves
- Budget controls without compressor protection
- Reversing valve wiring restricted to one convention
- Handover service calls caused by schedules
- Identical cycle rates in heating and cooling
Who It Is For
- House builders and developers
- Housing associations
- Distributors serving the builder replacement market
- OEM buyers needing an entry level builder specification
Technical Features
- Single stage control, 1 heat and 1 cool, non-programmable
- Electric or gas configurable

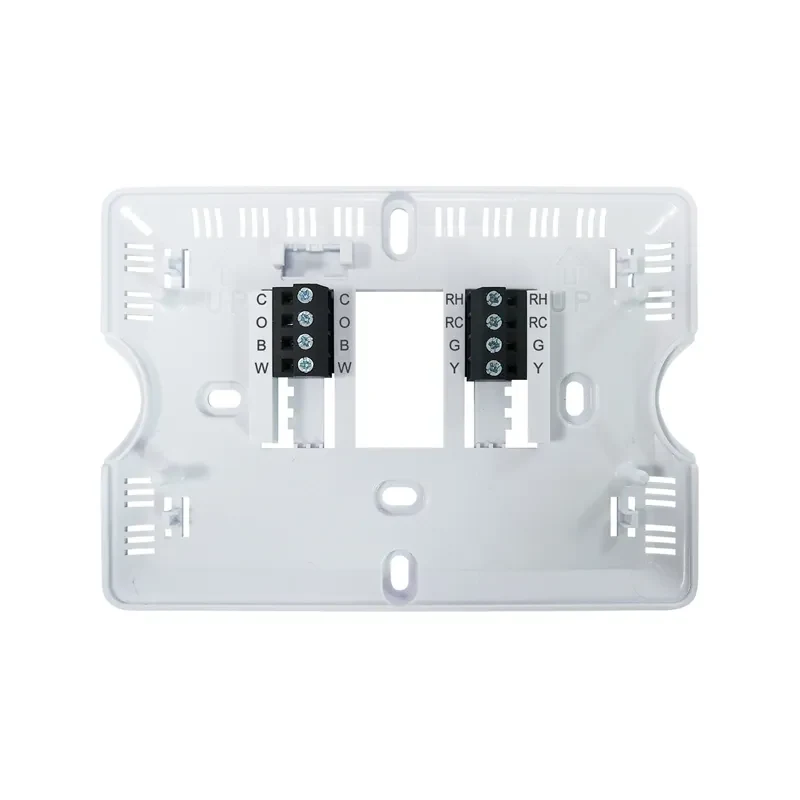

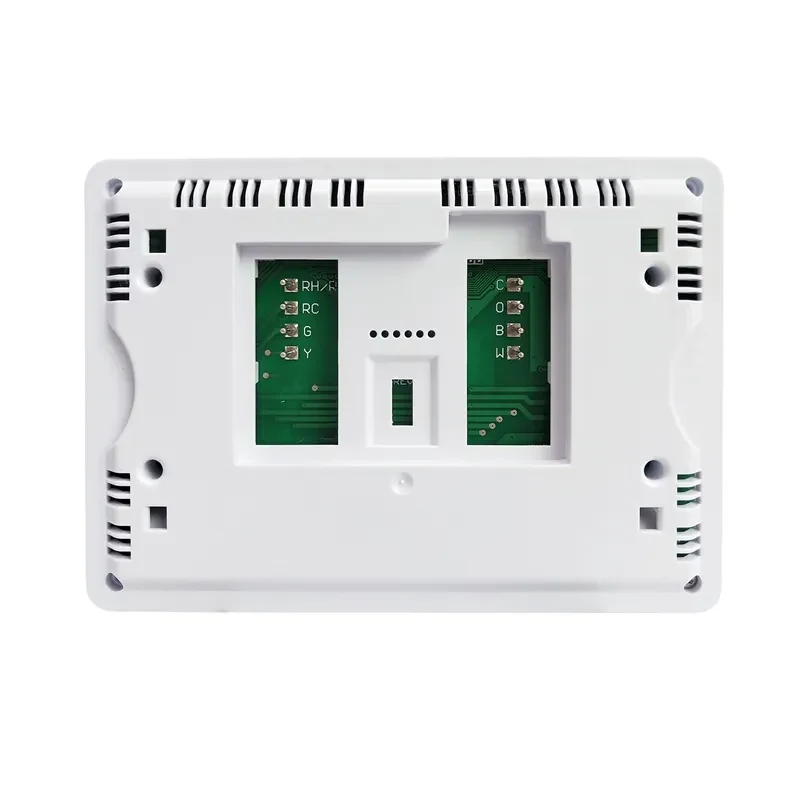

- Separate B and O terminals
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustment
- 5 minute compressor delay protection, selectable on or off
- Power supply battery or 24V, white, blue or green backlight
- PP housing, 400 g, supplied as one wired builder thermostat with one instruction sheet
Specifications
| Model | 3001/3201 |
| Color | White/Blue/ |
| Material | PP |
| Weight | 400g |
| Package Included | 1Wired Builder Thermostat 1Instruction |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Volume housing on single stage heating and cooling plant
- Rental apartments with a fixed comfort policy
- Developments needing a low cost but properly specified control
- Replacement of failed builder grade stats
Quality Control
- Heat and cool outputs exercised on the line
- Compressor delay timing checked on batch samples
- Backlight colour verified against the approved sample
Customisation Options
- Backlight white, blue or green
- Swing defaults set for the buyer's plant
- Front label, logo and housing marking
- Builder pack quantities and carton artwork
How It Compares
Installing And Commissioning
Step 1
Isolate the 24V control circuit before removing the existing control
Step 2
Land the conductors, using B or O as required
Step 3
Select electric or gas configuration
Step 4
Set heating and cooling swing separately to suit the plant
Step 5
Enable the 5 minute compressor delay and test both modes
Digital Smart Room Temperaute Calibration Adjustment Heating And Cooling Non-Programmable Wired Thermostat: Buyer Questions
How many stages do the 3001 and 3201 control?
1 heat and 1 cool, single stage.
Are they programmable?
No. They are non-programmable.
Do they protect the compressor?
Yes, with a selectable 5 minute compressor delay.
What is the housing material?
PP.
What power supply do they take?
Battery or 24V power.
What is in the box?
One wired builder thermostat and one instruction sheet.
