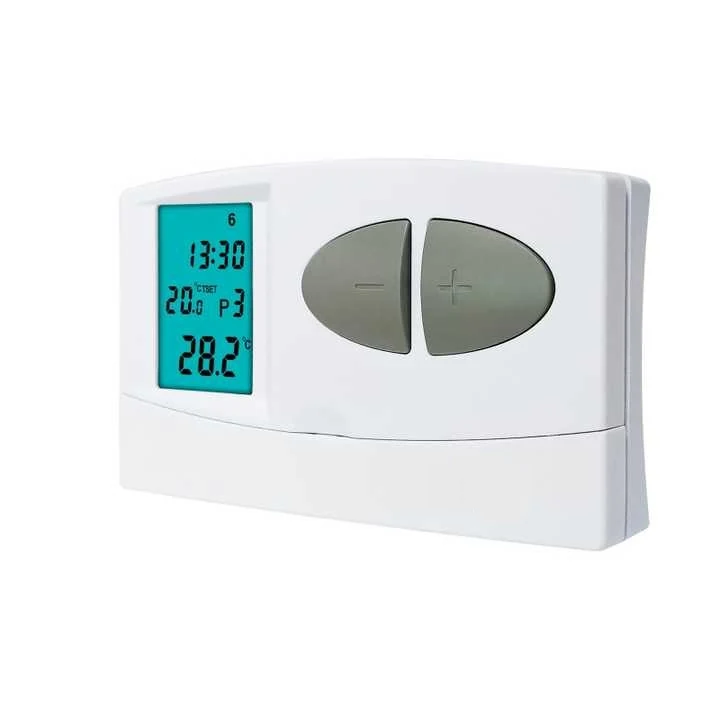

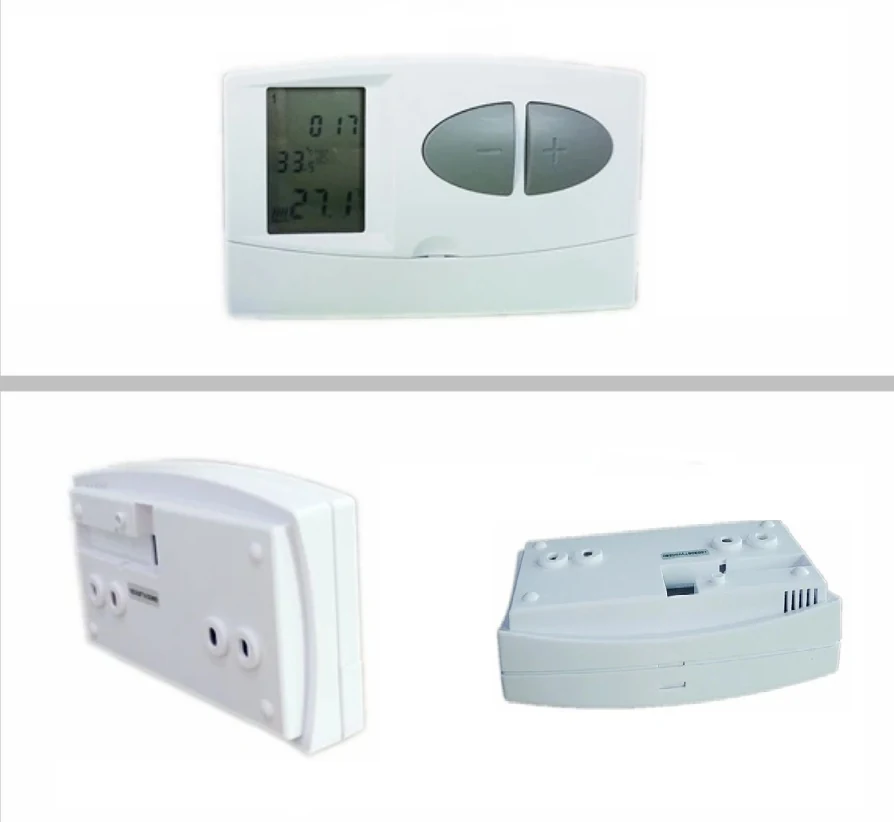

230V NTC Digital Weekly Programmable Popular Heating Gas Boiler HVAC Thermostat
C7 is a battery powered programmable room thermostat aimed at heating systems that need real setback rather than a single setpoint. It offers 7 day, 5/2 day and 24 hour schedules, a holiday mode for long absences and a manual override for one-off changes. Switching covers 24 V AC/DC up to 250 V AC at 50 Hz, 6 A with 2 A inductive load, so it suits both boiler relays and underfloor actuator circuits.
Key Benefits
- Three schedule modes let the same stat serve homes, offices and rental property
- Holiday mode drops the building to a holding temperature without losing the programme
- Keypad lockout stops unauthorised changes in shared and public spaces
- Factory pre-set programme means the unit works sensibly straight out of the box
- EL backlight and large push buttons keep it usable in a dark hallway
Problems It Solves
- Heating running at full setpoint in empty buildings
- Occupants changing settings in shared corridors and lobbies
- Complex programming that installers have to redo on a return visit
- Slab overshoot on underfloor systems controlled by a simple on-off dial
Who It Is For
- Underfloor heating system suppliers who need a matching zone stat
- Boiler and radiator distributors in 230V markets
- Landlords looking to cut energy use in tenanted property
- OEM buyers who want CCC as well as CE coverage
Technical Features
- 7 day, 5/2 day and 24 hour programmable modes
- Measuring range 5 C to 35 C in 0.5 C, setpoint range 10 C to 30 C in 0.5 C
- Display accuracy +/-1 C at 20 C
- Switchable voltage 24 V AC/DC up to 250 V AC at 50 Hz
- Switchable current 6 A with 2 A inductive load
- Manual override and holiday mode
- Keypad lockout and adjustable switching sensitivity
- Room temperature calibration adjustment of -3 to +3 C
Specifications
| Model | C7 |
| Programmability | 7 Day, 5/2 Day and 24 hourProgrammable |
| Power Supply | battery |
| Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
| Switchable Current | 6 A (2 A inductive load) |
| Temperature Range | 5°C-35°C in 0.5°C |
| Setpoint Range | 10°C-30°C in 0.5°C |
| Display accuracy | ±1°C (at 20°C) |
| Backlight | EL |
| Color | White |
| Material | Anti-flammable PC +ABS |
| Dimension | 130 x80 x35 mm |
| Application | Villa/indoor/household/hotel/room |
| Type | Floor Heating Parts |
| Certification | RoHS CE CCC ISO |
| Warranty | 1 Year |
| After-sale Service | Return and Replacement |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Villas and houses on a gas boiler with weekday and weekend patterns
- Underfloor heating zones that need slow, scheduled warm-up
- Hotel rooms and serviced apartments with variable occupancy
- Offices that shut down at weekends and over holidays
Quality Control
- Programme timing verified against a reference clock during the line test
- Switching contact tested at inductive load
- Batch samples kept for the RoHS, CE, CCC and ISO documentation file
Customisation Options
- Factory pre-set schedule written to the buyer's specification
- Setpoint range narrowed for institutional projects
- Housing colour and printed logo to the buyer's artwork
- Language specific manual and carton artwork
How It Compares
Installing And Commissioning
Step 1
Isolate the supply and mount the backplate clear of radiators and direct sun
Step 2
Land the switched conductors within the 24 V AC/DC to 250 V AC range
Step 3
Choose 7 day, 5/2 day or 24 hour mode and set the on and off periods
Step 4
Set the holiday temperature and duration if the building will be empty
Step 5
Enable keypad lockout in shared spaces before handing over
230V NTC Digital Weekly Programmable Popular Heating Gas Boiler HVAC Thermostat: Buyer Questions
What schedule modes does the C7 support?
7 day, 5/2 day and 24 hour. The mode is chosen during setup and can be changed later.
Can it drive an underfloor heating actuator?
Yes. The contact switches 6 A with 2 A inductive load across 24 V AC/DC to 250 V AC, which covers common actuator and zone valve loads.
How do we stop guests changing the programme?
Enable keypad lockout. The display keeps showing the room temperature but the buttons no longer alter the setting.
Does it hold the programme during a power cut?
The unit is battery powered, so the programme and clock are not lost when the heating supply is interrupted.
Which certifications apply?
RoHS, CE, CCC and ISO documentation. CCC matters if you are shipping into China, so tell us the destination when you enquire.
Can you preload our own default schedule?
Yes. Send us the weekday and weekend periods you want and we will set them before shipment.
