Product Details

Technical description, specifications and application notes as supplied by the KEWO factory.

KEWO Solar Pump Inverter with MPPT Functions

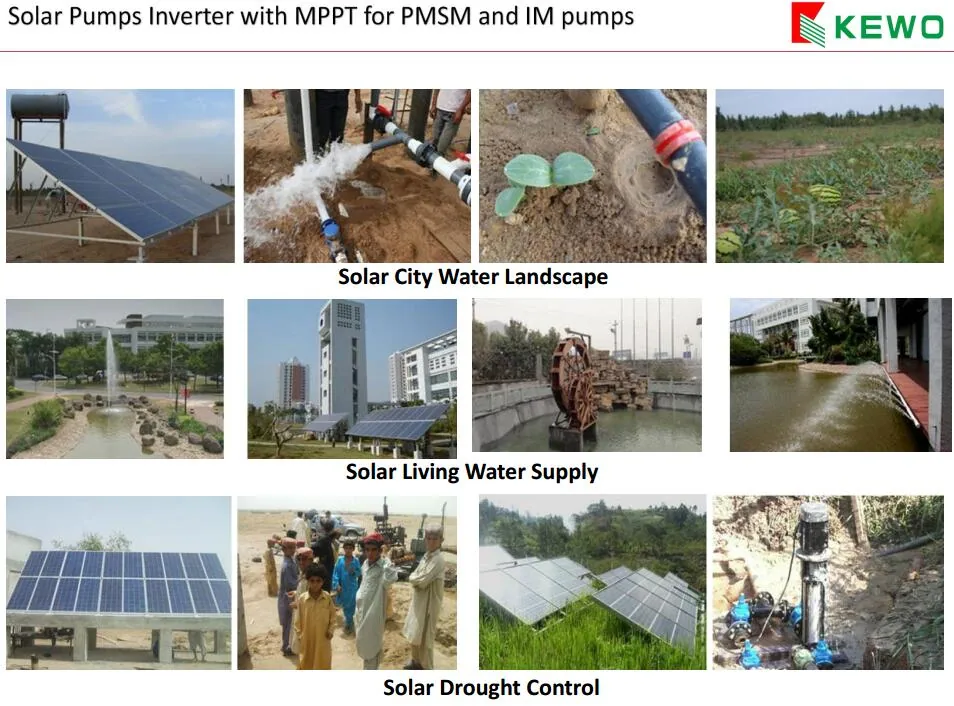

Solar Pumping system becomes more and more popular, it can be applied to daily ( underground water), agriculture irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering , and so on.
In recent years, with the promotion of the utilization of new energy resources, solar pumping systems are more and more used in municipal engineering, city center squares, parks, tourist sites, resorts and hotels, the landscapes and fountain systems in the residential areas. This system is composed of a solar array, a pump and solar pumping inverter, or GPRS remote control model.
Based on the design philosophy that it is better to store water than electricity, there is no energy storing device such as store battery in the system.
Technical specification of KEWO solar pump inverter

**Solar pump drive specification when FA-00 set to 1&2 for solar pumping controlling function.
Recommended MPPT voltage range	Vmpp 131 to 350 VDC for 1S (80V to 350VDC input, 3PH 110 to 220VAC output) Vmpp 280 to 375VDC for 2S ( 150V to 450VDC input, 3PH 220 to 240VAC output) Vmpp 486 to 750 VDC for 4T ( 350V to 800VDC input, 3PH 380 to 460VAC output)
Recommended input Voc and Vmpp voltage	Voc 180(VDC), Vmpp 155(VDC) for 1S model or 110V AC pumps Voc 355(VDC), Vmpp 310(VDC) for 2S model or 220V AC pumps Voc 621(VDC), Vmpp 540(VDC) for 4T model or 380V AC pumps
Motor type	Control for permanent magnet synchronous motor and asynchronous motor pumps.
Rated output voltage	3-Phase,110V/160V/220V. 3-phase, 220V/380V/460V
Output frequency range	0~maximum frequency 600Hz.
MPPT efficiency	97%,
Ambient temperature range	G-type for submersible pumps, 150% rated current for 60s, 180% rated current for 2s P type for general pumps, 120% rated current for 60s, 150% rated current for 2s
Solar pump control special performance	MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected
Protection function	Phase loss protection, phase short circuit protection, ground to phase circuit protection , input and output short circuit protection. Stall protection
Protection degree	IP20, Air force cooling
Running mode	MPPT or CVT
Altitude	Below 1000m; above 1000m, derated 1% for every additional 100m.
Standard AC input backup circuit	CE, Design based on vector control drive S300 and S3200 series, more specification please refer to S300 or S320 vector control drive operation manual
Technical specification when it used for speed and torque controlling of motor as FA00 set to 0.
voltage, frequency	Single phase 220V, 3 phase, 220V,380V, 660V and 1140V. Power 0.75kw to 37kw.
Control mode	0: VF control ; 1: Vectorized VF control ; 2：Open loop vector control 1 ; 3: High performance open loop vector control 2
Maximum frequency	0-650Hz
Multi-functions	PID Control, Carrier Frequency Adjustable, Current Limiter, Speed Search, Momentary Power Loss Restart,16 Step Speed (Max), 3-Wire connection, Slip Compensation, Frequency Jump, DC braking, Upper/Lower Frequency, Torque control, Compatible for PMSM and IM, built in RS485, counting, fault information checking, fully fault protection function, frequency combination reference.

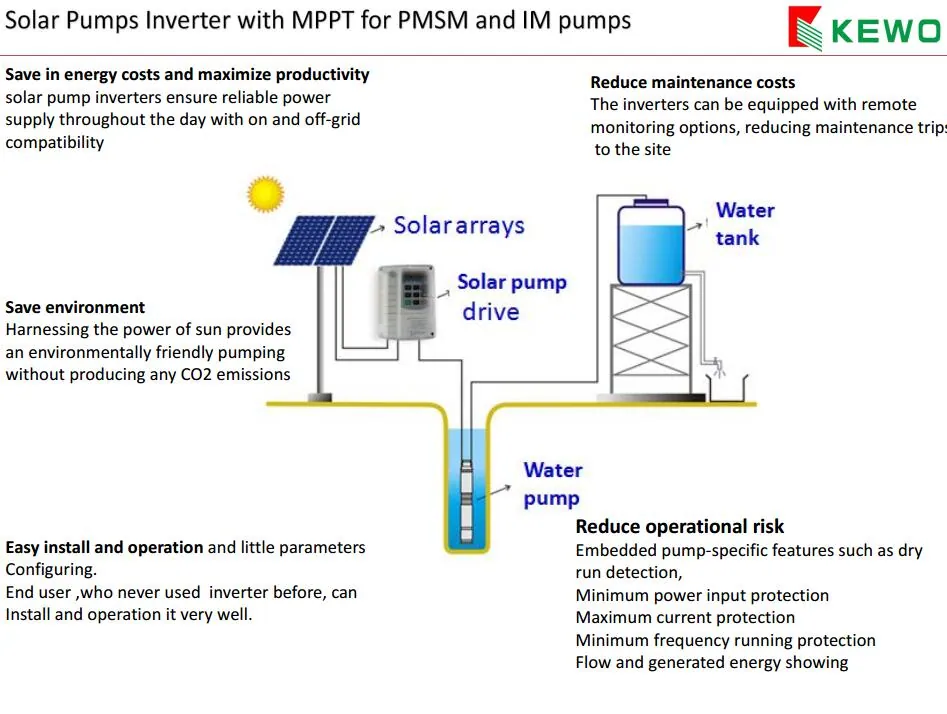

System constitute including solar panels, solar inverter, 3 phase pumps and etc accessroies.

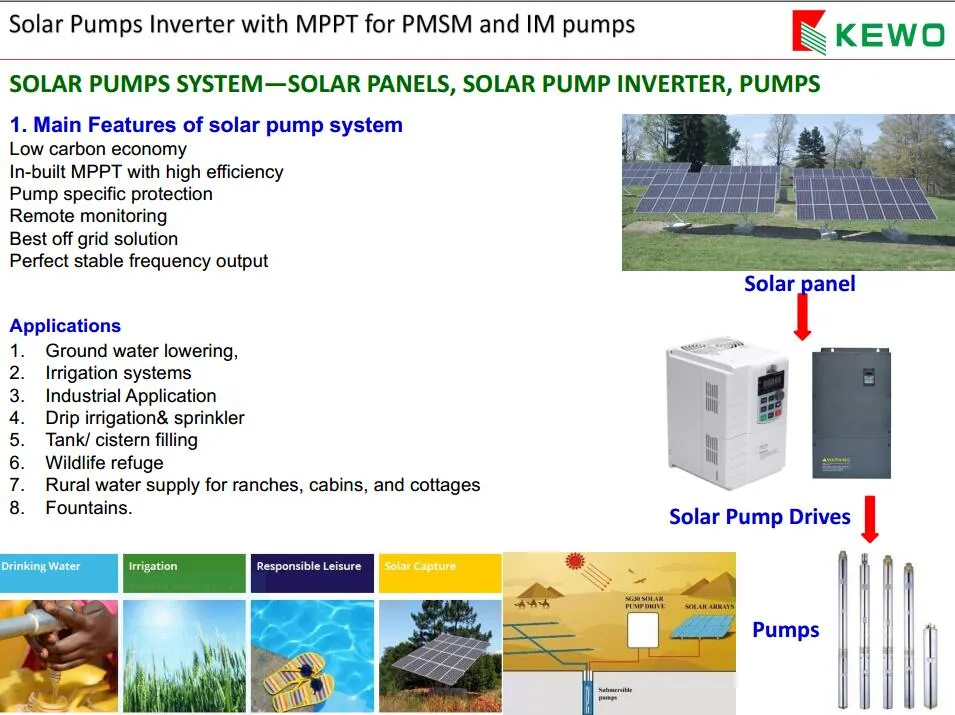

Benefit of solar pump system.

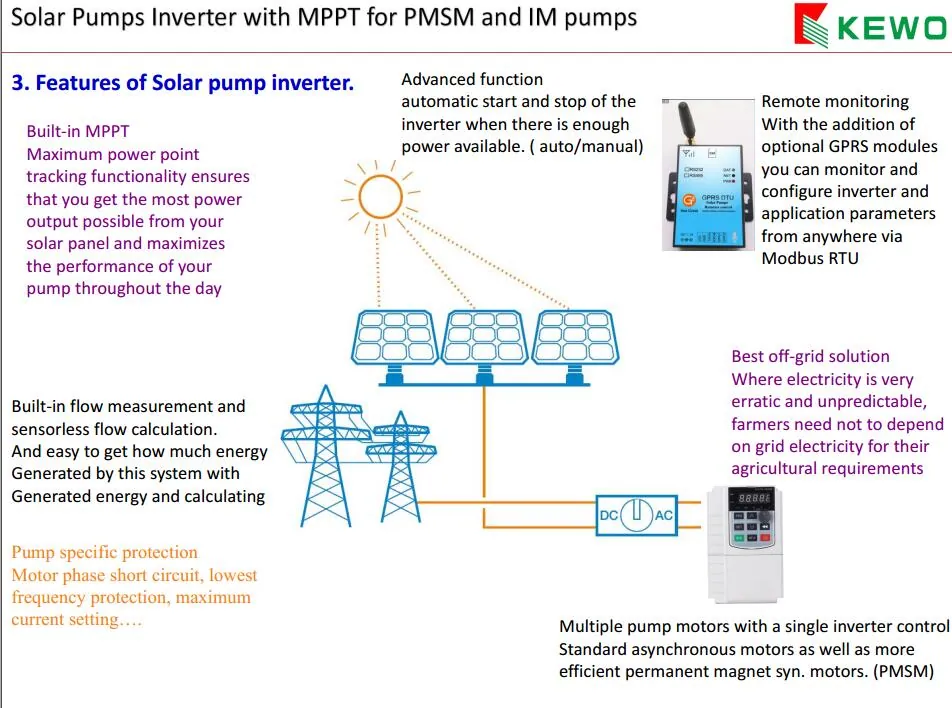

Features of Solar pump inverter.

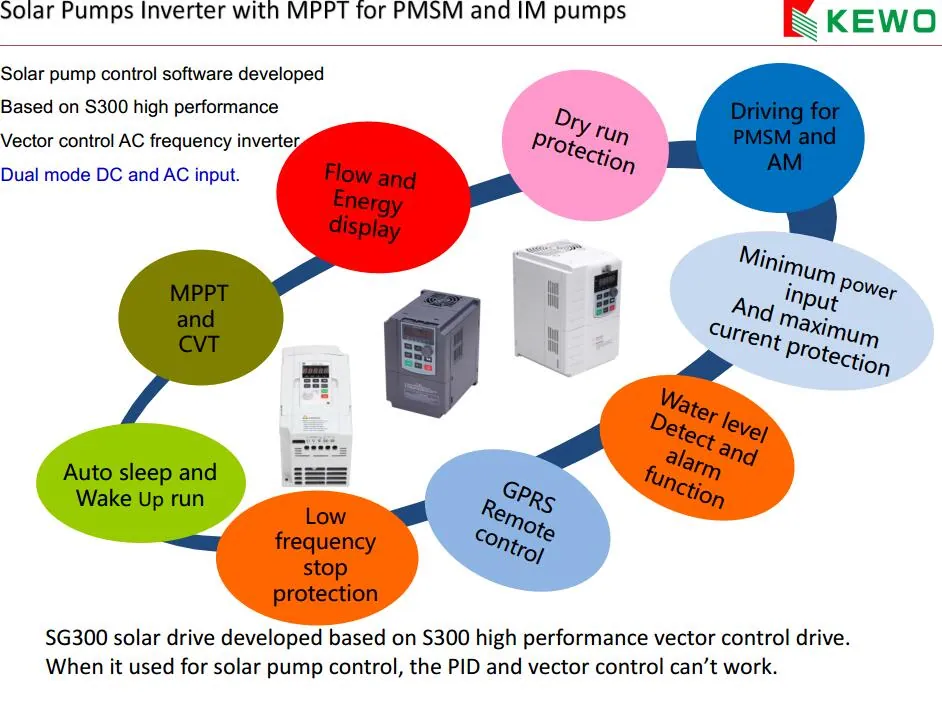

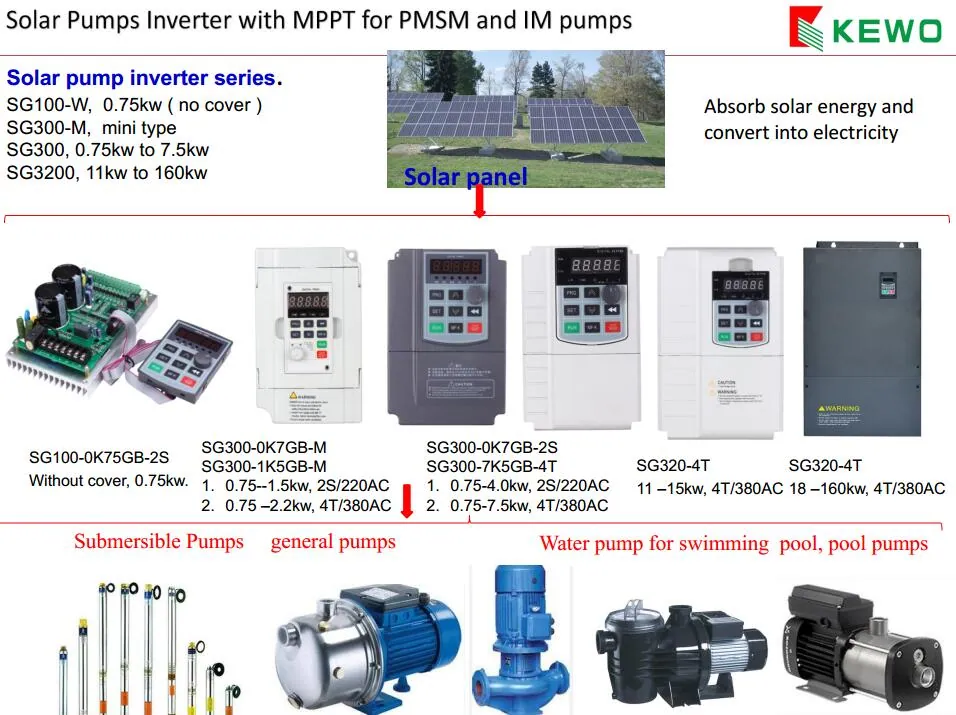

KEWO solar pump inverter features

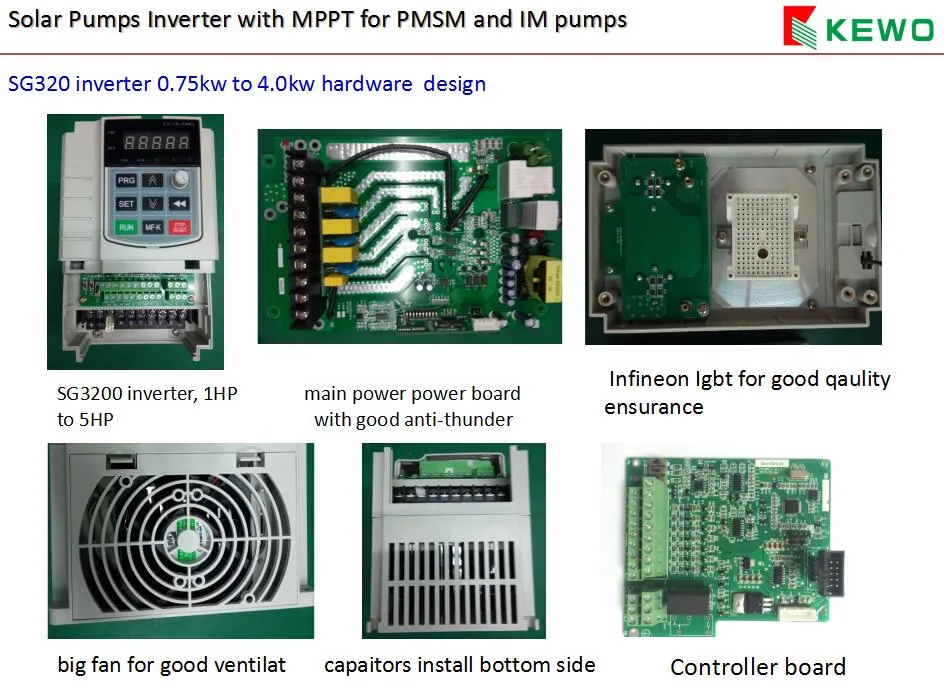

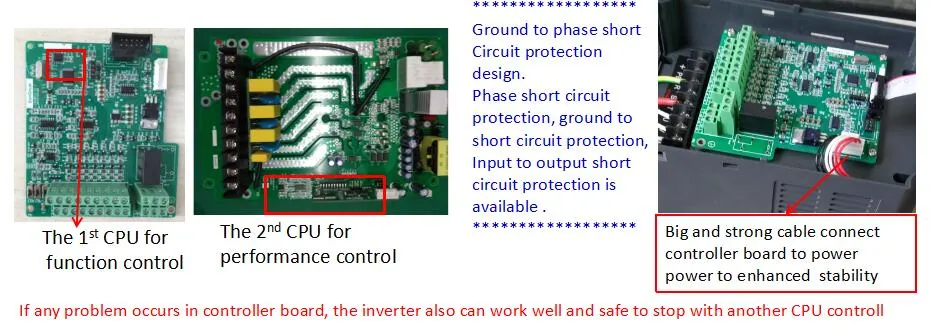

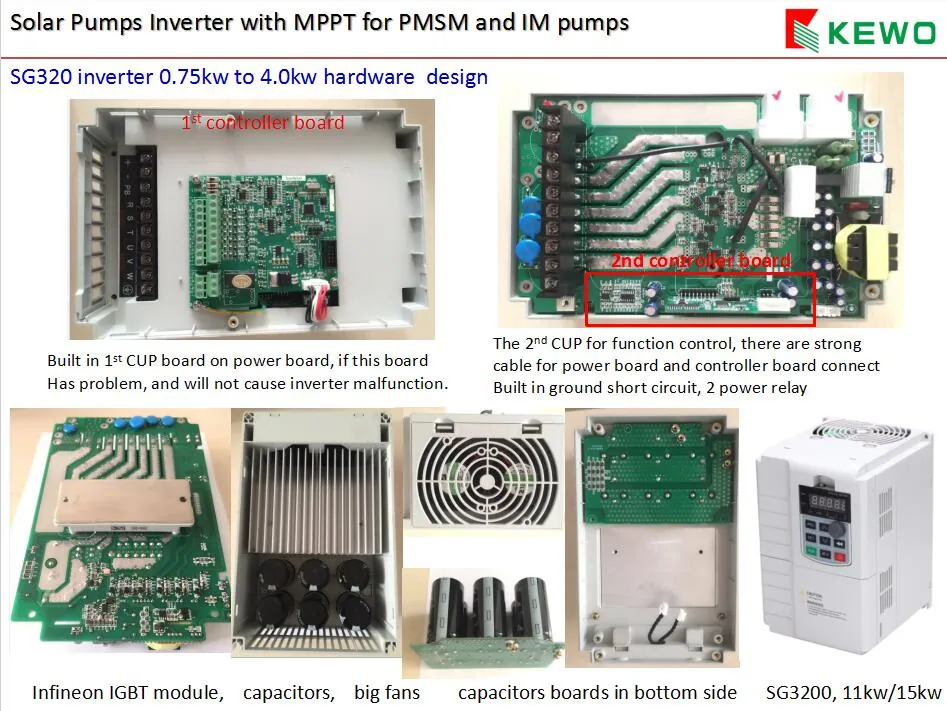

Solar pump inverter technical Specification with good hardware design

SG30 Solar pump inverter with good software design

Software updated with MPPT design based on following solar inverter, ABB, Danfoss, Delta, Lorentz, INVT, VEICHI, SAJ.

Control mode: VF, vectorization VF, senorless vector control 1, sensorless vector control 2

MPPT function: always performance MPPT for gain highest efficiency

CVT: When sunlight is good, can select CVT control for excellent stable frequency output.

Dry run function: When little water or no water for pumping to protect pumps.

Maximum current protection: set maximum current protection is available

Minimum solar input power: When low power input, inverter no work

Stop frequency: Lower than stop frequency, inverter no work

Sleep mode: if lower than sleep voltage, inverter go to sleep, it will wake up when DC voltage rise.

Flow and generated energy calculating and monitoring

A lot of fault protection. Short circuit, ground short circuit, phase loss, over current, overheat…

Built in RS485 interface, it is easy to connect GPRS remote controller.

We developed it base on ABB, Lorentz, Delta, Danfoss , INVT and VEICHI---- That is why we are Good performance and better.

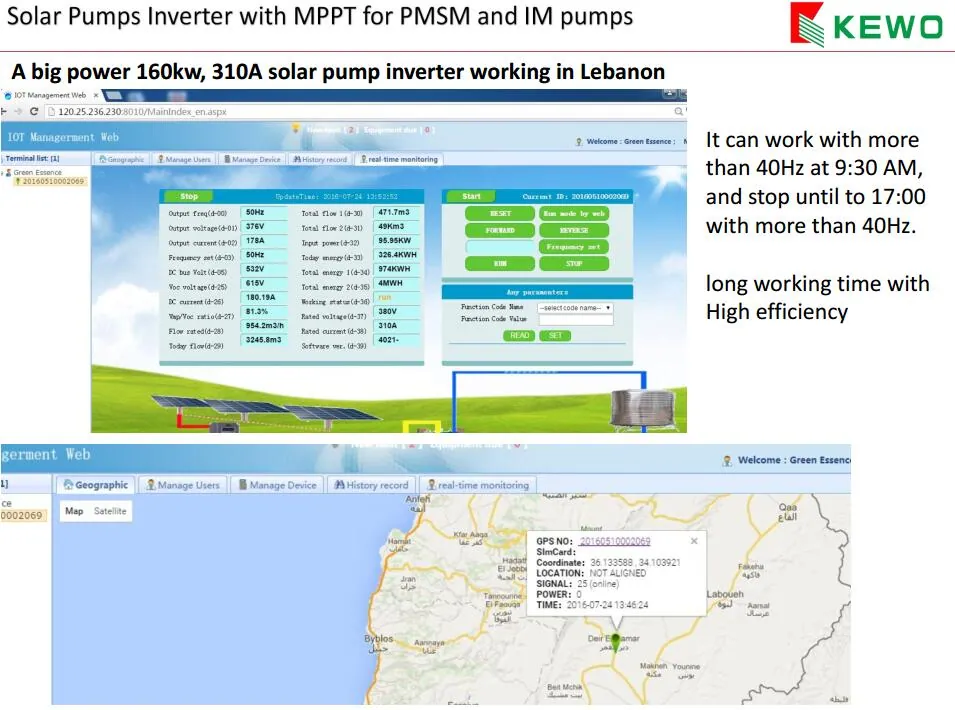

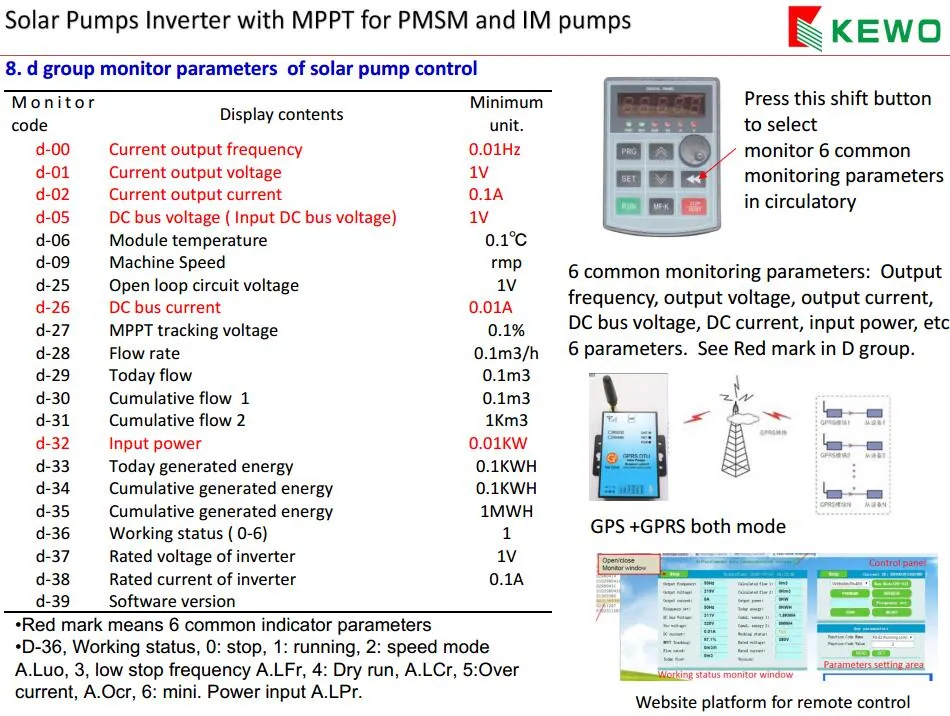

Solar pump inverter monitoring parameters and remote control

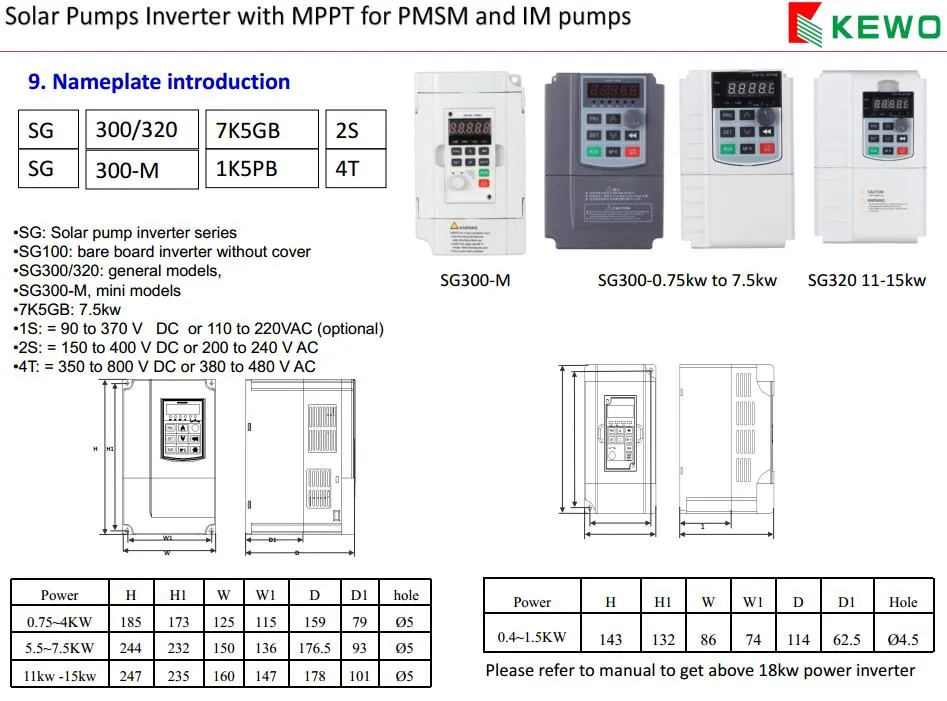

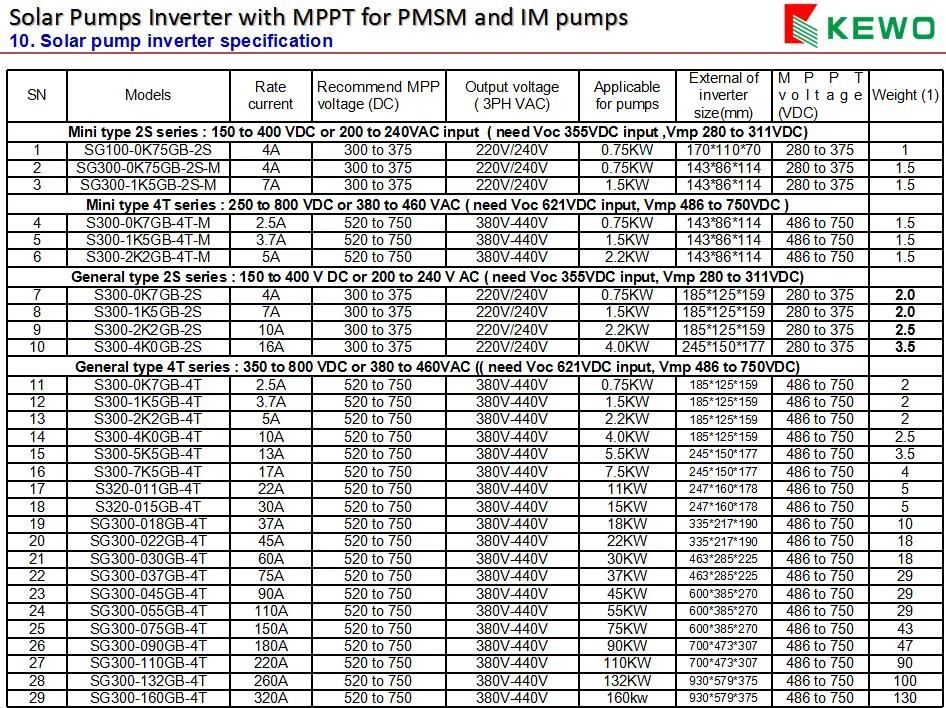

Solar pump inverter specification

Solar pump inverter connection

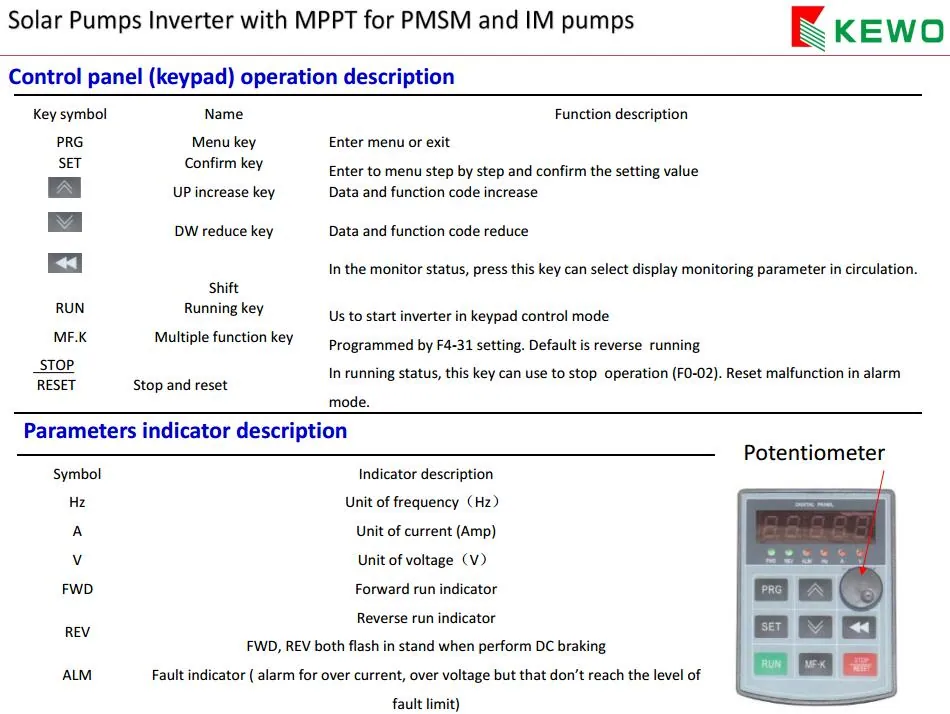

Solar pump inverter operation brief introduction

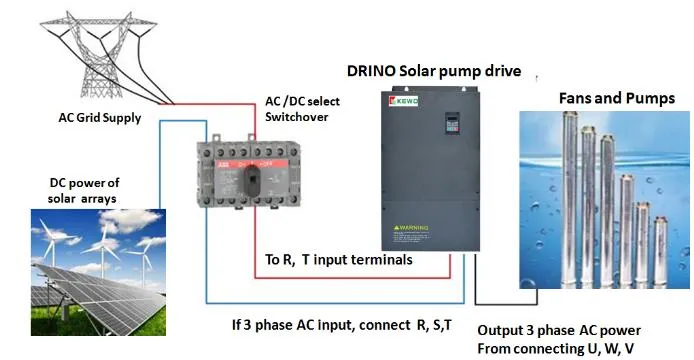

Solar pump system wiring

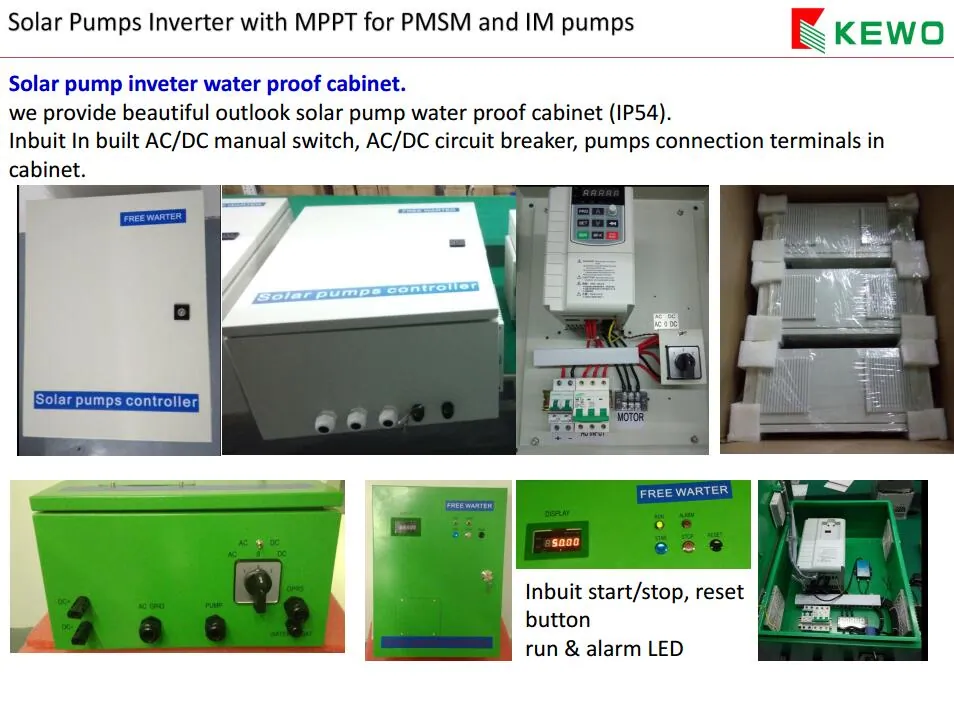

Solar pump inverter water proof cabinet (IP54)

Option:Remote GPRS controller
