AD100 mini Motor AC drive

AD100 Mini Motor AC Drive

AD100 is a small and economical type AC Drive for motor speed adjusting,  which designed for small machine OEM general purpose application. The good performance of V/F control mode, multiple segment speed, flexible and accuracy PID, DC braking function, ModBus communication, that will make you machine become powerful and improving his competitive edge.
Power range: 0.4 to 1.5kw
Input voltage: single phase 220V ±15%
Control mode: V/f control indefualt, sensorless vector control is option
Protection function: Provide up to 25 kinds fault protection, over current, over voltage, under voltage, phase missing, overload protection function
Cooling method: force cooling

Installation method: wall mount, IP20
IPM iGBT using

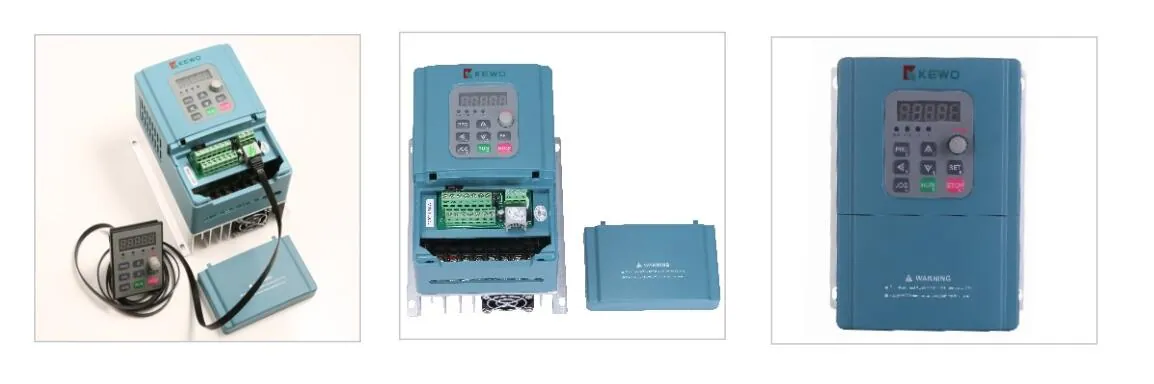

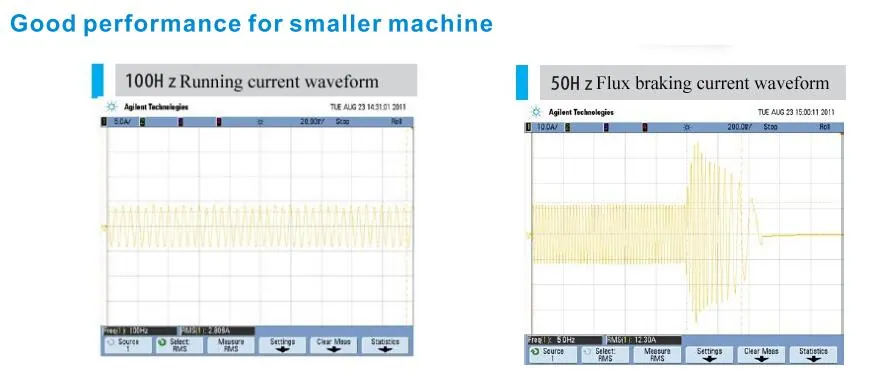

Good performance for smaller machine of AD100 AC Drives

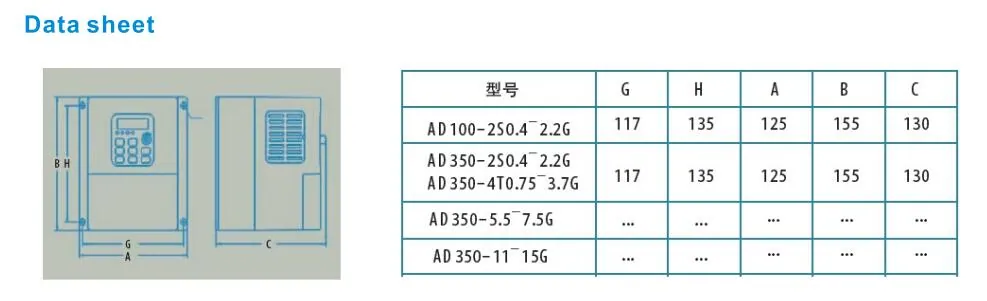

Data sheet of AD100 AC Drive

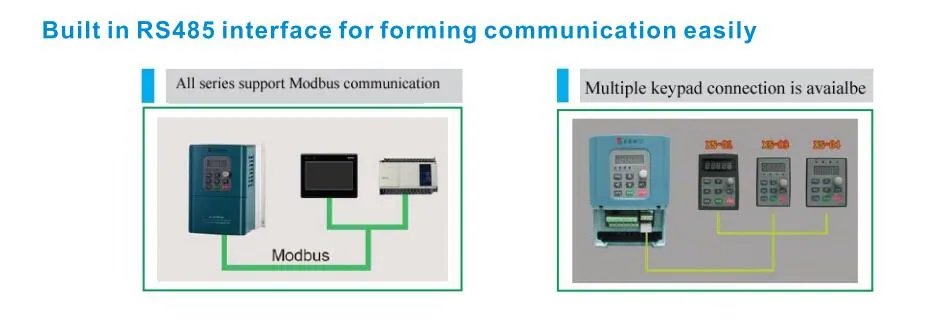

Built in Rs485 interface for forming communication easily.

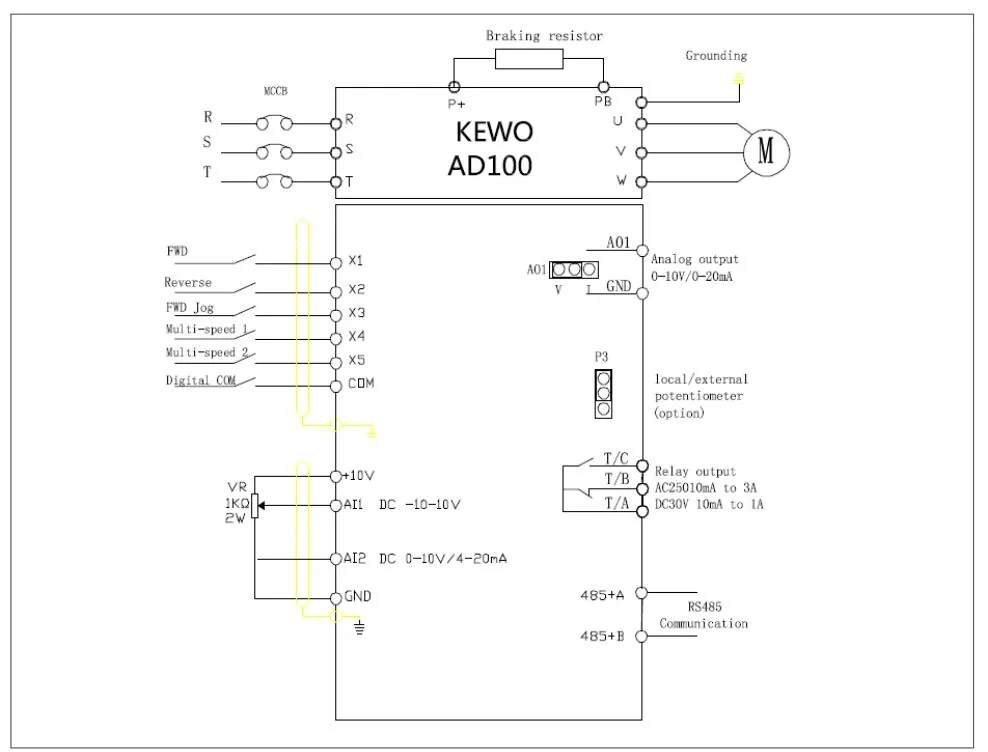

Wiring diagram AD100 AC Drive
It has 5 digital input, DI5 can use for high pulse train inut.
2 analog signal input,
1 analog output and
1 relay output.
Terminals diagram AD100 AC Drive

AD100 AC drives application examples.
1. Food processing machinery
Bakery equipment, confectionary equipment, tea-making machine, noodle-making machines, candy-wrapping machines, rice/barely milling machines, flour milling machines, food mixers, food slicers, fruit sorting machines, etc.
2. Conveyance machinery
Conveyors, automatic warehousing systems etc. Prevent the collapse of cargo on the conveyor.
The AD100/AD350 allow you to mitigate the shocks caused in starting and stopping a conveyor and change the acceleration /deceleration rates according to the conveyor characteristics and its applications.
The AD100/AD350 can slow down a high –inertia machine in a short period of time without causing an overvoltage trip by increasing the energy consumed by the motor.
The AD100/AD350 can turn on and off the braking circuitry in accordance with the inverter operating status.
It offers vector control and automatic torque boost control modes to achieve strong, stable torque from the start of a motor to the rated speed.
3. Fans & pumps
Built in fans- pumps in industrial machines, water supply and sewage systems, driers, etc.
Energy-saving mode
The variable torque and automatic energy saving modes help saving energy by passing optimal current in accordance with the load.
Automatic process control
Allows a motor to keep running and accelerate smoothly upon the recovery of power even in the event of instantaneous power failure.
Enable an uninterrupted operation without causing a trip.
 4 Health, medical and nursing care equipment.
Stair lifts, nursing bed, bubble baths, health care equipment, medical equipment
5. Environment and daily-life-related machinery
Commercial ironing boards, car washing machines, Garbage disposers, dust collectors, Dries, etc.
6. Packing machinery.
Inner packaging machine, packing machines, output packing machines, membrane packing machines
