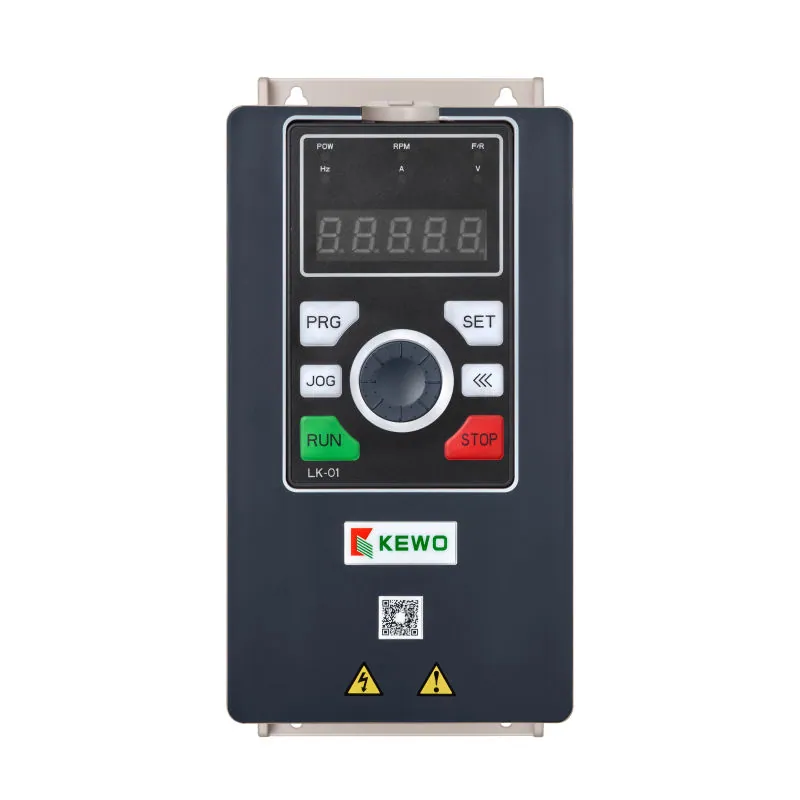

PV1000 solar pump inverter

Q: What guarantee do you provide?

KEWO inverters are known for good quality, stable running and easy use. We provide an 18 month guarantee for AD100, AD350, AD800, AS850T and AS850Z, and all other KEWO products. If any damage occurs during the guarantee period we repair it free of charge when it is sent back to us, or we send free spare parts and components for you to repair.

Q: Which inverter brands can KEWO replace in the industrial field?

The AD series is a high performance vector control inverter with OLV, CLV and V/F control modes and suits around 90 percent of industrial applications. Customers use KEWO to replace Siemens, Schneider, ABB, AB and Emerson with a high cost saving.

Q: Can we get a KEWO sample for testing, or test in your factory?

You are welcome to visit the factory in Shenzhen for a visit, product testing or custom solution consulting. You can also get a sample for testing if you pay the freight cost and send us your testing report.

Q: How do we pay, and can we get the goods with quality and guarantee?

You can pay with TT, Western Union or LC. We are a member of the Alibaba group, so if you cannot get the goods properly we will be penalised by Alibaba and you are covered by the Alibaba guarantee. We look forward to building a long term relationship with you.

KEWO new design PV1000 MPPT solar pump Inverter 150VDC-450VDC, 220VAC input. 1/3phase 220VAC output. 1.5KW to 55KW 350VDC-800VDC, 380VAC input, 3phase 380V/440/480VAC output. Max 900VDC. 2.2KW to 160KW. Feature KEWO New design PV300 PV1000…

Request A Quote Email Us

Guarantee

18 months

Service Response

Within 24 hours

Manufacturer

KEWO Shenzhen

Certification

ISO9001 · CE

Download the matching PDF catalogKEWO Solar Pump Inverter Catalog

CAD files are available on request via WhatsApp or email.

Product Details

Technical description, specifications and application notes as supplied by the KEWO factory.

KEWO new design PV1000 MPPT solar pump Inverter

150VDC-450VDC, 220VAC input. 1/3phase 220VAC output.

1.5KW to 55KW

350VDC-800VDC, 380VAC input, 3phase 380V/440/480VAC output. Max 900VDC.

2.2KW to 160KW.

Feature

KEWO New design PV300 PV1000 MPPT solar pump Inverter.

1) Drives well all kind of water pump in solar pumping system, AM and PMSM pump both.

2) Run stable.

3) 99% MPPT eiiciency.

4) Auto detect working DC voltage.

5) Solar DC and Grid AC, Generator AC input at same time, used as Hybrid Inverter, run all day.

6) Bulid in AUTO Sleep and Wake up function.

7) Dry run protection, full water tank detect.

8) All kind of protections like Over Under voltage, over current, phase loss etc.

9) Low stop frequency protection.

10) Strong lightning protection.

Specification

150VDC-450VDC, 220VAC input. 1/3phase 220VAC output.

1.5KW to 55KW

350VDC-800VDC, 380VAC input, 3phase 380V/440/480VAC output. Max 900VDC.

2.2KW to 160KW.

Model Selection

PV300 PV1000 solar pump inverter model list
SN	Models	Rate current	Output voltage ( 3PH VAC)		Applicable for pumps	Packing size	MPPT voltage (VDC)	GWKgs
2S series : 150 to 450 VDC or 220VAC input, Vmp 310VDC, 372VDC
1	PV300-2S0.75GB	4A		0 – 220V	0.75KW	215170190	260 to 355	1.5
2	PV300-2S1.5GB	7A		0 -220V	1.5KW	215170190	260 to 355	1.5
3	PV300-2S2.2GB	10A		0 -220V	2.2kw	215170190	260 to 355	1.5
4	PV1000-2T3.7G	16A		0 -220V	3.7kw	280180215	260 to 355	4.0
5	PV1000-2TXXGB	**		0-220V	<55kw	No-standard	260 to 355	**
4T series, 350 to 800 VDC or 380VAC, Vmp540VDC, Voc 648VDC. Max 900VDC
6	PV300-4T0.75GB	2.5A		0-440V	0.75KW	215170190	486 to 650	1.5
7	PV300-4T1.5GB	3.7A		0-440V	1.5KW	215170190	486 to 650	1.5
8	PV300-4T2.2GB	5A		0-440V	2.2KW	215170190	486 to 650	1.5
9	PV1000-4T3.7GB	10A		0-440V	3.7KW	215170190	486 to 650	3
10	PV1000-4T5.5GB	13A		0-440V	5.5KW	320215250	486 to 650	4.3
11	PV1000-4T7.5GB	17A		0-440V	7.5KW	320215250	486 to 650	4.5
12	PV1000-4T11GB	25A		0-440V	11KW	390275285	486 to 650	6.5
13	PV1000-4T15GB	32A		0-440V	15KW	390275285	486 to 650	6.6
14	PV1000-4T18.5GB	38A		0-440V	18.5KW	445205315	486 to 650	12
15	PV1000-4T22GB	45A		0-440V	22KW	445205315	486 to 650	12
16	PV1000-4T30G	60A		0-440V	30KW	545395370	486 to 650	16
17	PV1000-4T37G	75A		0-440V	37KW	660420415	486 to 650	16
18	PV1000-4T45G	90A		0-440V	45KW	660420415	486 to 650	27
19	PV1000-4T55G	110A		0-440V	55KW	700480410	486 to 650	35
20	PV1000-4T75G	150A		0-440V	75KW	700480410	486 to 650	35
21	PV1000-4T93G	170A		0-440V	93KW	700480490	486 to 650	53
22	PV1000-4T110G	210A		0-440V	110KW	700480490	486 to 650	56
23	PV1000-4T132G	260A		0-440V	132KW	780540510	486 to 650	71
24	PV1000-4T160G	300A		0-440V	160KW	780540510	486 to 650	72

* If need Maximum 900vdc input, please let us know before ordering.
