single phase pumps inverter
SG200 Series Smart Single Phase Solar inverter This inverter support single phase output for single phase motor or pumps. also can accept DC power input from solar arrays. The SG200 series is manufactured using high-quality components,…
Guarantee
18 months
Service Response
Within 24 hours
Manufacturer
KEWO Shenzhen
Certification
ISO9001 · CE
CAD files are available on request via WhatsApp or email.
Product Details
Technical description, specifications and application notes as supplied by the KEWO factory.
SG200 Series Smart Single Phase Solar inverter
This inverter support single phase output for single phase motor or pumps.
also can accept DC power input from solar arrays.
The SG200 series is manufactured using high-quality components, material and incorporating the latest microprocessor technology available.

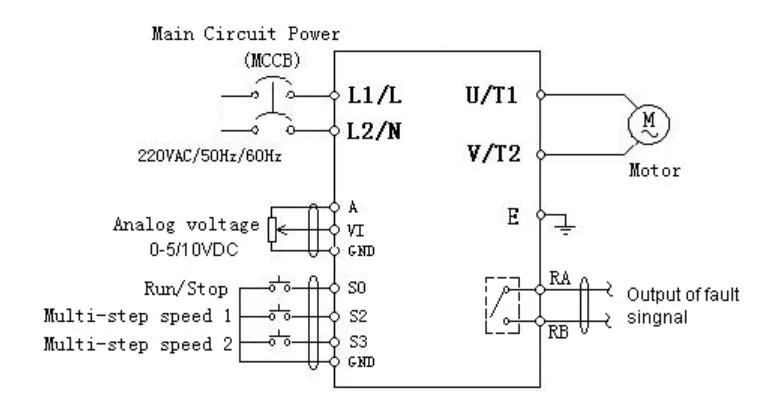

Basic Wiring Diagram
Users must connect wiring according to the circuit diagram shown below. Please follow all
National and State wiring codes, when wiring the SG200.
Terminal Explanations
|
Terminal Symbol |
Explanation of Terminal Function |
|
L1/L, L2/N |
AC line input terminals |
|
U/T1,V/T2 |
AC drive output terminals motor connections |
|
E |
Earth Ground |
Control Terminals Explanations
|
Terminal Symbols |
Terminal Functions |
|
S0 |
Run/Stop |
|
S2 |
Multi-step speed 1 |
|
S3 |
Multi-step speed 2 |
|
A |
Potentiometer power source（+5/10VDC） |
|
VI |
Analog voltage input (0～5/10VDC) |
|
GND |
Common signal |
Technical specification
special for DC power input from solar arrays.
|
Inverter |
Input voltage |
Rated output power(kW) |
Rated input current(A) |
Rated output current(A) |
Adaptive motor |

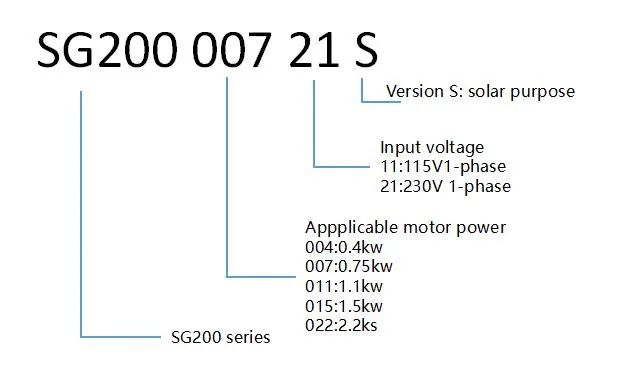

Base No. |
|
SG200 002 21 S |
1phase 220V |
0.2 |
3.8 |
1.6 |
0.2 |
M1 |
|
SG200 004 21 S |
0.4 |
5.1 |
2.5 |
0.4 |
M1 |
|
|
SG200 007 21 S |
0.75 |
7.9 |
4 |
0.75 |
M1 |
|
|
SG200 011 21 S |
1.1 |
11.2 |
5.6 |
1.1 |
M1 |
|
|
SG200 015 21 S |
1.5 |
14 |
7 |
1.5 |
M1 |
|
|
SG200 022 21 S |
2.2 |
22.5 |
11 |
2.2 |
M1 |
