Solar pump mini inverter

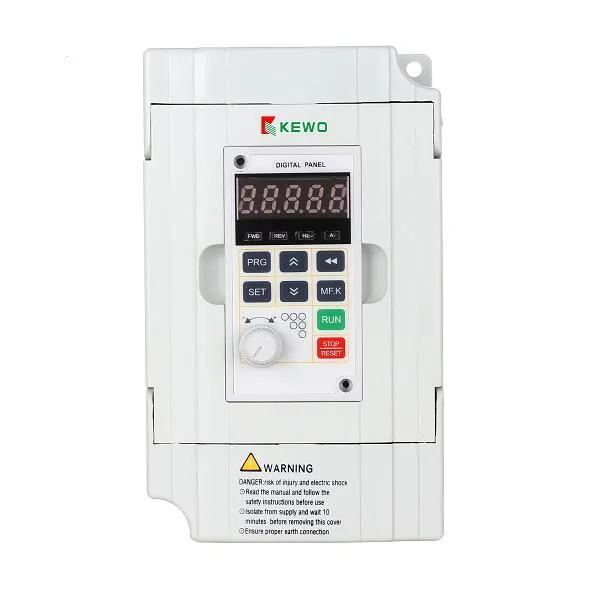

KEWO SG320-M mini type Solar Pump inverter

Solar pump drives advantages:
Kewo sun great series solar  pump drive is positioned in environmental-friendly and economical PV market, the product is applicable to PV pumping system, replaces water storage with electric storage and needs no battery modules. The direct current generated by solar modules is input to the inverter and then converted into the alternating current to drive various pumps directly. Additionally, the output frequency is adjustable in real time according to sunlight intensity change.
Fully automatic system using variable speed drive compatible with AC, 3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. The system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system. The system is prepared to be combined with a elevated water storage, e.g. water tower or an uphill tank installation.
Specification:
90 to 400VDC input, 110V/160V/220/240V AC output, 0.75/1.5kw.
200 to 400VDC input, 220-240VAC output, 0.75 to 3.7kw
Descriptions and Features
1. Built-in MPPT function, Maximum power point tracking functionality ensures that you get the most power output possible from your solar panel and maximizes the performance of your pump throughout the day.
2. Built-in flow measurement and sensorless flow calculation.  And easy to get how much energy generated by this system with generated energy and calculating
3. Advanced function automatic start and stop of the drive when there is enough power available. ( auto/manual)
4. Multiple pump motors with a single drive control standard asynchronous motors as well as more efficient permanent magnet synchronous motors. (PMSM)
5. Best off-grid solution Where electricity is very erratic and unpredictable, farmers need not to depend on grid electricity for their agricultural requirements
6. Remote monitoring  With the addition of optional GPRS modules you can monitor and configure drive and application parameters from anywhere via Modbus RTU
7.High efficiency
Protection features
It is provide kinds of protection function for pumps and inverters such as  Dry run protection (under load protection), High voltage surge, Low input voltage, Open motor circuit, Short circuit, Over heat, Earth fault, Phase missing, lowest running, water tank level...
KEWO sun great series solar pump drive main Features

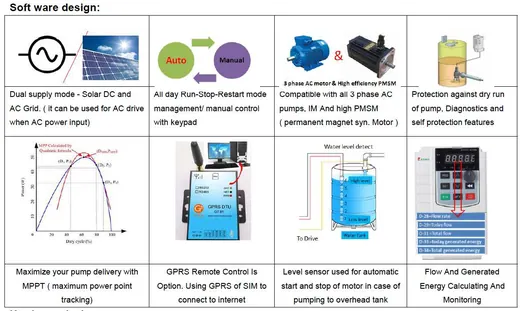

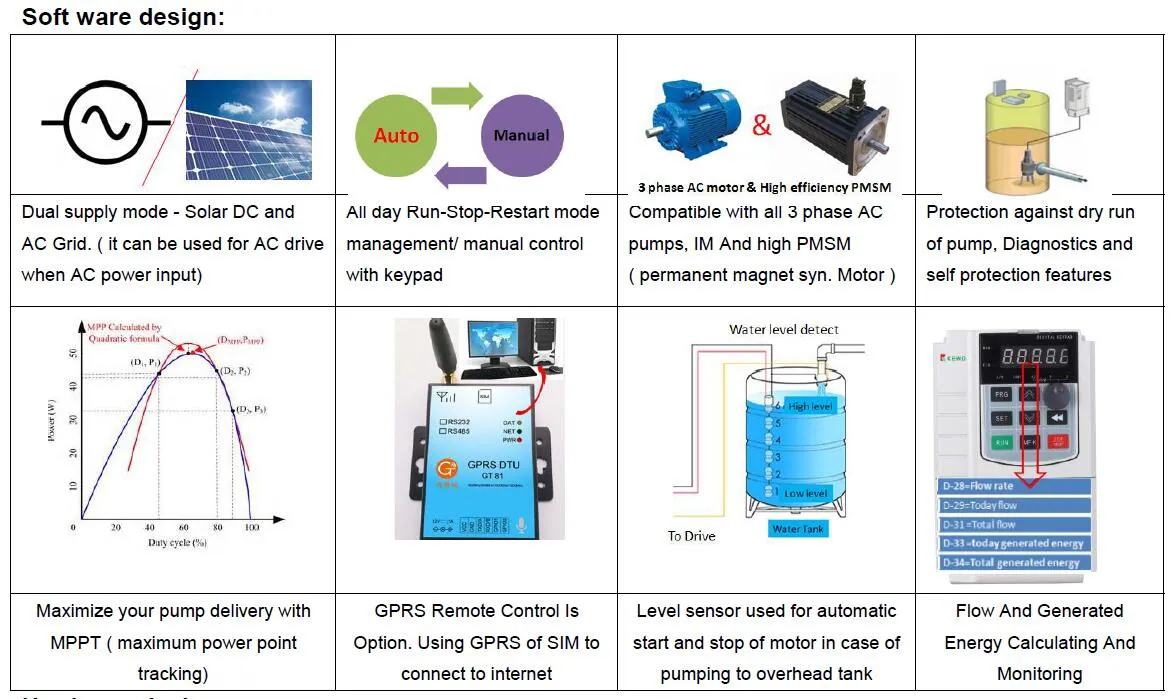

Soft ware design:

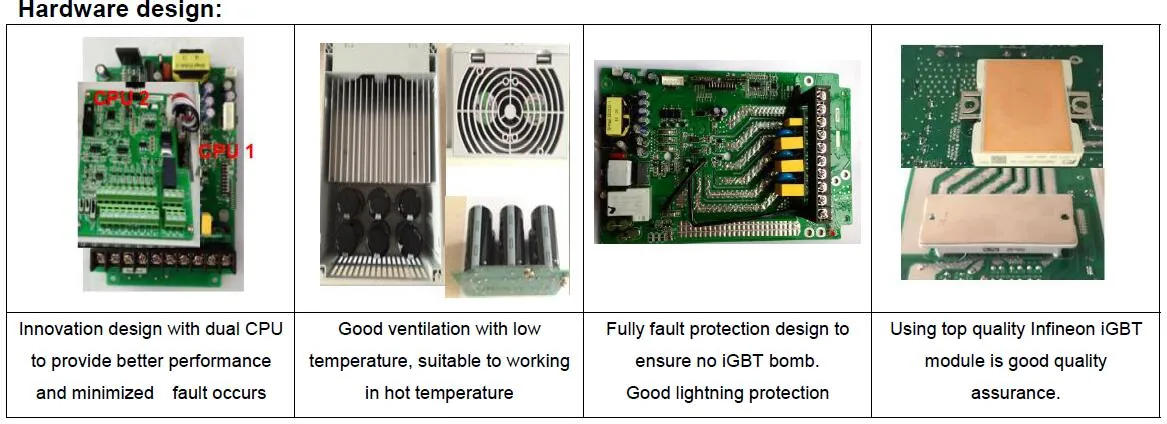

Models specification: Hardware design:

1S: For 3 phase, 110V to 200VAC pumps, 0.75kw to 1.5kw, 80V to 350VDC input.
2S: For 3 phase, 170V to 240VAC pumps, 0.75kw to 4.0kw, 150 to 450VDC input.

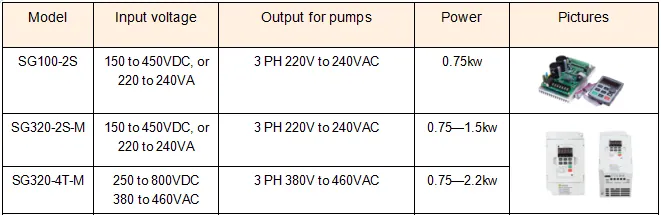

Technical specification:

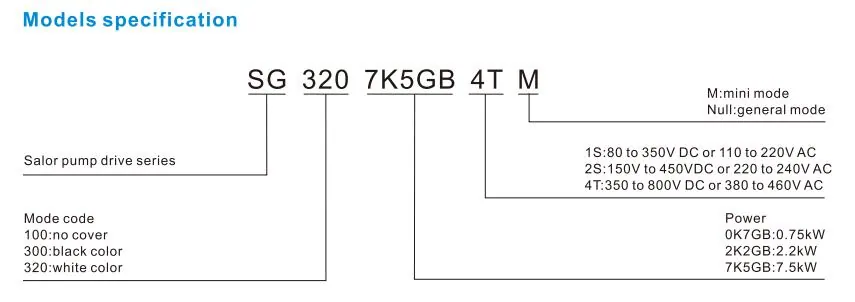

Models specification

SG300 /SG320 series solar pump drive dimensions

Easy installation and commissioning.
1.Dc voltage of solar arrays in serials need large than 1.15 times of Vmpp of drives.
For example: For 4T series, recommend 540V*1.15=621V; For 2S series, recommend 311*1.15=357V. (Voc)
2.The selecting power of solar arrays need large than 1.3 times power of total pumps.
For example, 0.9kw above for 0.75kw pumps, 2.86kw above for 2.2kw pumps.

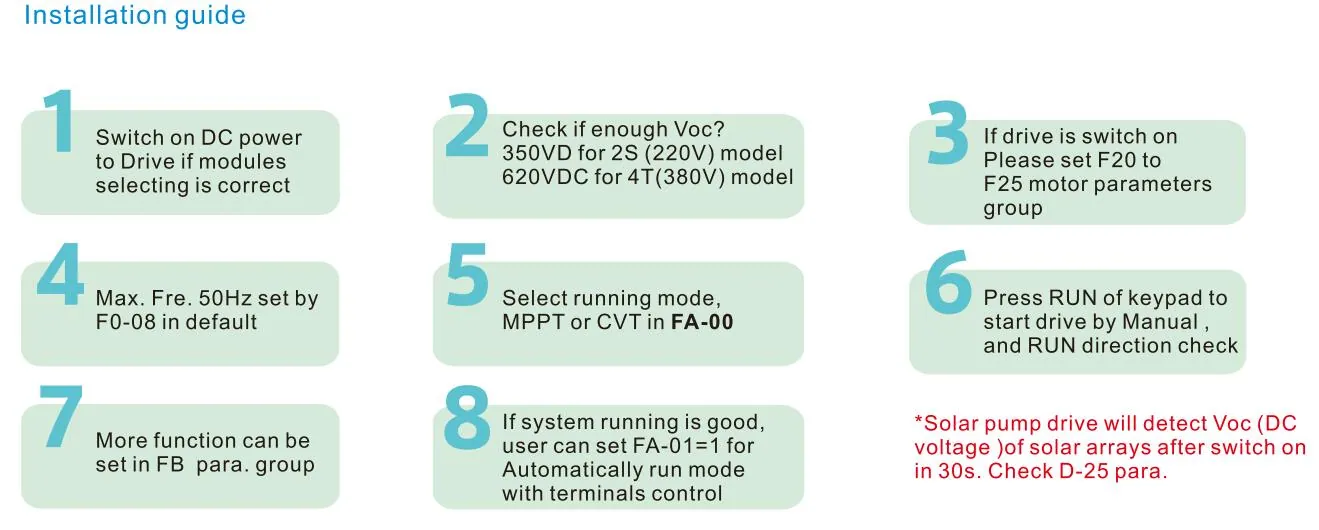

3.Commissioning steps.( Please wait 30s after switching on for Voc detecting by iverter itself.)

Applications examples

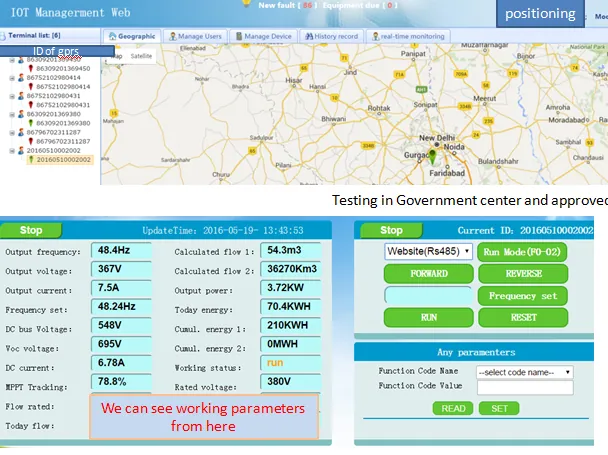

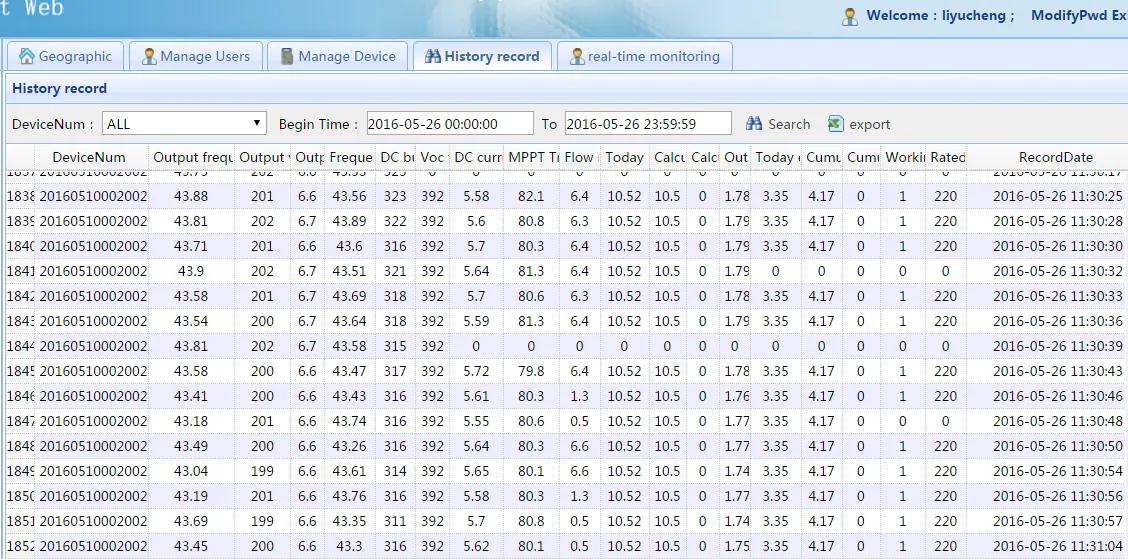

GPRS remote morning and control


If you need more detail please feel free contact us.www.kewoinverter.com
