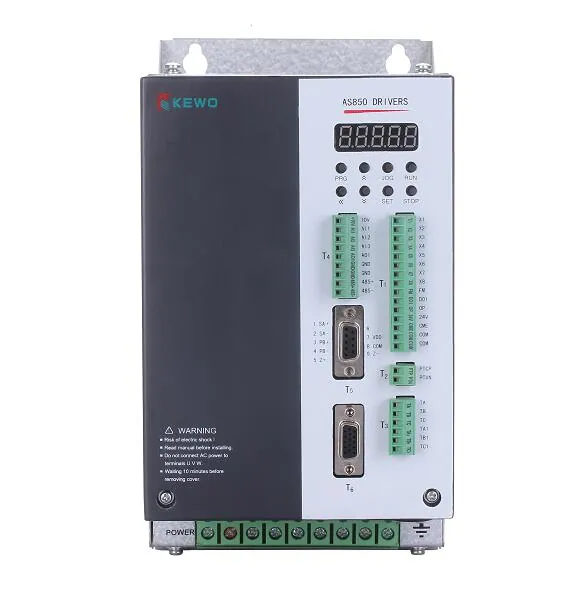

AS850T Spindle AC Servo Drive ( Spindle Frequency Inverter)

AS850T is a new tailor made spindle controlling frequency inverter (servo drive) for CNC, machining center, packing, textile, etc. It can achieve to high accuracy speed, torque and position control through close loop servo control, which based on brand new hard ware and soft ware platform.
Perfect performance and powerful function is your machine best selection.
Production Name: AS850T Spindle Servo Drive ( Spindle Servo Frequency Inverter)
Output Frequency Range: 0 To 1000Hz.
Input Voltage: 3 Phase 380V±15%, 2.2kw To 75kw.
Control Mode: Current/Flux Vector Control, Close Loop Vector Control
Protection Function: Over Current, Over Voltage, Power Module Overheat, Under Voltage, Over Load, Input/Output Phase Missing, Motor Short Circuit Protection.
Cooling Way: Force Cooling.
Mounting Way: Wall Mounting.
Function: Speed control, torque control, position control, synchronous pulse control.

Function features

Software function

Function	Application	Purpose	function describe
points positioning	mechanical transmission	auto process control	The servo motor will run when receiving a command, and move to setting point. When arriving the set point, it will stop and sent a signal back
reciprocating position running	mechanical transmission	auto process control	Perform reciprocating movement between two points, the speed can be set.
multiple points positioning	mechanical transmission	auto process control	Up to 256 points can be set. When corresponding input signal is valid, motor will move to that point.
synchronous driving	mechanical transmission	synchronous speed control	The motor speed swill synchronize with the input pulses, the synchronize ratio can be set. Used in print and textile. Etc filed
torque control	pressing machine	output torque adjustable	The motor torque can be adjusted by analog input or communication method. Ensure every motor has the same torque
cut to length	transverse cutter,	auto to realize fixed length cutting	The drive will measure the cutting length by external encoder, and calculate the initial point, it will activate cutting when arriving the cutting length.
parallel drive	roller rail	to realize same output	To achieve the same output for every motor when multiple drives serving a load by communication mode.

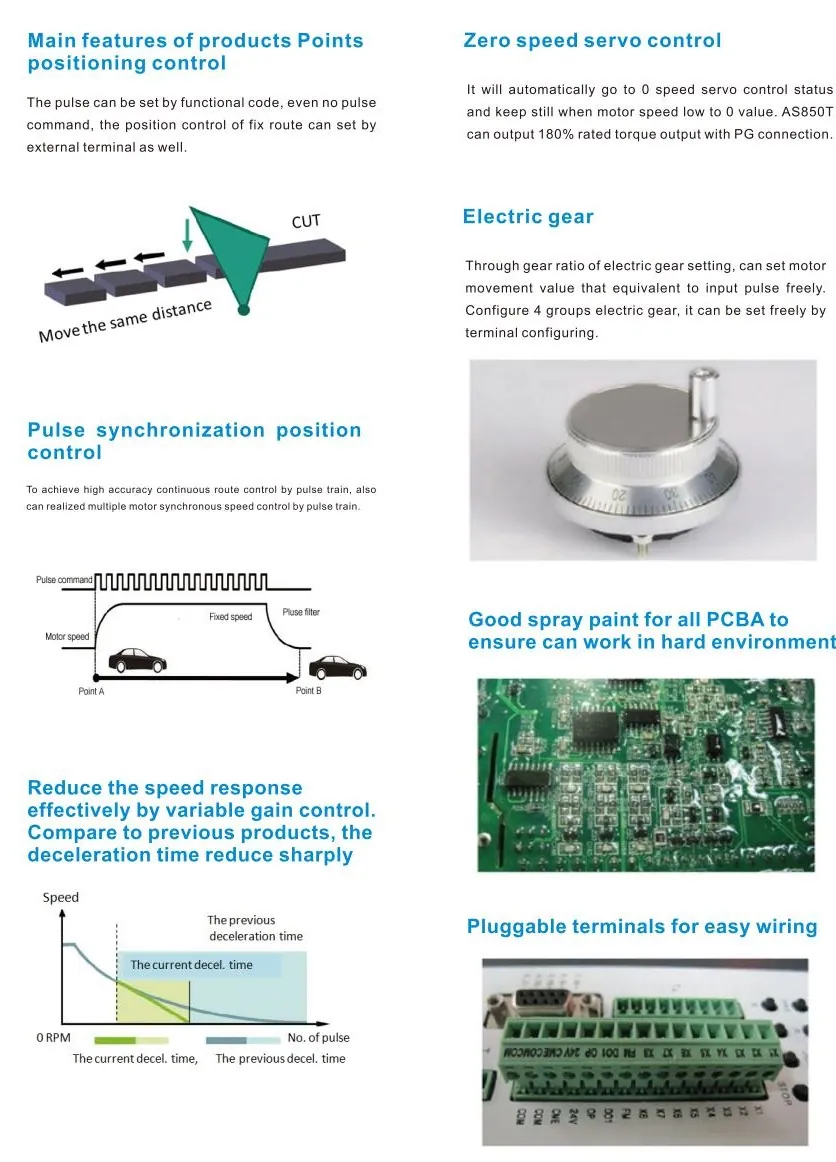

Main features of AS850 Servo Drive
Points positioning control
The pulse can be set by functional code, even no pulse command, the position control of fix route can set by external terminal as well.

Control mode of AS850 AC Servo Drive

Technical specification

Technical Specification
Input	rate voltage	380V+ 10% -15%
Input	rated frequency	50/60Hz
Output	output voltage	0-380V
Output	output frequency range	0-1000Hz
Control feature	control mode	current/flux, close loop vector control
	starting torque	0.0Hz 180%
	torque limit	0-200% rated motor torque
	torque control accuracy	±5%
	speed control ratio	"1:5000
	speed control accuracy	±0.1%
	position accuracy	±pulse no.s
	accel./decel. control	0.05 to 3000Hz
	braking mode	Dynamic braking, built it braking unit
	over load capability	150% rated load for 3 min, 200% for 3s
	analog input	3 ways, -10V to 10V, 0-10V/4-20mA
	analog output	0-10V/4-20mA
	Programmable digital input	9 ways digital input, NPN/PNP acceptable
	Programmable external pulse input	pulse+ director, quadrature pulse
	protection function	over current, over voltage, overheat, under voltage, phase missing, motor short circuit.
environment	temperature	"-25℃to 45℃
	humidity	< 90% RH, Non-condensate
	Vibration	below 20Hz, 1G, 20 to 5Hz,, 0.2G
	Heat dissipation	force cooling
	protection grade	IP20,

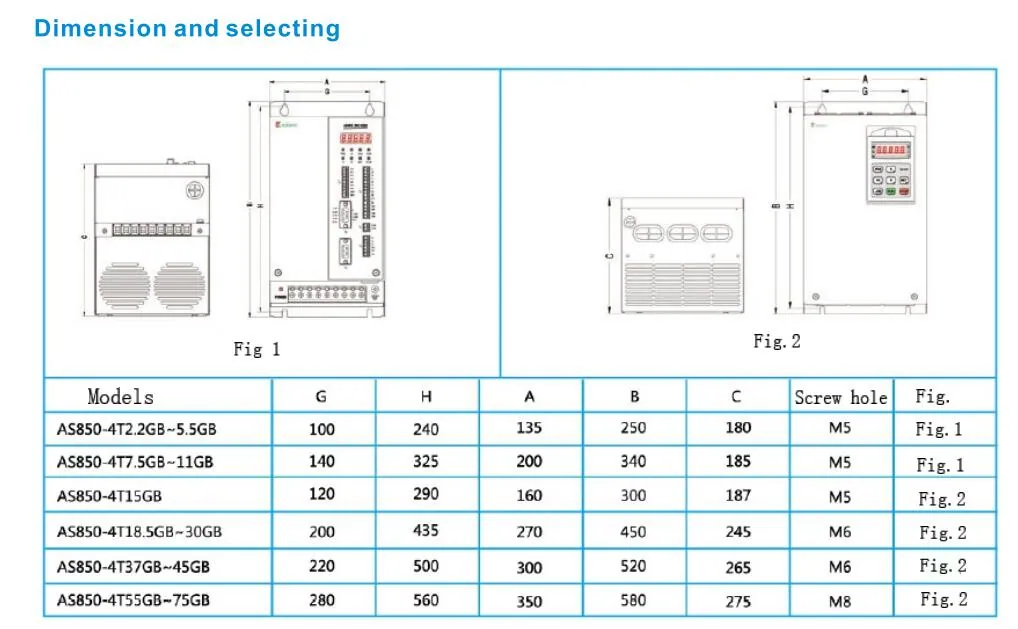

Dimension and selecting.

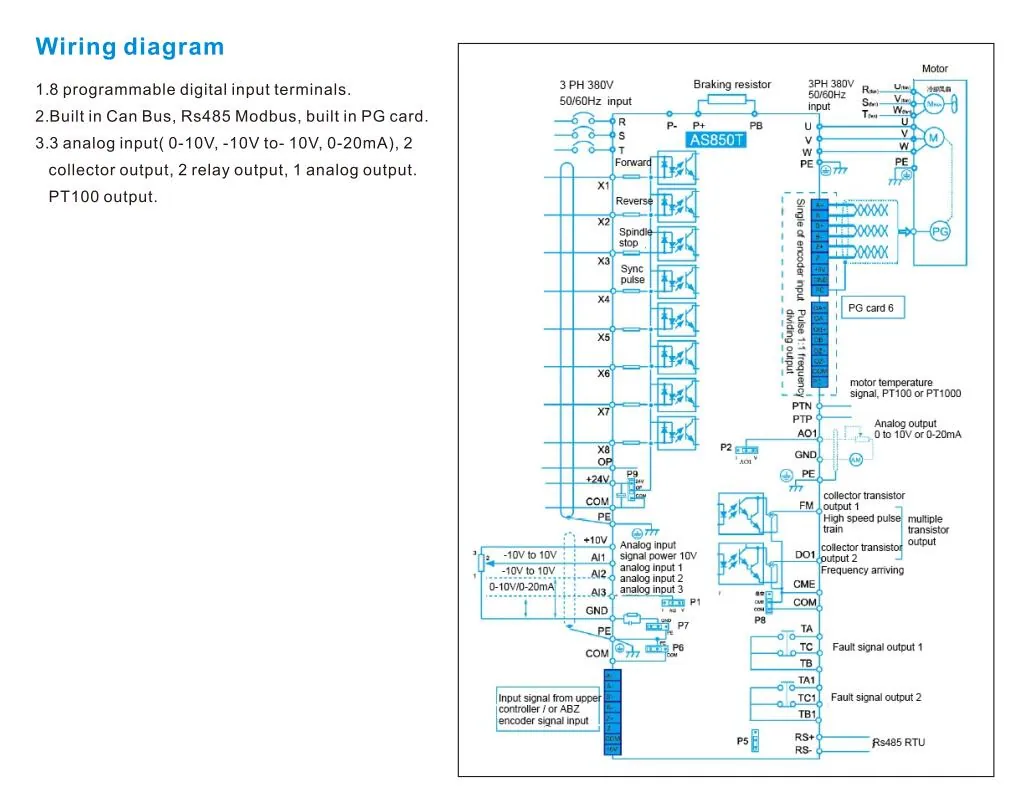

Wiring diagram

1. 8 digital input,
2. built in Can bus, built it PG card, Modbus card
3. 3 analog input, 2 collector output, 2 relay output, 1 analog output. PT100 temperature sensor connection
