High Purity Alu Ceiling Light SX2344-A
Crossed-bar aluminium ceiling light, 680 x 480 mm, 20 W, sand black and gold
Product Overview

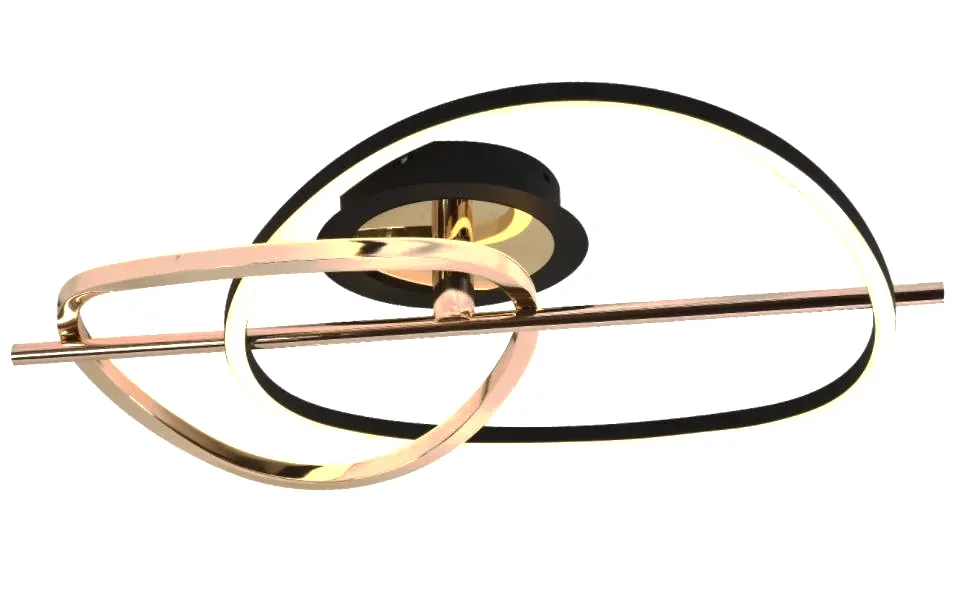

SX2344-A is a surface-mounted ceiling light built from crossed high purity aluminium bars on a central hub. It covers a 680 x 480 mm footprint and draws 20 W, so it lights a bedroom, a study or a small meeting room from one point without a suspended structure. The bars are finished in sand black with gold detailing and the light output comes from Epistar SMD2835 diodes behind a silicone diffuser, driven by an Eaglerise driver.
| Material | Aluminum +Iron+ silicone |
|---|---|
| Product Size | L680*W480*H mm |
| Available Colours | sand black +gold |
| LED Colour Temperature | 3000K/4000K/6000K |
| LED and Driver | Epistar SMD2835 Eaglerise driver 20 W |
| Packaging | Single packaging per piece |
| Production Time | 20 days or less |
| Delivery Time | Based on the mode of shipping chosen |
What You Get From This Model
- Surface mounting removes the ceiling void and drop height that a suspended fixture needs
- One 20 W fixture replaces several downlights, so fewer ceiling penetrations have to be cut and wired
- Sand black and gold finish is sprayed in house, so repeat orders match the first shipment
- Silicone diffuser spreads the SMD2835 output and hides individual diodes at normal viewing angles
- 3000K, 4000K and 6000K are built to order, so one model serves warm residential and neutral office projects
What It Fixes On Site
- Suspended fixtures do not fit rooms with limited slab-to-slab height
- Downlight arrays need multiple cut-outs and separate drivers per point
- Painted finishes from different batches often shift in tone between orders
Where This Model Is Installed
- Bedrooms and guest rooms where a pendant would hang into head height
- Study rooms and home offices that need even light over a desk
- Small meeting rooms in serviced apartments and boutique offices
- Apartment corridors and landings with low slab-to-slab height
Buyers Who Specify It
- Interior contractors fitting out apartments with 2.6 m or lower ceilings
- Lighting wholesalers who need a decorative surface fixture in their catalogue
- Hotel FF&E buyers specifying guest room ceiling lights
How It Is Built
- Crossed aluminium bar geometry on a single central mounting hub
- Epistar SMD2835 LED board with Eaglerise constant current driver
- Silicone diffuser strip along each bar
- Aluminium body with iron mounting plate
What We Check Before It Ships
- Raw material selection checked before processing
- In process checks during assembly and wiring
- Every fixture powered and inspected before packing
- Packing verified by drop test before a run ships
What Can Be Changed To Order
- Colour temperature selected per line item: 3000K, 4000K or 6000K
- Body colour sprayed to order outside the standard finishes
- Suspension drop cut at the factory when the measured ceiling height is supplied
- Private label cartons and labelling agreed at order stage
Certification documents beyond our export certificate are supplied on request against the destination market. We do not publish claims we cannot evidence.
Installing And Living With It
- Confirm ceiling type before ordering: the iron plate fixes to a concrete slab or to a timber or steel batten
- Leave the driver accessible above the canopy if the ceiling is closed with plasterboard
- Choose colour temperature at order stage, the LED board is built to the selected value
How It Differs From The Alternatives
| Compared with | Difference |
|---|---|
| A downlight array of the same coverage | One driver and one ceiling point instead of four to six separate cut-outs and drivers |
| SX2313-4C | Smaller 680 x 480 mm footprint and 20 W load, for rooms where the 900 mm square model is too large |
Related Products
Ceiling LightsHigh Purity Alu Ceiling Light SX2313-4C900 x 900 mm crossed-bar ceiling light, 40 W, matt white, 2 kgView specification
Ceiling LightsHigh Purity Alu Ceiling Light SX2126-RS RM RLSlim 40 mm ceiling light in three sizes, 15 W to 30 W, matt black, matt white or rose goldView specification
Floor LightsGesture Dimming Floor Light SL2312-1C1300 mm upright floor light with top button dimming, Cree COB 5 W, 3.1 kgView specificationProjects Using This Range
Related Guides
Material GuideSilicone PC and Acrylic Diffusers ComparedOur specifications name the diffuser material on every model. The choice between silicone, PC and acrylic changes how the fixture looks, how bright it is and how it survives shipping.Read more
Buying GuideChoosing LED Colour Temperature for Hotel LightingEvery fixture in this catalogue is built to 3000K, 4000K or 6000K at order stage. Here is how to decide which, and why the decision cannot be left until delivery.Read moreHigh Purity Alu Ceiling Light SX2344-A Questions
What is the total light output area of SX2344-A?
The fixture covers 680 x 480 mm and lights from crossed bars across that whole footprint rather than from one central point.
Can I order SX2344-A in a finish other than sand black and gold?
Sand black with gold is the standard finish. Other colours are sprayed to order, send the colour reference over WhatsApp and we confirm feasibility before the order is placed.
Which driver is fitted?
An Eaglerise driver is supplied with the standard 20 W build.
How long does production take?
Production time is 20 days or less. Transit time on top of that depends on the shipping mode you choose.
How is the fixture packed?
Each piece is packed singly. Our packing is tested by drop test before a run ships.
Can I mix colour temperatures in one order?
Yes. State the quantity per colour temperature when you request the quotation, the boards are built per line item.
Quote High Purity Alu Ceiling Light SX2344-A
Tell us the quantity, the finish and the colour temperature and we come back with a price and a production slot.
