High Purity Alu Ceiling Light SX2313-4C
900 x 900 mm crossed-bar ceiling light, 40 W, matt white, 2 kg
Product Overview

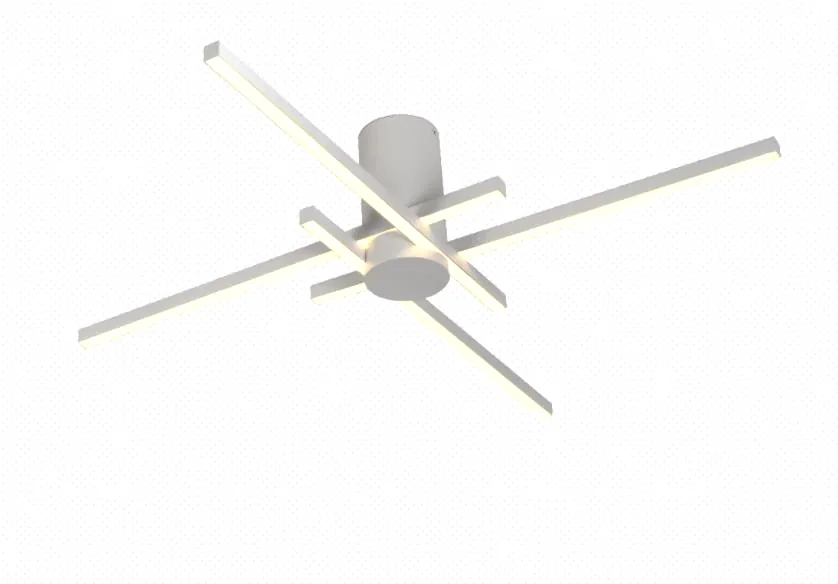

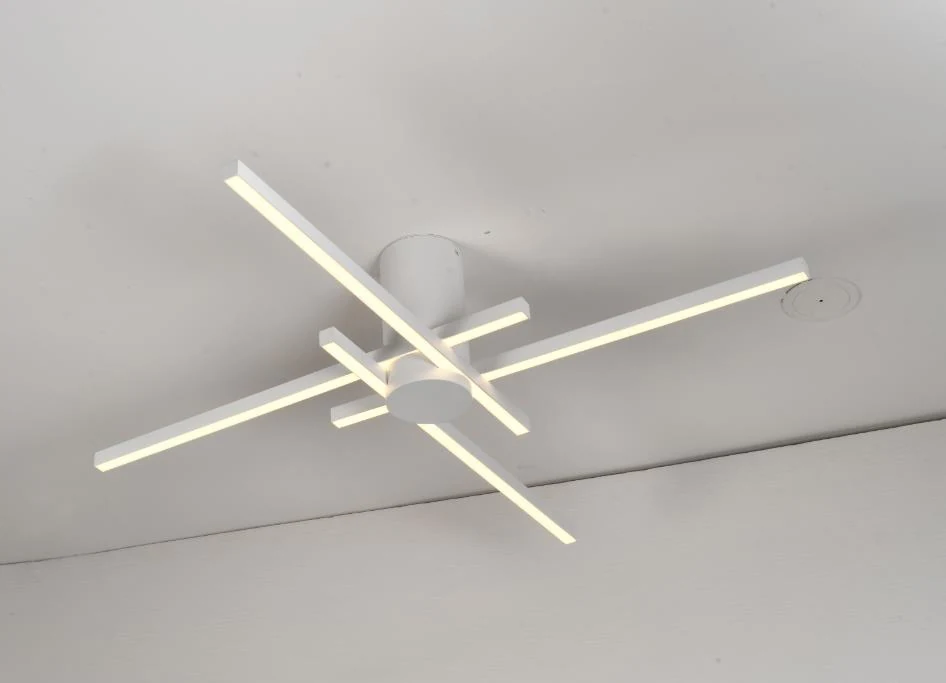

SX2313-4C is the 900 x 900 mm member of the crossed-bar ceiling family. Four aluminium arms meet at a central cylinder 200 mm deep, and the whole fixture weighs 2 kg, which keeps the fixing detail simple on a plasterboard ceiling. It runs at 40 W from Epistar SMD2835 diodes with an Eaglerise driver, and the matt white finish lets it disappear into a white ceiling when it is switched off.
| Material | Aluminum +Iron+Acrylic |
|---|---|
| Product Size | L900*W900*H200mm |
| Available Colours | Matt white |
| LED Colour Temperature | 3000K/4000K/6000K |
| LED and Driver | Epistar SMD2835 Eaglerise driver 40W |
| Product Weight | 2 KG |
| Packaging | Single packaging per piece |
| Production Time | 20 days or less |
| Delivery Time | Based on the mode of shipping chosen |
What You Get From This Model
- 900 x 900 mm spread covers a living room or a four-person meeting table from one fixing point
- 2 kg weight means a standard plasterboard anchor set is enough, no steel backing plate
- Matt white body reads as part of the ceiling by day and only becomes visible when lit
- Acrylic diffuser panels on each arm give a flat luminous line rather than a row of dots
- Same visual language as the SD2313-4C pendant, so one project can use both without a style break
What It Fixes On Site
- Large rooms lit by a single small ceiling fixture leave dark corners
- Heavy decorative fixtures force extra structural work in plasterboard ceilings
- Bright white ceilings show every fixture outline, so a mismatched body colour stands out
Where This Model Is Installed
- Open-plan living and dining areas in apartments
- Meeting rooms with a 1.8 to 2.4 m table
- Showroom ceilings where the fixture has to look graphic from below
- Hotel suite living areas
Buyers Who Specify It
- Residential developers fitting out show apartments
- Office fit-out contractors who want a decorative alternative to linear troffers
- Distributors stocking a large-format decorative ceiling light
How It Is Built
- Four-arm crossed geometry, 900 x 900 mm, 200 mm deep
- Aluminium arms with iron structure and acrylic diffusers
- Epistar SMD2835 board, Eaglerise driver, 40 W
- Product weight 2 kg
What We Check Before It Ships
- Raw material selection checked before processing
- In process checks during assembly and wiring
- Every fixture powered and inspected before packing
- Packing verified by drop test before a run ships
What Can Be Changed To Order
- Colour temperature selected per line item: 3000K, 4000K or 6000K
- Body colour sprayed to order outside the standard finishes
- Suspension drop cut at the factory when the measured ceiling height is supplied
- Private label cartons and labelling agreed at order stage
Certification documents beyond our export certificate are supplied on request against the destination market. We do not publish claims we cannot evidence.
Installing And Living With It
- Set out the fixing point on the diagonal centre of the room, the arms are symmetrical about the hub
- Check that the 900 mm arm span clears ceiling beams and sprinkler heads before fixing
- For a matched suspended version in the same room, order SD2313-4C
How It Differs From The Alternatives
| Compared with | Difference |
|---|---|
| SX2344-A | Larger 900 x 900 mm footprint and double the wattage, for rooms the 680 x 480 mm model cannot cover |
| SD2313-4C | Surface mounted version of the same geometry, for ceilings with no room for a suspension drop |
Related Products
Ceiling LightsHigh Purity Alu Ceiling Light SX2344-ACrossed-bar aluminium ceiling light, 680 x 480 mm, 20 W, sand black and goldView specification
Ceiling LightsHigh Purity Alu Ceiling Light SX2126-RS RM RLSlim 40 mm ceiling light in three sizes, 15 W to 30 W, matt black, matt white or rose goldView specification
Floor LightsGesture Dimming Floor Light SL2312-1C1300 mm upright floor light with top button dimming, Cree COB 5 W, 3.1 kgView specificationProjects Using This Range
Related Guides
Material GuideSilicone PC and Acrylic Diffusers ComparedOur specifications name the diffuser material on every model. The choice between silicone, PC and acrylic changes how the fixture looks, how bright it is and how it survives shipping.Read more
Buying GuideChoosing LED Colour Temperature for Hotel LightingEvery fixture in this catalogue is built to 3000K, 4000K or 6000K at order stage. Here is how to decide which, and why the decision cannot be left until delivery.Read moreHigh Purity Alu Ceiling Light SX2313-4C Questions
How much does SX2313-4C weigh?
2 kg. That is light enough for standard plasterboard fixings without a steel backing plate.
How deep is the fixture below the ceiling?
200 mm from the ceiling face to the bottom of the central cylinder.
Is there a suspended version of this design?
Yes, SD2313-4C uses the same crossed-bar geometry with a suspension drop up to 1500 mm.
What colour is the standard body?
Matt white. Other colours are sprayed to order.
What is the standard lead time?
Production time is 20 days or less from order confirmation.
Which LED and driver are used?
Epistar SMD2835 diodes with an Eaglerise driver at 40 W.
Quote High Purity Alu Ceiling Light SX2313-4C
Tell us the quantity, the finish and the colour temperature and we come back with a price and a production slot.
