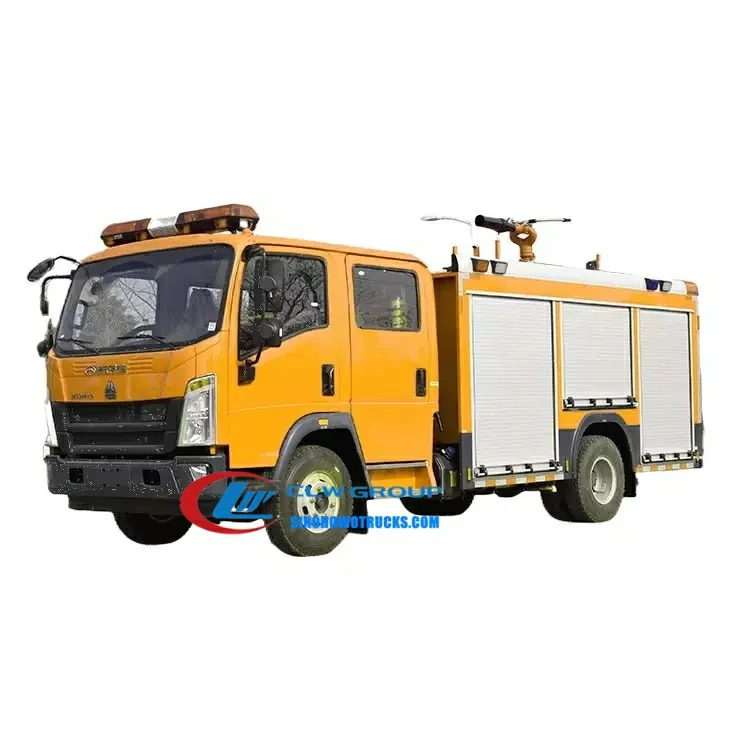

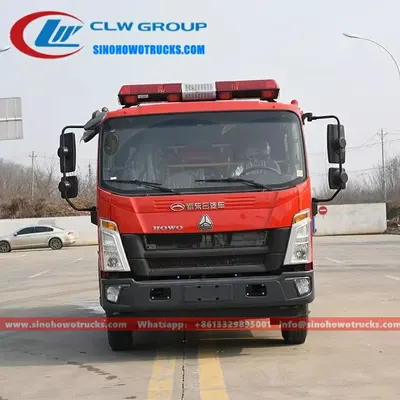

The Sinotruk HOWO 5 ton fire fighter truck is a 4000 litre water tanker built on a 4x2 HOWO chassis with a 160 HP diesel engine and 6 speed manual gearbox. It is designed for urban fire brigades, industrial sites, and remote locations where rapid fire suppression is needed without reliance on hydrants. The CB10/40 pump delivers 40 litres per second at 1.0 MPa and feeds a PS40 monitor capable of projecting water over 50 metres, allowing crews to engage fires from a safe distance. The truck is fully custom-made to match local operational needs and can be delivered with a foam-ready tank configuration.
| Chassis | HOWO ZZ1117G3815F112, 4x2 left hand drive |
|---|---|
| Engine | Weichai WP3NQ160E61, 160 HP, diesel |
| Gearbox | 6 speed manual |
| Overall Size | 7060 x 2320 x 3100 mm |
| Water Tank Capacity | 4000 L |
| Tank Thickness | 4/3/3 mm |
| Fire Pump | CB10/40 normal pressure |
| Cab Seats | 3+3 |
| Air Conditioner | Yes |
| Max Speed | 90 km/h |
| Tyre Specification | 8.25R16LT |
| Tyre Count | 6+1 |
| GVW | 10700 kg |
| Curb Weight | 5050 kg |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 3 ton fire truck with 2500 L tank | Lighter and more agile in city streets but carries less water and requires more frequent refill |
|---|---|
| Foam and dry powder tender | Better on flammable liquid fires but cannot sustain a continuous water attack on solid fuel fires |
| Water tanker with pump added | Cheaper per litre but lacks GB7965 compliant layout, monitor lockers, and integrated fire fighting systems |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.
T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. Send us your inventory list of hoses, branches, nozzles, and breathing apparatus and the lockers will be laid out to suit it.
Send us your destination port and we will quote price, lead time and freight.
