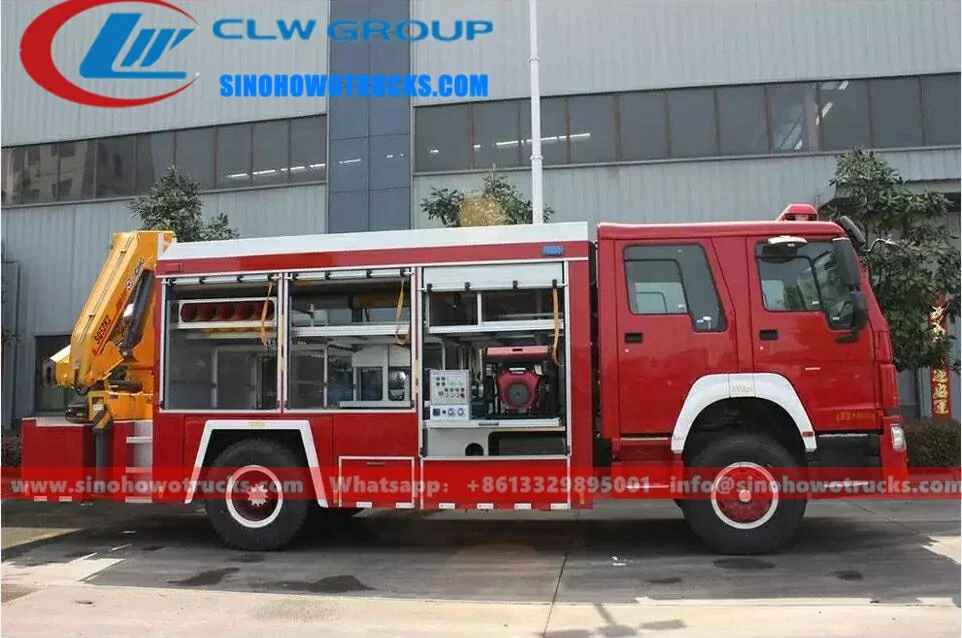

Sinotruk HOWO fire rescue truck with XCMG 5 ton crane in fire service red with lifting lights and fire equipment

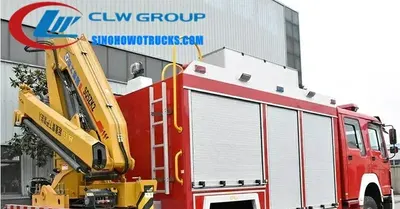

Side view of the HOWO fire utility truck showing the 5 ton crane and equipment lockers

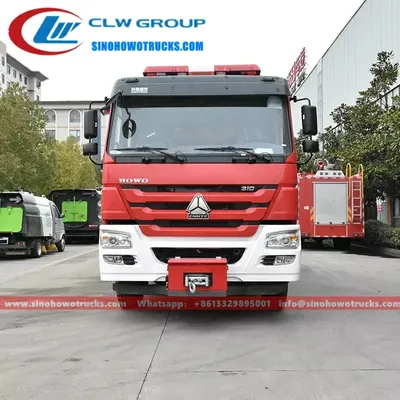

Rear view of the fire brigade truck with water tank, pump panel, and fire cannon

Sinotruk Howo fire rescue truck with XCMG 5 ton crane for sale Laos

Name: Sinotruk Howo fire rescue truck with XCMG 5 ton crane for sale Laos
Brand: Sinotruk HOWO

The Sinotruk HOWO fire rescue truck with XCMG 5 ton crane is a 4x2 heavy-duty vehicle built on a Sinotruk chassis for urban fire brigades, industrial safety teams, and emergency response units that need rapid deployment and on-site lifting capability. It carries a water tank and integrates a 5 ton crane, 10.5 kW generator, and a full set of firefighting equipment to support both fire suppression and rescue operations. The truck is designed for use in petroleum chemical plants, ports, textile mills, and forest fire zones where access is limited and equipment must be deployed quickly.

Request A Quote Email Specification

Key Benefits

5 ton XCMG crane enables lifting of heavy debris, equipment, or rescue loads at fire scenes
10.5 kW generator powers lighting, tools, and communication systems during extended operations
290 HP Sinotruk WD615.87 engine delivers reliable performance on rough terrain and long distances
4x2 chassis with 8-speed manual gearbox offers good maneuverability in urban and industrial areas
Water tank capacity is customizable to match site-specific fire risk and water supply constraints
All firefighting equipment is pre-installed and ready for immediate use upon delivery
Red paint and free logo application for quick identification in emergency response scenarios

Buyer Profile

Who It Is for

City and national fire departments procuring multi-role emergency vehicles
Industrial safety departments in chemical plants and refineries needing on-site rescue and suppression
Port and dock authorities with in-house emergency response teams
Construction and quarry site managers requiring rapid fire and rescue response
Government agencies equipping new fire stations with versatile vehicles
Emergency logistics providers supplying turnkey fire and rescue units to remote zones

Operating Problems

Problems It Solves

Lack of on-site lifting capacity during fire response delays debris clearance and access
Multiple vehicles required for fire suppression and rescue, increasing procurement and training costs
Limited water supply at remote or industrial sites requiring large-capacity tanks
Slow deployment due to missing or incomplete equipment packages
Inadequate power supply at incident sites for lighting and tools
Poor visibility during night operations without dedicated lifting lights

Where It Works

Application Scenarios

Urban fire brigades responding to high-rise building fires with limited access and need for crane-assisted entry
Petroleum and chemical plants requiring rapid fire suppression and debris clearance after an incident
Ports and docks where crane capability is needed to move damaged containers or equipment after a fire
Textile mills and cigarette factories with high fire load and narrow access routes
Forest fire units operating in remote areas where lifting tools are needed to clear fallen trees
Industrial parks with multiple hazards where a single vehicle must handle both fire and rescue tasks

Engineering

Technical Features

XCMG 5 ton crane with 3-section telescopic boom for extended reach and lifting capacity
10.5 kW generator supports lighting, communication, and tool operation during extended missions
4x2 drive configuration with 8-speed manual transmission for reliable urban and off-road mobility
WD615.87 diesel engine rated at 290 HP and 213 kW with Euro2 emission standard
295/80R22.5 tyres on 6+1 wheel setup provide stability and load capacity
Water tank capacity is adjustable to meet site-specific fire risk and water availability
Lifting lights with 4 x 1000W bulbs ensure visibility during night operations
Fire equipment table includes 125×4 meter hoses, water filters, traps, and threaded connections
Cab with 2+4 seating and air conditioning for crew comfort during long operations
Pump and fire cannon system integrated into the body for immediate fire suppression

Specifications

Technical Data


Vehicle Model	CLW5151TXFJY80
Chassis Brand	SINOTRUK (ZZ1167M4611W)
Drive Type	4x2
Engine	WD615.87, 290 HP, 213 kW, diesel
Transmission	8 speed manual
Wheelbase	4600 mm
Overall Size	9040 x 2500 x 3590 mm
GVW	15300 kg
Curb Weight	14850 kg
Max Speed	95 km/h
Crane Capacity	5 ton, 3-section
Winch	5 ton
Generator	10.5 kW
Lifting Light	4 x 1000W
Tank Material	Carbon steel or stainless steel
Tank Capacity	Customizable
Cab Seat	2+4
Air Conditioner	Yes
Paint	Red
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel tank available on request for corrosive or high-purity water
Aluminium alloy components used in crane and body structure for weight reduction
Steel frame and chassis with Sinotruk engine and gearbox for durability
Rubber seals and gaskets on all access points to prevent water and dust ingress

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank and crane layout
Tank is cut, formed, and welded with internal clapboards to reduce liquid surge
Tank is pressure tested and leak tested before assembly
Crane, winch, generator, and lifting lights are mounted and aligned to the subframe
Fire equipment table is installed with hoses, filters, traps, and connections
Body is shot blasted, primed, and painted in fire service red with free logo application
All systems are tested on the factory apron including crane lift, generator output, and pump flow
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Pressure and leak tests conducted on the water tank and any pressure vessel components
Crane and winch performance verified under full load conditions
Generator output and lighting system tested in full operation
Photos and videos of the finished truck are sent to the buyer before final payment
Compliance with GB7965 for fire fighting vehicle performance and test methods

Build to Order

Customization Options

Water tank capacity and material (carbon steel or stainless steel) specified by the buyer
Tank colour and logo applied free of charge to match local fire service branding
Crane and winch specifications adjusted to match lifting requirements
Firefighting equipment package built to the buyer’s inventory list
Left or right hand drive chassis available to match local traffic regulations
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

Standard water tender without crane	Lower cost and lighter but cannot perform lifting tasks during rescue operations
Dedicated crane truck without fire pump	Better lifting capacity but lacks fire suppression systems and cannot respond to fire incidents
Foam fire truck with smaller crane	Better on flammable liquid fires but limited lifting capability compared to this model

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Fill the tank only through the manhole or pump inlet to prevent contamination
Use the crane only within its rated capacity and ensure all safety locks are engaged
Operate the generator only when the engine is running and monitor fuel levels
Inspect hoses, filters, and traps before each use and replace worn components
Free factory training is available before shipment for crew familiarization

Buyer Questions About This Truck

What is the lead time for this fire rescue truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and equipment list.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses, nozzles, traps, and tools and we will layout the equipment table accordingly.
