Home/ All Trucks/ Howo Fire Truck/Sinotruk Howo 3 ton small fire engine Djibouti

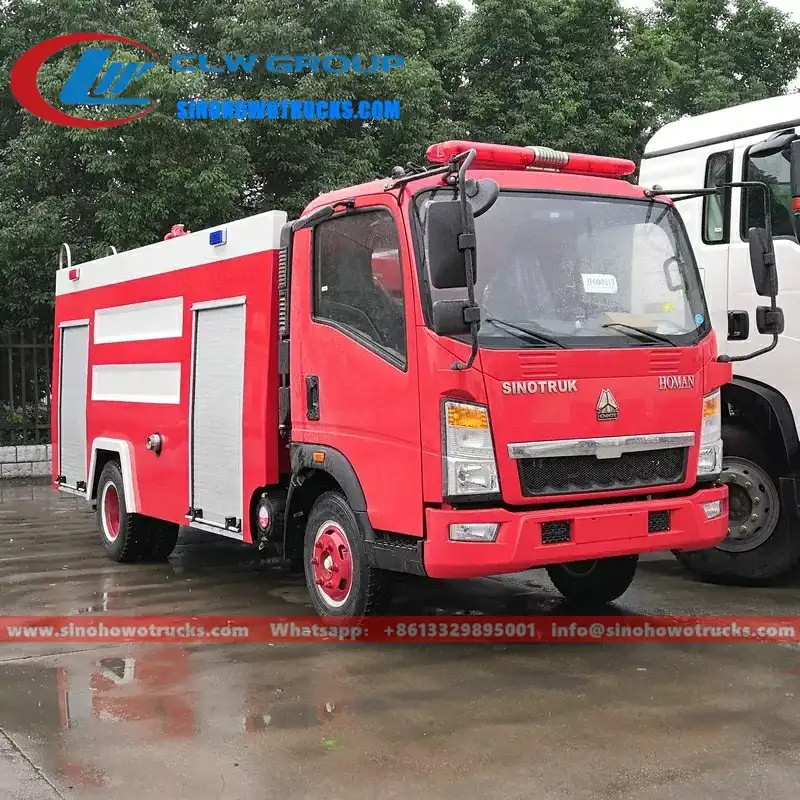

Sinotruk HOWO 4x2 small fire engine in fire service red with roof mounted PS30 monitor

Rear pump room of the HOWO fire engine showing gauges and control switches

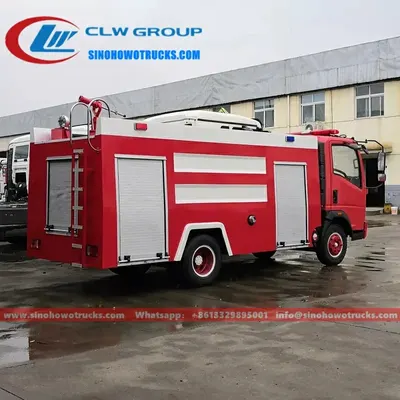

Aluminium alloy roller shutter lockers open on the side of the HOWO fire tender

Sinotruk Howo 3 ton small fire engine Djibouti

Name: Sinotruk Howo 3 ton small fire engine Djibouti
Brand: Sinotruk HOWO

The Sinotruk HOWO 3 ton small fire engine is a 3.5 cubic metre water tender built on a 4x2 HOWO chassis with a 116 HP diesel engine and 6 speed manual gearbox. It is designed for urban and rural fire brigades that need a compact, agile vehicle to reach fires in narrow streets, industrial yards, and remote areas where larger trucks cannot operate. The CB10/20 normal pressure pump delivers 20 litres per second at 1.0 MPa and feeds a PS30 monitor that throws water over 50 metres, allowing crews to attack fires from a safe distance without needing a hydrant.

Request A Quote Email Specification

Key Benefits

3.5 cubic metre carbon steel tank provides enough water for initial attack on small to medium fires
PS30 monitor throws water over 50 metres so crews stay outside the heat and flame zone
4x2 HOWO chassis allows operation in narrow city streets and unpaved access roads
CB10/20 pump delivers 20 l/s at 1.0 MPa with a 100 mm inlet and 80 mm outlet for fast flow
116 HP diesel engine ensures reliable performance with low maintenance over long service life
Complete fire fighting equipment package included – hoses, nozzles, filters and traps ready for immediate use
Free factory training available before shipment for crew familiarisation

Buyer Profile

Who It Is for

City and municipal fire departments with limited budget and tight access routes
Industrial safety teams in factories and warehouses without hydrant infrastructure
Rural fire units operating in areas with poor road access and no water supply
Port and logistics yard operators needing a mobile water source for fire prevention
Private security contractors supplying fire response to commercial estates
Government agencies equipping new fire stations with cost-effective appliances

Operating Problems

Problems It Solves

Lack of hydrants in urban alleyways and rural areas forces reliance on water shuttles
Large fire trucks cannot access narrow streets or unpaved roads in older districts
Delayed response due to long travel times to the nearest water source
High cost of imported fire appliances with long spare parts lead times
Inadequate water volume in small appliances that run dry before a fire is controlled
Lack of ready-to-use equipment on site, requiring separate procurement and setup

Where It Works

Application Scenarios

Urban fire brigades responding to small fires in densely built districts with narrow access roads
Industrial parks and factories with limited hydrant coverage needing rapid first response
Remote villages and rural communities without fire hydrants or water mains
Port terminals and warehouse yards where large trucks cannot enter tight spaces
Schools, markets and public buildings requiring a compact fire appliance for daily patrols
Private security teams or facility managers maintaining their own fire response capability

Engineering

Technical Features

Pump draws 75 kW with a 100 mm inlet and an 80 mm outlet
Priming completes in under 60 seconds at 7 metres suction depth
PS30 monitor swings 360 degrees horizontally and pitches from minus 30 to 70 degrees
Pump room mounted at the rear with all gauges and switches on one panel
Water level indicator, overflow valve, air breather valve and drain outlet on the tank
Carriage built from steel and aluminium embossed sheet for corrosion resistance
116 HP diesel engine with 6 speed manual gearbox for reliable operation

Specifications

Technical Data


Chassis	SINOTRUK HOWO 4x2 left hand drive
Engine	116 HP diesel
Gearbox	6 shift manual
Overall Size	6500 x 2100 x 2600 mm
Water Tank Capacity	3.5 CBM
Tank Material	Q235 carbon steel
Fire Pump	CB10/20 normal pressure
Pump Flow	20 l/s at 1.0 MPa
Inlet / Outlet	100 mm / 80 mm
Cab Colour	Red, tank colour and logo free of charge
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Q235 carbon steel tank with 1.5 mm side plates and 3 mm floor for durability
Aluminium embossed sheet carriage panels for corrosion resistance
Aluminium alloy roller shutter doors with sealing strip and one lock set
HOWO heavy duty chassis frame with Sinotruk engine and gearbox

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and the wheelbase is confirmed against the tank drawing
Tank shell is cut and rolled then welded with internal clapboards to control surge
Tank is pressure and leak tested before it leaves the welding shop
Pump pipework and mounting brackets are fitted and aligned to the driveline
Carriage lockers, monitor platform and equipment table are assembled onto the subframe
Body is shot blasted, primed and finished in fire service red
Pump flow, monitor throw and priming time are tested on the factory apron before shipment

Testing

Quality Control

Vehicle is built to GB7965 performance requirements and test methods for fire fighting vehicles
Tank complies with GB39.5 general specification for fire fighting vehicles
Every truck is 100 percent tested before delivery
Photos and videos of the finished truck are sent to the buyer before the balance payment
Pressure and non destructive testing available in house for pressure vessel projects

Build to Order

Customization Options

Water tank capacity can be adjusted from 3.5 CBM to meet specific needs
Tank material can be changed from carbon steel to stainless steel on request
Left or right hand drive chassis to match local traffic regulations
Tank colour and brigade logo applied free of charge
Fire fighting accessory package built to the buyer's inventory list
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 water tender with a 12000 L tank	Carries more water but is less agile in narrow urban streets and harder to park
Foam and dry powder tender	Better on flammable liquid fires but cannot sustain a plain water attack on solid fuel fires
Water tanker truck with a fire pump added	Cheaper per litre carried but lacks a GB7965 compliant fire fighting layout and equipment package

Operating Notes

Use Guide

Confirm the chassis drive configuration and hand of drive against local registration rules before order
Fill only through the manhole or the pump inlet and keep the air breather valve clear
Prime the pump at no more than 7 metres suction lift and expect draft within 60 seconds
Engage the pump before moving if pump and roll operation is required
Drain the tank and pump after use in freezing conditions
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

How long is the lead time for this fire truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be stainless steel instead of carbon steel?

Yes. The standard tank is Q235 carbon steel and stainless steel is available. Tell us the water quality and storage time and we will confirm the material.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW FOB CFR or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses branches nozzles and breathing apparatus and the lockers will be laid out to suit it.
