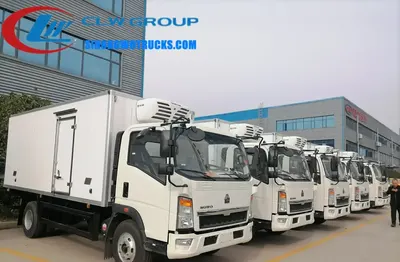

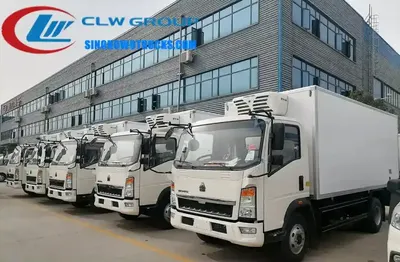

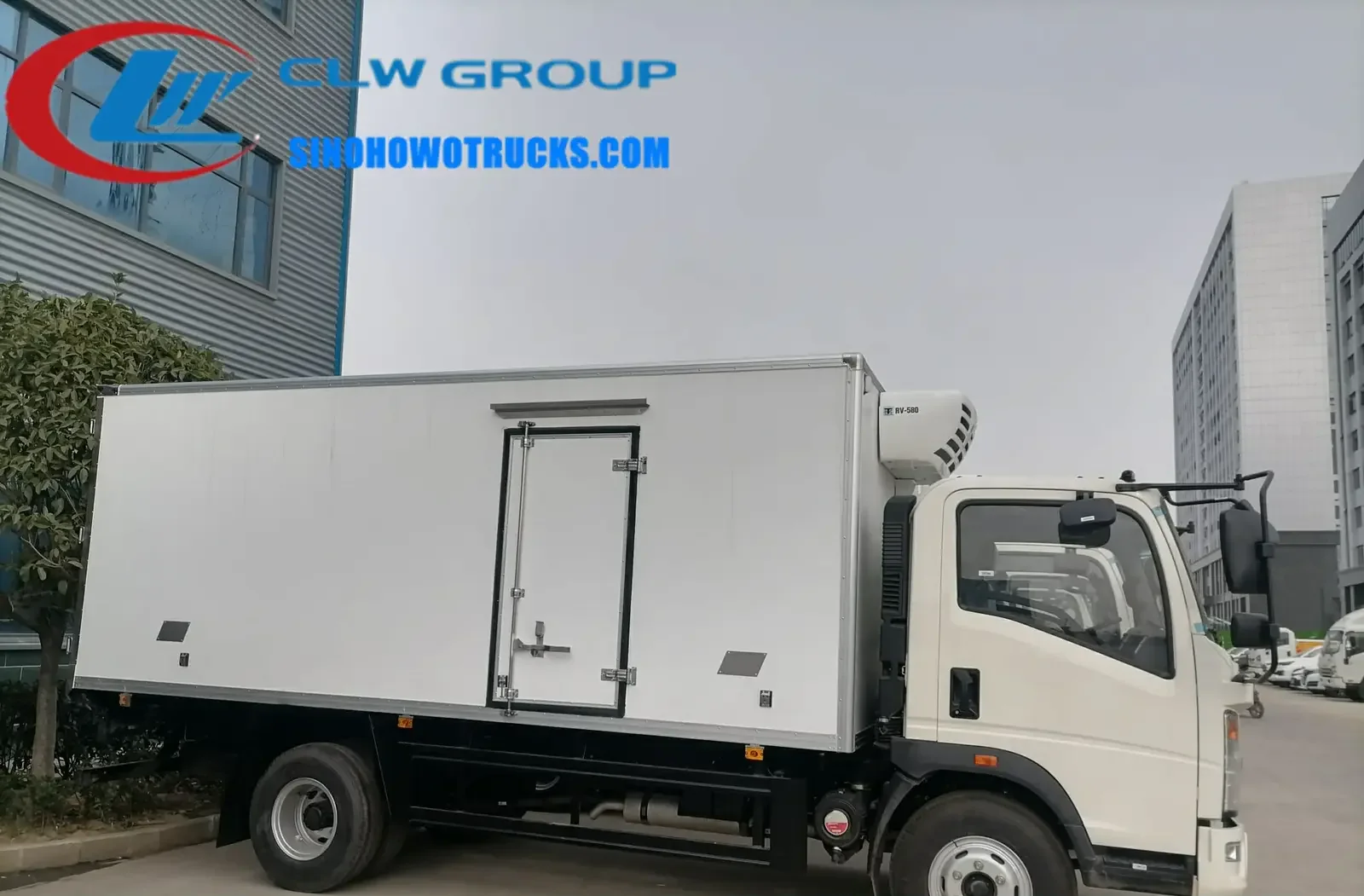

The Sinotruk HOWO 3 ton refrigerated truck is a 4x2 chassis vehicle designed for transporting perishable goods at controlled temperatures. Built on a ZZ1047D3615C145 chassis with a 116HP diesel engine and 6-speed manual gearbox, it carries a 5000 kg payload in a 4100 x 2150 x 2150 mm insulated body. The unit is equipped with a Thermo King non-independent refrigeration system capable of maintaining temperatures from -18°C to 0°C. It is used by food distributors, cold chain logistics operators, and agricultural exporters in markets such as Angola, where reliable temperature control and durability on rough roads are essential.
| Chassis Model | ZZ1047D3615C145 |
|---|---|
| Driving Type | 4×2 left or right hand drive |
| Engine | 4102, 4-cylinder, 4-stroke, direct injection, water cooled |
| Horse Power | 116 HP |
| Displacement | 3.76 L |
| Emission Standard | EURO II |
| Transmission | WLY6T100, 6 forward, 1 reverse |
| Refrigeration Unit | Thermo King, non-independent, -18°C to 0°C |
| Insulation Thickness | Bottom: 105 mm, Sides and Rear: 85 mm |
| Body Material | Q235 steel with seamless construction |
| Body Dimensions | 4100 x 2150 x 2150 mm |
| Overall Dimensions | 6200 x 2200 x 3150 mm |
| Wheelbase | 3500 mm |
| Curb Weight | 1500 kg |
| Loading Weight | 5000 kg |
| Max Speed | 90 km/h |
| Tyres | 7.50R16 steel, 6+1 spare |
| Cab | 2080 model with AC |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| 3 ton reefer with 4000 kg payload | Carries less cargo but has better fuel efficiency and lower purchase cost |
|---|---|
| Used imported reefer truck | Lower upfront cost but higher long-term maintenance and parts cost due to limited local support |
| Refrigerated truck with independent refrigeration | Higher cooling capacity but more complex and expensive to maintain |
Generally 20 days after the advance payment is received. The exact time depends on chassis availability and refrigeration unit selection.
Yes. The refrigeration unit brand can be specified at order stage. We can supply other brands upon request.
The standard unit maintains -18°C to 0°C. Other ranges such as +2°C, -10°C, -15°C are available on request.
Yes. The chassis can be ordered in left or right-hand drive to match local traffic rules. Confirm at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year. Core components are covered for two years. We provide 15 years of spare parts and technical support.
Send us your destination port and we will quote price, lead time and freight.
