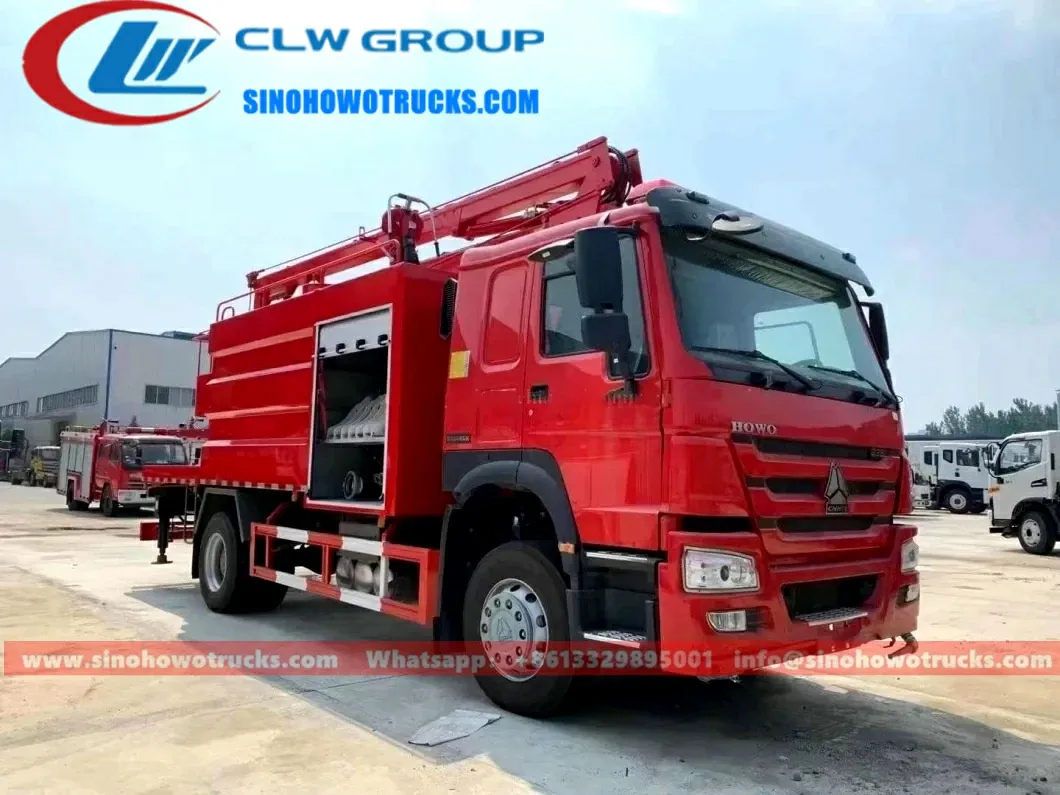

Sinotruk HOWO 20m aerial platform fire truck with extended platform and remote control monitor in operation

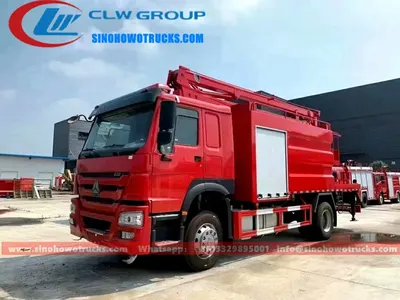

Rear view of the HOWO fire truck showing the CB10.20/30.60 fire pump and control panel

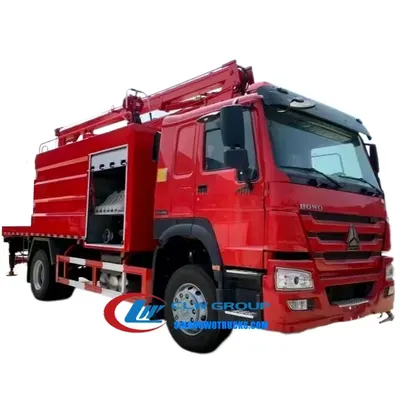

Side view of the aerial platform with hydraulic arms fully extended and monitor positioned at 90 degrees elevation

Sinotruk Howo 20m aerial platform fire truck for sale Equatorial Guinea

Name: Sinotruk Howo 20m aerial platform fire truck for sale Equatorial Guinea
Brand: Sinotruk HOWO

The Sinotruk HOWO 20m aerial platform fire truck is a 4x2 heavy-duty fire appliance built on a HOWO chassis with a 290 HP diesel engine and 10 speed manual gearbox. It is designed for urban fire brigades, industrial safety teams, and emergency response units that need to reach high-rise buildings, industrial plant structures, or confined spaces where ground access is limited. The 20 metre telescoping aerial platform with remote control fire monitor delivers water or foam up to 60 metres and foam up to 50 metres, enabling safe, high-angle attack from a distance. The truck operates in environments with no hydrant access and must respond to fires in ports, chemical plants, textile mills, and forested areas.

Request A Quote Email Specification

Key Benefits

20 metre telescoping aerial platform reaches high-rise and complex structures without ground ladders
Remote control PLKD40 fire monitor delivers 48 l/s water flow and 348 degree horizontal rotation
Water range over 60 metres and foam range over 50 metres from a safe stand off distance
Rear mounted CB10.20/30.60 fire pump provides normal pressure 60 l/s and medium pressure 30 l/s
Double row non-longhead cab with 2 or 3 person capacity allows crew flexibility in tight spaces
100 percent custom built to match local fire service requirements and site access conditions

Buyer Profile

Who It Is for

City and national fire services procuring fire appliances under public tender
Industrial safety departments in chemical, textile, and manufacturing plants
Port and dock authorities with in-house emergency response teams
Airport fire departments requiring rapid aerial access to aircraft and terminals
Government procurement agencies equipping new fire stations in developing regions
Contractors supplying turnkey fire protection to industrial estates and special economic zones

Operating Problems

Problems It Solves

Fires in high-rise or complex structures that cannot be reached by ground ladders or standard fire trucks
Lack of hydrant access in remote or newly developed areas requiring self-contained water supply
Need for remote operation of fire monitors to keep crews outside the radiant heat zone
Inadequate reach of fixed or ground-based monitors in industrial or port environments
Long response times due to poor road access or vehicle size limitations in urban settings
Imported fire trucks with parts and service support that arrive months after a breakdown

Where It Works

Application Scenarios

Urban fire brigades responding to high-rise building fires in cities with narrow streets and limited access
Industrial parks and chemical plants requiring remote fire attack on elevated storage tanks or process units
Ports and docks where fire must be reached from the quay without moving the truck into the cargo zone
Textile mills and cigarette factories with high fire load and limited hydrant coverage
Forest and rural fire units operating in areas with no paved access roads
Airport emergency response teams needing rapid deployment to aircraft and terminal structures

Engineering

Technical Features

20 metre telescoping aerial platform with 348 degree horizontal rotation and 90 degree elevation
PLKD40 remote control fire monitor with 48 l/s automatic flow adjustment and 60 m water range
CB10.20/30.60 rear mounted fire pump with normal pressure 60 l/s and medium pressure 30 l/s
WD615.62 290 HP diesel engine with 195 kW output and 9726 ml displacement
4x2 traction system with 5000 mm front axle and 10000 mm rear axle for stable platform operation
Double row non-longhead cab with 2 or 3 person capacity and over-ride capability
12.00R20 tires with 6+1 configuration for off-road and uneven surface stability
Aerial platform and monitor system designed for continuous operation in high temperature and dusty environments

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive
Engine	WD615.62, 290 HP, 195 kW, 9726 ml
Gearbox	10 shift manual
Overall Size	10000 x 2500 x 3800 mm
Working Height	20 m
Fire Monitor Model	PLKD40 remote control
Max Flow	48 l/s (automatic flow adjustable)
Water Range	Over 60 m
Foam Range	Over 50 m
Monitor Elevation	90 degrees up, 45 degrees down
Monitor Rotation	348 degrees horizontal
Fire Pump Model	CB10.20/30.60 rear mounted
Pump Flow	60 l/s normal pressure, 30 l/s medium pressure
Cab Capacity	2 or 3 persons
Tire Specification	12.00R20
Tire Quantity	6+1
Wheelbase	4600 mm
Axles	2
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Aluminium alloy platform and monitor housing for corrosion resistance and weight reduction
Steel frame and substructure for the aerial platform with welded joints for structural integrity
Rubber seals and gaskets on all access points to prevent water and dust ingress
Fire-resistant hydraulic hoses and electrical wiring rated for high temperature and vibration

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the platform drawing
Aerial platform structure is fabricated from steel and aluminium with precision welding
Fire pump and piping are installed and aligned to the driveline with vibration dampers
Remote control monitor and hydraulic system are tested for full range of motion and pressure
Tank is welded and pressure tested before installation on the subframe
Platform, cab, and body are shot blasted, primed, and finished in the customer’s chosen colour
Final system integration includes pump flow, monitor range, and platform lift tests on the factory apron

Testing

Quality Control

Vehicle built to GB7965 performance requirements for fire fighting vehicles
Aerial platform and tank tested for structural integrity and load capacity
Every truck undergoes 100 percent testing before delivery
Photos and videos of the finished truck are sent to the buyer before balance payment
In-house pressure and non-destructive testing available for pressure vessel components

Build to Order

Customization Options

Water and foam tank capacities specified to customer requirements
Tank material can be changed from carbon steel to stainless steel
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Fire fighting accessory package built to the buyer’s inventory list
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

15m aerial platform truck	Lower reach but better maneuverability in narrow urban streets
Foam and dry powder tender	Better on flammable liquid fires but cannot deliver high-volume water attack
Ground ladder truck	No aerial reach but simpler maintenance and lower cost per unit

Operating Notes

Use Guide

Confirm chassis drive configuration and hand of drive before order to match local regulations
Operate the remote control monitor only within the specified elevation and rotation limits
Prime the pump before first use and check for air in the system at the inlet
Use the 30 l/s medium pressure setting for foam or high-pressure attack on specific targets
Inspect hydraulic hoses and seals after each operation and replace if damaged
Free factory training is available before shipment for operators and maintenance staff

Buyer Questions About This Truck

How long is the lead time for this fire truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW FOB CFR or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses, branches, nozzles, and breathing apparatus and the lockers will be laid out to suit it.
