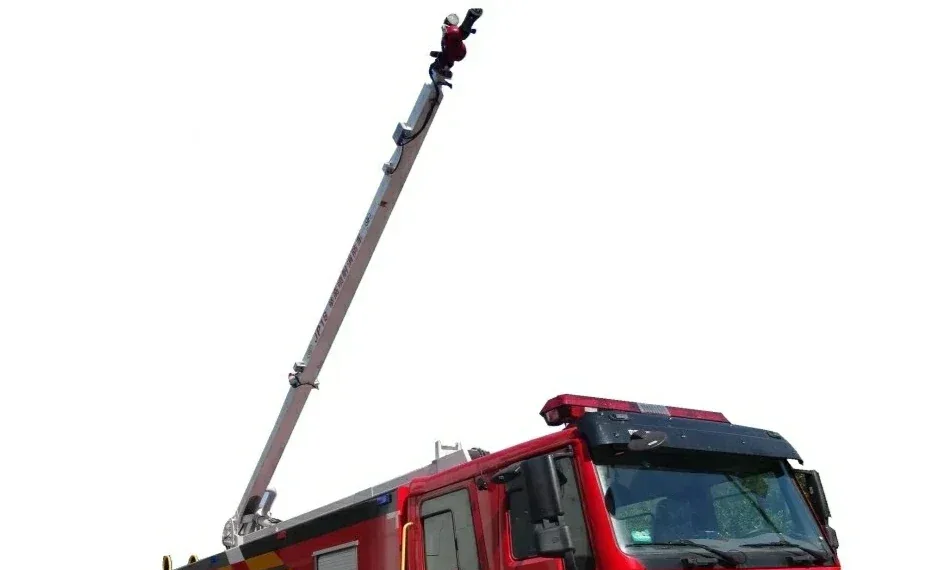

Sinotruk HOWO 6x4 high altitude spray airport fire truck in fire service red with 18 metre spray arm extended

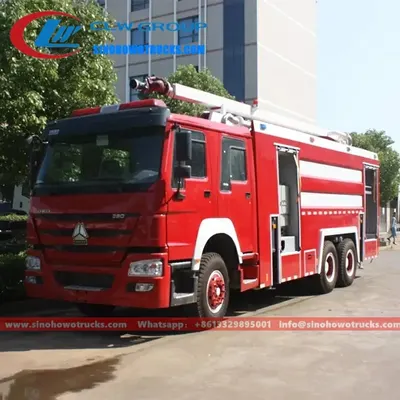

Rear view of the HOWO fire truck showing the water and foam tanks and pump system

Side view of the hydraulic tilt cab with double-row seating and safety belts visible

Sinotruk HOWO 18m High altitude spray airport fire truck Ghana

Name: Sinotruk HOWO 18m High altitude spray airport fire truck Ghana
Brand: Sinotruk HOWO

The Sinotruk HOWO 18m high altitude spray airport fire truck is a 6x4 heavy-duty fire appliance built on a WEICHAI 336 HP diesel chassis for use at airports, industrial sites, and remote locations where rapid, high-reach fire suppression is required. Designed for fire brigades and safety teams operating in challenging environments, it delivers water and foam from a 10000L tank and 2000L foam tank through a high-altitude spray system capable of reaching over 18 metres. The truck supports emergency response in areas with limited hydrant access and can operate under extreme conditions including high altitude and high ambient temperatures.

Request A Quote Email Specification

Key Benefits

18 metre high altitude spray system reaches aircraft fuselages and elevated structures from a safe distance
10000L water tank and 2000L foam tank allow sustained attack on fuel and structural fires without immediate resupply
WEICHAI 336 HP diesel engine with 9-speed manual gearbox delivers strong performance on uneven terrain and high altitude
6x4 chassis with 4325+1350 mm wheelbase provides stability and load capacity for full tank operation
Hydraulic tilt cab with double-row seating and four safety belts improves crew access and safety during emergency deployment
Anti-corrosion carbon steel tank and high-quality steel foam tank resist degradation in harsh environments

Buyer Profile

Who It Is for

Airport fire departments procuring turnkey fire response units
Industrial safety departments in petrochemical and manufacturing facilities
National and municipal fire brigades with high-altitude or remote operational needs
Contractors supplying fire protection services to large-scale industrial projects
Government agencies equipping emergency response fleets for public safety

Operating Problems

Problems It Solves

Limited hydrant access at remote or high-altitude airports requiring self-contained fire suppression
Inadequate reach of standard fire monitors on aircraft fuselages and elevated structures
Short attack duration due to small water or foam capacity in imported fire trucks
High maintenance costs and frequent overhauls from underpowered or poorly suited engines
Lack of local service and spare parts for foreign-made fire appliances
Inflexible design that cannot be adapted to local fire risk profiles or equipment needs

Where It Works

Application Scenarios

Airport fire stations requiring rapid response to aircraft engine or fuel tank fires
Petroleum and chemical plants with high-risk storage tanks and processing units
Remote industrial sites with no nearby hydrant network and long water resupply cycles
Forest and rural fire units operating in mountainous or high-altitude regions
Ports and docks with large cargo stacks and flammable liquid storage areas
Emergency response teams covering large industrial estates with multiple fire risk zones

Engineering

Technical Features

18 metre high altitude spray system with adjustable nozzle for precise fire stream targeting
WEICHAI WD615.69 inline six cylinder diesel engine with turbocharging and intercooling
9-speed forwarder gearbox with 2 reverse gears for smooth shifting under load
Air brake system with 3 axles and 7000kg axle payload for safe operation with full tank
Hydraulic tilt cab with flat head design for improved visibility and crew access
Dual tank system: 10000L water tank and 2000L foam tank with anti-corrosion treatment
High-pressure fire pump system capable of delivering water and foam at required flow rates
Manual windows and 4 safety belts in rear seats for crew safety during emergency operations
Siren control system integrated into cab for coordinated emergency response signaling

Specifications

Technical Data


Chassis	SINOTRUK HOWO 6x4 left hand drive
Engine	WEICHAI WD615.69, 336 HP, 247 kW, 9726 ml
Gearbox	9-speed forwarder with 2 reverse
Overall Size	9900 x 2500 x 3500 mm
GVW	29000 kg
Curb Weight	13050 kg
Payload	15000 kg
Foam Tank Capacity	2000 L
Tank Material	High-strength carbon steel with anti-corrosion
Spray Height	18 m
Cab Configuration	Flat head, double-row, four doors, hydraulic tilt
Seating	2+4 seats, 4 safety belts in rear seats
Brake System	Air brake
Wheelbase	4325+1350 mm
Tire Specification	11.00-20 / 10+1
Max Speed	85 km/h
Paint Color	Red
Emission Standard	Euro 2
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength carbon steel for water tank with anti-corrosion coating
High-quality steel for foam tank with internal protection
Aluminium alloy components for lightweight and corrosion-resistant body panels
WEICHAI diesel engine and Sinotruk gearbox for long-term durability
Rubber seals and gaskets in cab and access doors for weather resistance

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank layout drawing
Water and foam tanks are cut, formed, and welded with internal anti-surge baffles
Tanks are pressure tested and leak tested before welding final panels
Fire pump and spray system are mounted and aligned to the driveline
Cab is installed with hydraulic tilt mechanism and safety belts fitted
Body panels, lockers, and spray platform are assembled onto the subframe
Truck is shot blasted, primed, and painted in fire service red
All systems are tested on the factory apron including spray reach, pump flow, and brake performance

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Tanks are tested for pressure and leaks in accordance with GB39.5 standards
Photos and videos of the finished truck are sent to the buyer before balance payment
Fire pump and spray system performance is verified at full capacity
Engine and gearbox are checked for proper installation and alignment
All safety systems including siren, brakes, and seat belts are inspected

Build to Order

Customization Options

Water and foam tank capacities can be adjusted to meet site-specific fire risk requirements
Tank material can be changed from carbon steel to stainless steel upon request
Left or right hand drive chassis can be ordered to match local traffic regulations
Tank colour and logo are applied free of charge to match the buyer’s branding
Fire fighting accessory package can be built to the buyer’s equipment inventory list
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

4x2 airport fire tender with 6000L tank	Lower payload and shorter spray reach but better maneuverability in tight airport apron spaces
Foam-only fire truck	Better on flammable liquid fires but cannot deliver plain water for structural fire suppression
Standard water tanker with added pump	Cheaper per litre but lacks high-altitude spray system and GB7965 compliant fire fighting layout

Operating Notes

Use Guide

Confirm left or right hand drive and chassis configuration before order to match local road rules
Fill water and foam tanks only through designated inlets and keep air breather valves clear
Prime the pump at no more than 7 metres suction lift and expect full draft within 50 seconds
Engage the pump before moving if pump and roll operation is required
Drain all tanks and flush the system after use in freezing conditions
Free factory training is available before shipment for crew familiarization with systems and controls

Buyer Questions About This Truck

How long is the lead time for this fire truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank material be stainless steel?

Yes. The standard tank is high-strength carbon steel with anti-corrosion treatment. Stainless steel is available upon request. Let us know the water quality and storage duration for confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses, nozzles, foam injectors, and safety gear and we will layout the lockers and fittings accordingly.
