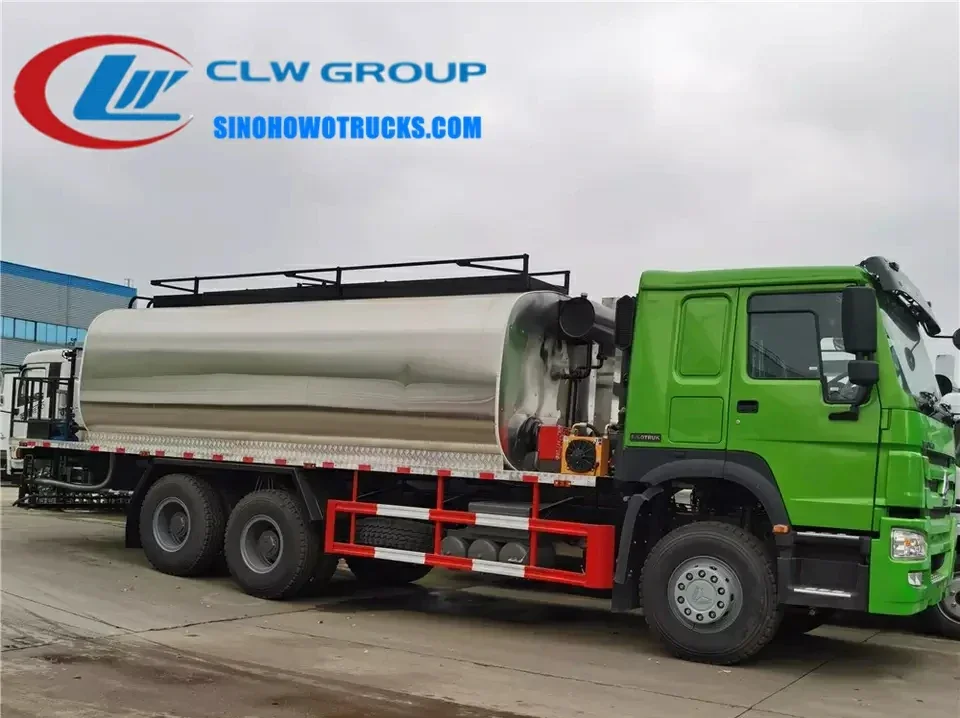

Sinotruk HOWO 6x4 asphalt distributor sprayer in road construction setting with spray system active

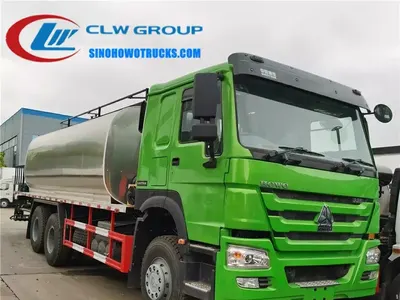

Rear view of the HOWO asphalt sprayer showing the computer control panel and spray nozzles

Side view of the HOWO asphalt distributor with adjustable spray width and heat conduction oil system

Sinotruk Howo 16000liters asphalt distributor sprayer Cambodia

Name: Sinotruk Howo 16000liters asphalt distributor sprayer Cambodia
Brand: Sinotruk HOWO

The Sinotruk HOWO 16000 litre asphalt distributor sprayer is a 6x4 truck built on a second-hand HOWO chassis for road construction projects requiring precise, consistent application of emulsified asphalt, fluxed asphalt, heated asphalt, and high viscosity modified asphalt. It is used by road contractors and municipal agencies in tropical and semi-arid regions where surface preparation and seal coating must be completed quickly and uniformly under high ambient temperatures. The truck delivers asphalt at controlled rates across a spray width of 2 to 6 metres, with full operation from the cab or a post-operational platform.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis with 290 HP engine and 10 forward gear manual transmission for heavy-duty road work
12 to 14 cubic metre tank capacity allows for long continuous spraying without refilling
Computer-controlled spray system adjusts asphalt output automatically based on vehicle speed
Each nozzle is independently controlled, enabling variable spray width from 2 to 6 metres
Heat conduction oil system maintains asphalt temperature at a rate of no more than 2 degrees per hour
Automatic blowing device clears asphalt from pipes and nozzles after use to prevent blockage
Dual control system (cab and rear platform) ensures reliable operation under varying site conditions
Tank and pump system designed for emulsified, heated, and modified asphalts with no cross-contamination

Buyer Profile

Who It Is for

Road construction and maintenance contractors in developing markets
Municipal public works departments managing rural and urban road networks
Government road agencies overseeing national highway rehabilitation projects
Private contractors bidding on infrastructure tenders requiring asphalt application equipment
Road asset managers responsible for preventive maintenance of asphalt pavements

Operating Problems

Problems It Solves

Inconsistent spray patterns from manual or outdated distributors leading to over-application or missed spots
Frequent nozzle clogging due to asphalt cooling or residue buildup during long operations
Lack of temperature control causing asphalt to thicken or degrade before application
Need to stop and refill too often due to small tank capacity on low-capacity spreaders
Manual operation requiring multiple crew members and increasing labour costs
Inability to adjust spray width on the fly, forcing rework or multiple passes

Where It Works

Application Scenarios

Pavement sealing operations on rural and secondary roads with limited access to asphalt plants
Rehabilitation of cracked asphalt surfaces in tropical climates where rapid curing is required
Construction of new road sections in remote areas with no nearby asphalt batching facilities
Maintenance of high-traffic urban roads requiring frequent seal coats to prevent water infiltration
Road upgrading projects in Cambodia and Southeast Asia where consistent spray patterns reduce material waste
Contractors working under tight schedules who need a reliable, low-maintenance asphalt distributor

Engineering

Technical Features

6x4 HOWO truck chassis with 290 HP engine and 10 forward gear manual gearbox
12 to 14 cubic metre asphalt tank with internal baffles to reduce surge
Computer-controlled spray system with independent nozzle regulation
Heat conduction oil heating system maintaining asphalt temperature at ≤2°C per hour
Automatic blowing device clears asphalt from pipes and nozzles after use
Dual control system: cab-mounted and rear platform-mounted for operational flexibility
Spray width adjustable from 2 to 6 metres in real time
Pump system compatible with emulsified, heated, and high viscosity modified asphalt
Tank and piping system designed for multiple asphalt types without cross-contamination
Rinsing system with dedicated water lines for cleaning after operation

Specifications

Technical Data


Chassis	HOWO 6x4 second-hand chassis
Engine	WD615.92, 290 HP, 9726 ml displacement
Transmission	10 forward gears, 1 reverse
Overall Size	10200 x 2500 x 3450 mm
Gross Weight	25000 kg
Curb Weight	16000 kg
Payload	8870 kg or 8805 kg
Axles	3
Wheelbase	4600 + 1350 mm
Max Speed	95 km/h
Chassis Model	ZZ1257M4641W
Chassis Brand	HOWO
Chassis Manufacturer	CNHTC Jinan Truck Co., Ltd.
Engine Manufacturer	China National Heavy Duty Truck Group Co., Ltd.
Emission Standard	EURO II
Fuel Type	Diesel
Tire Specification	11.00R20 / 10 tires
Spray Width	2 to 6 metres adjustable
Control System	Computer-controlled with dual cab and rear platform operation
Heating System	Heat conduction oil system
Lead Time	20 days after advance payment
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel piping and pump components for compatibility with emulsified and modified asphalt
Aluminium alloy panels on the cab and body for corrosion resistance
Heat-resistant rubber seals on nozzles and valves to withstand high asphalt temperatures
Insulated tank walls with heat conduction oil circulation system

How It Is Built

Manufacturing Process

Chassis is received from CNHTC Jinan Truck Co., Ltd. and inspected for frame alignment and driveline integrity
Tank is pressure tested and coated with anti-corrosion primer before installation
Pump, heating system, and piping are assembled and tested for leaks and flow rate
Computer control system is installed and calibrated with individual nozzle response checks
Spray nozzles and blowing system are tested under full pressure with simulated asphalt
Cab and rear platform controls are synchronized and tested for fail-safe operation
Final assembly includes fitting of tyres, rear platform, and safety signage
Truck is tested on the factory apron with full load and spray cycle before delivery

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank and piping systems undergo pressure and leak testing
Heating system tested to maintain asphalt temperature at ≤2°C per hour
Computer control system verified for accurate flow adjustment based on speed
Spray width and nozzle pattern tested across 2 to 6 metre range
Photos and videos of the finished truck sent to the buyer before balance payment
All systems comply with GB7965 for road construction equipment

Build to Order

Customization Options

Tank capacity adjusted between 12 and 14 cubic metres based on project needs
Spray system configured as manual, semi-automatic, or fully automatic
Tank colour and logo applied free of charge
Control system upgraded to imported automatic version upon request
Pump and piping material changed to stainless steel for aggressive asphalt types
Additional nozzles or spray patterns added to match specific road surface requirements

Comparison

How It Compares With the Alternatives

4x2 asphalt distributor with 8000 L tank	Lower payload and shorter range but better for tight urban sites and lower maintenance cost
Manual spray distributor	Higher accuracy and consistency but requires more operator attention and crew
Used asphalt truck with no computer control	Higher risk of uneven application and clogging, but lower initial cost

Operating Notes

Use Guide

Confirm the chassis drive configuration and hand of drive before order to match local road rules
Fill the tank only through the designated inlet and avoid overfilling to prevent overflow
Start the heating system at least 30 minutes before spraying to ensure asphalt reaches application temperature
Use the computer control system to match spray rate to vehicle speed for even coverage
Engage the automatic blowing device after each spraying session to clear nozzles and pipes
Drain and rinse the system after use, especially when switching between asphalt types

Buyer Questions About This Truck

What is the lead time for this asphalt distributor?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and the control system selected.

Can the tank capacity be adjusted?

Yes. The standard capacity is 12 to 14 cubic metres. We can adjust it to meet your project volume needs.

What payment terms do you offer?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Is the control system fully automatic?

Yes. The standard system is computer-controlled. An imported automatic version is available upon request.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

Can the tank be made of stainless steel?

Yes. Stainless steel is available for the tank and piping. Let us know the asphalt type and storage duration for material confirmation.

What warranty do you provide?

The whole vehicle is guaranteed for one year, and core parts are guaranteed for two years. Overseas engineers provide technical training and manuals before delivery.
