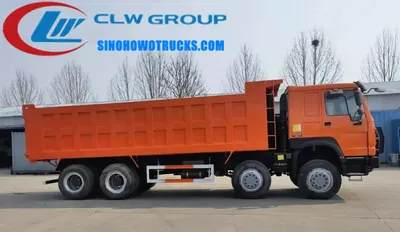

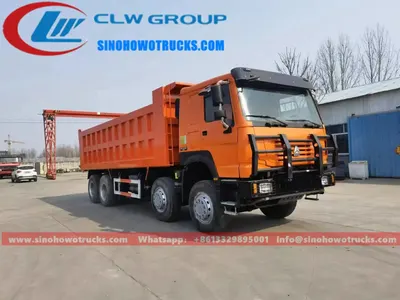

The 8×8 Sinotruk HOWO all terrain heavy duty dump truck is built for transporting bulk materials like sand, gravel, coal, and dirt across rough terrain. It uses a ZZ3317N3567W chassis with an 8X4 drive configuration, a 371 HP WD615.47 diesel engine, and a 10-speed manual gearbox. The truck features a high strength steel tipper body with a 7300 x 2300 x 1600 mm cargo box, designed for heavy payloads up to 100 tons. It is used by mining, quarry, construction, and infrastructure projects in remote or unpaved areas where standard trucks cannot operate.
| Chassis | ZZ3317N3567W, 8X4 drive |
|---|---|
| Engine | WD615.47, 371 HP, Euro2 |
| Gearbox | HW19710, 10 shift manual |
| Cabin | HOWO 76 new face, one sleeper, left hand drive |
| Overall Size | 9000 x 2500 x 3600 mm |
| Carriage Size | 7300 x 2300 x 1600 mm |
| Carriage Thickness | Floor 8 mm, Side 6 mm |
| Lift System | Hydraulic front lift, domestic 180 oil cylinder |
| Tires | 12.00R20 |
| Suspension | Front and rear enhanced multi-piece springs (11/11/12) |
| Frame | 8+8/300 |
| Steering | ZF8118 |
| Payload Capacity | 2 to 100 tons |
| Body Material | High strength steel |
| Body Color | Red, green, white, blue, yellow |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| 6x4 dump truck with 15 ton capacity | Lower payload and less traction on rough terrain but easier to maneuver in urban construction zones |
|---|---|
| Standard 8x4 dump truck with rear lift | Rear lift has less control over material flow and is less stable on slopes than front lift |
| Used dump truck from Europe | Lower initial cost but higher long-term maintenance and parts availability issues in remote areas |
Generally 20 days after the advance payment is received. The exact date depends on chassis availability and customization level.
Yes. The chassis is available in left or right hand drive. Confirm at order stage as it cannot be changed after production begins.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
Yes. The body color can be red, green, white, blue, or yellow. The logo and branding are applied free of charge.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers provide technical training and return visits.
Yes. The truck is designed for payloads from 2 to 100 tons. Specify your required capacity at order stage for correct frame and suspension setup.
Send us your destination port and we will quote price, lead time and freight.
