Tracheostomy Tube / Cuffed
The cuffed tracheostomy tube establishes an artificial airway at the stoma and connects to an anaesthesia machine or ventilator through a standard 15 mm connector. It is moulded in…
Product Overview

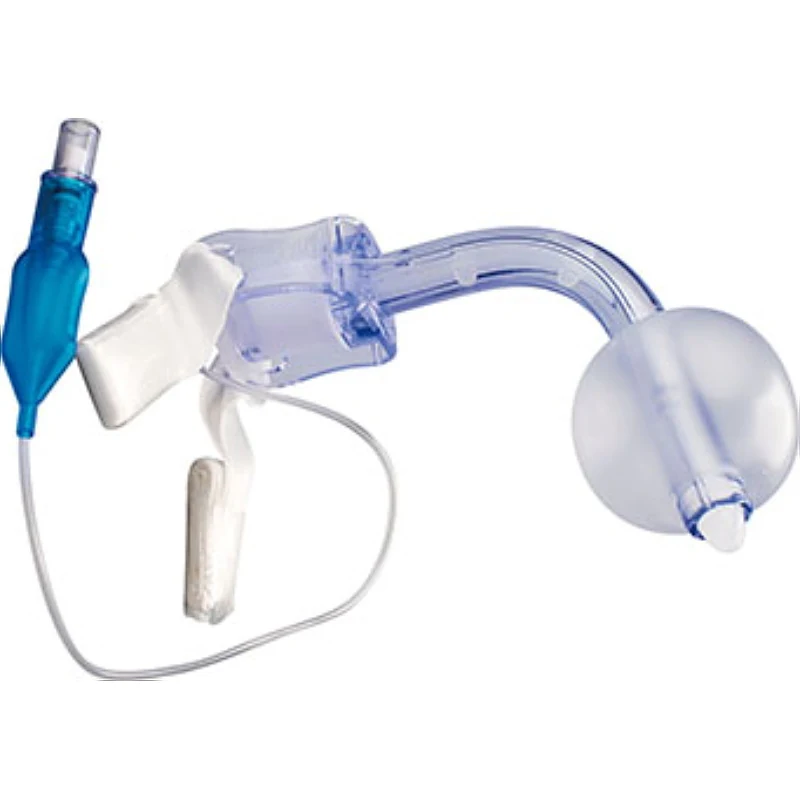

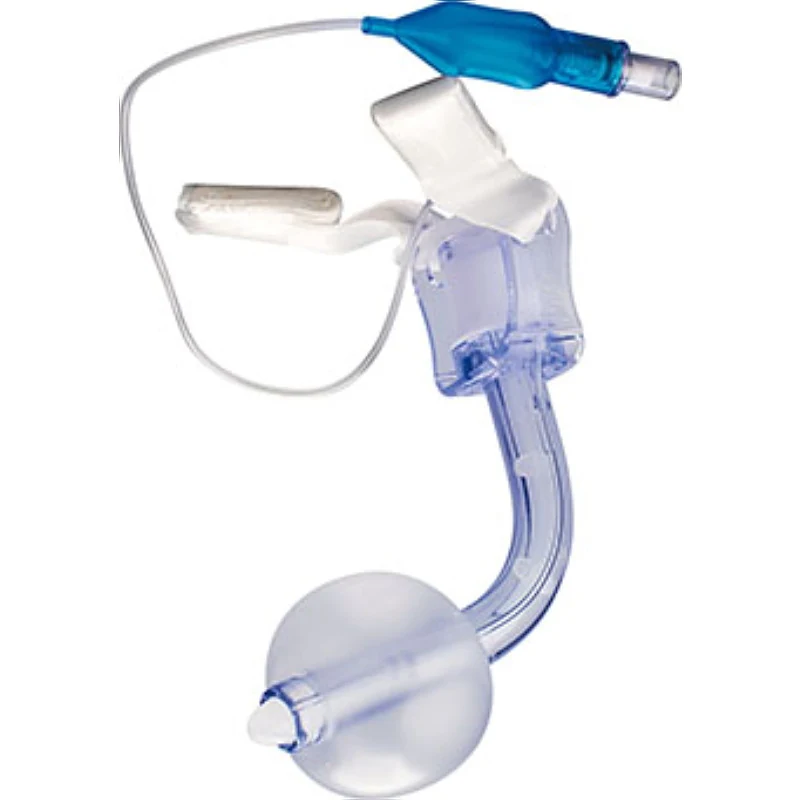

The cuffed tracheostomy tube establishes an artificial airway at the stoma and connects to an anaesthesia machine or ventilator through a standard 15 mm connector. It is moulded in transparent latex free medical class PVC and supplied as a complete assembly with check valves, an indicator balloon, inflation tube, connector and fixed wing, with a 65 mm stylet fixing strip. Fifteen sizes from 3.0 to 10.0 mm, EO sterilised, individually packed, with ISO 13485 and CE.
Product Photography
Photographed from the item we ship, not from a rendering.
Key Benefits
- Inflated cuff seals the airway for positive pressure ventilation
- Indicator balloon shows cuff status without a gauge
- Transparent latex free PVC suits latex free policies
- Fifteen sizes from 3.0 to 10.0 mm for paediatric through adult
Problems It Solves
- Leak around an uncuffed tube during ventilation
- Cuff pressure that cannot be judged at the bedside
- Latex components excluded by hospital policy
Who It Is For
- ICU and respiratory department buyers
- ENT and head and neck surgical stores
- Distributors supplying tracheostomy consumables
Application Scenarios
- Ventilated tracheostomy patients in intensive care
- Surgical tracheostomy in theatre
- Long term ventilation where a sealed airway is required
Specifications
Every figure below is taken from the product specification we supply. Where a value is not listed it is confirmed at quotation rather than estimated here.
| Size | 3.0, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5,10.0mm |
|---|---|
| Material | Made of transparent, medical class PVC, latex-Free |
| Two Styles | With cuff and without cuff |
| Compose | The polyvinyl-chloride tube, check valves, instruction ball, inflation tube, connector, fixed wing and so on. |
| Intended Use | Used for setting up the artificial airway and connector to the anesthesia machine |
| Features | Standard connector 15mm with stylet fixing strip 65mm |
| Packing | Packed in individual packing |
| Certificate | ISO13485, CE |
| Sterile Method | EO |
Customisation Options
- Size from 3.0 to 10.0 mm
- Cuffed or uncuffed configuration
- Carton quantity and own-label packing on request
Use Guide
- Test the cuff before insertion and deflate fully
- Insert with the stylet and secure the fixed wing at the neck
- Inflate the cuff only to the point where the leak stops and check the indicator balloon
- Connect to the anaesthesia machine or ventilator through the 15 mm connector
Compared With Other Options
| Tracheostomy Tube / Uncuffed | The uncuffed tube allows speech and is used once ventilation support is reduced. The cuffed tube is required to seal for positive pressure ventilation. |
|---|
Related Products In Tracheostomy Tube
Tracheostomy Tube / Uncuffed
The uncuffed tracheostomy tube is used once a patient no longer needs a sealed airway, since air passing around the…
View Product →
Anesthesia Cirucit
The anesthesia breathing circuit is supplied in corrugated, smoothbore, coaxial and collapsible types in medical…
View Product →
Guedel Airway
The Guedel oropharyngeal airway holds the tongue clear of the posterior pharynx in an unconscious patient. Nine sizes…
View Product →
Guedel Airway
This listing covers single size supply of the Guedel oropharyngeal airway, for units that stock by size rather than…
View Product →Questions About The Tracheostomy Tube / Cuffed
Which sizes are available?
3.0 through 10.0 mm in fifteen size steps.
What is the tube made of?
Transparent latex free medical class PVC.
What is included in the assembly?
The PVC tube, check valves, indicator balloon, inflation tube, connector and fixed wing.
What connector is fitted?
A standard 15 mm connector, with a 65 mm stylet fixing strip.
How is it sterilised and packed?
EO sterilised in individual packing.
What certification does it hold?
ISO 13485 and CE.
