Anesthesia Cirucit
The anesthesia breathing circuit is supplied in corrugated, smoothbore, coaxial and collapsible types in medical grade PVC, with EVA or PVC hoses and a swivel elbow carrying a luer port and…
Product Overview
The anesthesia breathing circuit is supplied in corrugated, smoothbore, coaxial and collapsible types in medical grade PVC, with EVA or PVC hoses and a swivel elbow carrying a luer port and cap. Tubing is adult or paediatric at 1.2 m, 1.5 m or 1.8 m, with a 1 L, 2 L or 3 L latex or latex free breathing bag. Parallel-wye and bi-wye connectors follow ISO standard. Resistance 15 Pa at 30 l/min, with ISO and CE.

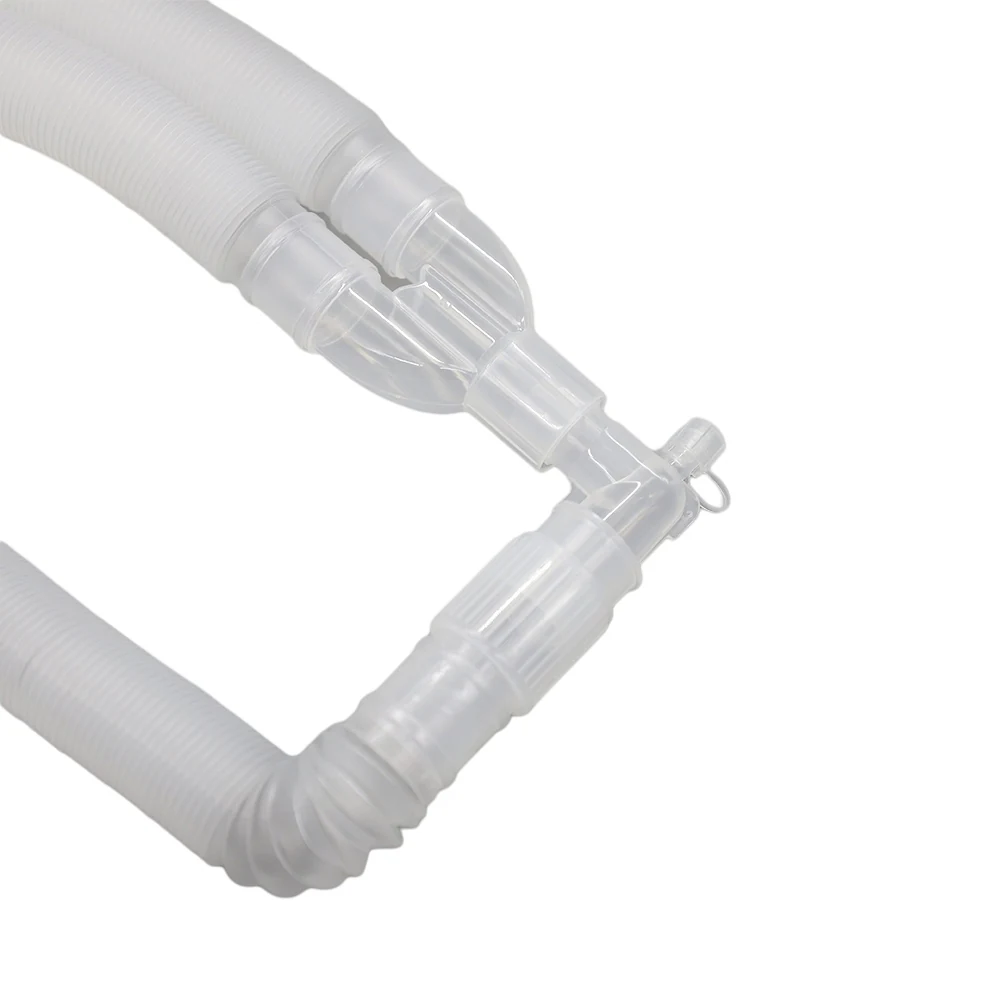

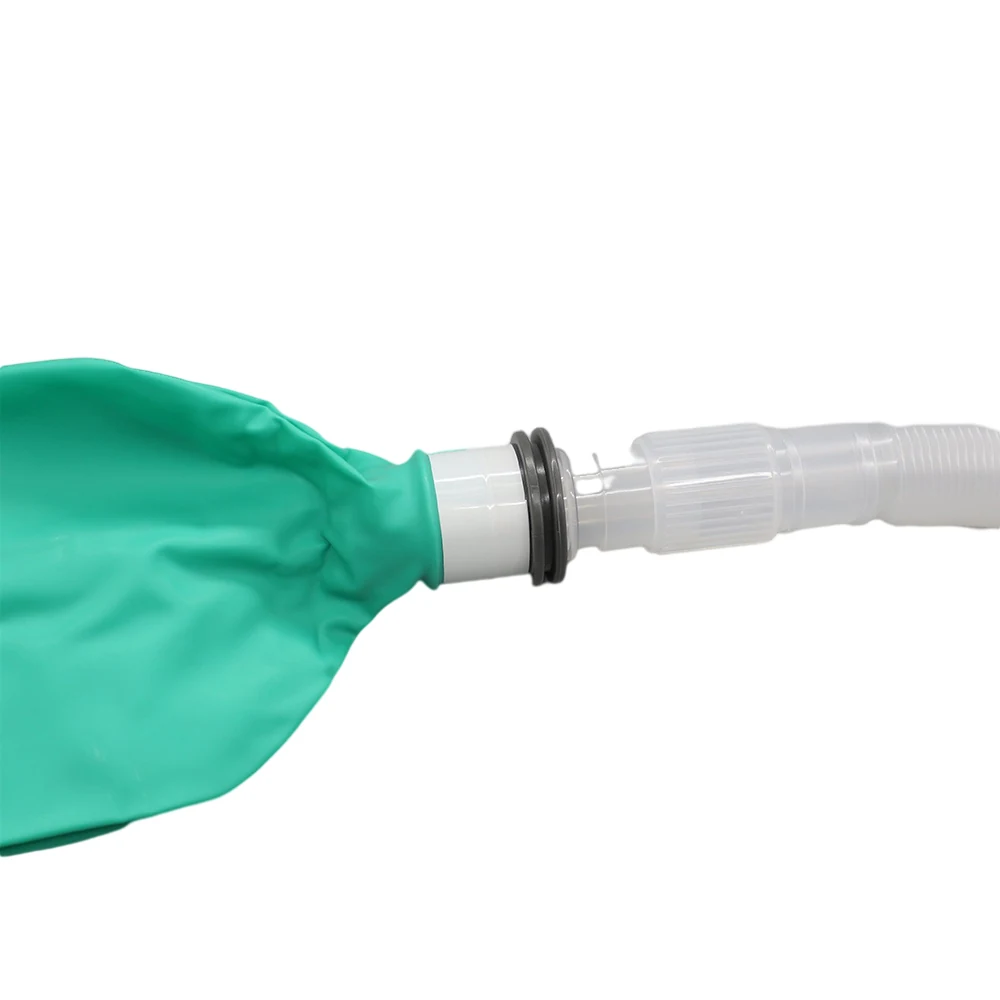

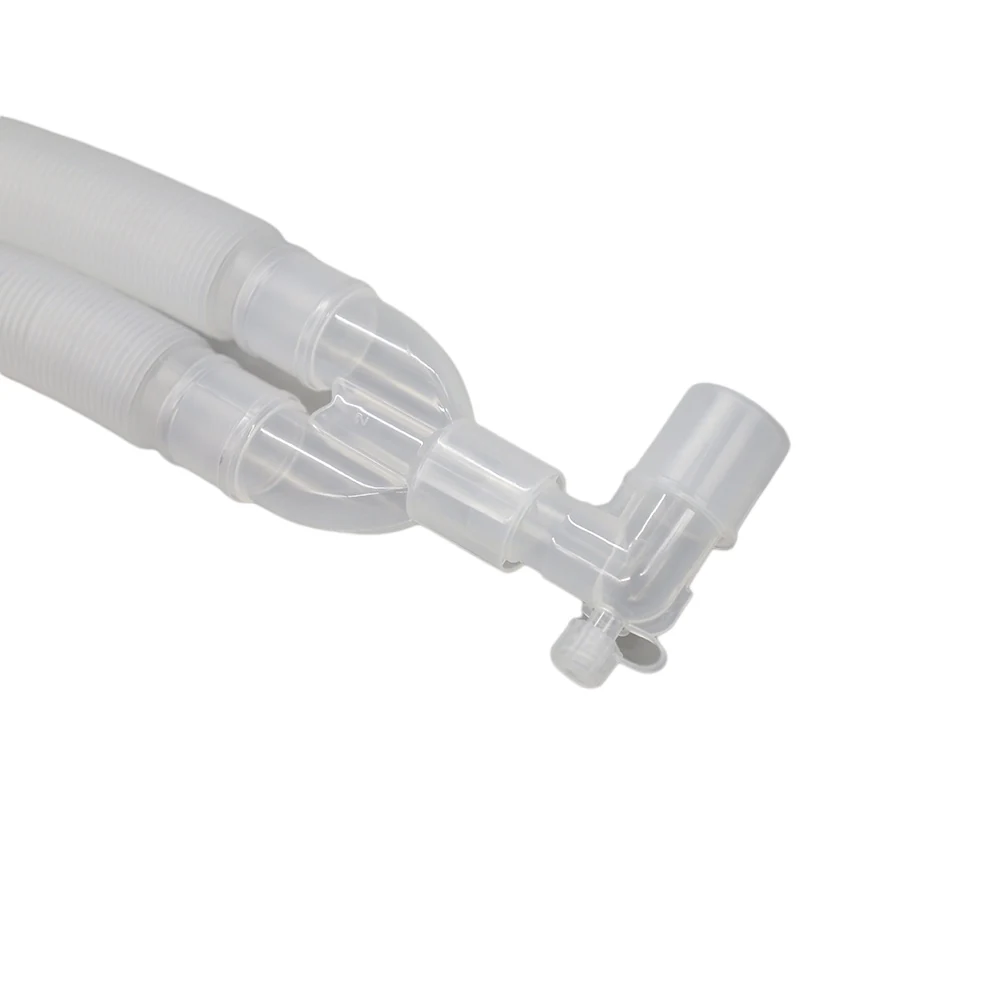

Product Photography
Photographed from the item we ship, not from a rendering.
Key Benefits
- Four circuit types from one supplier for different theatre preferences
- Swivel elbow with luer port allows gas sampling without opening the circuit
- Latex free breathing bag option for latex free theatres
- Parallel-wye and bi-wye connectors made to ISO standard
Problems It Solves
- Sourcing corrugated, smoothbore and coaxial circuits from different suppliers
- Opening the circuit to sample gas
- Latex breathing bags barred by hospital allergy policy
Who It Is For
- Anaesthesia department and theatre buyers
- Ventilator and circuit kit assemblers
- Distributors supplying anaesthesia consumables
Application Scenarios
- General anaesthesia in operating theatres
- Paediatric anaesthesia with shorter tubing and smaller bags
- Circuit kits assembled for procedure packs
Specifications
Every figure below is taken from the product specification we supply. Where a value is not listed it is confirmed at quotation rather than estimated here.
| Material | Mecial Grade PVC |
|---|---|
| Type | Corrugated Circuit/ Smoothbore Circuit/ Coaxial Circuit/ Collapsible Circuit |
| Tubing | Adult or Pediatric, 1.2m, 1.5m, 1.8m, etc. |
| Breathing bag | Latex or Latex free breathing bag , 1L or 2L or 3L |
| Resistance(Pa) | 15 at 30 l/min. |
| Feature | Light, enhancing patient's comfort, consist of EVA/PVC hoses, swivel elbow with luer port and cap. Parallel-Wye/Bi-Wye connector according to ISO Standard, matches all kinds of anesthesia and breathing machines. |
| Certificate | ISO, CE |
| Packaging | each pc in blister packing, 20pcs/ctn |
Customisation Options
- Circuit type as corrugated, smoothbore, coaxial or collapsible
- Tubing adult or paediatric at 1.2 m, 1.5 m or 1.8 m
- Breathing bag of 1 L, 2 L or 3 L in latex or latex free
Use Guide
- Match tubing length and bag volume to the patient and the machine
- Check the swivel elbow luer port cap is seated before use
- Connect the wye according to the ISO standard fitting on your machine
- Discard the circuit after the case rather than reprocessing
Compared With Other Options
| Coaxial circuit | A coaxial circuit runs the inspiratory limb inside the expiratory limb, which keeps the assembly compact. The corrugated version is the simpler and lower cost option. |
|---|
Related Products In Anesthesia Breathing Circuit
Guedel Airway
The Guedel oropharyngeal airway holds the tongue clear of the posterior pharynx in an unconscious patient. Nine sizes…
View Product →
Guedel Airway
This listing covers single size supply of the Guedel oropharyngeal airway, for units that stock by size rather than…
View Product →
Nasopharyngeal Airway
The nasopharyngeal airway is passed through the nostril to the posterior pharynx and is tolerated at a lighter level…
View Product →
Nasopharyngeal Airway
This listing covers single size supply of the nasopharyngeal airway, for services that stock two or three sizes in…
View Product →Questions About The Anesthesia Cirucit
Which circuit types do you supply?
Corrugated, smoothbore, coaxial and collapsible circuits.
What tubing lengths are available?
1.2 m, 1.5 m and 1.8 m, in adult or paediatric.
What breathing bag sizes are available?
1 L, 2 L and 3 L, in latex or latex free.
What is the resistance?
15 Pa at 30 l/min.
What connectors are used?
Parallel-wye and bi-wye connectors according to ISO standard, with a swivel elbow carrying a luer port and cap.
How is it packed and certified?
Each piece in blister packing, 20 pieces per carton, with ISO and CE.
Request A Quote For The Anesthesia Cirucit
Send the sizes, configuration and quantity you need. Sample requests go through the same channel.
