Push Pull Whiteboard and Chalkboard System

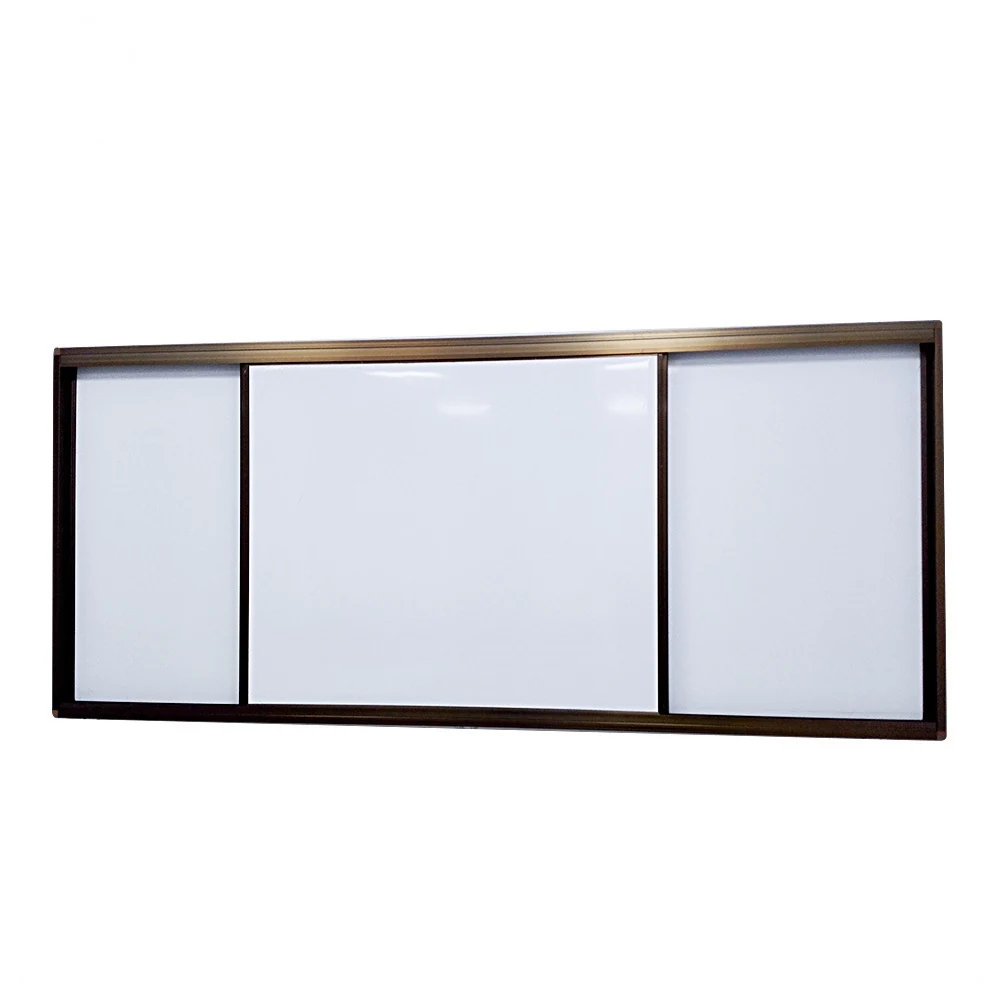

A push pull board is a classroom wall system where two or three panels slide over each other inside one aluminium frame.
What This Board Is
A push pull board is a classroom wall system where two or three panels slide over each other inside one aluminium frame. Because the panels can be specified individually, one wall can carry a green chalkboard on the left, a matt projection whiteboard in the centre and a chalkboard again on the right. Teaching and projection then share the same wall without competing for it.
Key Benefits- Sliding panels expose fresh writing space without erasing what is already on the board
- Panel by panel surface choice puts chalk writing and projection on the same wall
- One aluminium frame carries the whole system so only one wall fixing is needed
- Combinations can be set per room rather than per building
Buyers
- Education project contractors fitting out classrooms
- University and college estates teams
- Training centre operators specifying front wall systems
Pain Points
- A single board that has to be erased mid lesson before the point is finished
- A projector screen that covers the writing board whenever it is used
- Separate boards and screens fighting for the same limited front wall
Where It Is Used
- University lecture rooms where a projector shares the front wall
- Training centres running long sessions that outgrow a single board
- Secondary school maths and science rooms
- Corporate training rooms with fixed projection
How It Is Built
- Two or three sliding panels in one exterior aluminium frame
- Each panel specified as green chalkboard glossy whiteboard or matt projection whiteboard
- Resin coated or ceramic coated writing steel surfaces
- Corrugated cardboard or MDF core with galvanized steel back
- Panel surface lamination
- Core and back sheet bonding
- Aluminium track and exterior frame assembly
- Slide mechanism fitting and travel test
Specification Table
| Type | Push pull, two or three panels |
|---|---|
| Surface | Resin coated / Ceramic coated green writing steel |
| Middle | Corrugated cardboard / MDF board |
| Back | Galvanized steel |
| Frame | Exterior aluminium frame |
| Example layout | Left green chalkboard, middle matt projection or glossy whiteboard, right green chalkboard |
| Sizes | 1200x1800mm, 1200x2400mm, 1200x3600mm |
| Custom sizes | Available |
Sizes outside the list are custom made. Send your dimensions and we will confirm the build.
Checked Before Packing
- Each panel slid through its full travel before packing
- Panel surfaces checked for colour match within one system
- Frame squareness checked so panels do not bind in the track
What Can Change
- Two or three panel configurations
- Any combination of green chalkboard glossy whiteboard and matt projection surfaces
- Sizes outside the standard three can be custom made
Getting It Right On Site
- Set the projection panel where the beamer throw lands before fixing the frame
- Slide panels by the frame edge rather than pushing on the writing face
- Keep chalk dust out of the track by wiping the rail at the end of the day
How It Differs From The Alternatives
Compared with Rise and fall green chalkboard
Rise and fall drops the upper panel down; push pull slides panels sideways and lets you mix surface types.
Compared with Three in one folded chalkboard
The folded board wings out from the centre; the push pull system stays flush to the wall.
Often Ordered Alongside
Rise and Fall Green Chalkboard
Green Chalkboard
Three in One Folded Green Chalkboard
Green Chalkboard
Wall Mounted Magnetic Whiteboard
Magnetic Whiteboard
Worth Reading First
Push Pull Whiteboard and Chalkboard System FAQ
Can I mix chalk and dry erase surfaces in one board?
Yes. A typical build is green chalkboard left and right with a projection or glossy whiteboard panel in the centre.
How many panels can it have?
Two or three panels.
What sizes are standard?
1200x1800, 1200x2400 and 1200x3600mm, with custom sizes available.
Is a matt projection surface really needed?
A matt surface stops the hot spot you get when a projector hits a high gloss whiteboard.
Can you supply to our own layout?
Yes. Send the panel order you want and we will build to it.
What is the lead time?
Around 30 days for one 40'HQ container.
Quote Push Pull Whiteboard and Chalkboard System
Tell us the sizes, the surface and the quantity. We will confirm the build and how it loads into a container.
