Wall Mounted Magnetic Whiteboard
The wall mounted magnetic whiteboard is the standard meeting and teaching board.
What This Board Is

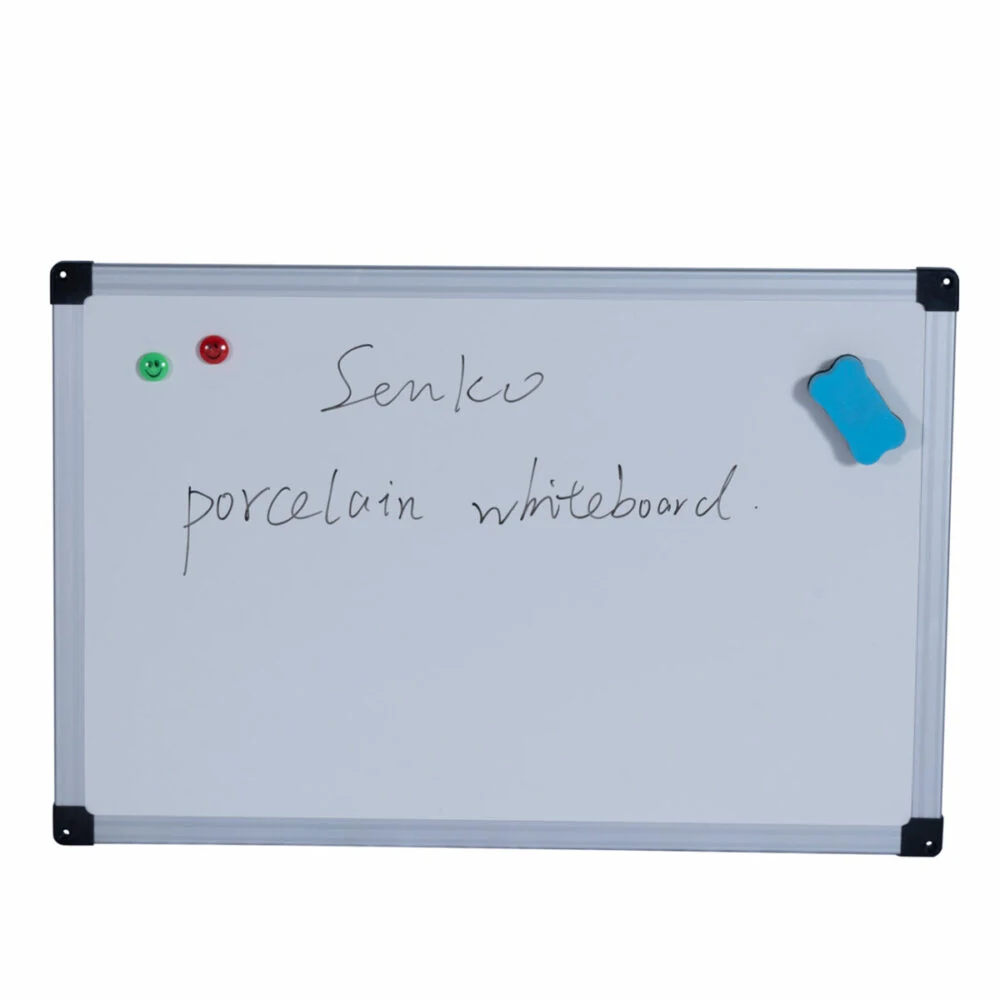

The wall mounted magnetic whiteboard is the standard meeting and teaching board. A resin or ceramic coated writing steel face is bonded over a corrugated cardboard or honeycomb core, backed with galvanized steel and closed with an aluminium frame, ABS corners and a pen tray. It is the highest volume board in the range and the one most order programmes start from.
Key Benefits- Choice of resin coated or ceramic coated steel lets you match surface durability to how hard the room is used
- Magnetic face carries printed handouts and plans without tape marking the wall
- Honeycomb core option keeps large boards flat and light enough for plasterboard walls
- Seven standard sizes from 300x450mm up to 1200x3600mm cover a whole building from one order
Buyers
- Office furniture distributors fitting out whole floors
- School and university procurement teams
- Stationery and equipment wholesalers carrying a board range
Pain Points
- Cheap boards that ghost within months and can never be wiped fully clean
- Non magnetic boards where every printed sheet needs tape
- Panels that bow away from the wall once a large size is mounted
Where It Is Used
- Meeting rooms and open plan office walls
- Classrooms and training rooms
- Retail back of house rotas and shop display
- Workshop planning walls next to production lines
How It Is Built
- Surface in resin coated or ceramic coated writing steel
- Corrugated cardboard or honeycomb sheet core
- Galvanized steel back sheet
- Aluminium frame with ABS plastic corners and a pen tray
- Coil coating of the writing steel
- Core lamination
- Galvanized back sheet bonding
- Aluminium frame extrusion and cutting
- Corner fitting and pen tray assembly
Specification Table
| Mounting | Wall mounted |
|---|---|
| Surface | Resin coated writing steel / Ceramic coated writing steel |
| Middle | Corrugated cardboard / Honeycomb sheet |
| Back | Galvanized steel sheet |
| Frame | Aluminium frame |
| Corner | ABS plastic corner |
| Pen tray | Available |
| Sizes | 300x450mm, 450x600mm, 600x900mm, 900x1200mm, 1200x1800mm, 1200x2400mm, 1200x3600mm |
| Custom sizes | Available |
Sizes outside the list are custom made. Send your dimensions and we will confirm the build.
Checked Before Packing
- Writing and erasing checked on the assembled board not only on the coil
- Panel checked flat before framing so the board sits against the wall
- Frame joints and ABS corners checked for gaps before packing
What Can Change
- Any size outside the standard list can be custom made
- Resin coated surface for normal use or ceramic coated for heavy daily writing
- Corrugated cardboard core for light boards or honeycomb sheet for large rigid boards
Getting It Right On Site
- Fix into studs or use wall anchors rated for the board weight at the frame, not the panel face
- Use dry erase markers only and erase across the board at the end of each session
- Clean with a damp cloth; avoid solvent cleaners that dull the coating
How It Differs From The Alternatives
Compared with Melamine non magnetic whiteboard
Melamine costs less but will not hold magnets and wears faster under daily writing.
Compared with Glass whiteboard
Glass gives the longest surface life and a frameless look; the steel board is lighter and cheaper to ship in volume.
Often Ordered Alongside
Melamine Non Magnetic Whiteboard
Non Magnetic Whiteboard
Pivot Double Side Mobile Whiteboard
Mobile Whiteboard
4mm Tempered Glass Whiteboard
Glass Whiteboard
Worth Reading First
Wall Mounted Magnetic Whiteboard FAQ
What is the difference between resin coated and ceramic coated steel?
Resin coated steel is the general purpose surface. Ceramic coated steel is harder and is chosen where the board is written on all day, such as classrooms.
What sizes do you keep as standard?
300x450, 450x600, 600x900, 900x1200, 1200x1800, 1200x2400 and 1200x3600mm. Other sizes are custom made.
Is the pen tray included?
A pen tray is available on this model.
What is the minimum order?
Boards ship by container load, so tell us your size mix and we will work out what fills a 40'HQ.
How long is production?
Around 30 days for one 40'HQ container.
Can you make a board to our own design?
Yes. If you have ideas or drawings we can develop the product for you.
Quote Wall Mounted Magnetic Whiteboard
Tell us the sizes, the surface and the quantity. We will confirm the build and how it loads into a container.
