Manual Nursing Bed With Backrest Leg and Height Adjustment
A manual nursing bed measuring 2250 mm long including the headboard and 1050 mm wide including guardrails, with a bed surface height adjustable from 450 to 680 mm. The backrest lifts through 0 to 75 degrees and the leg...
Product overview
What This Product Is And Who It Is For

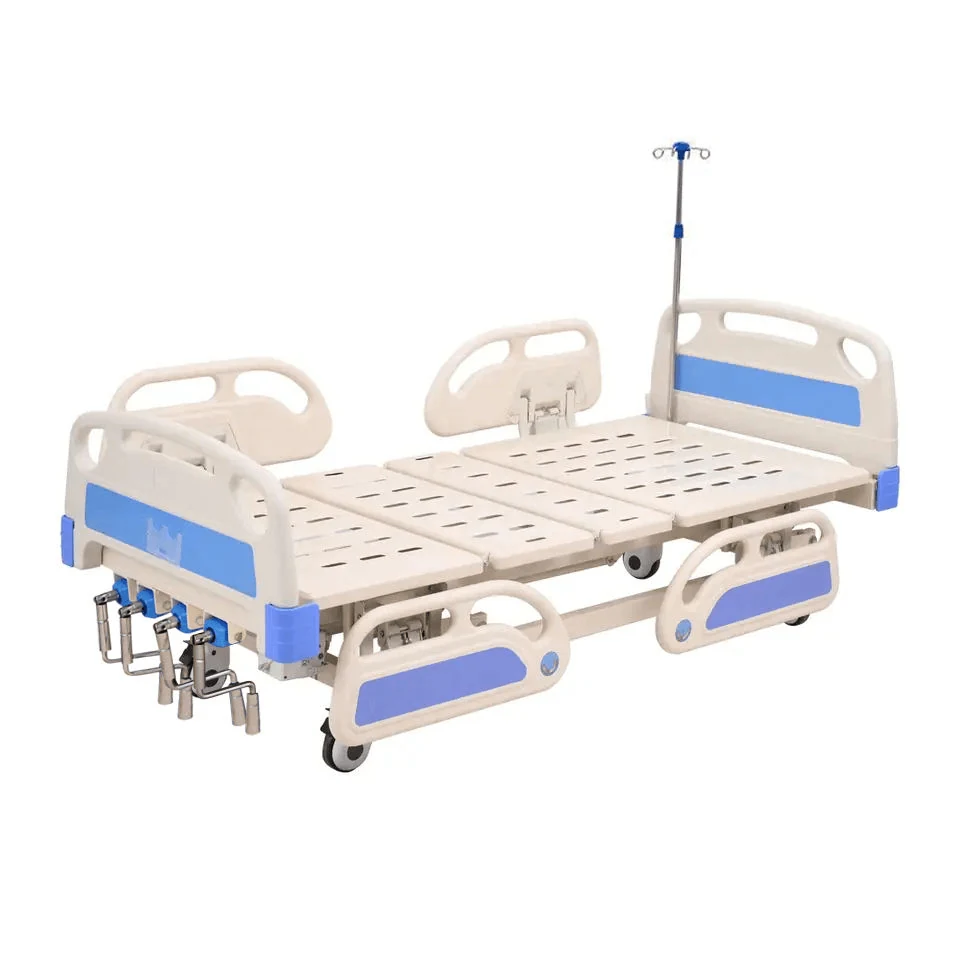

A manual nursing bed measuring 2250 mm long including the headboard and 1050 mm wide including guardrails, with a bed surface height adjustable from 450 to 680 mm. The backrest lifts through 0 to 75 degrees and the leg section through 0 to 30 degrees, both within plus or minus 5 degrees, and the bed tilts 0 to 15 degrees forward and backward. The frame is welded from formed 30 x 60 x 1.2 mm square tube using automatic welding and laser cutting, with fully welded flat surfaces, smooth seams and a load capacity of 200 kg or more. Reserved holes are provided for infusion stands.
Problems It Solves
- Lifting a patient to sit up injures care staff over time, which a 0 to 75 degree backrest removes
- Fixed-height beds force staff to stoop and make transfers unsafe, which 450 to 680 mm adjustment addresses
- Electric beds are unusable where power is unreliable, so operation is manual
- Light frames deform over years of use, so the frame is welded from 30 x 60 x 1.2 mm square tube to 200 kg or more
- Clamp-on IV stands damage bed frames, so infusion stand holes are reserved in the frame
Who It Is For
- Hospital and clinic procurement departments
- Nursing home and elderly care operators
- Hospital furniture distributors
- Home care distributors
- Government and NGO hospital equipping programmes
Key benefits
Why Buyers Choose It
- Backrest lifting to 75 degrees lets a patient sit up to eat and be cared for without staff lifting them
- Height adjustment from 450 to 680 mm sets a safe transfer height and a working height for care staff
- Forward and backward tilt of 0 to 15 degrees supports positioning that a flat bed cannot provide
- Load capacity of 200 kg or more on a fully welded 30 x 60 x 1.2 mm square tube frame resists long-term deformation
- Reserved infusion stand holes mean no clamp-on stand is needed at the bedside
- Manual operation needs no power supply, which suits wards and homes with unreliable electricity
Application scenarios
Where It Is Used
Scenarios
- Hospital ward care for bedridden patients
- Nursing home long-term care
- Home care for patients who cannot sit up unaided
- Rehabilitation wards
- Facilities with unreliable mains power
- Hospital furniture tender supply
Technical features
How It Is Built
- Backrest lifting angle 0-75 degrees within plus or minus 5 degrees
- Leg lifting angle 0-30 degrees within plus or minus 5 degrees
- Bed surface height adjustment 450-680 mm
- Forward and backward tilt 0-15 degrees

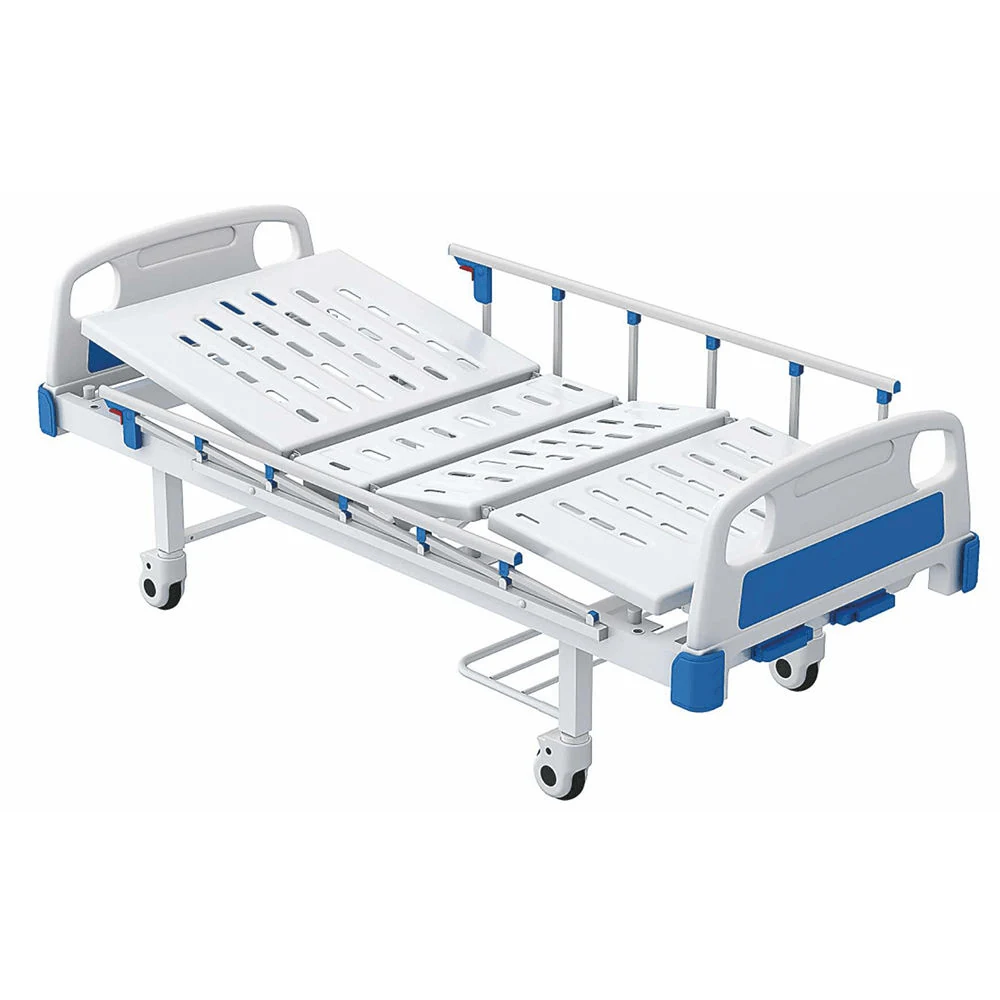

- Frame welded from formed 30 x 60 x 1.2 mm square tube
- Automatic welding technology with laser cutting
- Fully welded flat bed frame and surface with smooth seams
- Load capacity 200 kg or more
- Reserved holes for infusion stands
- Bed legs welded from integral rectangular tube for stability
Specifications
Technical Data
| Total Length | 2250 mm including headboard |
|---|---|
| Total Width | 1050 mm including guardrails |
| Bed Surface Height | 450-680 mm |
| Backrest Lifting Angle | 0-75 degrees plus or minus 5 degrees |
| Leg Lifting Angle | 0-30 degrees plus or minus 5 degrees |
| Forward and Backward Tilt | 0-15 degrees |
| Frame Tube | Formed square tube 30 x 60 x 1.2 mm |
| Load Capacity | 200 kg or more |
| Mattress Thickness | 80 mm |
| Infusion Stand | Reserved holes in the bed body |
Materials
- Carbon steel square tube frame
- ABS components
- 80 mm mattress
Manufacturing Process
- Laser cutting
- Sheet metal forming
- Bending
- Automatic welding
- Sandblasting
- Powder coating
- Injection moulding
Quality and compliance
Quality Control And Certification
Quality Control
- Frame welds are inspected for strength and seam finish after automatic welding
- Backrest and leg lifting angles are verified against the specification
- Height adjustment is cycle-tested across the 450 to 680 mm range
- Load capacity is verified against the 200 kg rating
- Surface flatness of the welded frame is checked before coating
Customisation and comparison
Options And Alternatives
Customisation Options
- Guardrail and headboard specification
- Mattress inclusion and thickness
- Frame colour
- Infusion stand and accessory selection
- Export carton and container loading plan
Compared With Other Options
- Electric nursing beds
- Manual operation needs no power supply, which suits wards and homes with unreliable electricity, at a lower cost
- Flat hospital beds
- Backrest, leg and height adjustment with tilt support nursing care that a flat bed cannot
- Beds with bolted frames
- A fully welded 30 x 60 x 1.2 mm square tube frame resists the loosening and deformation that bolted frames develop
Use guide
How To Use It Correctly
Step
Set the bed to its lowest height at 450 mm for patient transfer
Step
Raise the backrest gradually and check the patient is comfortable at the working angle
Step
Use the leg section lift to support circulation as advised by nursing staff
Step
Fit the infusion stand into the reserved holes rather than clamping to the frame
Step
Check guardrails are locked before leaving the bedside
Related products
Other Products In Hospital Furniture
Electric Nursing Bed With Nurse Control Panel
An electric nursing bed supplied with removable ABS head and foot boards, foldable ABS guardrails with lockable...
View product →
Stainless Steel IV Pole With Adjustable Height and Four Hooks
A mobile intravenous stand used in hospitals, clinics and home care to suspend IV bags and bottles. The stand is built...
View product →
Infusion Row Chair With Stainless Steel IV Stand
An infusion row chair for hospital outpatient departments, clinics and infusion centres, built on a thickened steel...
View product →
Stainless Steel Medical Trolley With Three Shelves
A three-shelf stainless steel medical trolley used to move instruments, dressings and supplies between a store room and...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Nursing Homes and Elderly Care
In elderly care the cost that matters is staff time, not unit price. A diaper that leaks overnight costs a...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
How to Import Medical Devices From China
Importing medical goods follows the same steps as any import, with two differences that decide whether the...
What to Expect From a Chinese Manufacturer
China's manufacturing sector is built on scale, supply chain depth and adaptability. Understanding where...
Choosing a China Factory for Medical Products
Reputation, location, production capability and communication decide whether a factory suits your order. For...
FAQ
Manual Nursing Bed With Backrest Leg and Height Adjustment FAQ
What are the bed dimensions
2250 mm total length including the headboard and 1050 mm total width including guardrails, with a bed surface height of 450 to 680 mm.
How far does the backrest lift
0 to 75 degrees within plus or minus 5 degrees, with the leg section lifting 0 to 30 degrees within the same tolerance.
What load does the frame carry
200 kg or more. The frame is welded from formed 30 x 60 x 1.2 mm square tube using automatic welding and laser cutting.
Does the bed tilt
Yes, 0 to 15 degrees forward and backward for positioning.
Is a mattress included
An 80 mm mattress is available with the bed. Confirm whether you want it included with your order.
How are the beds shipped
Beds ship disassembled to reduce volume, in export cartons with your shipping marks. Container loading quantity is confirmed with your order.
Request A Quote For This Product
Send your quantity, destination market and any labelling requirement. We confirm stock, lead time and the documentation that travels with the goods.
