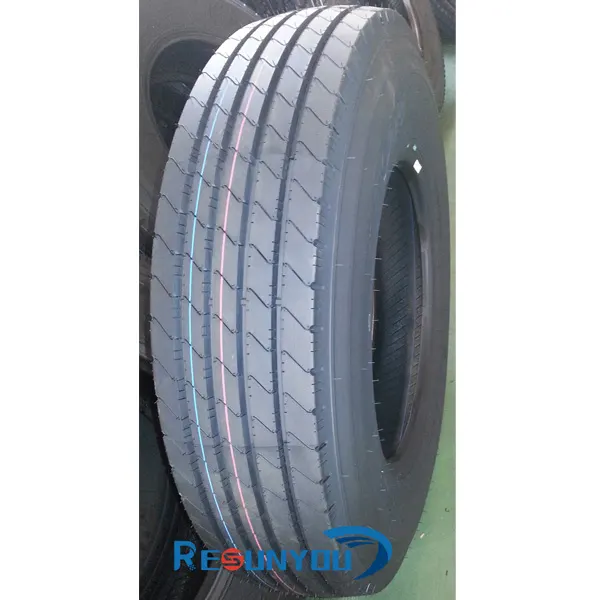

RSL613
The tread pattern delivers high wear resistance and strong anti-side-skid performance, with good drainage and consistent handling across long hauls. It is available in 11R22.5, 11R24.5, 285/
Overview
The tread pattern delivers high wear resistance and strong anti-side-skid performance, with good drainage and consistent handling across long hauls. It is available in 11R22.5, 11R24.5, 285/75R24.5, and 295/75R22.5 sizes, all with 14 ply rating and suitable for 8.25 to 9.00 inch rims.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What RSL613 Gives the Operator
High wear resistance extends casing life in high-mileage highway operations
Anti-side-skid tread design improves stability during cornering and braking
Good drainage performance reduces hydroplaning risk on wet highway surfaces
Consistent handling across steer and trailer positions enhances vehicle control
14 ply rating provides durability for sustained highway loads and long service cycles
Application Scenarios
- Long distance bus operations on paved highways with frequent stops and high daily mileage
- Light truck distribution fleets running on national trunk roads with mixed loading
- Trailer axles on regional hauls where consistent tread wear and low noise are required
Who It Is For
- Tyre importers stocking steer and trailer patterns for buses and light trucks
- Fleet operators replacing steer and trailer tyres on highway-running buses
- Distributors needing a cost-effective radial pattern for mixed container shipments
What It Is Meant To Fix
Steer tyres that wear unevenly due to poor lateral stability on long hauls
Trailer tyres that develop shoulder wear from poor load distribution and high speed
Tread patterns that fail to maintain grip on wet highways, increasing stopping distance
Short casing life leading to higher replacement frequency and cost per kilometre
Published Data For RSL613
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
| Size | PR | Standard Rim | Load Index and Speed | Overall Dia mm | Section Width mm | Max Load kg Single/Dual | Max Pressure kPa |
|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 8.25 | 144/142M | 1050 | 279 | 2800/2650 | 720 |
| 11R24.5 | 14 | 8.25 | 146/143M | 1100 | 279 | 3000/2725 | 720 |
| 285/75R24.5 | 14 | 8.25 | 144/141L | 1056 | 283 | 2800/2575 | 760 |
| 295/75R22.5 | 14 | 9.00 | 144/141L | 1014 | 298 | 2800/2575 | 760 |
Technical Features
- High wear resistance tread compound for extended casing life
- Anti-side-skid tread design with lateral grooves for improved cornering stability
- Multiple circumferential and lateral grooves for effective water evacuation
- 14 ply rating casing suitable for sustained highway use and retreading
- Optimized tread pattern for steer and trailer axle positions on buses and light trucks
Customisation
- Container loading planned across sizes and patterns in one shipment
- Sidewall marking and labelling to suit the destination market on request
Quality Control
- X-ray inspection of the finished casing before packing
- Dynamic balance check on the production line
- Production under ISO9001 and ISO/TS16949 systems
How It Compares
- Compared with A premium European steer tyreLower purchase price per casing, with a shorter proven mileage record in independent fleet testing
Getting the Most Out Of It
- Fit to steer or trailer axle positions only, not for drive axles
- Set cold pressure to the actual load carried, not the maximum listed on the sidewall
- Monitor pressure weekly to prevent shoulder wear from under inflation
RSL613 Questions
What load can each size carry
11R22.5 and 11R24.5 carry 3000 kg single and 2725 kg dual at 720 kPa. 285/75R24.5 and 295/75R22.5 carry 2800 kg single and 2575 kg dual at 760 kPa.
Can the casing be retreaded
The casing is built for retreading, though acceptance depends on the retreader and operating conditions. Confirm with your retreader before large volume commitment.
What certifications does the tyre carry
Resunyou products carry ISO9001, ISO/TS16949, CCC, E-mark, DOT, GSO/GCC, SONCAP, INMETRO and NOM approvals. Tell us your destination market and we will confirm which marking applies.
What is the ply rating and rim size for each size
All sizes are 14 ply rating. 11R22.5 and 11R24.5 use 8.25 inch rims. 285/75R24.5 uses 8.25 inch rim. 295/75R22.5 uses 9.00 inch rim.
Can RSL613 be shipped with other patterns in one container
Yes. Truck tyres, car tyres, off the road tyres and wheels are routinely loaded into the same container. Send the sizes and quantities per size and we will plan the load.
How do I get a price for RSL613
Email [email protected] with the sizes and quantity you need. The email button on this page pre fills RSL613 in the subject line so the enquiry reaches the right desk.
Get Pricing For RSL613
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
