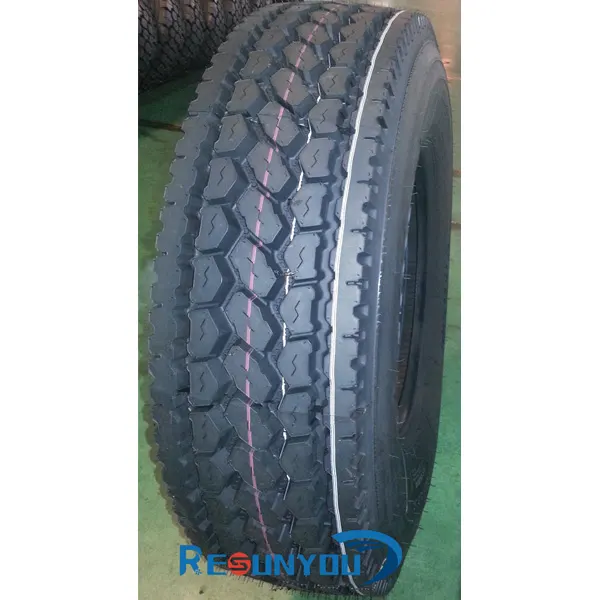

RDR936
The wide tread width delivers strong driving and gripping power, while the extra deep tread ensures long life and powerful traction. Closed shoulder construction resists irregular wear, and
Overview
The wide tread width delivers strong driving and gripping power, while the extra deep tread ensures long life and powerful traction. Closed shoulder construction resists irregular wear, and the casing is built for crack and tear resistance under heavy duty conditions.
- ISO9001
- ISO/TS16949
- CCC
- E-mark
- DOT
- GSO/GCC
- SONCAP
- INMETRO
- NOM
What RDR936 Gives the Operator
Wide tread width improves grip and driving stability on long haul routes
Extra deep tread provides extended tread life and consistent performance under heavy loads
Closed shoulder design reduces irregular wear and maintains even contact with the road
Casing construction resists cracking and tearing during prolonged use
16 ply rating offers durability for both heavy duty truck and bus applications
Application Scenarios
- Long distance haulage on paved highways and trunk roads with consistent loading
- Regional distribution fleets operating on good road surfaces with daily high-mileage cycles
- Bus operations on urban and intercity routes where tread life and grip are critical
Who It Is For
- Tyre importers seeking a durable radial pattern for long haul and bus applications
- Fleet operators replacing tyres on long haul trucks and buses with consistent road use
- Distributors who need a reliable TBR pattern in multiple sizes for consolidated container shipments
What It Is Meant To Fix
Tyres that wear unevenly or develop shoulder damage on long haul routes
Short tread life under heavy duty conditions leading to frequent replacements
Casing failure due to cracking or tearing during extended use on paved roads
Lack of consistent grip and traction under full load on long haul routes
Published Data For RDR936
These are the figures published for this product. Anything not listed here is confirmed in writing before an order.
| Size | PR | Standard Rim | Load Index and Speed | Overall Dia mm | Section Width mm | Max Load kg Single/Dual | Max Pressure kPa |
|---|---|---|---|---|---|---|---|
| 11R22.5 | 16 | 8.25 | 146/143M | 1050 | 279 | 3000/2725 | 830 |
| 11R24.5 | 16 | 8.25 | 149/146L | 1100 | 279 | 3250/3000 | 830 |
| 285/75R24.5 | 16 | 8.25 | 147/144L | 1056 | 283 | 3075/2800 | 830 |
| 295/75R22.5 | 16 | 9.00 | 146/143L | 1014 | 298 | 3000/2725 | 830 |
Technical Features
- Wide tread width design for enhanced driving and gripping power
- Extra deep tread pattern for extended tread life and strong traction
- Closed shoulder construction to resist irregular wear
- Casing engineered for excellent crack and tear resistance
- 16 ply rating suitable for heavy duty and bus applications
Customisation
- Container loading planned across sizes and patterns in one shipment
- Sidewall marking and labelling to suit the destination market on request
Quality Control
- X-ray inspection of the finished casing before packing
- Dynamic balance check on the production line
- Production under ISO9001 and ISO/TS16949 systems
How It Compares
- Compared with A premium European radial patternLower purchase price per casing, with a shorter proven mileage record in independent fleet testing
Getting the Most Out Of It
- Fit to the drive axle or bus driving position only, not for steer or trailer positions
- Set cold pressure to the actual load carried, not the maximum listed on the sidewall
- Check pressures weekly to prevent under inflation, a common cause of shoulder wear
RDR936 Questions
What load can each size carry
11R22.5: 3000 kg single / 2725 kg dual; 11R24.5: 3250 kg single / 3000 kg dual; 285/75R24.5: 3075 kg single / 2800 kg dual; 295/75R22.5: 3000 kg single / 2725 kg dual, all at 830 kPa.
Can the casing be retreaded
The casing is built for retreading, though acceptance depends on the retreader and on how the tyre was operated. Confirm with your retreader before bulk ordering.
What certifications does the tyre carry
Resunyou products carry ISO9001, ISO/TS16949, CCC, E-mark, DOT, GSO/GCC, SONCAP, INMETRO and NOM approvals. Let us know your destination market and we will confirm the applicable markings.
What rim size do these tyres mount on
11R22.5 and 11R24.5 mount on 8.25 inch rims; 285/75R24.5 mounts on 8.25 inch rim; 295/75R22.5 mounts on 9.00 inch rim.
Can RDR936 be shipped with other patterns in one container
Yes. Truck tyres, car tyres, off the road tyres and wheels are routinely loaded into the same container. Send the sizes and quantities per size and we will plan the load.
How do I get a price for RDR936
Email [email protected] with the sizes and quantity you need. The email button on this page pre fills RDR936 in the subject line so the enquiry reaches the right desk.
Get Pricing For RDR936
Send the sizes and quantity per size. We will confirm availability, the approval marking for your market and a container plan.
